NSN 5305-01-524-1511 120-225-3-14, 1202253R14, 120-225-3R14
Product Details | CLOSE TOLERANCE SCREW
5305-01-524-1511 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 120-225-3-14, 1202253R14, 120-225-3R14 , 5305-01-524-1511, 01-524-1511, 5305015241511, 120225314, 015241511
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 SEP 2004 | 01-524-1511 | 29294 ( SCREW, CLOSE TOLERANCE ) |
Drawings & Photos | NSN 5305-01-524-1511
Demand History | NSN 5305-01-524-1511
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-524-1511 | 2024-04-114 | 4456 | United States |
| 1202253R14 | 2024-01-31 | 6120 | United States |
| 1202253R14 | 2023-12-341 | 6120 | United States |
| 5305-01-524-1511 | 2023-04-100 | 2653 | United States |
| 5305-01-524-1511 | 2023-03-75 | 5737 | United States |
| 5305-01-524-1511 | 2022-12-362 | 2537 | United States |
| 5305-01-524-1511 | 2022-05-129 | 5000 | United States |
| 120-225-3R14 | 2020-03-75 | 2693 | DIBBS |
| 5305-01-524-1511 | 2018-07-203 | 2649 | DIBBS |
| 5305-01-524-1511 | 2015-12-364 | 2993 | DIBBS |
| 5305-01-524-1511 | 2014-12-349 | 1099 | DIBBS |
| 5305-01-524-1511 | 2014-05-148 | 1099 | DIBBS |
| 5305-01-524-1511 | 2014-04-110 | 149 | DIBBS |
| 5305-01-524-1511 | 2014-03-76 | 151 | DIBBS |
| 5305-01-524-1511 | 2013-06-156 | 121 | DIBBS |
| 5305-01-524-1511 | 2013-04-109 | 66 | DIBBS |
| 5305-01-524-1511 | 2013-04-101 | 66 | DIBBS |
| 5305-01-524-1511 | 2013-02-54 | 66 | DIBBS |
| 5305-01-524-1511 | 2013-02-39 | 66 | DIBBS |
| 5305-01-524-1511 | 2013-01-08 | 66 | DIBBS |
| 5305-01-524-1511 | 2012-05-129 | 130 | DIBBS |
| 5305-01-524-1511 | 2012-02-52 | 67 | DIBBS |
| 5305-01-524-1511 | 2012-02-39 | 37 | DIBBS |
| 5305-01-524-1511 | 2011-10-298 | 35 | DIBBS |
Cross Reference | NSN 5305-01-524-1511
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 120-225-3-14 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 120-225-3R14 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 120-225-3R14 | 0K6Z0 | SATURN FASTENERS INC DIV ACUMENT |
| 120-225-3R14 | 0ZC92 | HEARTLAND PRECISION FASTENERS, INC. |
| 120-225-3R14 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| 120-225-3R14 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 120-225-3R14 | 62384 | LFC INDUSTRIES INC. |
| 120-225-3R14 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 120-225-3R14 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-524-1511
Technical Data | NSN 5305-01-524-1511
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.429 INCHES NOMINAL |
| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6415 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE 2, CLASS2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 2000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C38 ROUND EXTENDED WASHER |
| HEAD DIAMETER | 0.375 INCHES NOMINAL |
| HEAD HEIGHT | 0.094 INCHES NOMINAL |
| EXTENDED WASHER DIAMETER | 0.437 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.027 INCHES NOMINAL |

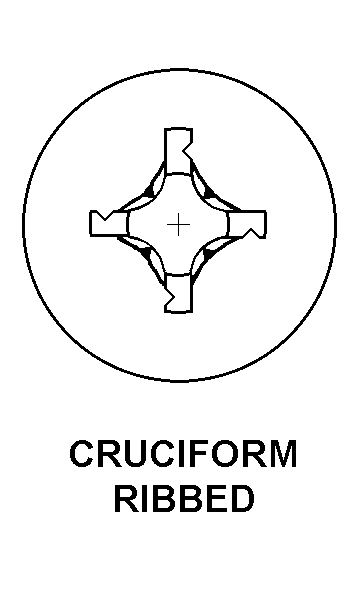

| INTERNAL DRIVE STYLE | D26 CRUCIFORM RIBBED |
| GRIP LENGTH | 0.438 INCHES NOMINAL |
| GRIP DIAMETER | 0.189 INCHES NOMINAL |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | SUPPORT OF PRE-PROVISIONING ITEMS FOR WHICH NAVICP PHIL ACTS AS POE (E-NSN ISIL) |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREW, WASHER HEAD, CLOSE TOLERANCE, LONG THREAD, 95 KSI FSU |
Restrictions/Controls & Freight Information | NSN 5305-01-524-1511
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-524-1511
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | YR | |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
