NSN 5305-01-573-9067 DPY7900P10B3, DPY7900P-10-B-3 , 3493AS1952
Product Details | PANEL SCREW ASSEMBLY
5305-01-573-9067 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: DPY7900P10B3, DPY7900P-10-B-3 , 3493AS1952, 3493-AS-195-2, 5305-01-573-9067, 01-573-9067, 5305015739067, 015739067
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 MAY 2009 | 01-573-9067 | 33044 ( SCREW ASSEMBLY, PANEL ) |

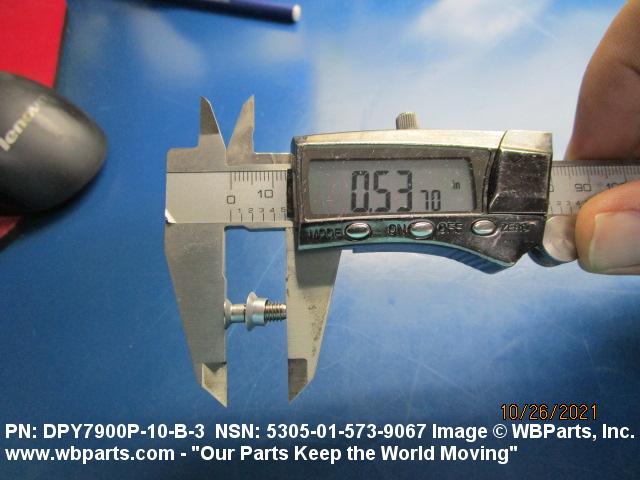

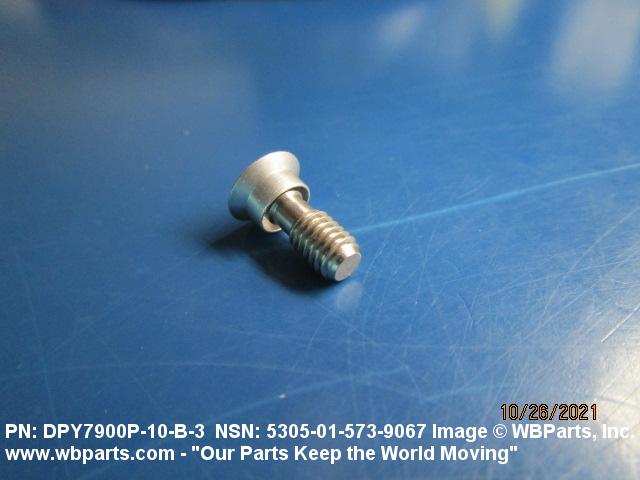

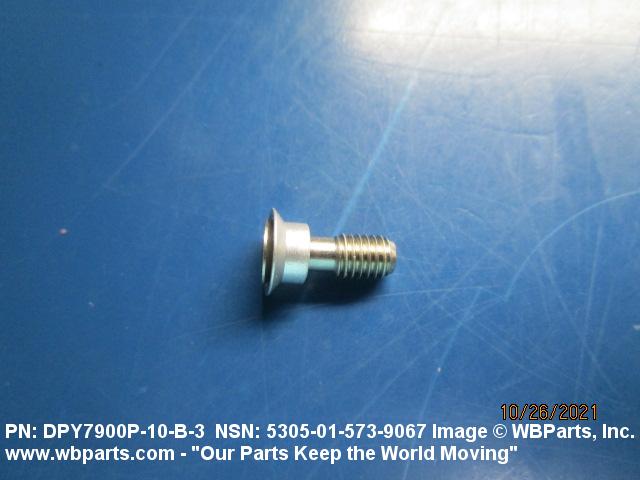

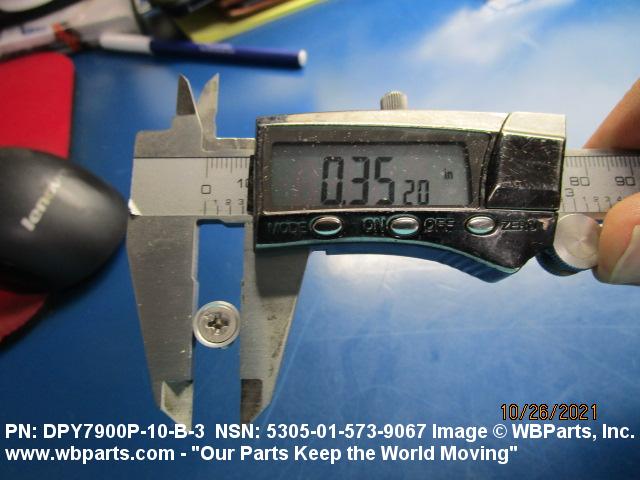

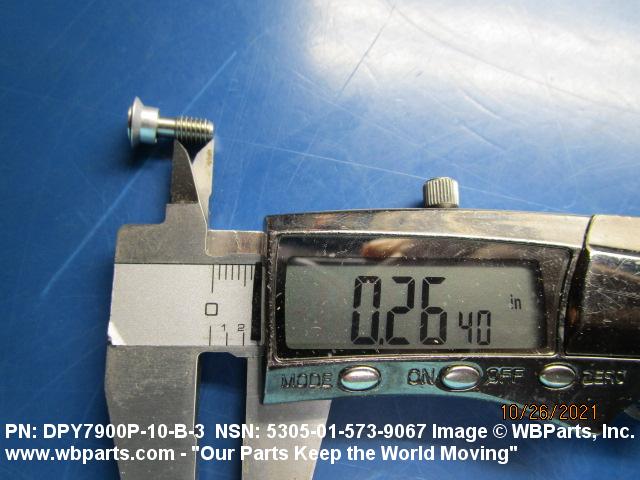

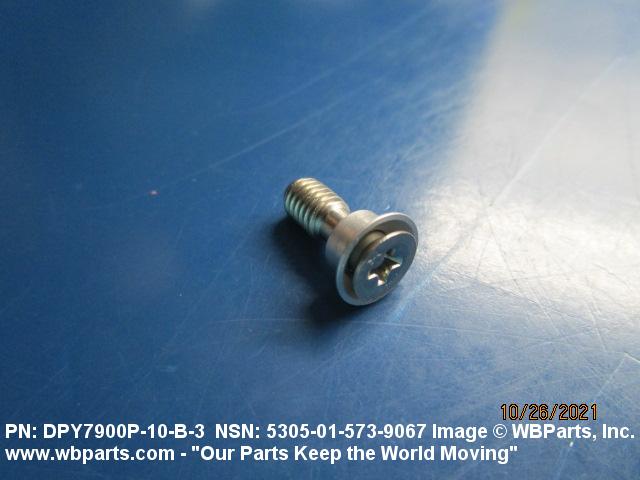

Drawings & Photos | NSN 5305-01-573-9067
Demand History | NSN 5305-01-573-9067
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DPY7900P-10-B-3 | 2025-07-192 | 30 | DIBBS |
| DPY7900P-10-B-3 | 2025-06-175 | 30 | DIBBS |
| DPY7900P10B3 | 2025-02-40 | 300 | IL |
| DPY7900P-10-B-3 | 2023-05-146 | 50 | DIBBS |
| DPY7900P-10-B-3 | 2023-04-115 | 50 | DIBBS |
| DPY7900P10B3 | 2021-10-294 | 20 | United States |
| DPY7900P10B3 | 2021-10-293 | 50 | United States |
| DPY7900P10B3 | 2020-12-357 | 2 | US |
| 5305-01-573-9067 | 2017-03-85 | 49 | DIBBS |
| 5305-01-573-9067 | 2015-12-347 | 30 | DIBBS |
| 5305-01-573-9067 | 2014-10-287 | 30 | DIBBS |
| 5305-01-573-9067 | 2013-07-204 | 30 | DIBBS |
| 5305-01-573-9067 | 2013-07-189 | 30 | DIBBS |
| DPY7900P10B3 | 2011-03-84 | 50 | United States |
| DPY7900P10B3 | 2008-03-65 | 12 | US |
| DPY7900P10B3 | 2006-08-214 | 5000 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-573-9067
Restrictions/Controls & Freight Information | NSN 5305-01-573-9067
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-573-9067
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
