NSN 5305-01-583-1085 NAS1581C3T14, 01-583-1085, 015831085
Product Details | CLOSE TOLERANCE SCREW
5305-01-583-1085 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: NAS1581C3T14, 5305-01-583-1085, 01-583-1085, 5305015831085, 015831085
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAR 2010 | 01-583-1085 | 29294 ( SCREW, CLOSE TOLERANCE ) |

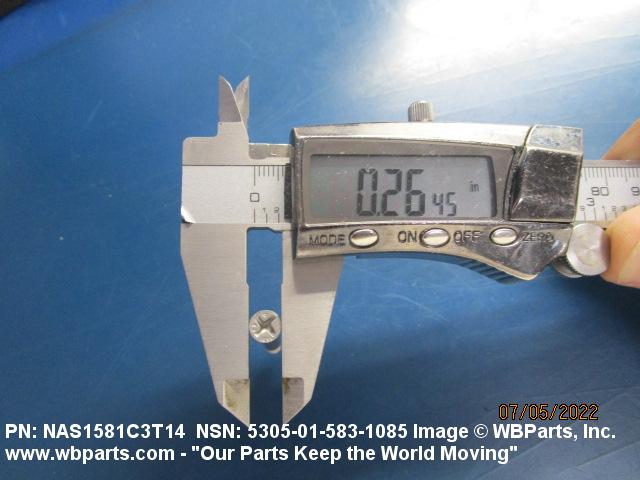

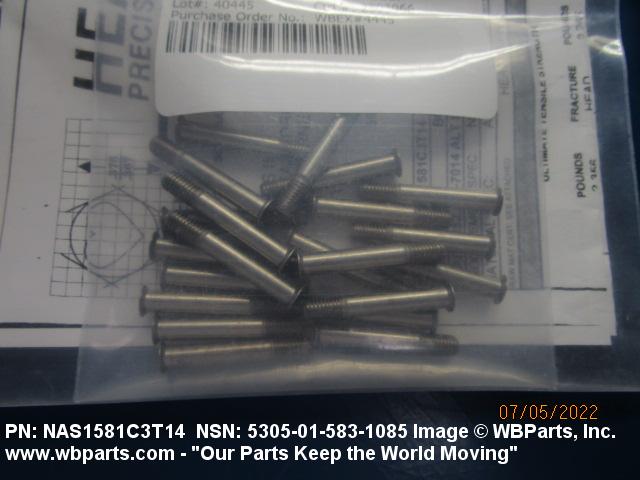

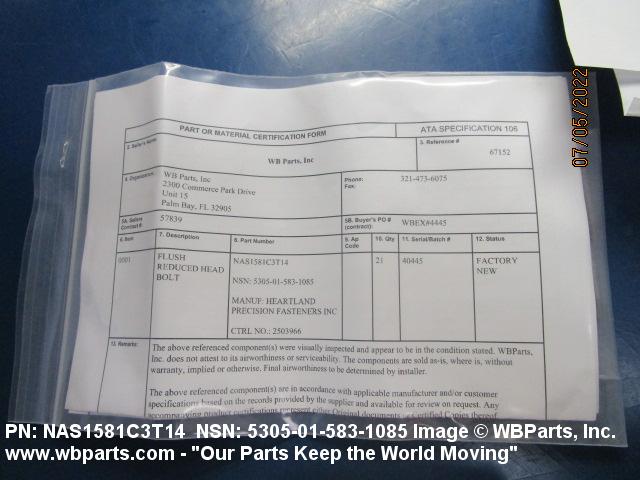

Drawings & Photos | NSN 5305-01-583-1085
Demand History | NSN 5305-01-583-1085
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1581C3T14 | 2023-08-219 | 10 | US |
Cross Reference | NSN 5305-01-583-1085
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1581C3T14 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-583-1085
Technical Data | NSN 5305-01-583-1085
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| GRIP LENGTH | 0.865 INCHES MINIMUM AND 0.885 INCHES MAXIMUM |
| HEAD DIAMETER | 0.3504 INCHES MINIMUM AND 0.3988 INCHES MAXIMUM |
| HEAD STYLE | FLAT COUNTERSUNK |
| INTERNAL DRIVE STYLE | OFFSET CRUCIFORM (TORQUE SET) |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SURFACE TREATMENT | CADMIUM OVERALL |
| THREAD QUANTITY PER INCH | 28 |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES THREADS |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD LENGTH | 0.378 INCHES MINIMUM |
| MATERIAL | IRON ALLOY 660 OVERALL |
| SPECIAL FEATURES | INTERNAL DRIVE RIBBED |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| FASTENER LENGTH | 0.638 INCHES MINIMUM AND 0.668 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES GRIP |
| GRIP DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| THREAD CLASS | 3A |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS 4737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
Restrictions/Controls & Freight Information | NSN 5305-01-583-1085
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
