NSN 5305-01-590-6358 NAS1790V3R12A, 01-590-6358, 015906358
Product Details | CLOSE TOLERANCE SCREW

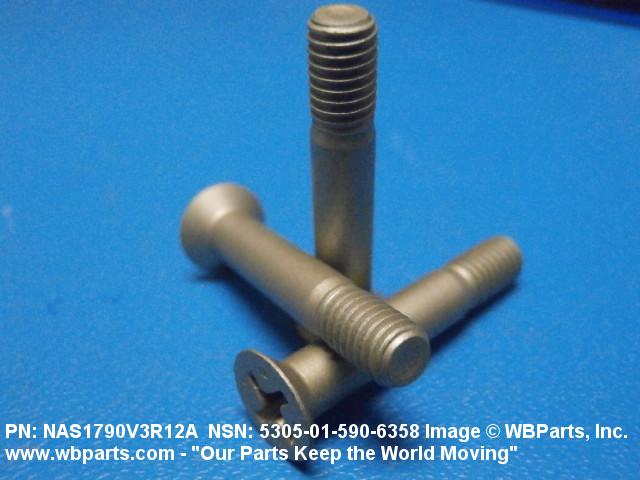

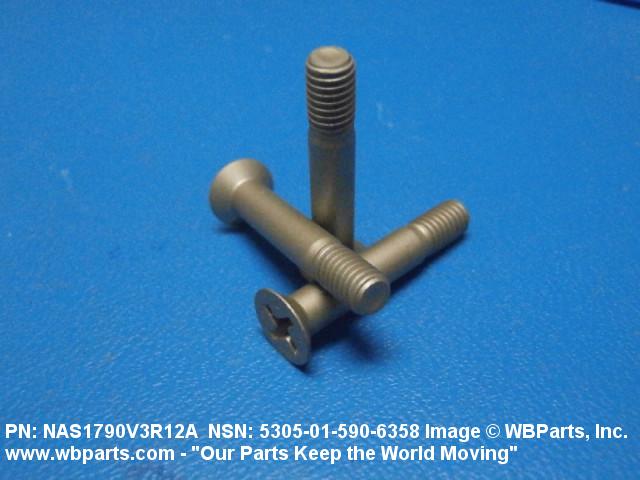

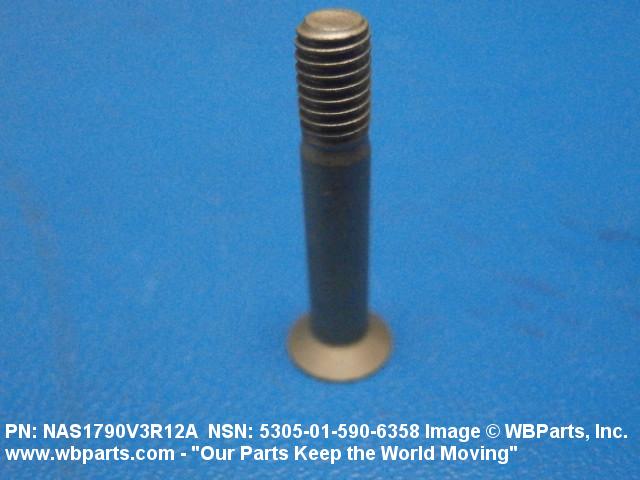

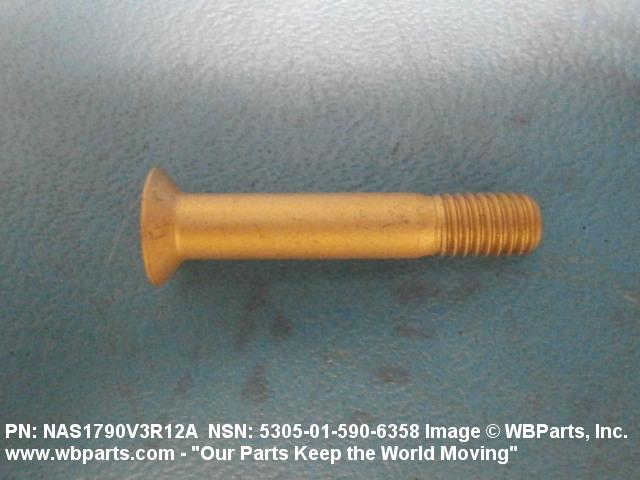

5305-01-590-6358 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: NAS1790V3R12A, 5305-01-590-6358, 01-590-6358, 5305015906358, 015906358
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 DEC 2010 | 01-590-6358 | 29294 ( SCREW, CLOSE TOLERANCE ) |
Drawings & Photos | NSN 5305-01-590-6358
Demand History | NSN 5305-01-590-6358
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-590-6358 | 2015-03-71 | 6 | France |
| NAS1790V3R12A | 2010-08-214 | 100 | United Kingdom |
Cross Reference | NSN 5305-01-590-6358
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1790V3R12A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-590-6358
Technical Data | NSN 5305-01-590-6358
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.338 INCHES NOMINAL |

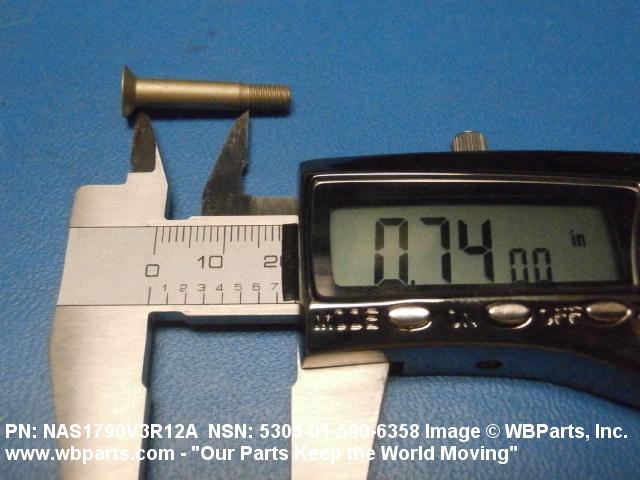

| GRIP LENGTH | 0.740 INCHES MINIMUM AND 0.760 INCHES MAXIMUM |

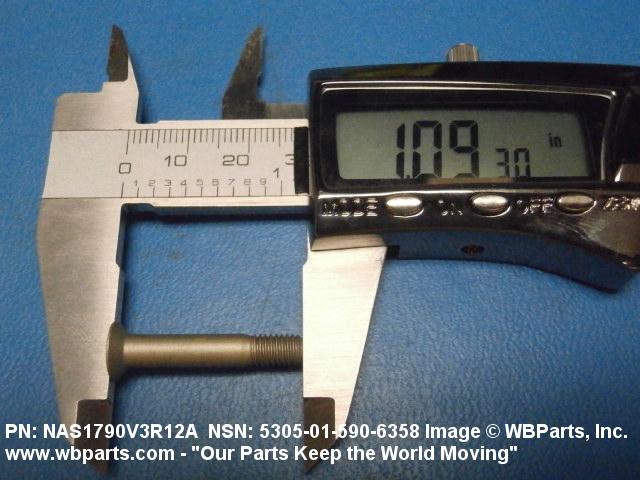

| FASTENER LENGTH | 1.073 INCHES MINIMUM AND 1.103 INCHES MAXIMUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | NAS 4006 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | FLAT COUNTERSUNK |

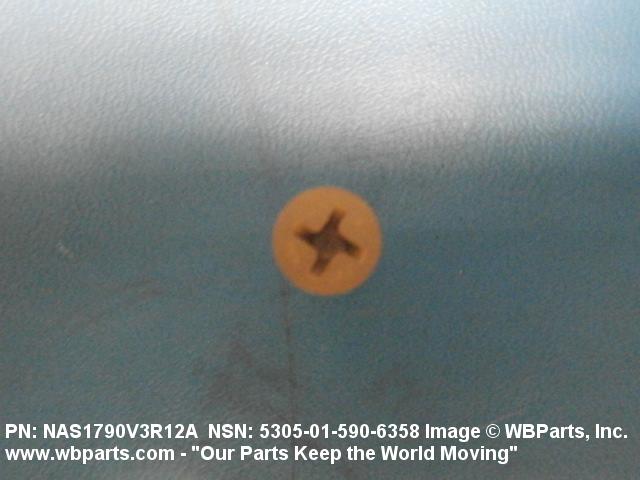

| INTERNAL DRIVE STYLE | OFFSET CRUCIFORM (TORQUE SET) |
| THREAD QUANTITY PER INCH | 32 |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | BOLT, 100 DEG FLUSH HEAD 160,000 PSI UTS |
| THREAD SERIES DESIGNATOR | UNJF |
| GRIP DIAMETER | 0.189 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |

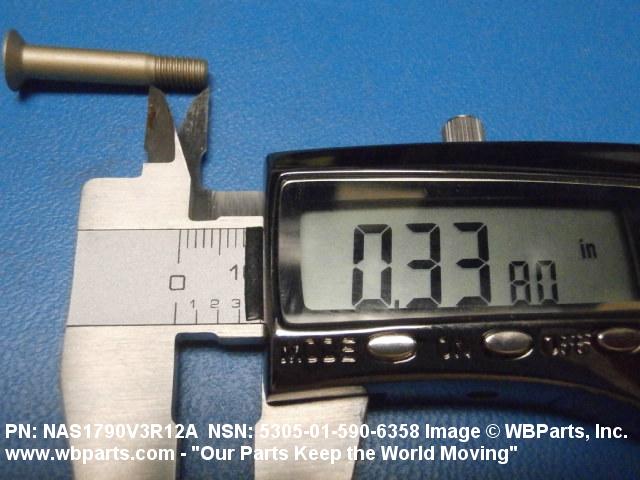

| HEAD DIAMETER | 0.339 INCHES MINIMUM AND 0.381 INCHES MAXIMUM |
