NSN 5310-00-051-8624 MS21046C20, L43782P01, 00-051-8624
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-051-8624 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS21046C20, L43782P01, 5310-00-051-8624, 00-051-8624, 5310000518624, 000518624
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAY 1982 | 00-051-8624 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

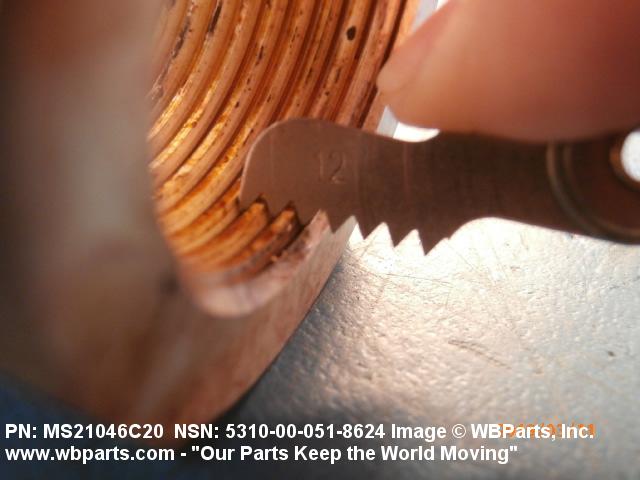

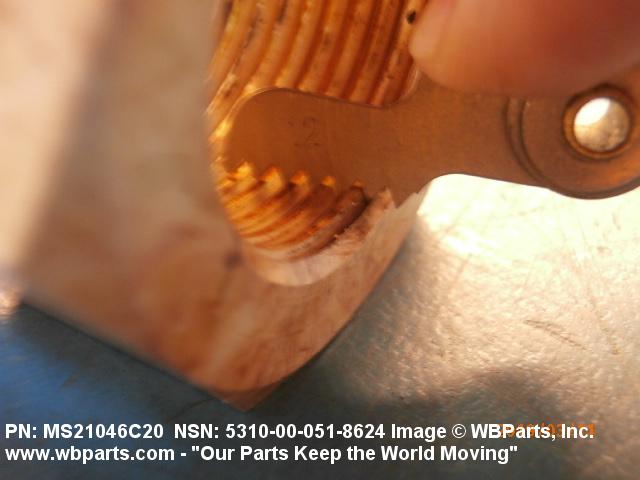

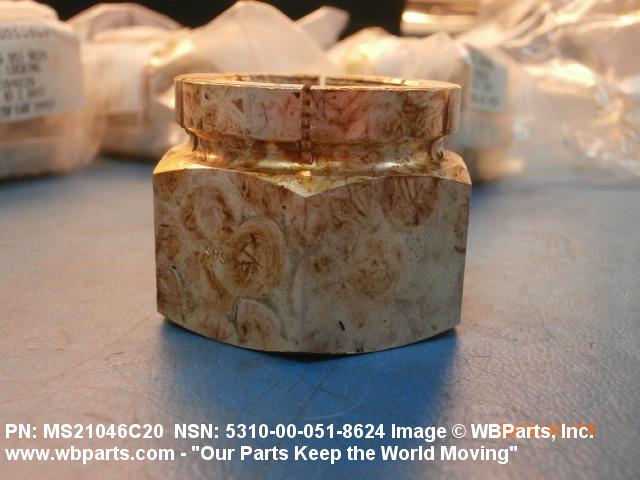

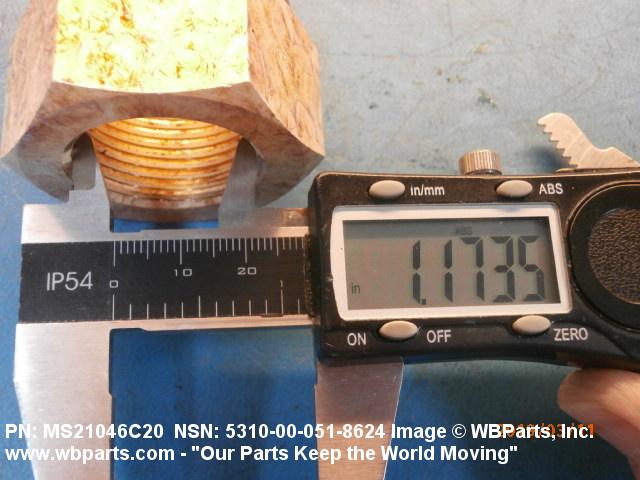

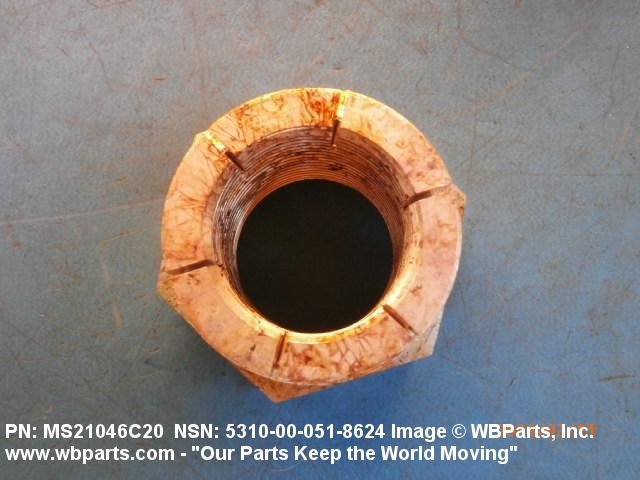

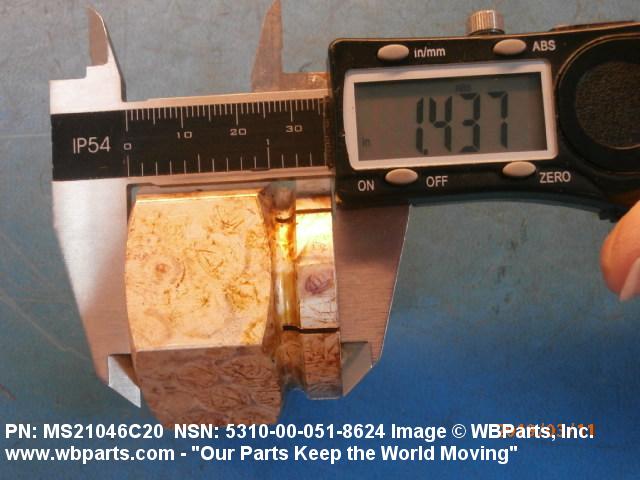

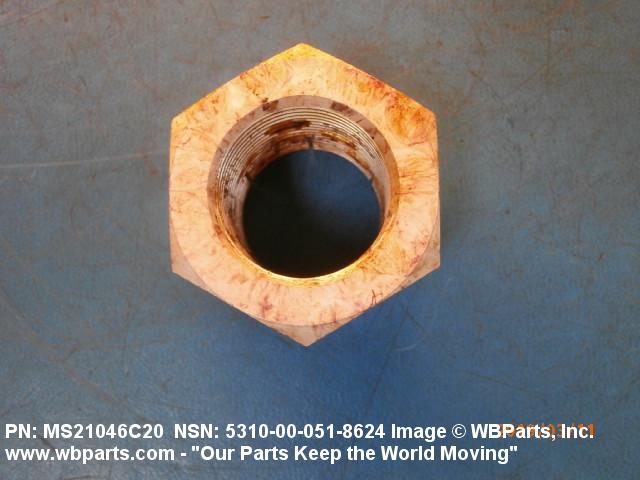

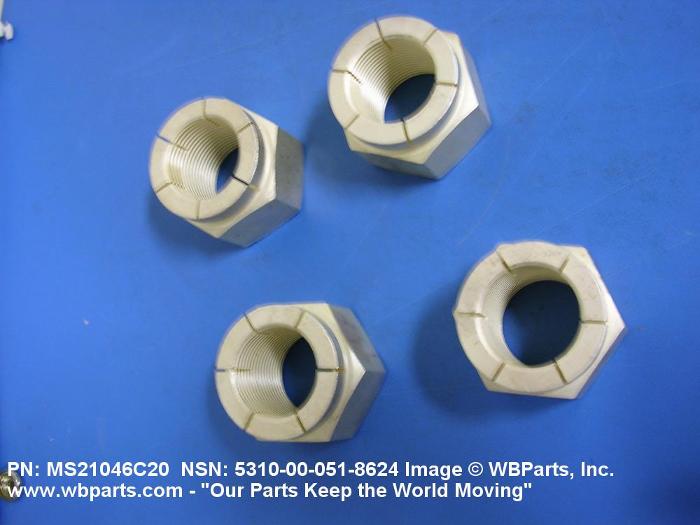

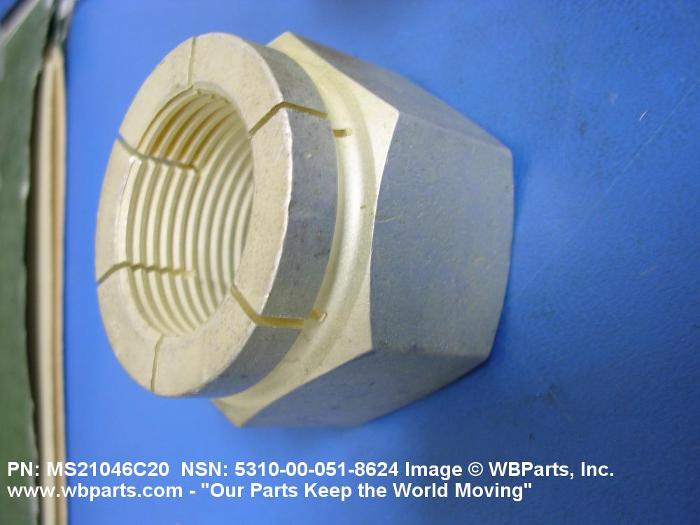

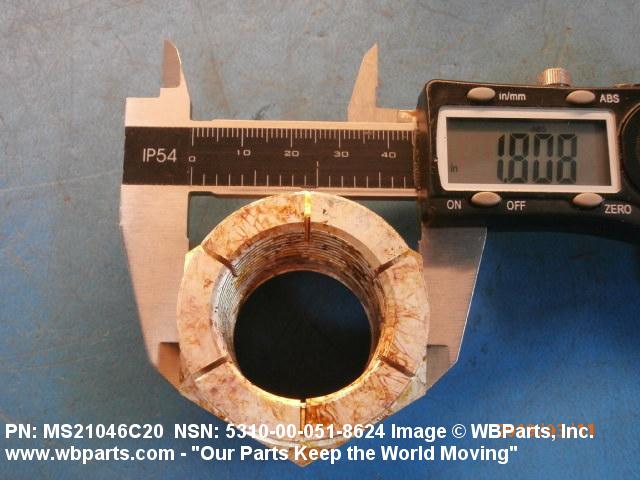

Drawings & Photos | NSN 5310-00-051-8624
Demand History | NSN 5310-00-051-8624
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-051-8624 | 2023-10-276 | 28 | DIBBS |
| 5310-00-051-8624 | 2021-05-123 | 13 | DIBBS |
| MS21046C20 | 2019-02-50 | 5 | United States |
| MS21046C20 | 2008-07-212 | 4 | United States |
| MS21046C20 | 2008-07-206 | 4 | United States |
| 5310-00-051-8624 | 2006-07-185 | 0 | Australia |
| L43782P01 | 2006-07-185 | 50 | Australia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-051-8624
Technical Data | NSN 5310-00-051-8624
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 1.250 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.795 INCHES MINIMUM |
| WIDTH ACROSS FLATS | 1.801 INCHES MINIMUM AND 1.815 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21046C20 |
Restrictions/Controls & Freight Information | NSN 5310-00-051-8624
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
