NSN 5310-00-062-9602 SS508110, SS5081-10, 10179198

Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-062-9602 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: SS508110, SS5081-10, 10179198, 47FW1018, 5310-00-062-9602, 00-062-9602, 5310000629602, 000629602

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	27 JUN 1967	00-062-9602	29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON )

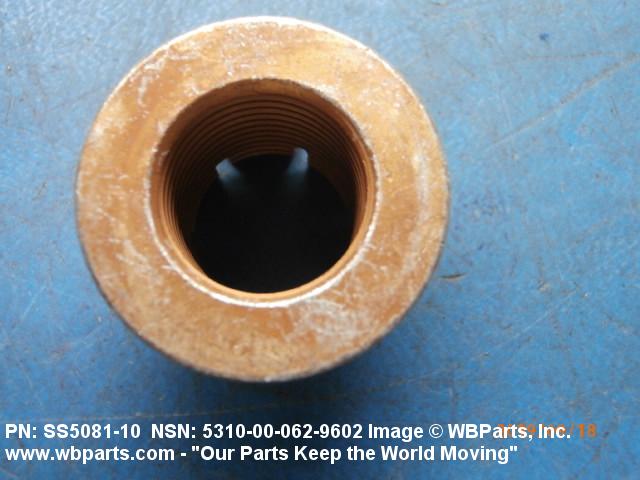

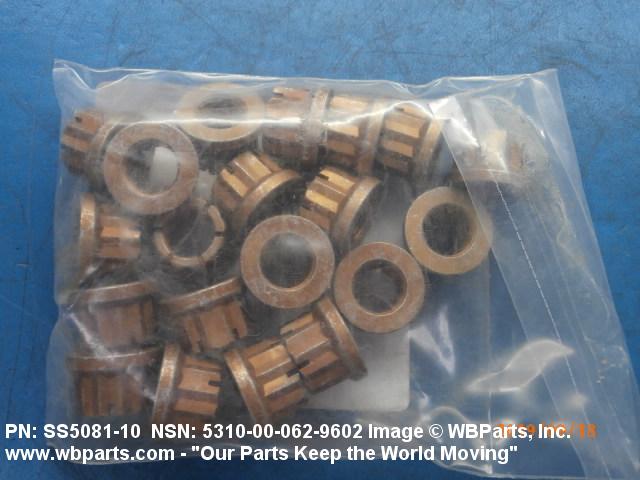

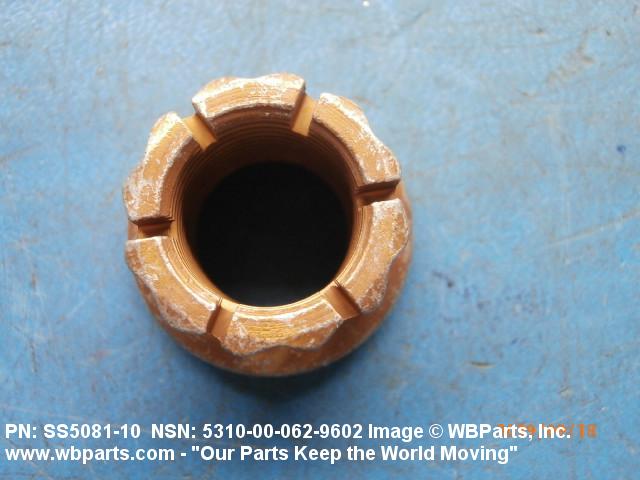

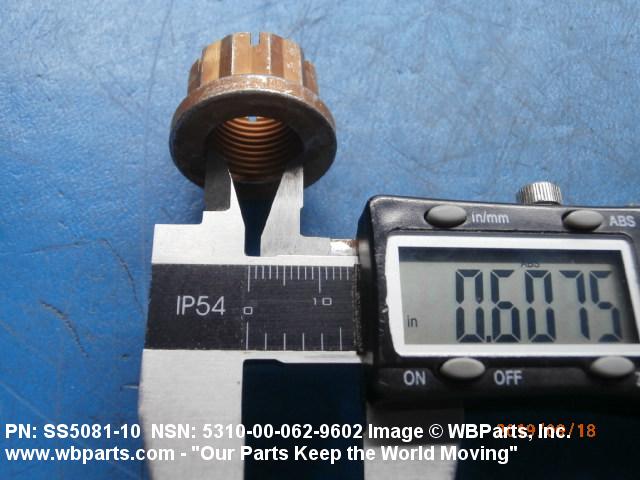

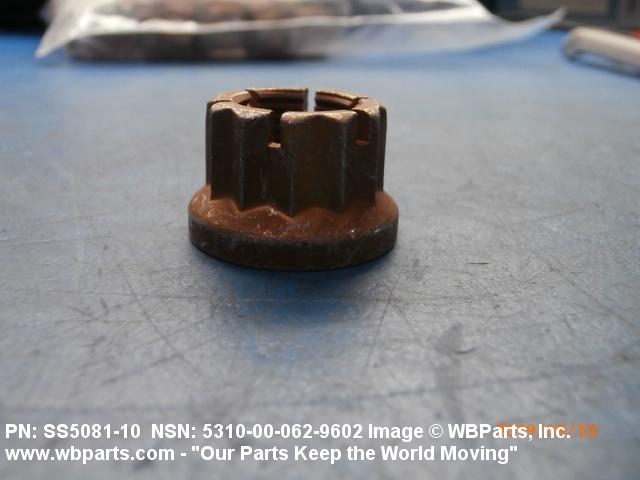

Drawings & Photos | NSN 5310-00-062-9602

Part Number	Request Date	QTY	Origin
47FW1018	2025-10-300	2500	DIBBS
SS5081-10	2025-10-300	2500	DIBBS
47FW1018	2025-10-292	2500	DIBBS
SS5081-10	2025-10-292	2500	DIBBS
47FW1018	2025-10-287	2500	DIBBS
SS5081-10	2025-10-287	2500	DIBBS
47FW1018	2025-10-278	2500	DIBBS
SS5081-10	2025-10-278	2500	DIBBS
47FW1018	2025-10-275	1500	DIBBS
SS5081-10	2025-10-275	1500	DIBBS
47FW1018	2025-09-267	1500	DIBBS
SS5081-10	2025-09-267	1500	DIBBS
47FW1018	2025-09-262	1500	DIBBS
SS5081-10	2025-09-262	1500	DIBBS
47FW1018	2025-09-254	1500	DIBBS
SS5081-10	2025-09-254	1500	DIBBS
5310-00-062-9602	2025-06-177	19	US
47FW1018	2025-05-132	614	DIBBS
SS5081-10	2025-05-132	614	DIBBS
47FW1018	2025-05-124	614	DIBBS
SS5081-10	2025-05-124	614	DIBBS
47FW1018	2022-03-82	1271	DIBBS
SS5081-10	2022-03-82	1271	DIBBS
SS508110	2019-08-219	20	United States
5310-00-062-9602	2019-08-213	20	United States
47FW1018	2019-06-161	4000	DIBBS
SS5081-10	2019-06-161	4000	DIBBS
47FW1018	2019-05-134	2500	DIBBS
SS5081-10	2019-05-134	2500	DIBBS
47FW1018	2019-04-119	1112	DIBBS
SS5081-10	2019-04-119	1112	DIBBS
47FW1018	2019-02-49	1200	DIBBS
SS5081-10	2019-02-49	1200	DIBBS
5310-00-062-9602	2015-04-117	1	DIBBS
5310-00-062-9602	2015-04-116	1	DIBBS
5310-00-062-9602	2015-04-105	1	DIBBS
5310-00-062-9602	2015-02-32	2399	DIBBS
SS5081-10	2014-10-296	5	Canada
47FW1018	2014-03-80	1904	US
5310-00-062-9602	2014-03-64	1904	DIBBS
5310-00-062-9602	2013-10-303	613	DIBBS
5310-00-062-9602	2013-06-162	1305	DIBBS
10179198	2013-06-161	2	US
10179198	2009-04-103	3	United States
5310-00-062-9602	2009-03-68	100	Australia

Cross Reference | NSN 5310-00-062-9602

Part Number	Cage Code	Manufacturer
10179198	18876	U S ARMY AVIATION AND MISSILE COMMAND
47FW1018	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
SS5081-10	78286	SIKORSKY AIRCRAFT CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-062-9602

Compare

Related Products | NSN 5310-00-062-9602

5310-00-062-9699, 5310-00-062-9701, 5310-00-062-9702, 5310-00-062-9703, 5310-00-062-9732

Technical Data | NSN 5310-00-062-9602

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.625 INCHES

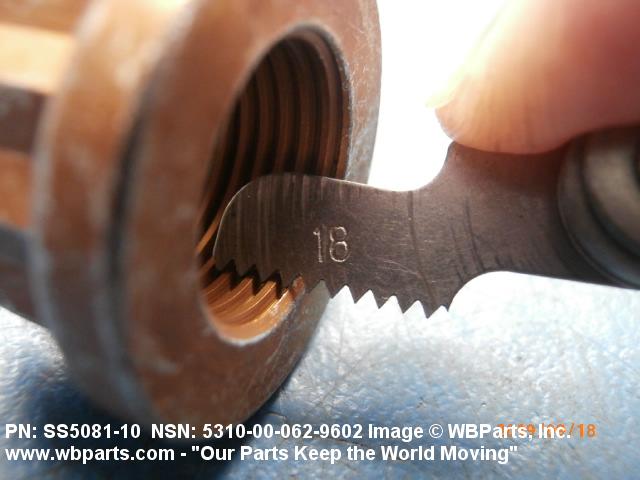

THREAD QUANTITY PER INCH	18
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 8630 OR STEEL COMP 4037 OR STEEL COMP 8740 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 6280 ASSN STD 1ST MATERIAL RESPONSE OR AMS 6300 ASSN STD 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 3RD MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	38.0 ROCKWELL C MAXIMUM
NUT STYLE	A293 DOUBLE HEXAGON

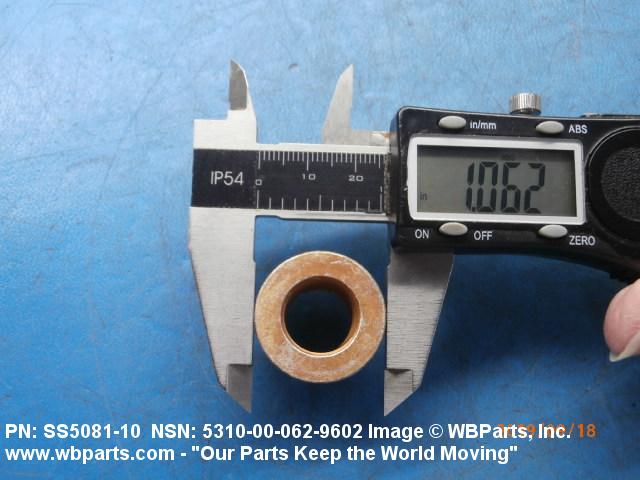

WASHER OUTSIDE DIAMETER	1.062 INCHES MAXIMUM

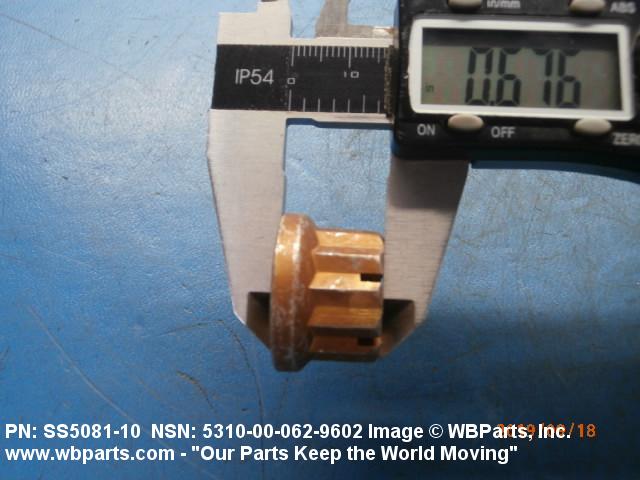

OVERALL HEIGHT	0.677 INCHES MAXIMUM

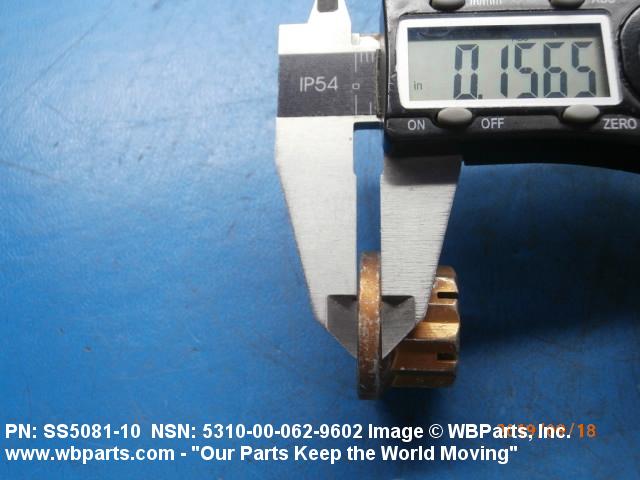

WASHER THICKNESS	0.154 INCHES MINIMUM

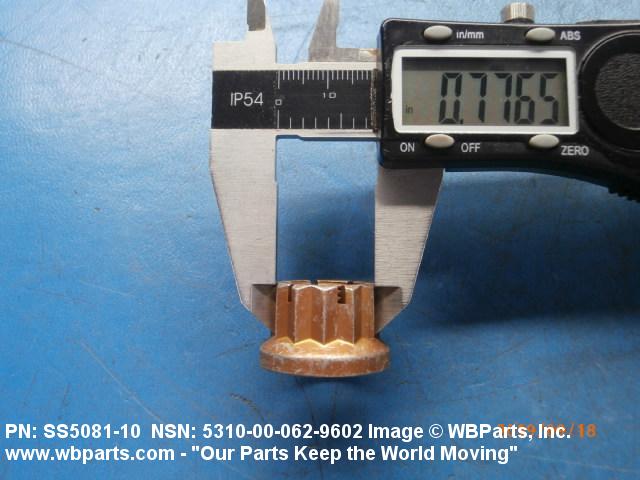

WIDTH ACROSS FLATS	0.772 INCHES MINIMUM AND 0.783 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-062-9602

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093490	BOLT/NUT/SCREW/CLIPS/FASTENER/ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	BD	U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-062-9602

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
