NSN 5310-00-167-1283 AN310C7, FFN836, FF-N-836
Product Details | HEXAGON CASTELLATED PLAIN NUT

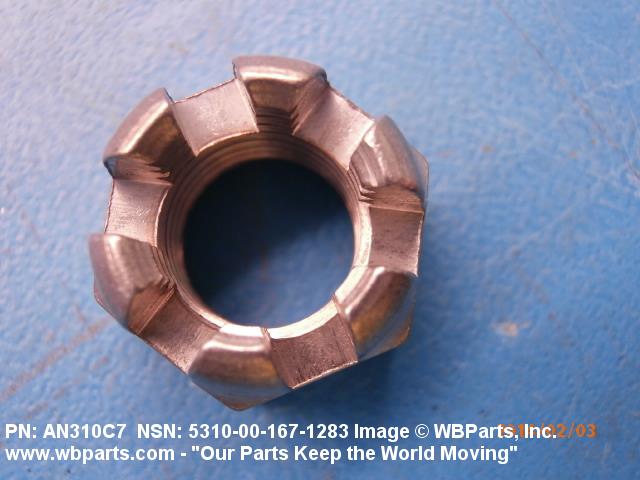

5310-00-167-1283 A nut having 6 flat sides, flat on the bottom and having a slotted cylindrical or dome shaped upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, SLOTTED, HEXAGON.
Part Alternates: AN310C7, FFN836, FF-N-836, 5310-00-167-1283, 00-167-1283, 5310001671283, 001671283
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-167-1283 | 01854 ( NUT, PLAIN, CASTELLATED, HEXAGON ) |

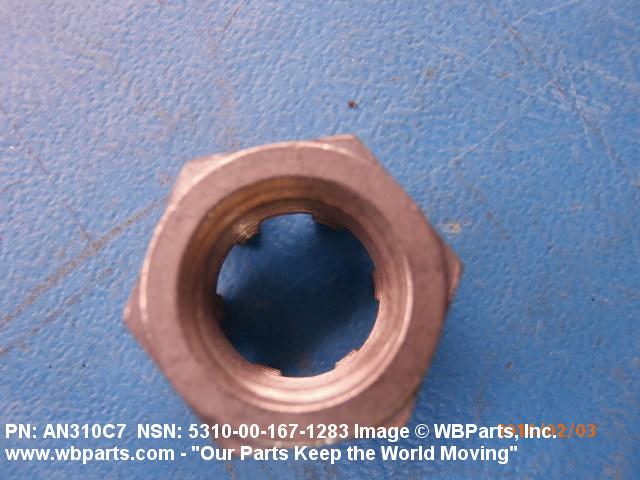

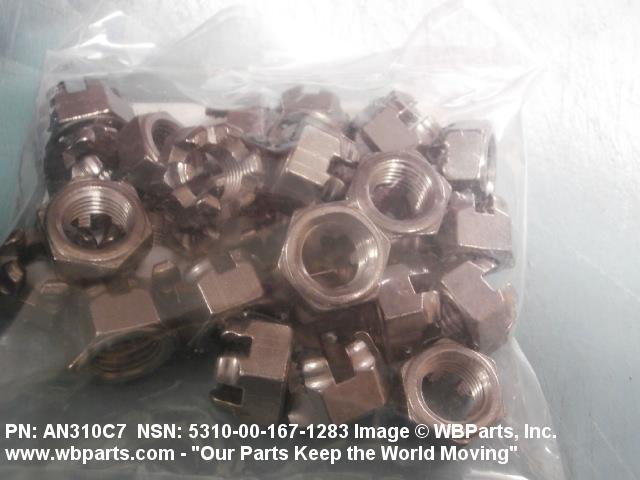

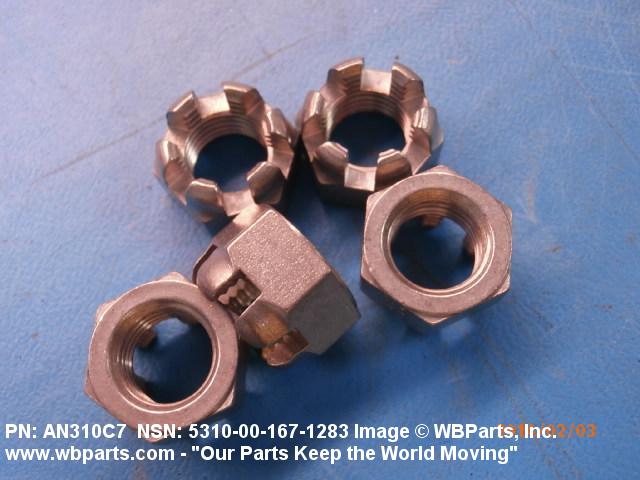

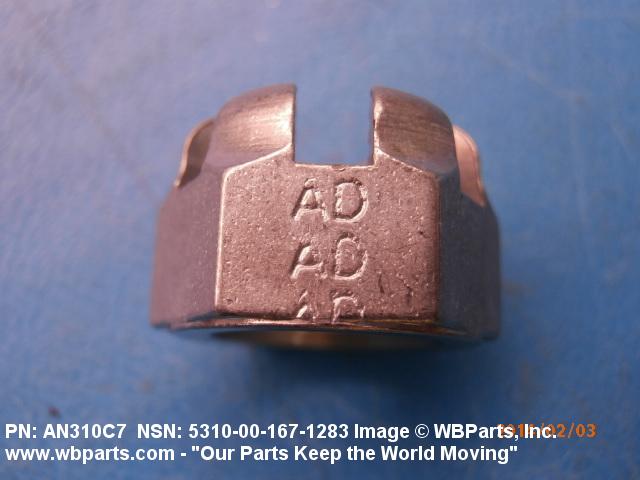

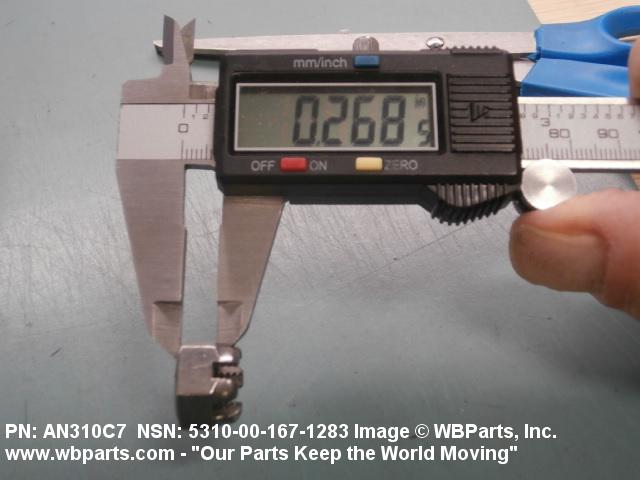

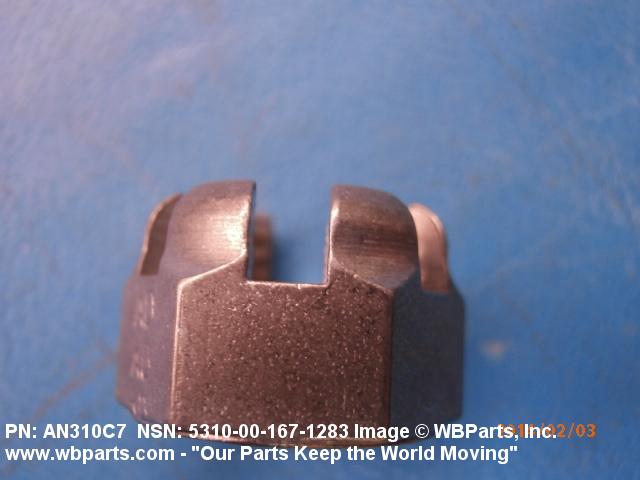

Drawings & Photos | NSN 5310-00-167-1283
Demand History | NSN 5310-00-167-1283
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-167-1283 | 2025-09-257 | 1200 | DIBBS |
| FFN836 | 2025-03-84 | 32 | Japan |
| FFN836 | 2024-10-291 | 190 | US |
| FFN836 | 2023-09-258 | 100 | TR |
| FFN836 | 2021-11-307 | 200 | United States |
| FFN836 | 2021-08-228 | 100 | United States |
| AN310C7 | 2021-07-203 | 50 | United States |
| AN310C7 | 2021-07-203 | 10 | United States |
| 5310-00-167-1283 | 2019-09-270 | 1 | United States |
| FFN836 | 2019-02-44 | 288 | US |
| FFN836 | 2018-02-32 | 2 | US |
| FFN836 | 2017-05-123 | 25 | United States |
| FF-N-836 | 2016-05-145 | 48 | Spain |
| AN310C7 | 2015-12-338 | 10 | United States |
| AN310C7 | 2014-01-10 | 25 | Malaysia |
| AN310C7 | 2013-09-256 | 1 | United States |
| AN310C7 | 2013-09-253 | 25 | Malaysia |
| AN310C7 | 2013-03-77 | 4 | US |
| FFN836 | 2012-12-341 | 1 | US |
| AN310C7 | 2012-06-178 | 172 | United States |
| 5310-00-167-1283 | 2012-03-62 | 11 | US |
| FFN836 | 2010-11-322 | 100 | United Kingdom |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| 5310-00-167-1283 | 2010-04-104 | 45 | DIBBS |
| FFN836 | 2010-03-90 | 4 | us |
| FFN836 | 2010-03-81 | 50 | United States |
| FFN836 | 2010-02-46 | 50 | United States |
| FFN836 | 2009-07-183 | 1000 | US |
| FFN836 | 2009-05-141 | 580 | US |
| FFN836 | 2008-07-195 | 20 | US |
| FFN836 | 2008-06-171 | 200 | US |
| FFN836 | 2008-02-39 | 1 | US |
| FFN836 | 2007-10-298 | 100 | US |
| 5310-00-167-1283 | 2006-11-321 | 50 | IT |
Cross Reference | NSN 5310-00-167-1283
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5310001671283 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AN310C7 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| AN310C7 | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| FF-N-836 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-167-1283
Related Products | NSN 5310-00-167-1283
Technical Data | NSN 5310-00-167-1283
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |

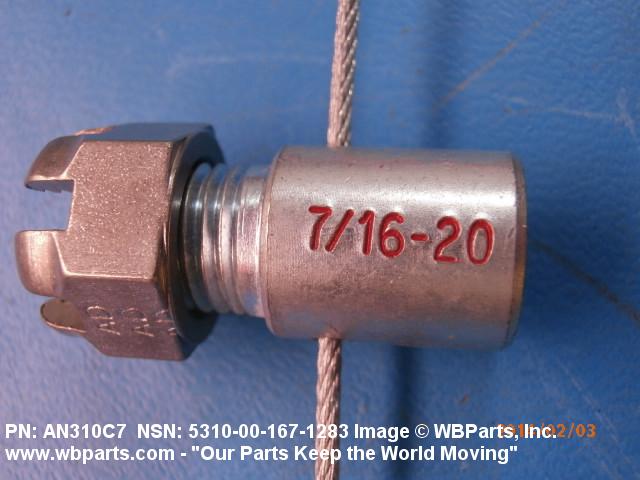

| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 301 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 317 OR STEEL COMP 347 OR STEEL COMP 410 OR STEEL COMP 414 OR STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A1 CASTELLATED, HEXAGON |

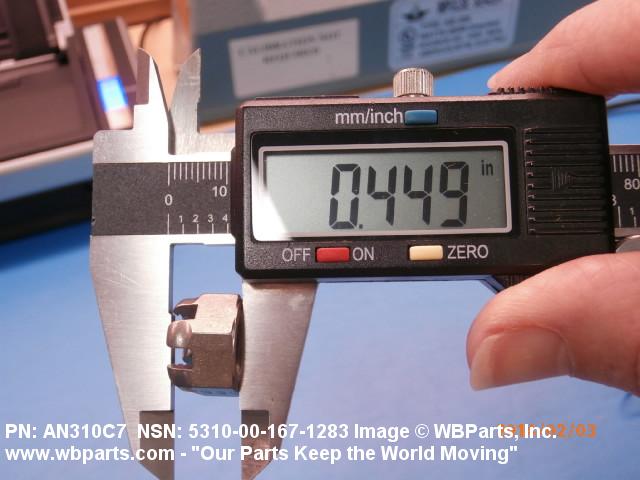

| NUT HEIGHT | 0.437 INCHES MINIMUM AND 0.469 INCHES MAXIMUM |

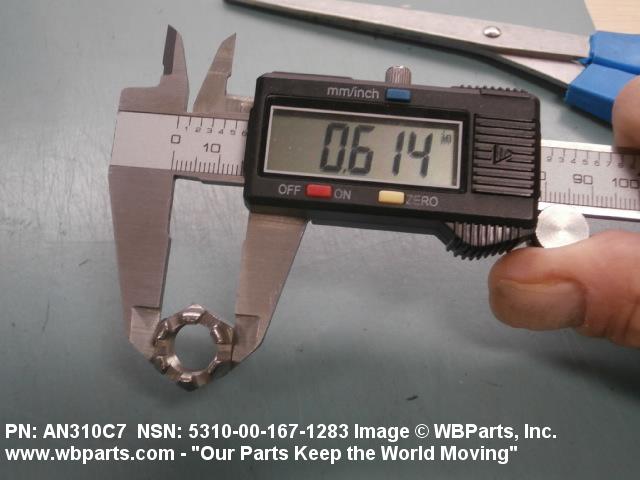

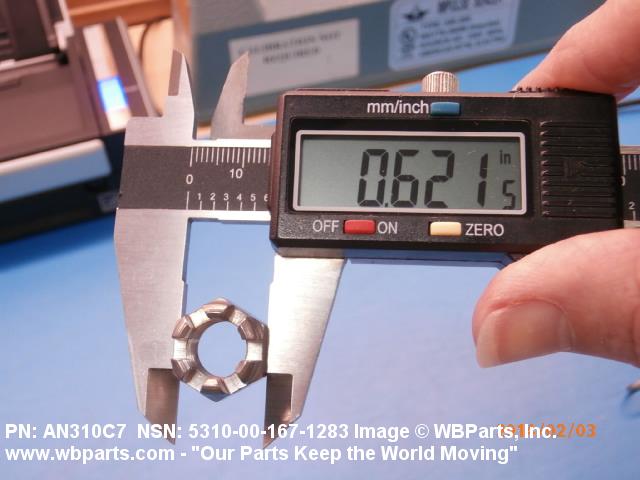

| WIDTH ACROSS FLATS | 0.614 INCHES MINIMUM AND 0.627 INCHES MAXIMUM |
| BEARING SURFACE TYPE | WASHER FACED |
| COUNTERSINK ANGLE | 109.0 DEGREES MINIMUM AND 111.0 DEGREES MAXIMUM NUT |
| TEMP RATING | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | 5 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-N-836 |
Restrictions/Controls & Freight Information | NSN 5310-00-167-1283
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
