NSN 5310-00-208-4026 MS205001032, MS20500-1032, H194753
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-208-4026 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS205001032, MS20500-1032, H194753, H19475-3, JL2C1032, 10683651, 1068365-1 , 185751 , 1950821, 195082-1 , 1JA2948H16 , 698631, 69863-1 , 75NE048 , 79NE048, 82001921, 8200192-1 , 9175747 , 5310-00-208-4026, 00-208-4026, 5310002084026, 002084026
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-208-4026 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

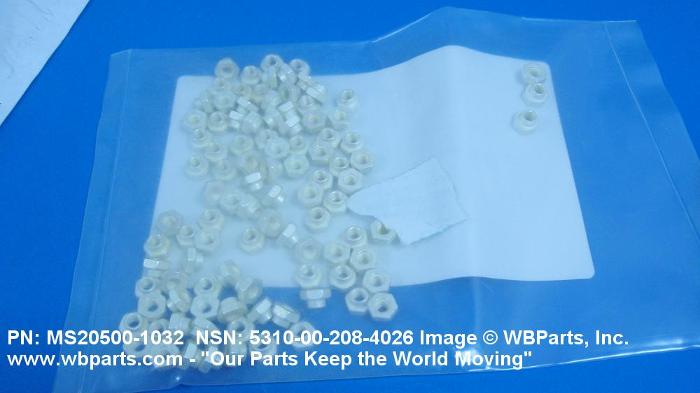

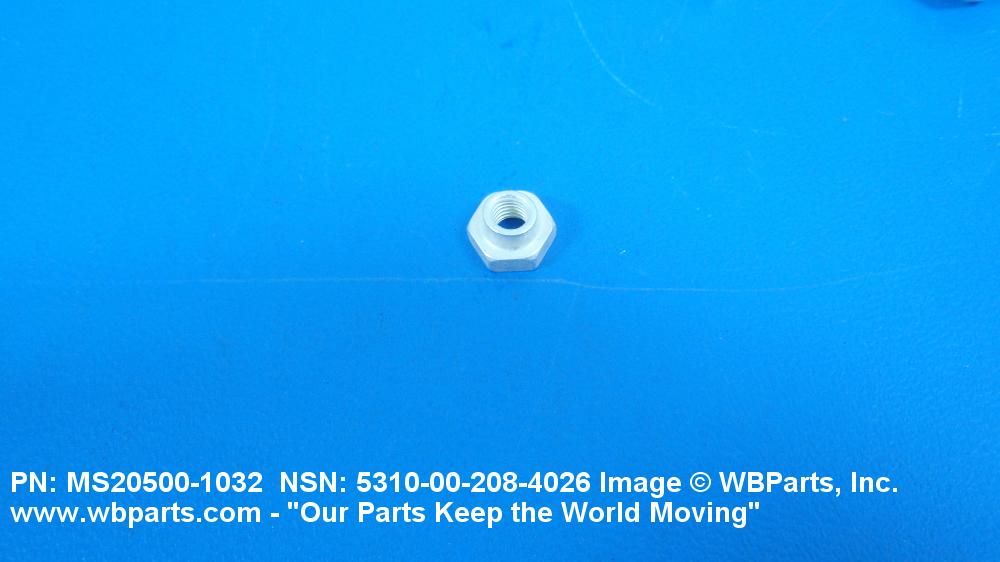

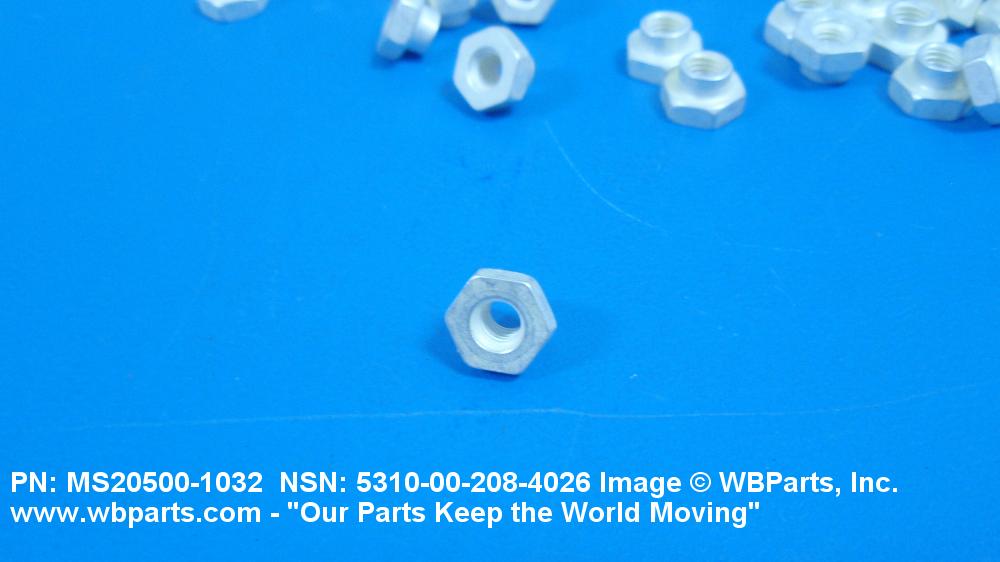

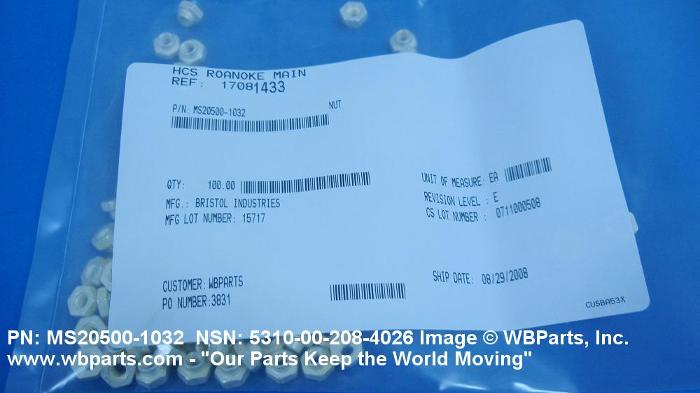

Drawings & Photos | NSN 5310-00-208-4026
Demand History | NSN 5310-00-208-4026
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-208-4026 | 2024-09-263 | 55 | DIBBS |
| 5310-00-208-4026 | 2022-07-188 | 5321 | DIBBS |
| 5310-00-208-4026 | 2022-03-72 | 5672 | DIBBS |
| 5310-00-208-4026 | 2021-10-293 | 1500 | DIBBS |
| 5310-00-208-4026 | 2021-10-290 | 841 | DIBBS |
| 5310-00-208-4026 | 2021-09-257 | 296 | DIBBS |
| 5310-00-208-4026 | 2021-09-251 | 190 | DIBBS |
| 5310-00-208-4026 | 2021-09-244 | 1352 | DIBBS |
| 5310-00-208-4026 | 2021-08-237 | 152 | DIBBS |
| MS205001032 | 2019-03-73 | 50 | Thailand |
| 5310-00-208-4026 | 2018-11-308 | 13616 | DIBBS |
| 5310-00-208-4026 | 2018-05-130 | 1 | DIBBS-RFPs |
| 5310-00-208-4026 | 2016-11-312 | 7660 | DIBBS |
| MS20500-1032 | 2016-07-211 | 71 | MX |
| 5310-00-208-4026 | 2016-03-80 | 157 | DIBBS |
| 5310-00-208-4026 | 2016-03-73 | 3881 | DIBBS |
| 5310-00-208-4026 | 2016-03-63 | 7576 | DIBBS |
| 5310-00-208-4026 | 2015-09-257 | 7089 | DIBBS |
| MS205001032 | 2013-04-93 | 50 | US |
| 5310-00-208-4026 | 2012-02-59 | 100 | Canada |
| 79NE048 | 2011-04-115 | 500 | United States |
| 79NE048 | 2011-04-115 | 1500 | United States |
| 79NE048 | 2011-04-115 | 2500 | United States |
| 79NE048 | 2011-04-115 | 5000 | United States |
| MS205001032 | 2010-10-284 | 4 | US |
| 5310-00-208-4026 | 2009-08-215 | 38075 | DIBBS |
| 5310-00-208-4026 | 2009-06-161 | 24353 | DIBBS |
| MS205001032 | 2008-08-240 | 100 | Israel |
| 5310-00-208-4026 | 2008-06-168 | 9800 | DIBBS |
| MS205001032 | 2007-09-249 | 100 | Australia |
Cross Reference | NSN 5310-00-208-4026
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H19475-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| H19475-3 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| H19475-3 | R1120 | SATAIR A/S |
| JL2C1032 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| JL2C1032 | 71087 | REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging. |
| MS20500-1032 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-208-4026
Technical Data | NSN 5310-00-208-4026
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.202 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| BEARING SURFACE TYPE | WASHER FACED |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 1200.0 DEG FAHRENHEIT NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | ALL SURFACES SILVER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20500-1032 |
Restrictions/Controls & Freight Information | NSN 5310-00-208-4026
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
