NSN 5310-00-208-5867 6085D4, 990FR12524, 990FR12-524
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-208-5867 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: 6085D4, 990FR12524, 990FR12-524, 5310-00-208-5867, 00-208-5867, 5310002085867, 002085867
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-208-5867 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

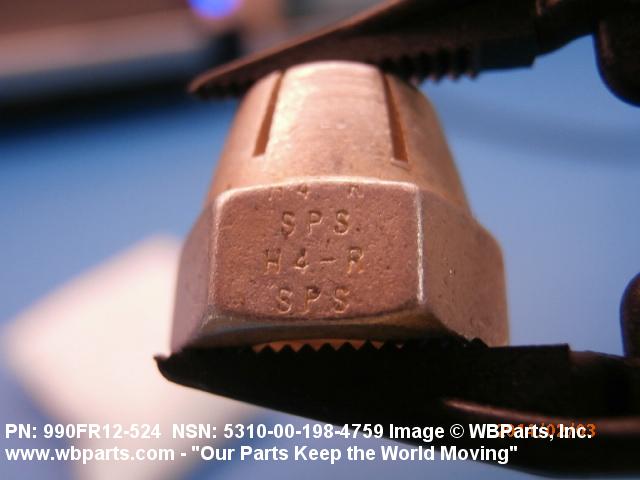

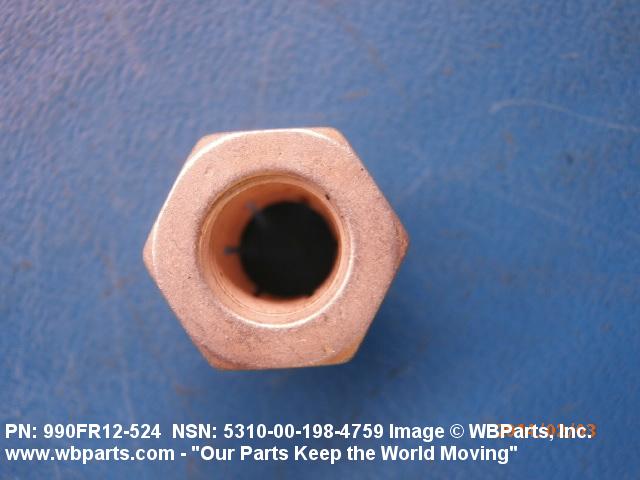

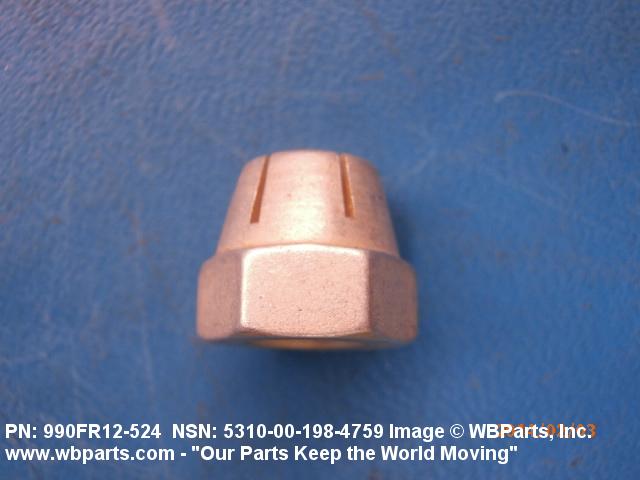

Drawings & Photos | NSN 5310-00-208-5867
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-208-5867
Technical Data | NSN 5310-00-208-5867
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL UNS S34720 OR STEEL UNS S34723 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5642 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

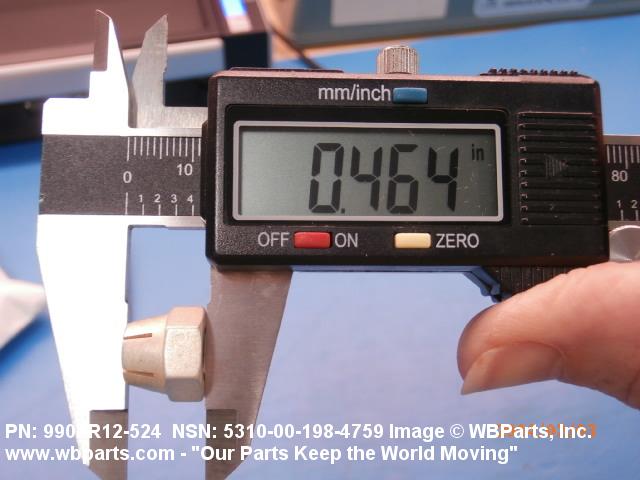

| NUT HEIGHT | 0.469 INCHES NOMINAL |

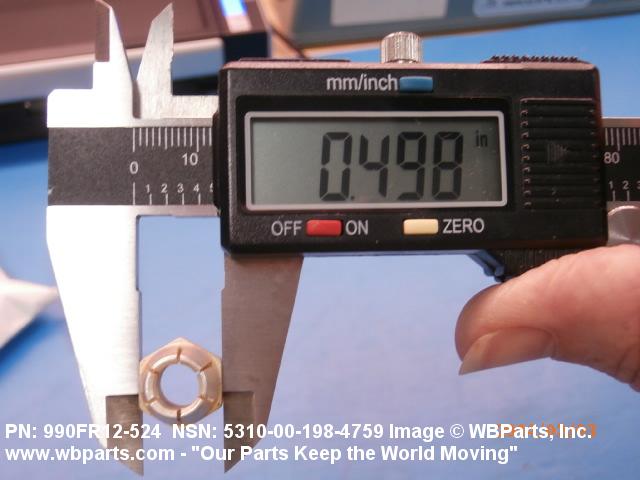

| WIDTH ACROSS FLATS | 0.500 INCHES NOMINAL |

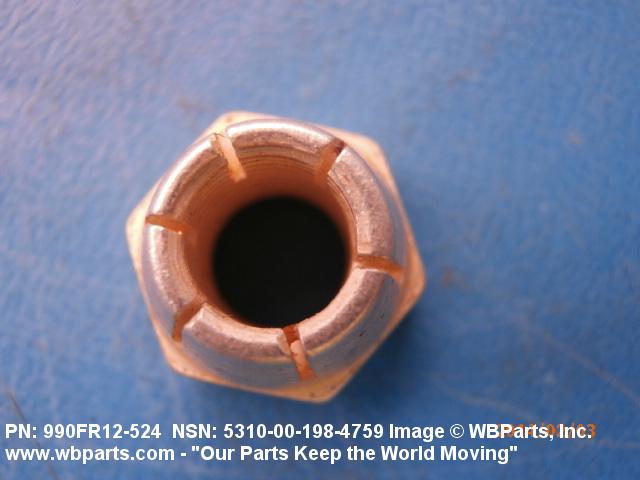

| LOCKING FEATURE | FREE-RUNNING ALL METAL DESIGN |
| TEMP RATING | 1200.0 DEG FAHRENHEIT NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| MANUFACTURERS CODE | 0AHP5 |
| DESIGN CONTROL REFERENCE | 6085D4 |
Restrictions/Controls & Freight Information | NSN 5310-00-208-5867
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-00-208-5867
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
