NSN 5310-00-208-9285 F42NE524, R42NE054, 42NE054
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-208-9285 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: F42NE524, R42NE054, 42NE054, 5310-00-208-9285, 00-208-9285, 5310002089285, 002089285
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-208-9285 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

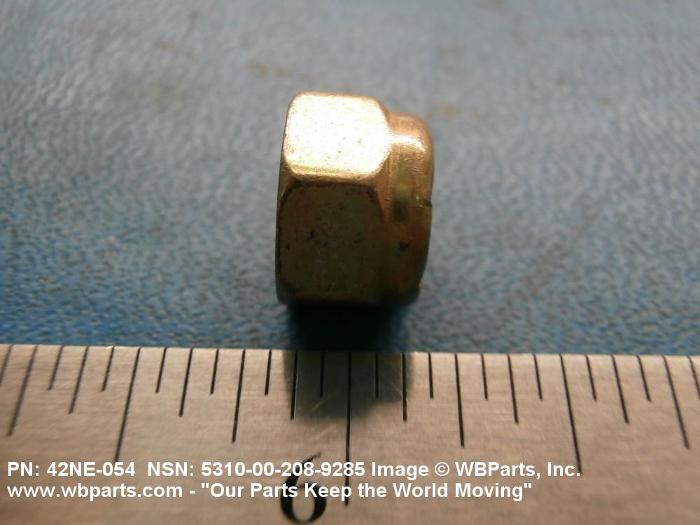

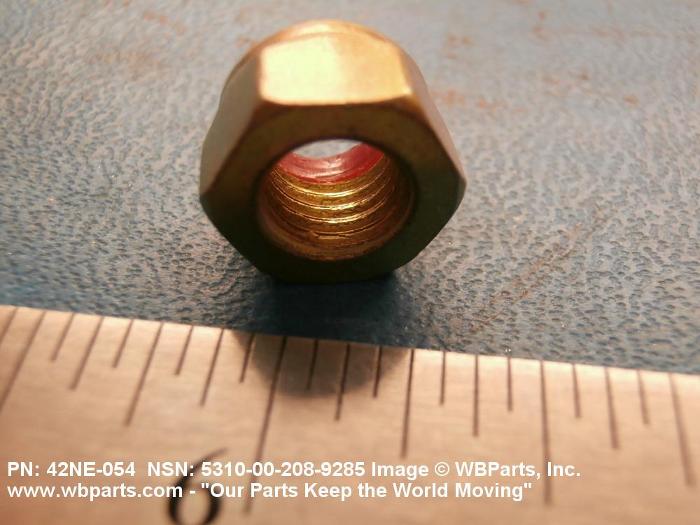

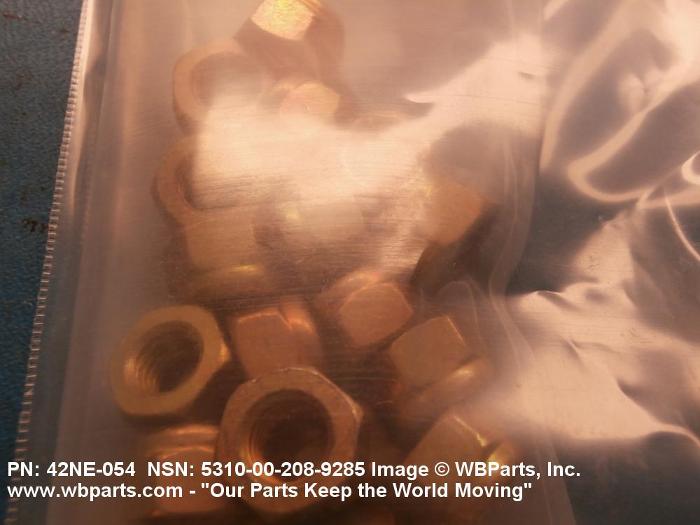

Drawings & Photos | NSN 5310-00-208-9285
Demand History | NSN 5310-00-208-9285
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-208-9285 | 2013-02-44 | 18 | United States |
Cross Reference | NSN 5310-00-208-9285
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-208-9285
Technical Data | NSN 5310-00-208-9285
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL COMP 1118 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | CADMIUM NUT |
| HARDNESS RATING | NOT RATED |
| NUT HEIGHT | 0.329 INCHES MINIMUM AND 0.359 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.490 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| BEARING SURFACE TYPE | ANY ACCEPTABLE |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-00-208-9285
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
