NSN 5310-00-241-6640 MS162286C, MS16228-6C, MS162293C
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-241-6640 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS162286C, MS16228-6C, MS162293C, MS16229-3C, T80049437, T8004943-7, 131471, 131-471, 298538, 5310-00-241-6640, 00-241-6640, 5310002416640, 002416640
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JUL 1969 | 00-241-6640 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

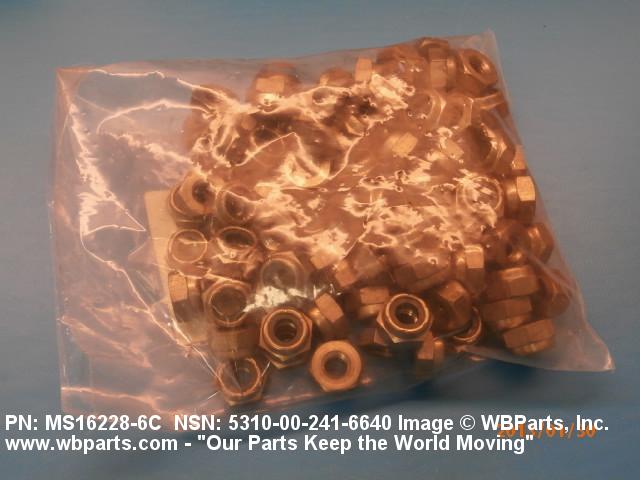

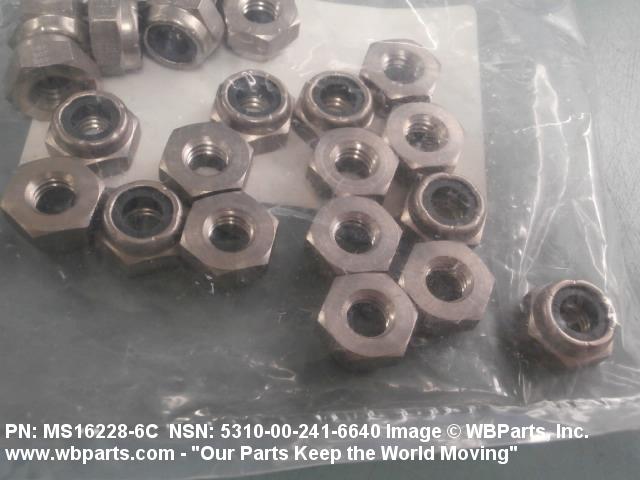

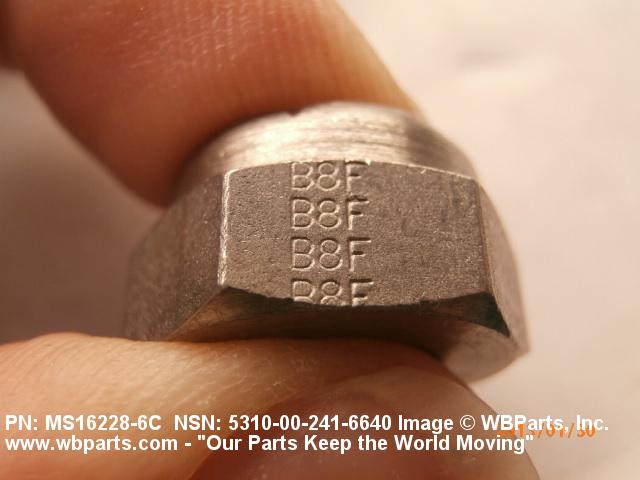

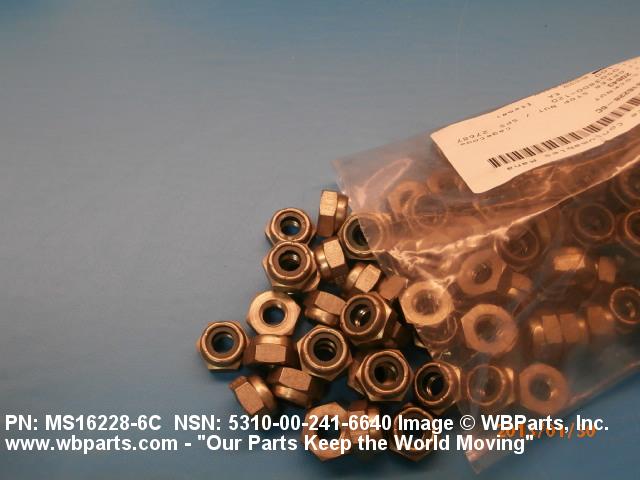

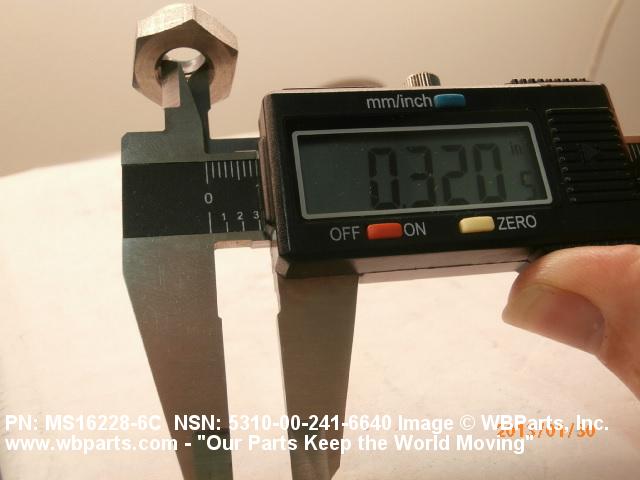

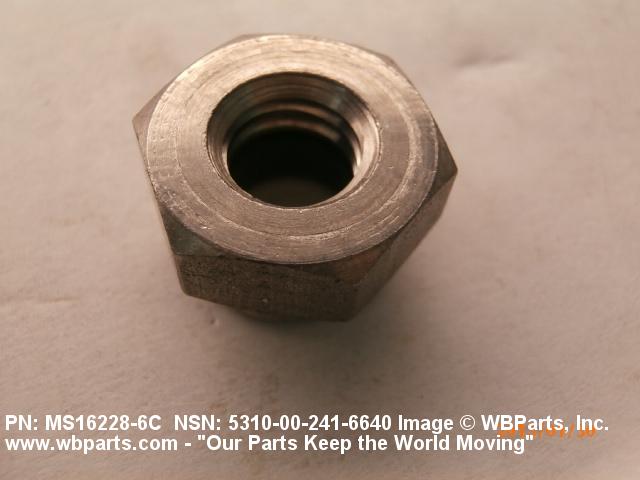

Drawings & Photos | NSN 5310-00-241-6640
Demand History | NSN 5310-00-241-6640
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS162286C | 2025-09-272 | 100 | United States |
| 5310-00-241-6640 | 2025-01-23 | 40 | DIBBS |
| MS162286C | 2025-01-21 | 125 | United States |
| 5310-00-241-6640 | 2024-08-215 | 6 | us |
| MS162286C | 2024-07-185 | 475 | United States |
| 5310-00-241-6640 | 2024-01-31 | 53 | United States |
| 5310-00-241-6640 | 2023-06-157 | 32 | Taiwan |
| MS162286C | 2022-06-180 | 36 | US |
| 5310-00-241-6640 | 2020-06-182 | 48 | MANUAL |
| 5310-00-241-6640 | 2020-05-131 | 725 | DIBBS |
| 5310-00-241-6640 | 2018-01-16 | 626 | DIBBS |
| 5310-00-241-6640 | 2018-01-01 | 928 | DIBBS |
| 5310-00-241-6640 | 2017-06-165 | 1 | us |
| 5310-00-241-6640 | 2017-03-60 | 1047 | DIBBS |
| 5310-00-241-6640 | 2016-12-363 | 710 | DIBBS |
| 5310-00-241-6640 | 2016-11-325 | 975 | DIBBS |
| 5310-00-241-6640 | 2016-02-48 | 571 | DIBBS |
| 5310-00-241-6640 | 2015-11-322 | 750 | DIBBS |
| 5310-00-241-6640 | 2015-07-210 | 775 | DIBBS |
| 5310-00-241-6640 | 2015-06-175 | 523 | DIBBS |
| 5310-00-241-6640 | 2014-08-229 | 382 | DIBBS |
| 5310-00-241-6640 | 2014-02-49 | 20 | US |
| 5310-00-241-6640 | 2014-01-13 | 100 | United States |
| MS162286C | 2013-10-297 | 25 | United States |
| 5310-00-241-6640 | 2013-02-36 | 110 | United States |
| 5310-00-241-6640 | 2013-01-28 | 100 | United States |
| 5310-00-241-6640 | 2012-11-332 | 10 | United States |
| 5310-00-241-6640 | 2012-11-332 | 10 | United States |
| MS16228-6C | 2012-05-129 | 25 | United States |
| 5310-00-241-6640 | 2011-06-164 | 20 | United States |
| 5310-00-241-6640 | 2010-08-224 | 810 | DIBBS |
| 5310-00-241-6640 | 2010-07-193 | 569 | DIBBS |
| 5310-00-241-6640 | 2010-01-15 | 1147 | DIBBS |
| MS162286C | 2010-01-12 | 500 | US |
| 5310-00-241-6640 | 2009-10-275 | 450 | US |
| MS162286C | 2009-09-247 | 10 | US |
| 5310-00-241-6640 | 2009-06-152 | 1180 | DIBBS |
| 5310-00-241-6640 | 2009-05-125 | 798 | DIBBS |
| 5310-00-241-6640 | 2009-02-47 | 48 | US |
| 5310-00-241-6640 | 2008-03-81 | 1982 | DIBBS |
| MS162286C | 2008-02-53 | 100 | United Kingdom |
Cross Reference | NSN 5310-00-241-6640
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 131-471 | 10988 | CNH INDUSTRIAL AMERICA LLC |
| 298538 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS16228-6C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS16229-3C | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| T8004943-7 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-241-6640
Related Products | NSN 5310-00-241-6640
Technical Data | NSN 5310-00-241-6640
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYHEXAMETHYLENE AMIDE LOCKING INSERT STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 302B OR STEEL COMP 303 OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP W214 OR STEEL COMP 309 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP M3 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 384 OR STEEL COMP 385 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-20693,COMP A,TY 1 MIL SPEC SINGLE MATERIAL RESPONSE LOCKING INSERT 66 FED STD ALL MATERIAL RESPONSES NUT |
| SURFACE TREATMENT | PASSIVATE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

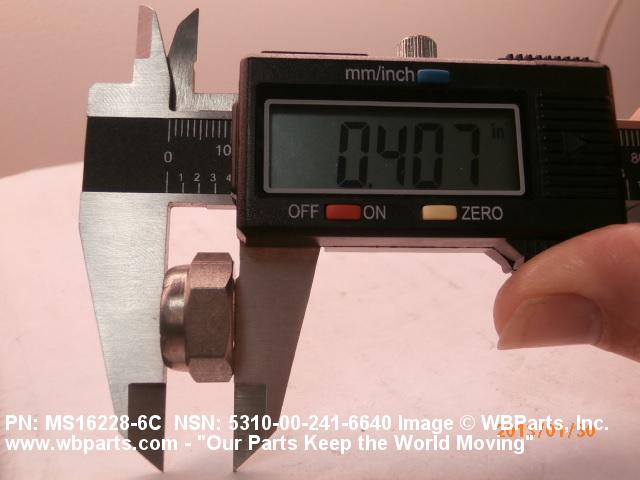

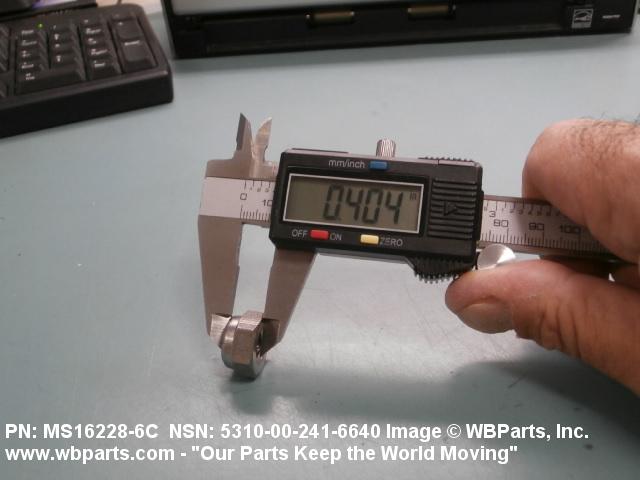

| NUT HEIGHT | 0.391 INCHES MINIMUM AND 0.421 INCHES MAXIMUM |

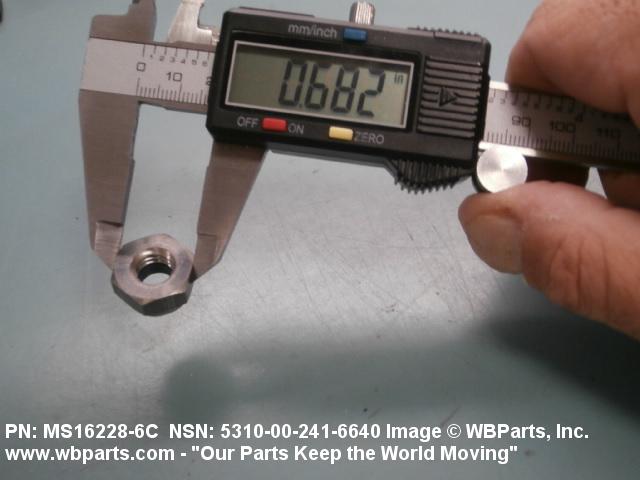

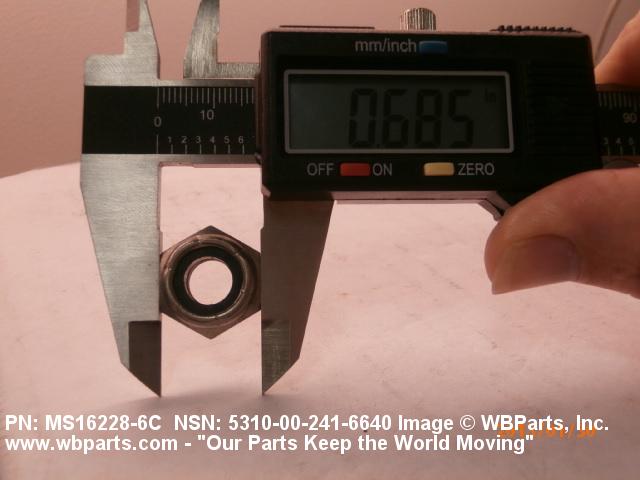

| WIDTH ACROSS FLATS | 0.679 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |

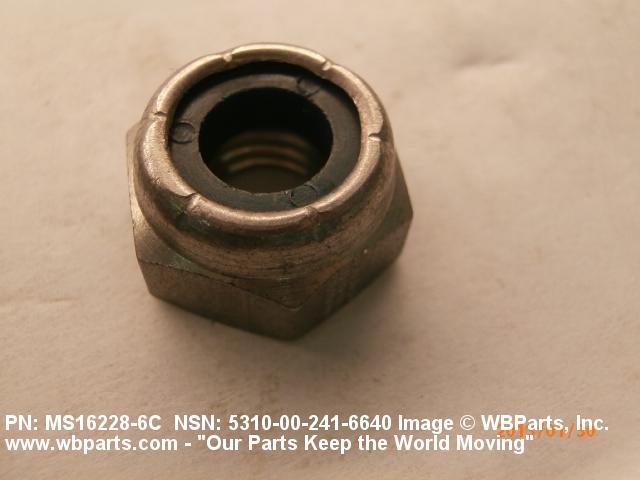

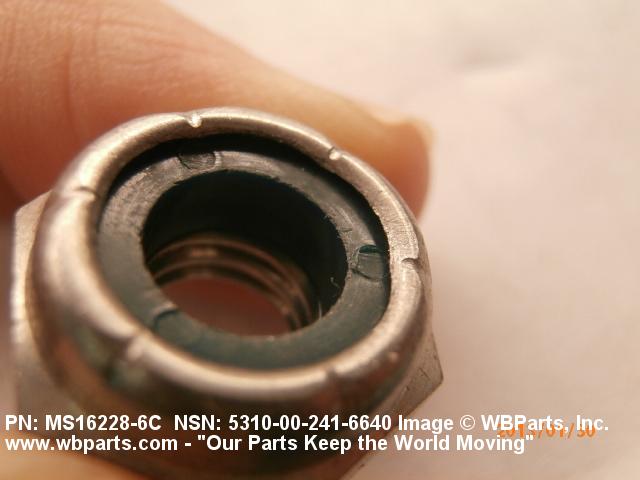

| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | 88.0 DEGREES NOMINAL NUT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16228-6C |
Restrictions/Controls & Freight Information | NSN 5310-00-241-6640
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
