NSN 5310-00-241-6667 MS1622288C, MS162228-8C, MS162288C
Product Details | HEXAGON SELF-LOCKING NUT

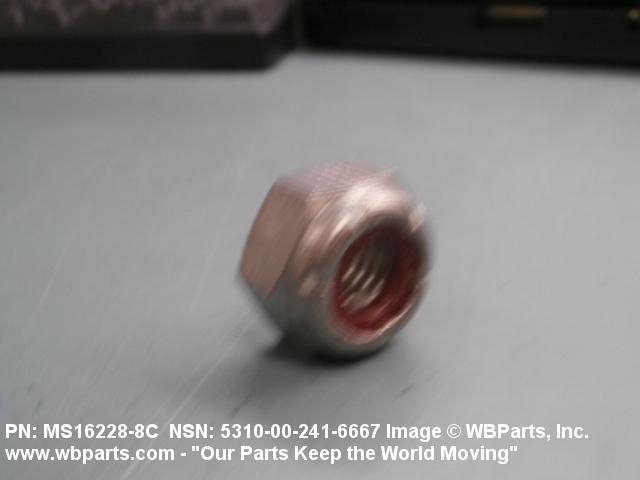

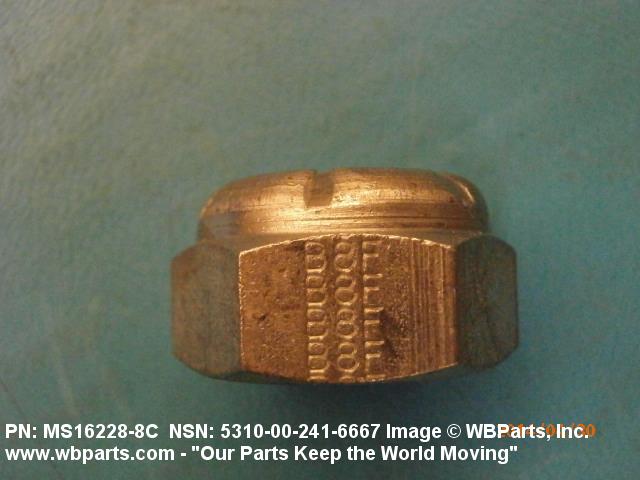

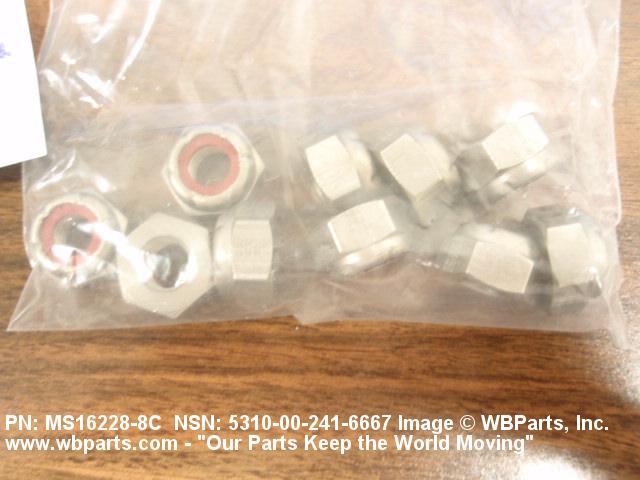

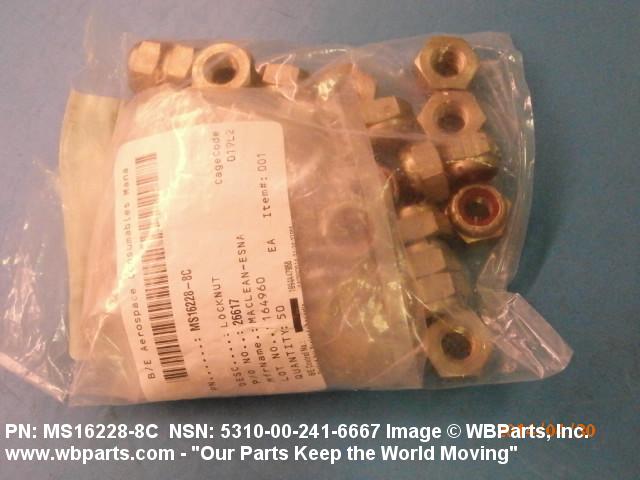

5310-00-241-6667 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS1622288C, MS162228-8C, MS162288C, MS16228-8C, ASC1536783, 122-2298838 PIECE 318, 1222298838PIECE318, 122-6776279 PC 30, 1226776279PC30, 58066411231070, 580-6641123-1070, 5806641123ECHGB6, 580-6641123-ECHG-B6, 6961898 FIND 34, 6961898FIND34, 701-2298824 PIECE 318, 7012298824PIECE318, 5310-00-241-6667, 00-241-6667, 5310002416667, 002416667, 211024790
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JUL 1969 | 00-241-6667 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

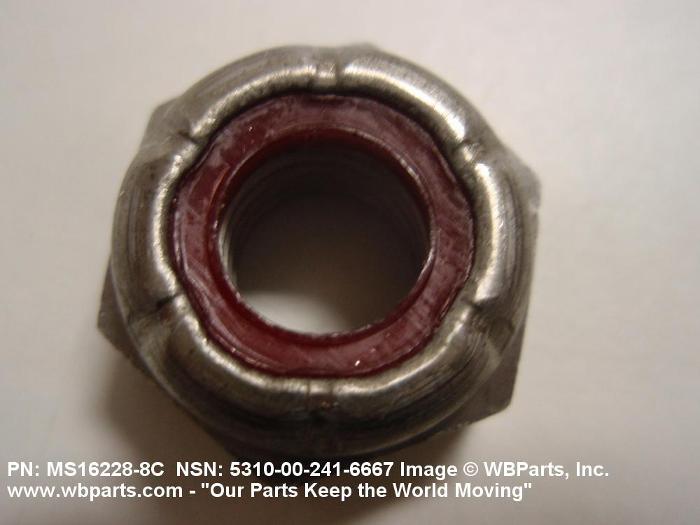

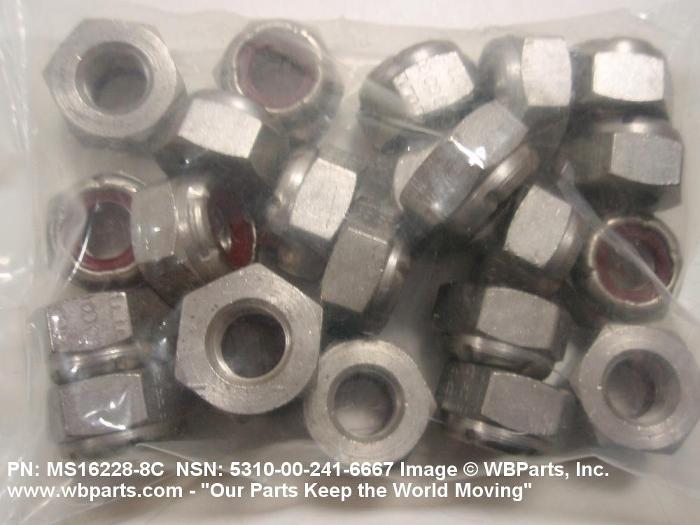

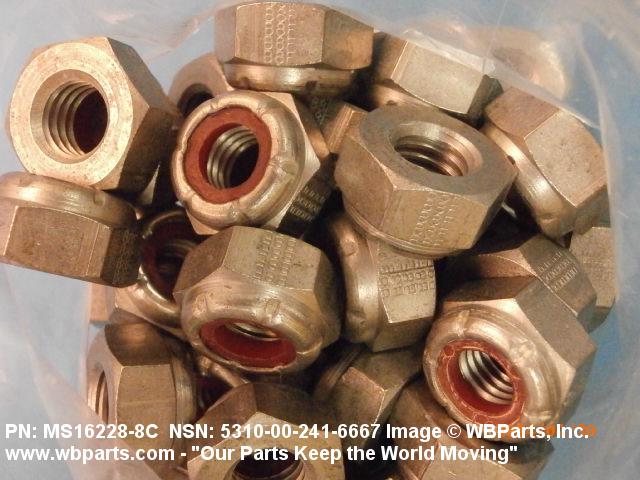

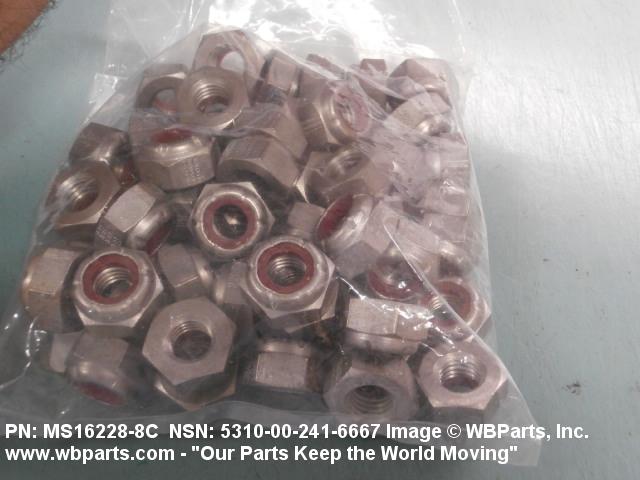

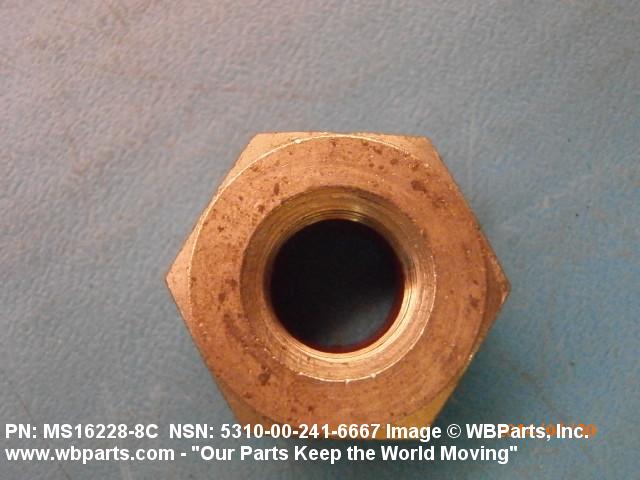

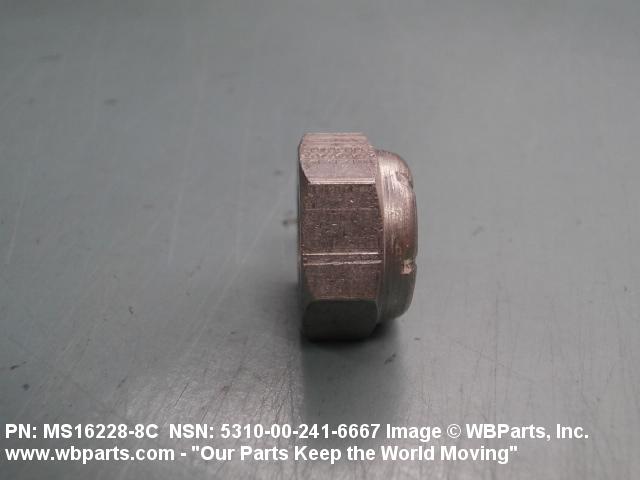

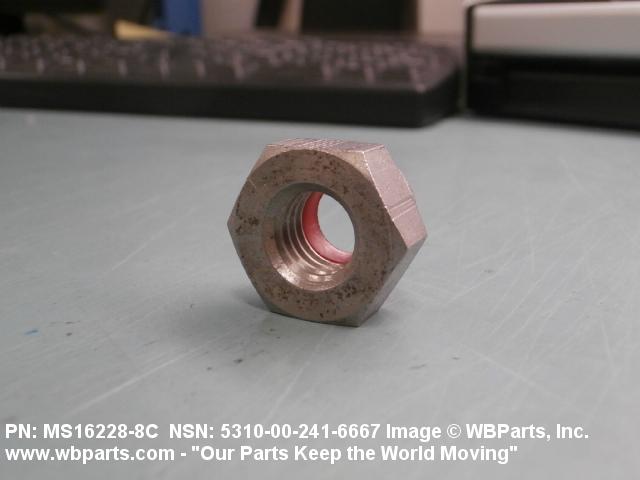

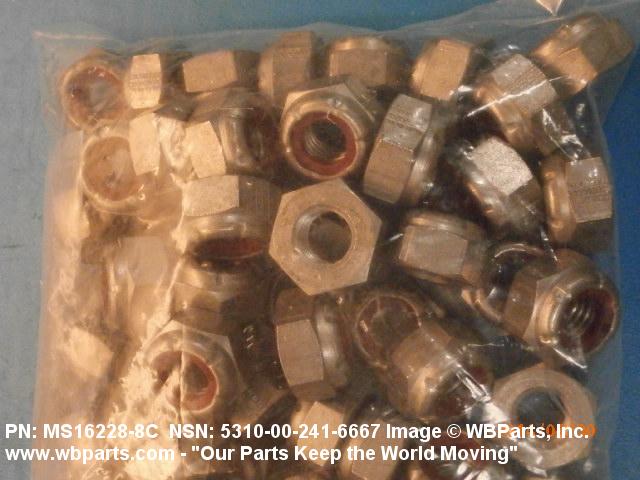

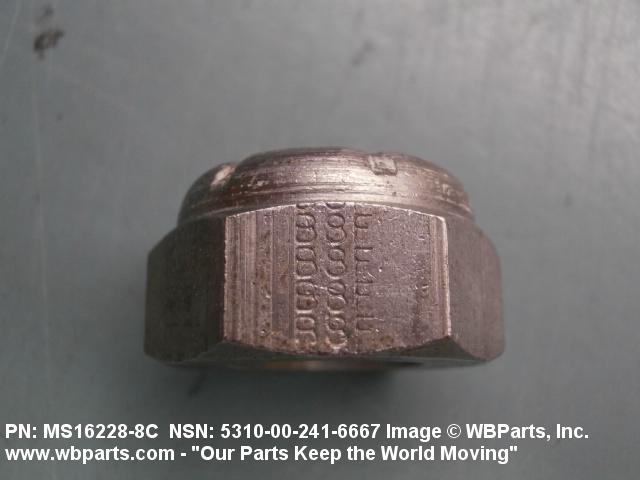

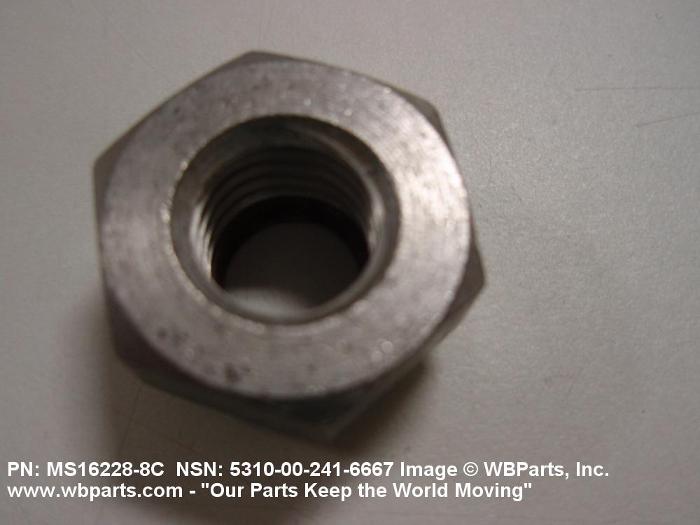

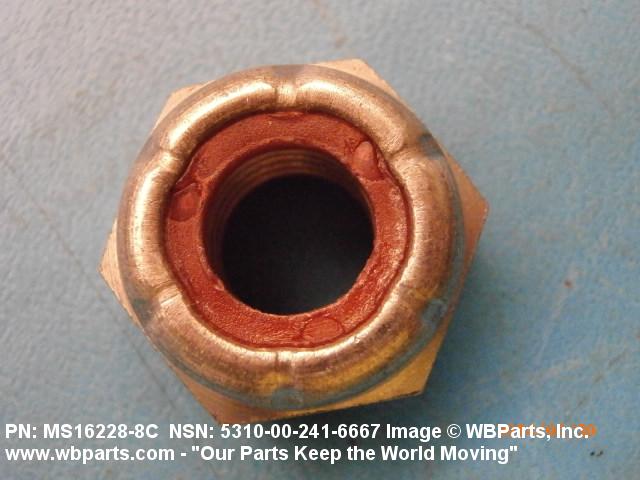

Drawings & Photos | NSN 5310-00-241-6667
Demand History | NSN 5310-00-241-6667
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-241-6667 | 2025-07-195 | 1367 | DIBBS |
| MS162288C | 2024-10-276 | 120 | United States |
| MS162288C | 2023-09-261 | 64 | us |
| MS162288C | 2023-09-261 | 64 | us |
| 5310-00-241-6667 | 2023-04-98 | 2 | Malaysia |
| 5310-00-241-6667 | 2021-05-146 | 14754 | DIBBS |
| 5310-00-241-6667 | 2021-02-35 | 9294 | DIBBS |
| 5310-00-241-6667 | 2021-01-27 | 9294 | DIBBS |
| 5310-00-241-6667 | 2020-09-260 | 8422 | DIBBS |
| 5310-00-241-6667 | 2020-09-245 | 8422 | DIBBS |
| MS162288C | 2019-08-220 | 16 | US |
| 5310-00-241-6667 | 2018-09-262 | 3842 | DIBBS |
| 5310-00-241-6667 | 2018-07-196 | 4286 | DIBBS |
| 5310-00-241-6667 | 2018-01-09 | 4359 | DIBBS |
| 5310-00-241-6667 | 2017-04-106 | 4286 | DIBBS |
| MS162288C | 2014-05-122 | 50 | United States |
| MS162288C | 2014-04-119 | 10 | US |
| MS162288C | 2014-04-111 | 16 | United States |
| MS162288C | 2014-04-100 | 26 | US |
| 5310-00-241-6667 | 2014-02-34 | 10412 | DIBBS |
| MS162288C | 2012-03-90 | 16 | United States |
| 5310-00-241-6667 | 2011-06-171 | 23 | United States |
| MS162288C | 2010-12-340 | 4 | United States |
| 5310-00-241-6667 | 2010-08-239 | 10 | United States |
| 5310-00-241-6667 | 2008-07-189 | 50 | US |
| 5310-00-241-6667 | 2008-07-183 | 20 | US |
| 5310-00-241-6667 | 2008-06-169 | 20 | US |
Cross Reference | NSN 5310-00-241-6667
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 122-2298838 PIECE 318 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 122-6776279 PC 30 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 211024790 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 580-6641123-1070 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 580-6641123-ECHG-B6 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6961898 FIND 34 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 701-2298824 PIECE 318 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| ASC1536783 | Z4779 | ASC PTY LTD |
| MS162228-8C | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS16228-8C | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16228-8C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-241-6667
Related Products | NSN 5310-00-241-6667
Technical Data | NSN 5310-00-241-6667
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYHEXAMETHYLENE AMIDE LOCKING INSERT STEEL OVERALL EXCEPT INSERT |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-20693,COMP A,TY 1 MIL SPEC SINGLE MATERIAL RESPONSE LOCKING INSERT 66 FED STD SINGLE MATERIAL RESPONSE OVERALL EXCEPT INSERT |
| SURFACE TREATMENT | PASSIVATE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

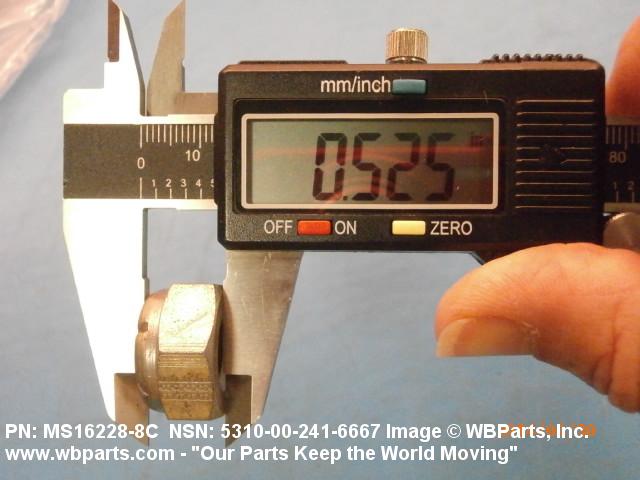

| NUT HEIGHT | 0.516 INCHES MINIMUM AND 0.546 INCHES MAXIMUM |

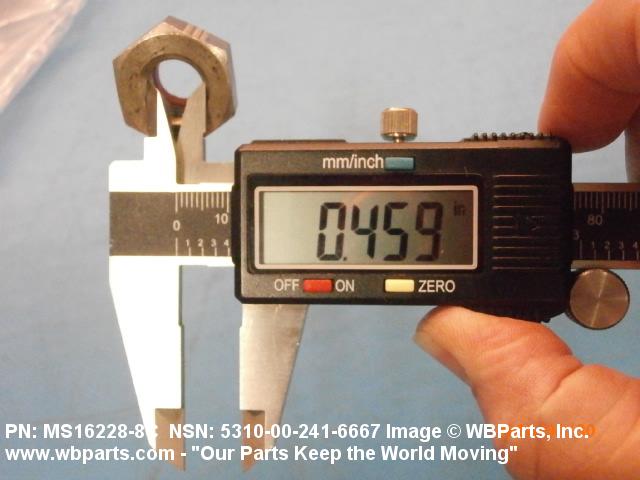

| WIDTH ACROSS FLATS | 0.865 INCHES MINIMUM AND 0.877 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | 88.0 DEGREES NOMINAL NUT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16228-8C |
Restrictions/Controls & Freight Information | NSN 5310-00-241-6667
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-241-6667
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
