NSN 5310-00-274-9377 MS20364832C, MS20364-832C, MS203832C
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-274-9377 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS20364832C, MS20364-832C, MS203832C, MS203-832C, AN364832C, AN364-832C, 404 833, 404833, 4158000002, 4158000-002, 983B150P2, 5310-00-274-9377, 00-274-9377, 5310002749377, 002749377
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-274-9377 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

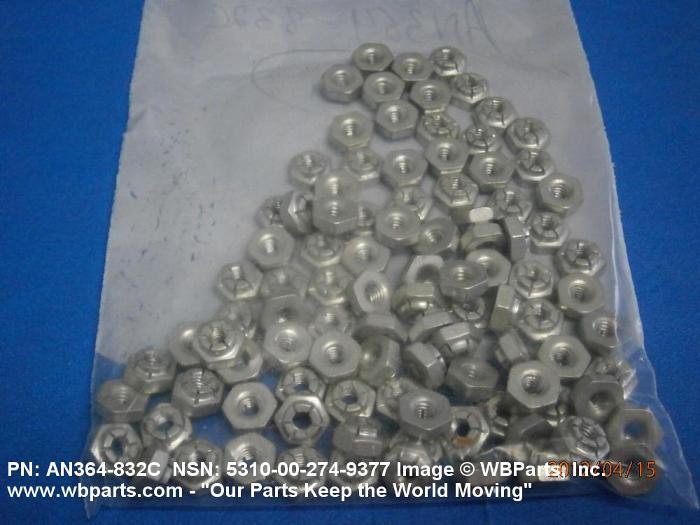

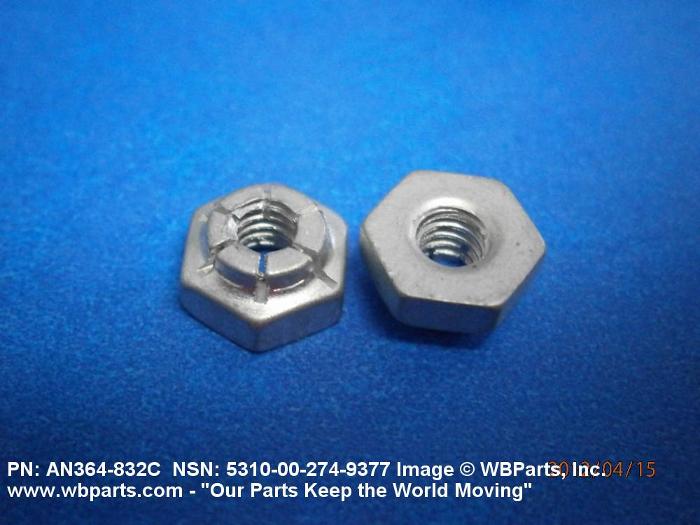

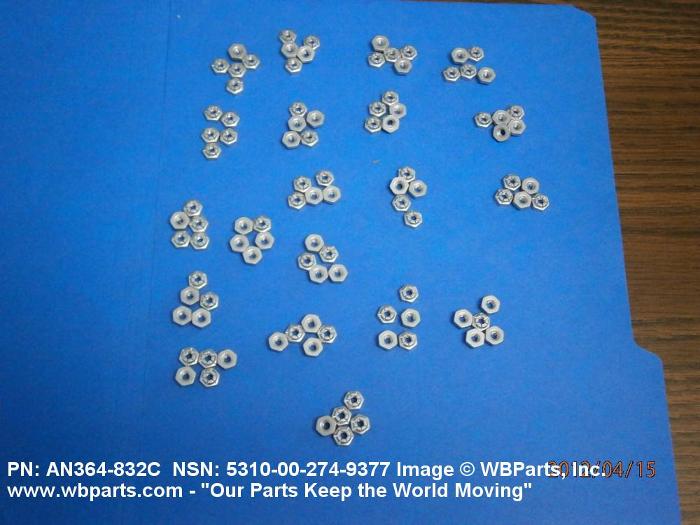

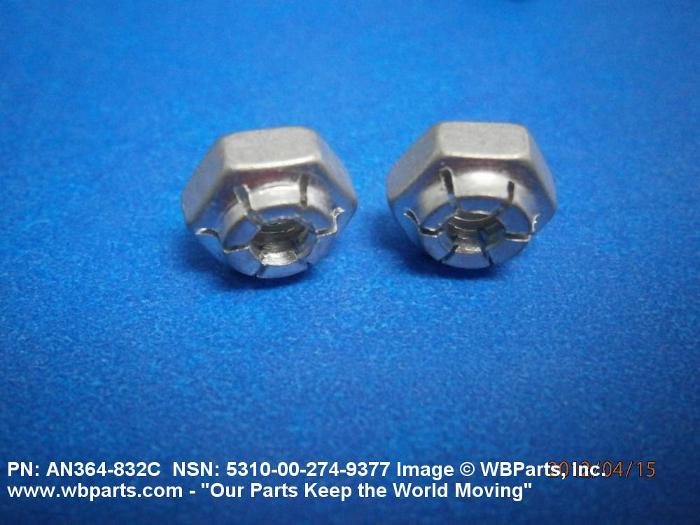

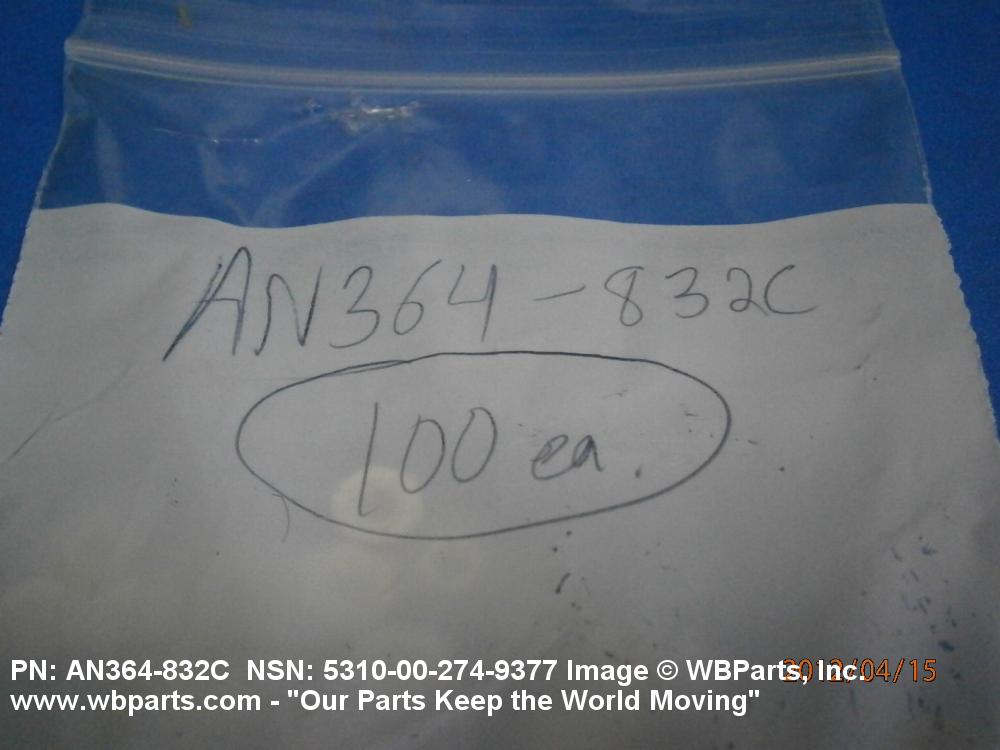

Drawings & Photos | NSN 5310-00-274-9377
Demand History | NSN 5310-00-274-9377
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN364832C | 2012-03-83 | 100 | Turkey |
| AN364-832C | 2012-02-45 | 1 | Turkey |
| AN364-832C | 2012-01-27 | 50 | Turkey |
Cross Reference | NSN 5310-00-274-9377
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 404 833 | 77294 | PIPER AIRCRAFT INC. |
| 4158000-002 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4158000-002 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 983B150P2 | 01526 | GENICOM CORP |
| AN364-832C | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN364-832C | K6214 | KEARSLEY AIRWAYS LTD |
| MS203-832C | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| MS203-832C | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| MS20364-832C | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| MS20364-832C | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| MS20364-832C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20364-832C | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-274-9377
Technical Data | NSN 5310-00-274-9377
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.172 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.334 INCHES MINIMUM AND 0.346 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20364-832C |
Restrictions/Controls & Freight Information | NSN 5310-00-274-9377
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
