NSN 5310-00-275-2012 MS20364720A, MS20364-720A, AN364720A
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-275-2012 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS20364720A, MS20364-720A, AN364720A, AN364-720A, 12Z2007216, 12Z2007-216, 22NTE070, 25704281542270, 25704-281542-27-0, 503445, 5310-00-275-2012, 00-275-2012, 5310002752012, 002752012
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-275-2012 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

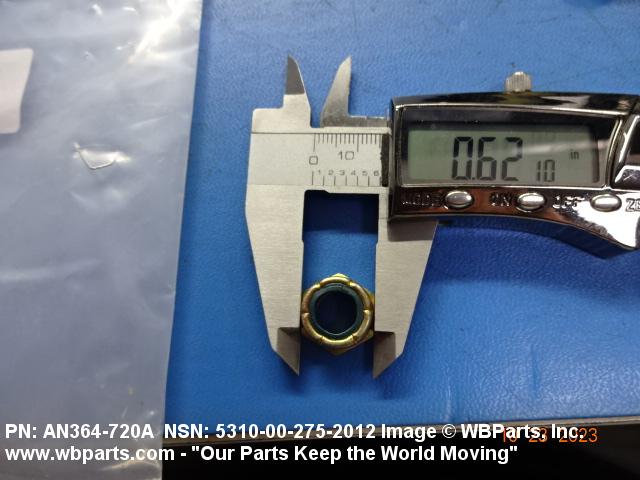

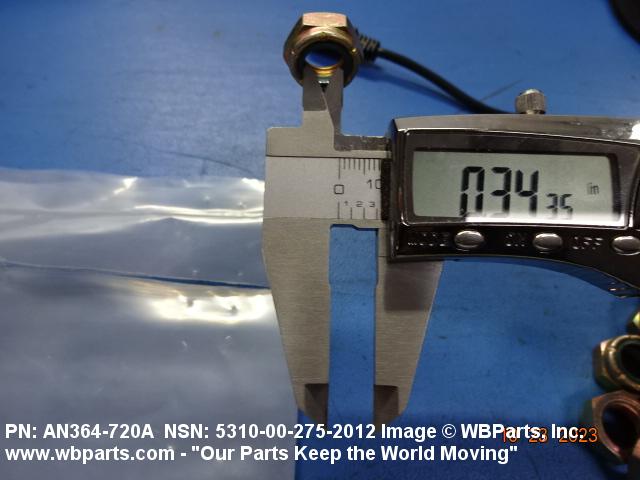

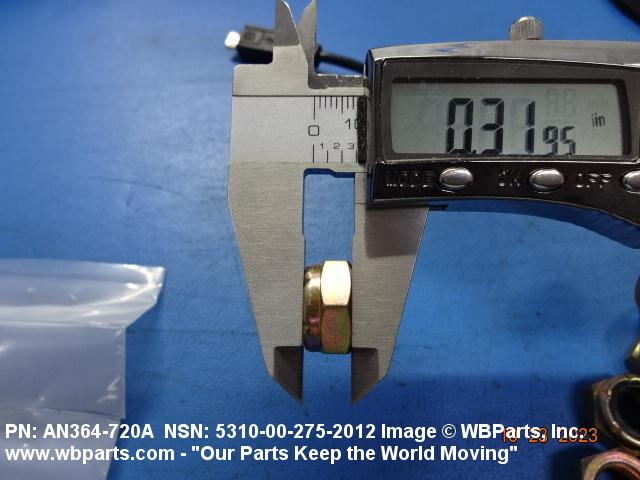

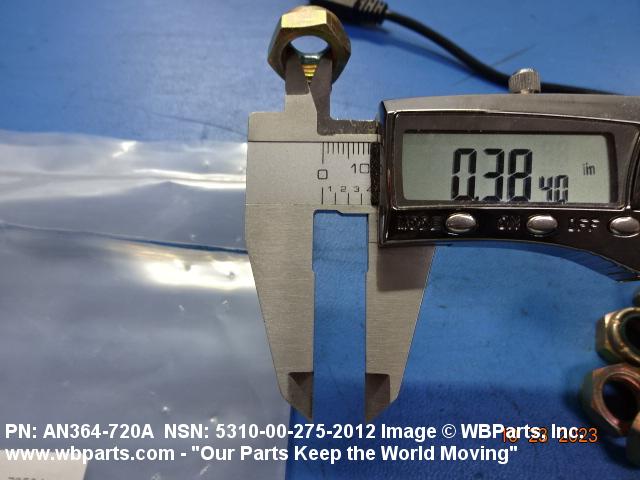

Drawings & Photos | NSN 5310-00-275-2012
Demand History | NSN 5310-00-275-2012
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN364720A | 2025-10-304 | 150 | United States |
| AN364720A | 2025-10-304 | 150 | United States |
| AN364720A | 2025-01-08 | 100 | United States |
| AN364720A | 2024-09-263 | 100 | United States |
| AN364720A | 2024-09-263 | 100 | United States |
| AN364720A | 2024-06-164 | 100 | United States |
| AN364720A | 2023-09-272 | 100 | United States |
| AN364720A | 2013-02-53 | 10 | US |
Cross Reference | NSN 5310-00-275-2012
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12Z2007-216 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 22NTE070 | 72962 | HARVARD INDUSTRIES INC |
| 25704-281542-27-0 | D1839 | BUNDESAMT FUER AUSRUESTUNG, |
| 25704-281542-27-0 | D2692 | KRAUSS-MAFFEI WEGMANN GMBH & CO. KG-WERK KASSEL- |
| 503445 | D5589 | FEINMECHANISCHE WERKE MAINZ GMBH |
| 503445 | D9893 | LIEBHERR-AEROSPACE LINDENBERG GMBH |
| AN364-720A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS20364-720A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-275-2012
Technical Data | NSN 5310-00-275-2012
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT HEIGHT | 0.312 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20364-720A |
Restrictions/Controls & Freight Information | NSN 5310-00-275-2012
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
