NSN 5310-00-275-2049 MS20365820C, MS20365-820C, AN365820C
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-275-2049 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS20365820C, MS20365-820C, AN365820C, AN365-820C, MILN25027, 53102752049, 5310-275-2049 , 1801080, 1801-080, 5310-00-275-2049, 00-275-2049, 5310002752049, 002752049
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-275-2049 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

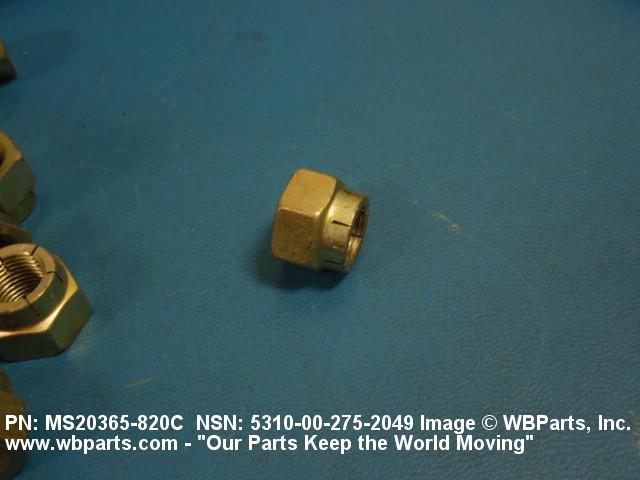

Drawings & Photos | NSN 5310-00-275-2049
Demand History | NSN 5310-00-275-2049
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-275-2049 | 2025-08-230 | 2 | US |
| 5310-00-275-2049 | 2025-08-230 | 4 | US |
| MS20365820C | 2025-04-112 | 4 | Thailand |
| MS20365820C | 2025-04-112 | 10 | Thailand |
| 5310-00-275-2049 | 2025-04-99 | 10 | Thailand |
| MS20365820C | 2024-11-327 | 10 | Thailand |
| MS20365820C | 2024-11-327 | 4 | Thailand |
| MILN25027 | 2023-08-236 | 54 | US |
| 5310-00-275-2049 | 2023-05-125 | 20 | MANUAL |
| MS20365-820C | 2023-05-125 | 20 | Saudi Arabia |
| AN365820C | 2023-05-122 | 142 | South Korea |
| 5310-00-275-2049 | 2020-12-339 | 2 | US |
| MILN25027 | 2020-09-262 | 156 | US |
| AN365820C | 2016-05-147 | 42 | United States |
| MS20365820C | 2015-03-84 | 1 | PH |
| AN365820C | 2014-05-139 | 7 | South Korea |
| MS20365820C | 2014-05-127 | 4 | US |
| AN365820C | 2014-04-118 | 422 | South Korea |
| MS20365820C | 2013-07-183 | 1 | US |
| MILN25027 | 2012-06-157 | 16 | United States |
| MILN25027 | 2012-05-139 | 15 | United States |
| 5310-00-275-2049 | 2012-02-51 | 6 | United States |
| MILN25027 | 2011-09-265 | 28 | US |
| MILN25027 | 2011-09-264 | 25 | Canada |
| MILN25027 | 2011-02-49 | 5 | US |
| MILN25027 | 2011-02-49 | 10 | US |
| MILN25027 | 2011-02-49 | 40 | US |
| MS20365820C | 2010-07-204 | 8 | US |
| MILN25027 | 2010-06-181 | 50 | United States |
| MILN25027 | 2010-04-111 | 5000 | US |
| MS20365820C | 2009-12-365 | 2 | MX |
| MILN25027 | 2009-11-321 | 560 | US |
| 5310-00-275-2049 | 2009-11-320 | 100 | United States |
| 5310-00-275-2049 | 2009-11-319 | 100 | United States |
| MILN25027 | 2009-10-281 | 8 | Canada |
| MILN25027 | 2008-09-270 | 50 | Italy |
| MS20365820C | 2008-05-126 | 6 | US |
Cross Reference | NSN 5310-00-275-2049
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1801-080 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 1801-080 | 72962 | HARVARD INDUSTRIES INC |
| 5310-275-2049 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AN365-820C | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MILN25027 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS20365-820C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-275-2049
Technical Data | NSN 5310-00-275-2049
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.594 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
| BEARING SURFACE TYPE | FLAT |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILN25027 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20365-820C |
Restrictions/Controls & Freight Information | NSN 5310-00-275-2049
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
