NSN 5310-00-297-3715 EB1414, EB144, 53-60085-60
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

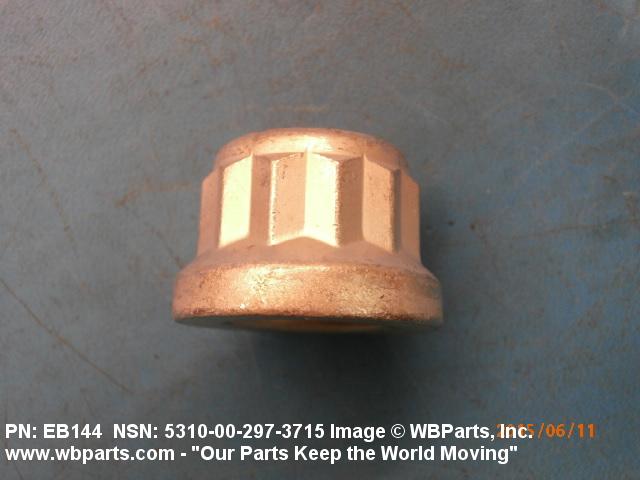

5310-00-297-3715 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: EB1414, EB144, 53-60085-60, 53-60086-73, 62554, 12NH14, 12NH-14, 13EB144, 5310-00-297-3715, 00-297-3715, 5310002973715, 002973715, 536008560, 536008673
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-297-3715 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

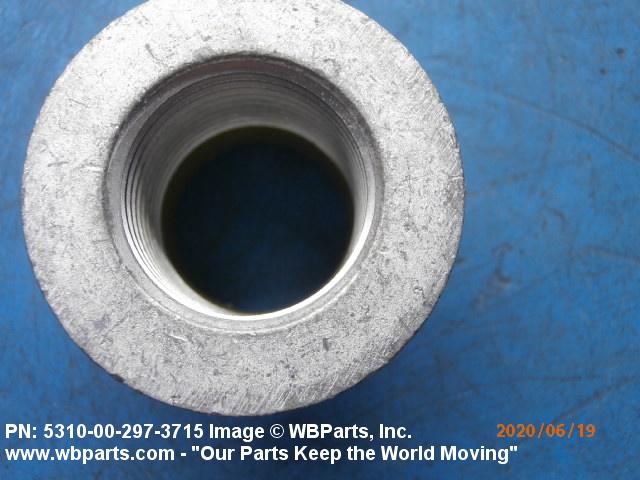

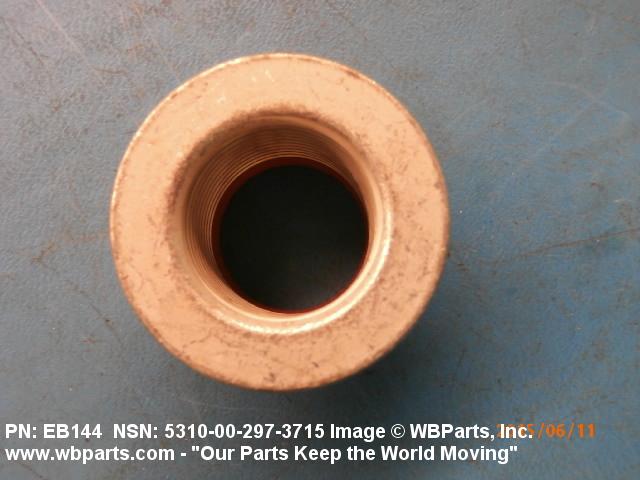

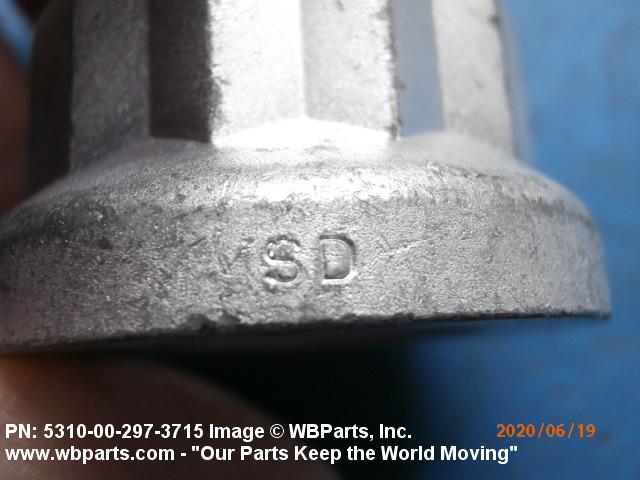

Drawings & Photos | NSN 5310-00-297-3715
Demand History | NSN 5310-00-297-3715
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12NH-14 | 2025-10-292 | 283 | DIBBS |
| EB144 | 2025-10-292 | 283 | DIBBS |
| 5310-00-297-3715 | 2025-10-290 | 500 | US |
| EB144 | 2025-06-154 | 1 | AR |
| EB144 | 2025-04-120 | 2 | United States |
| 12NH-14 | 2025-04-120 | 145 | DIBBS |
| EB144 | 2025-04-120 | 145 | DIBBS |
| 12NH-14 | 2025-04-112 | 145 | DIBBS |
| EB144 | 2025-04-112 | 145 | DIBBS |
| EB144 | 2025-02-43 | 4 | US |
| EB144 | 2025-01-29 | 4 | US |
| EB144 | 2025-01-29 | 4 | US |
| 12NH-14 | 2024-07-199 | 342 | DIBBS |
| EB144 | 2024-07-199 | 342 | DIBBS |
| 12NH-14 | 2021-08-227 | 103 | DIBBS |
| EB144 | 2021-08-227 | 103 | DIBBS |
| EB144 | 2021-01-17 | 2 | US |
| EB144 | 2020-06-164 | 16 | United States |
| EB144 | 2020-06-163 | 16 | United States |
| 5310-00-297-3715 | 2020-06-162 | 16 | United States |
| EB144 | 2019-11-333 | 4 | AR |
| 12NH-14 | 2019-08-240 | 170 | DIBBS |
| EB144 | 2019-08-240 | 170 | DIBBS |
| 12NH-14 | 2019-07-191 | 650 | DIBBS |
| EB144 | 2019-07-191 | 650 | DIBBS |
| 12NH-14 | 2019-05-149 | 163 | DIBBS |
| EB144 | 2019-05-149 | 163 | DIBBS |
| 12NH-14 | 2019-05-141 | 163 | DIBBS |
| EB144 | 2019-05-141 | 163 | DIBBS |
| 12NH-14 | 2019-04-115 | 186 | DIBBS |
| EB144 | 2019-04-115 | 186 | DIBBS |
| 12NH-14 | 2019-04-107 | 186 | DIBBS |
| EB144 | 2019-04-107 | 186 | DIBBS |
| EB144 | 2019-03-78 | 4 | United States |
| 5310-00-297-3715 | 2018-11-319 | 186 | DIBBS |
| 5310-00-297-3715 | 2018-11-311 | 186 | DIBBS |
| EB144 | 2017-11-306 | 64 | US |
| 5310-00-297-3715 | 2017-01-10 | 64 | United States |
| 5310-00-297-3715 | 2016-10-279 | 2 | US |
| EB144 | 2016-05-134 | 2 | US |
| EB144 | 2015-12-342 | 64 | United States |
| EB144 | 2015-06-160 | 29 | United States |
| 5310-00-297-3715 | 2014-05-133 | 2 | US |
| EB144 | 2013-10-275 | 1 | US |
| EB144 | 2013-07-211 | 4 | US |
| EB144 | 2012-06-165 | 8 | United States |
| 5310-00-297-3715 | 2011-06-155 | 619 | DIBBS |
| 5310-00-297-3715 | 2011-04-111 | 103 | DIBBS |
| 5310-00-297-3715 | 2010-07-183 | 2 | US |
| EB144 | 2010-05-133 | 2 | US |
| EB144 | 2010-03-61 | 1 | United States |
| EB144 | 2008-08-217 | 4 | US |
| 5310-00-297-3715 | 2008-04-113 | 10 | us |
| EB144 | 2008-03-81 | 4 | US |
Cross Reference | NSN 5310-00-297-3715
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12NH-14 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 13EB144 | 72963 | KLINES FURNITURE CO INC |
| 53-60085-60 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 53-60086-73 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 62554 | 2M335 | LEHIGH ELECTRIC PRODUCTS |
| EB1414 | 27687 | GREER STOP NUT INC. |
| EB144 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-297-3715
Related Products | NSN 5310-00-297-3715
Technical Data | NSN 5310-00-297-3715
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |

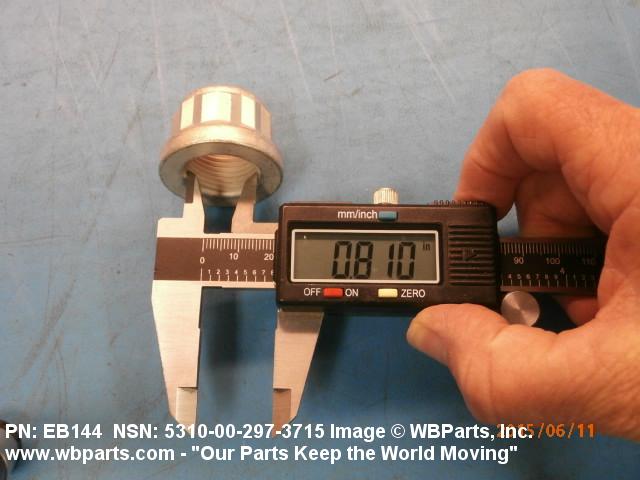

| NOMINAL THREAD SIZE | 0.875 INCHES |

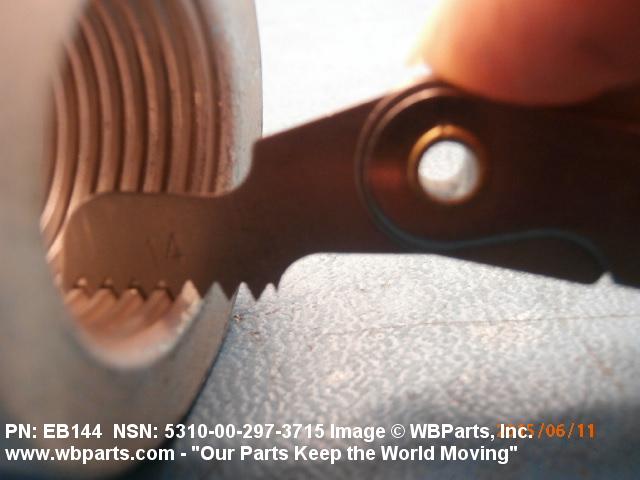

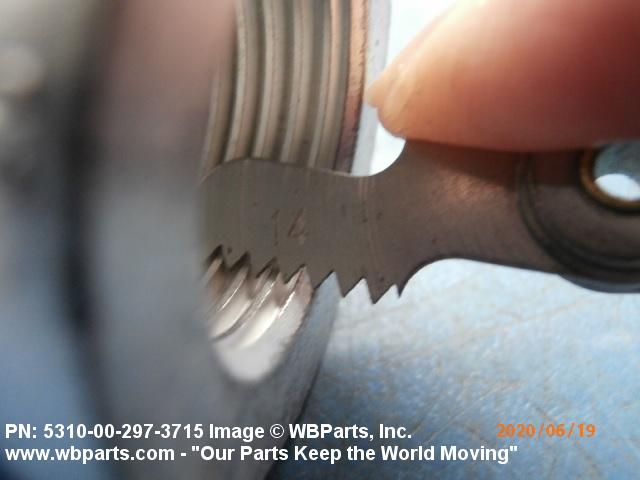

| THREAD QUANTITY PER INCH | 14 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 4340 OR STEEL COMP 3140 OR STEEL COMP 8740 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD ALL MATERIAL RESPONSES NUT |
| SURFACE TREATMENT | CADMIUM OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A293 DOUBLE HEXAGON |

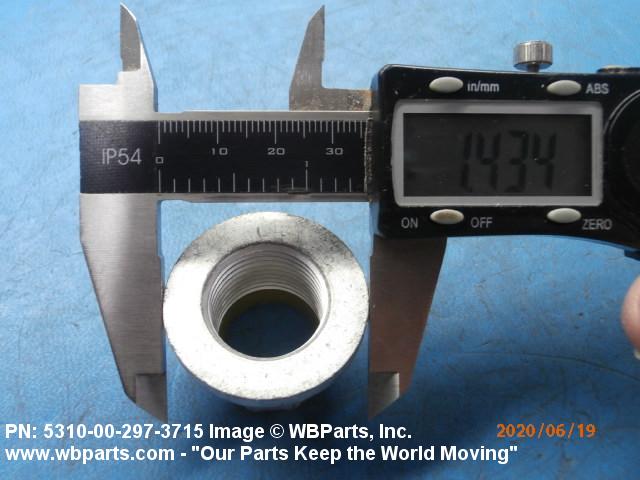

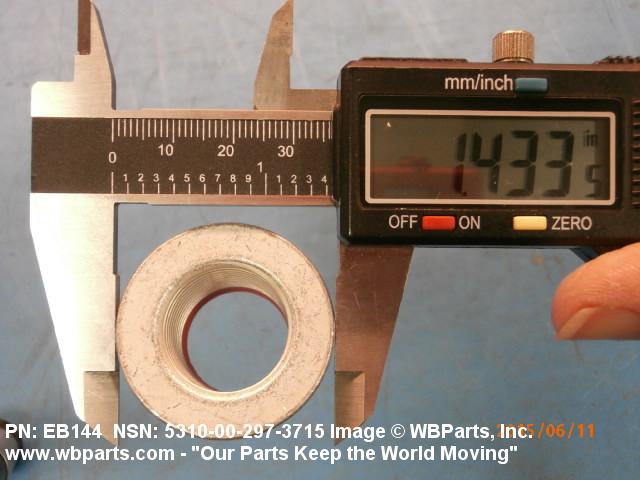

| WASHER OUTSIDE DIAMETER | 1.428 INCHES MINIMUM AND 1.438 INCHES MAXIMUM |

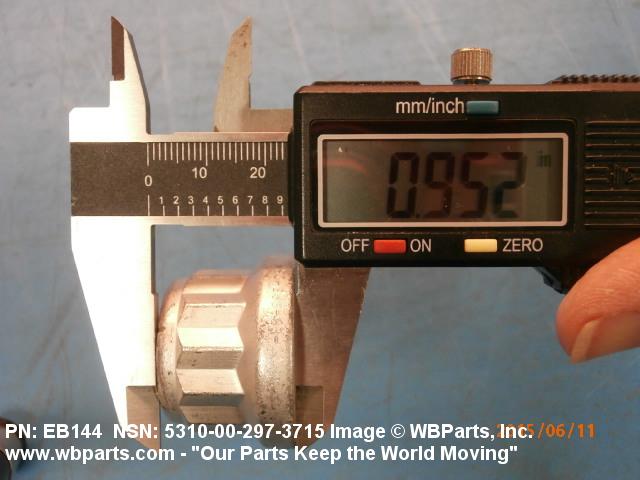

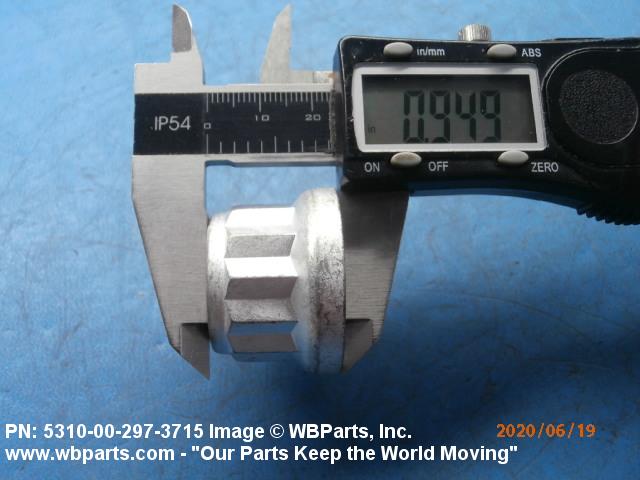

| OVERALL HEIGHT | 0.953 INCHES NOMINAL |

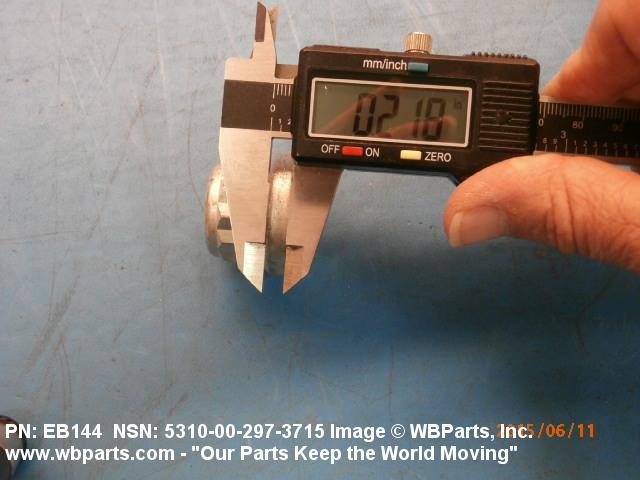

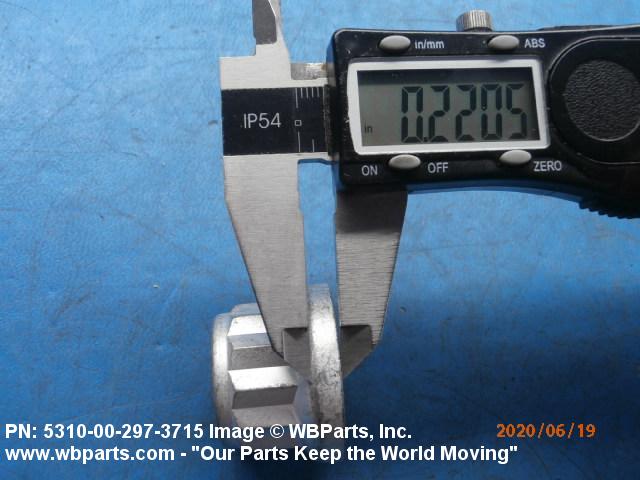

| WASHER THICKNESS | 0.219 INCHES NOMINAL |

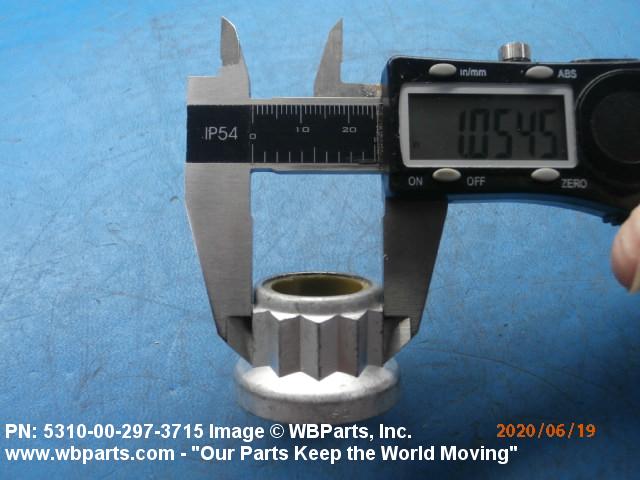

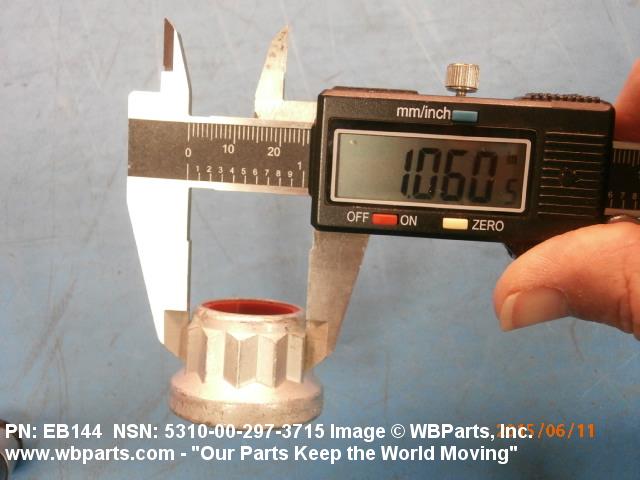

| WIDTH ACROSS FLATS | 1.050 INCHES MINIMUM AND 1.067 INCHES MAXIMUM |

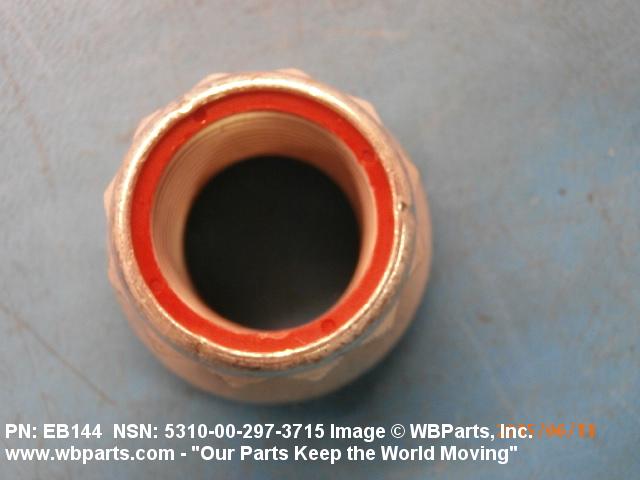

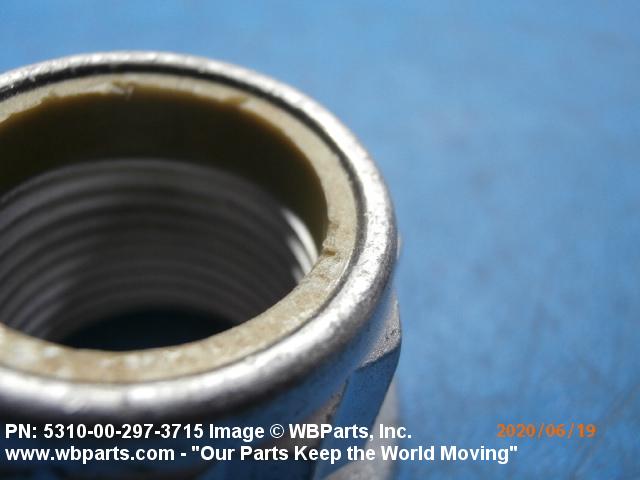

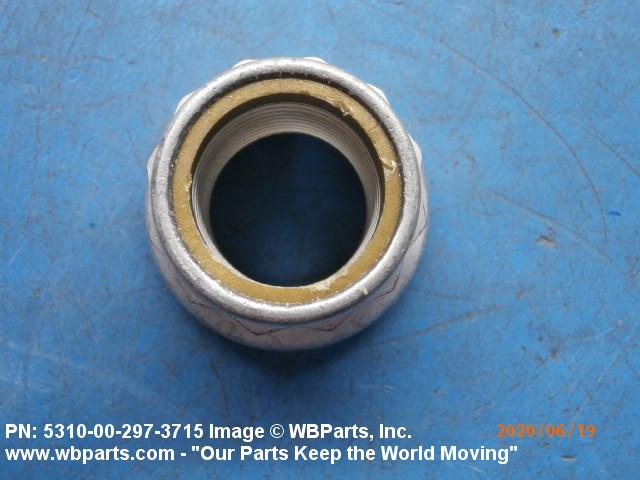

| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | ANY ACCEPTABLE NUT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-297-3715
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-297-3715
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
