NSN 5310-00-434-6928 BH006704, BH00670-4, H38-4
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-434-6928 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BH006704, BH00670-4, H38-4, LH7399048, LH7399-048, Z00.N5412521305, Z00N5412521305, DHE5579, DHE55794, DHE5579-4, FN1418428, FN1418-428, H384, 5310-00-434-6928, 00-434-6928, 5310004346928, 004346928
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 AUG 1970 | 00-434-6928 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

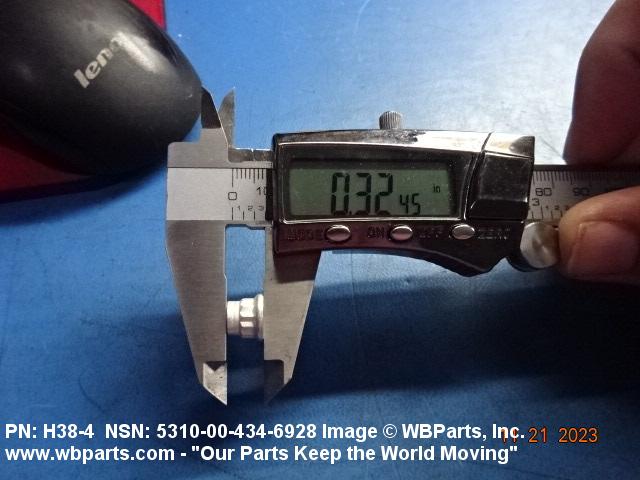

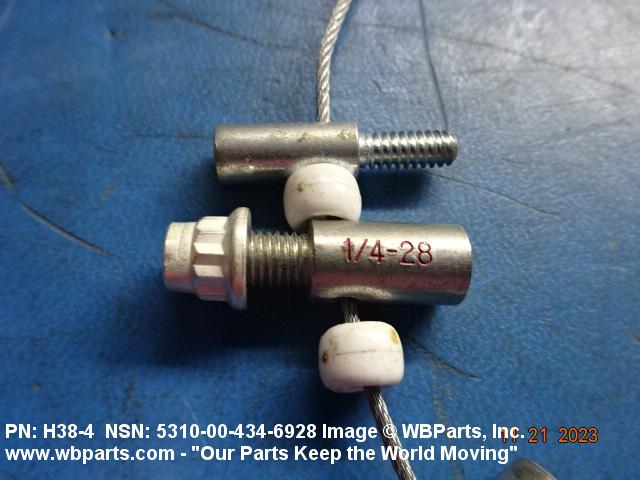

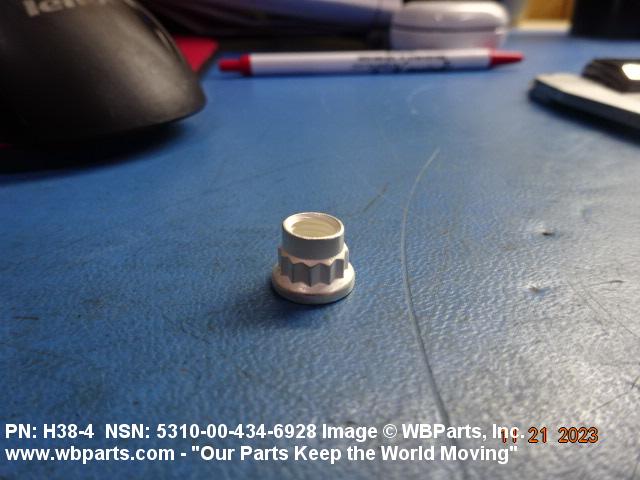

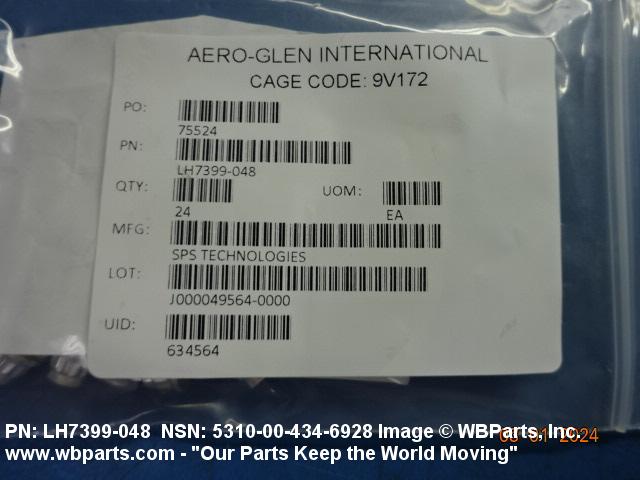

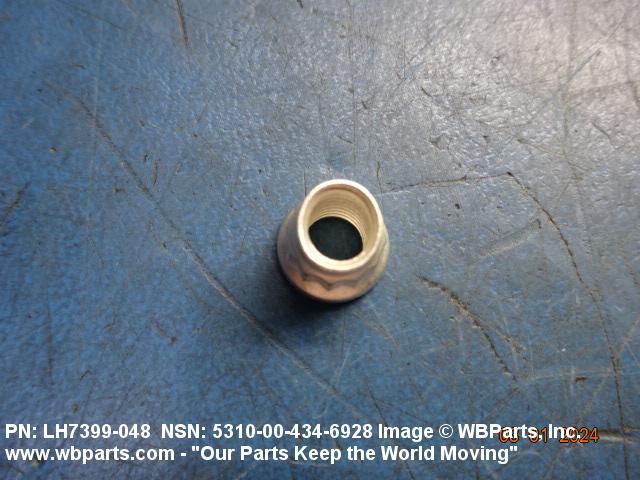

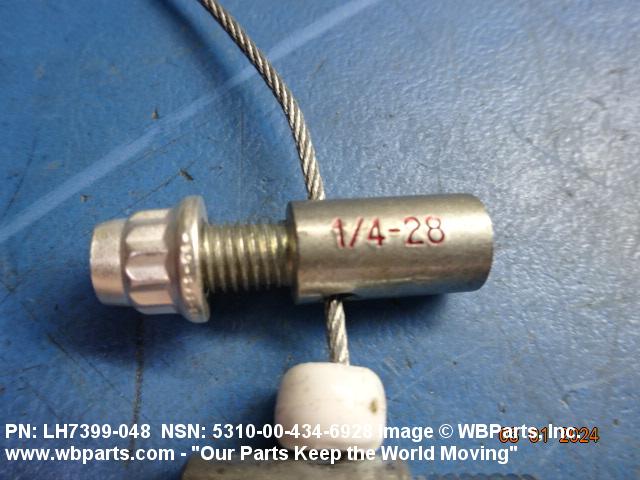

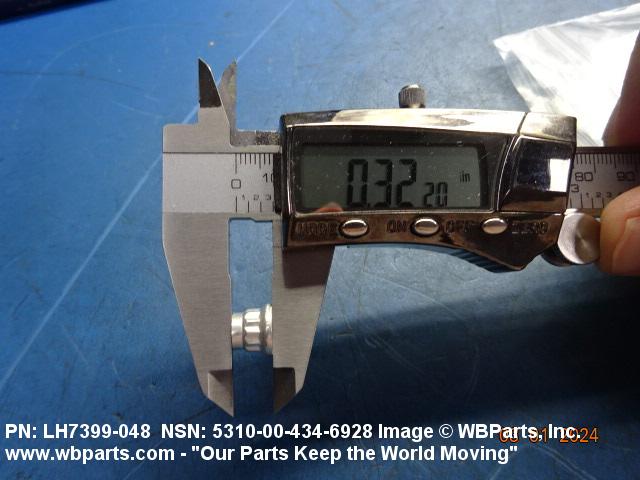

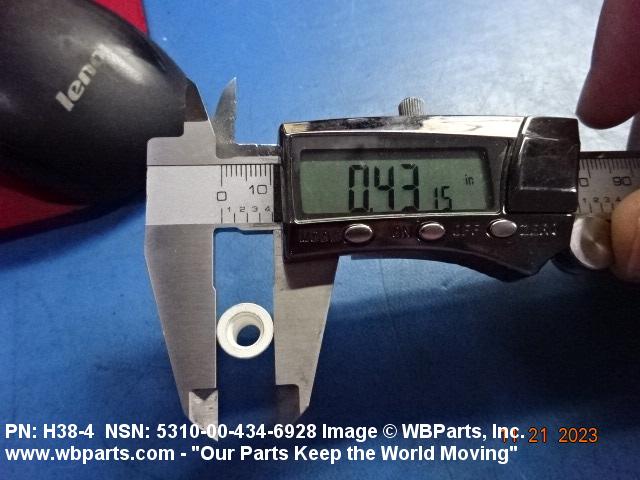

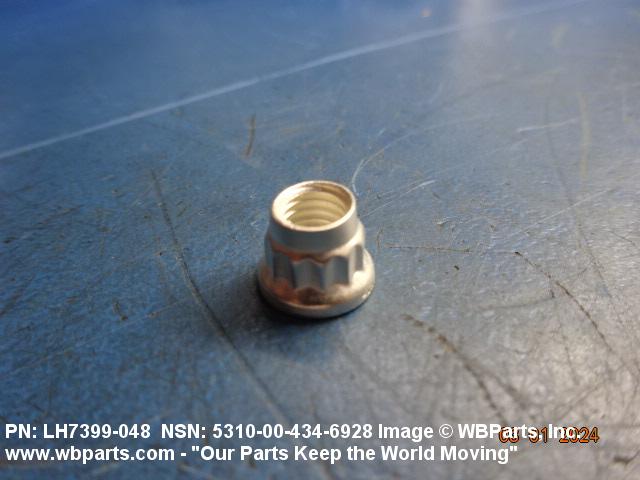

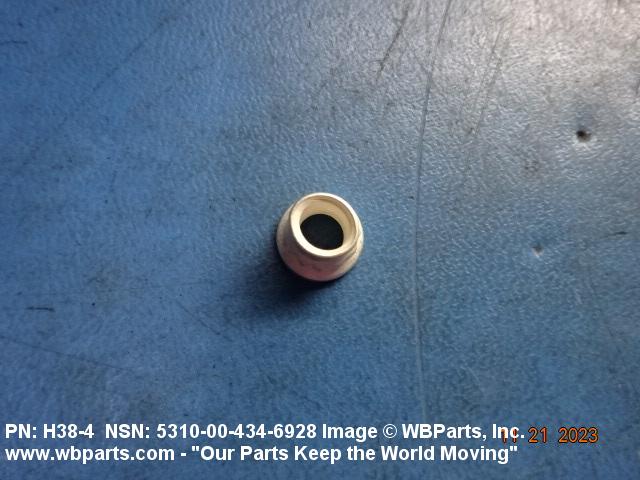

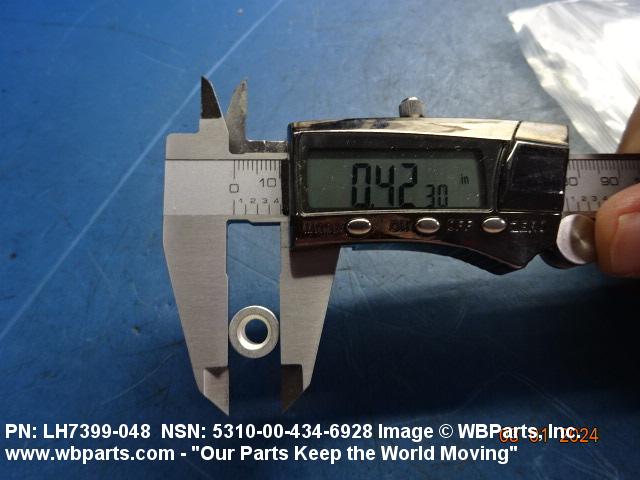

Drawings & Photos | NSN 5310-00-434-6928
Demand History | NSN 5310-00-434-6928
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-434-6928 | 2025-08-218 | 396 | PH |
| 5310-00-434-6928 | 2025-08-218 | 396 | PH |
| 5310-00-434-6928 | 2025-08-218 | 396 | PH |
| 5310-00-434-6928 | 2025-06-174 | 396 | PH |
| H384 | 2024-06-157 | 100 | United Kingdom |
| H384 | 2024-06-157 | 400 | United Kingdom |
| 5310-00-434-6928 | 2024-02-47 | 24 | United States |
| 5310-00-434-6928 | 2023-11-319 | 24 | United States |
| BH00670-4 | 2023-07-212 | 7 | DIBBS |
| DHE5579 | 2023-07-212 | 7 | DIBBS |
| DHE5579-4 | 2023-07-212 | 7 | DIBBS |
| FN1418-428 | 2023-07-212 | 7 | DIBBS |
| H38-4 | 2023-07-212 | 7 | DIBBS |
| BH00670-4 | 2021-12-350 | 9 | DIBBS |
| DHE5579 | 2021-12-350 | 9 | DIBBS |
| DHE5579-4 | 2021-12-350 | 9 | DIBBS |
| FN1418-428 | 2021-12-350 | 9 | DIBBS |
| H38-4 | 2021-12-350 | 9 | DIBBS |
| BH00670-4 | 2021-08-228 | 9 | DIBBS |
| DHE5579 | 2021-08-228 | 9 | DIBBS |
| DHE5579-4 | 2021-08-228 | 9 | DIBBS |
| FN1418-428 | 2021-08-228 | 9 | DIBBS |
| H38-4 | 2021-08-228 | 9 | DIBBS |
| H384 | 2016-06-154 | 360 | MX |
| H384 | 2016-06-154 | 2000 | MX |
| 5310-00-434-6928 | 2015-06-175 | 287 | DIBBS |
| 5310-00-434-6928 | 2015-01-07 | 100 | DE |
| 5310-00-434-6928 | 2014-10-300 | 841 | DIBBS |
| 5310-00-434-6928 | 2014-10-288 | 841 | DIBBS |
| 5310-00-434-6928 | 2013-02-44 | 20000 | DIBBS |
| 5310-00-434-6928 | 2012-06-156 | 3000 | Israel |
| FN1418428 | 2010-07-208 | 11 | US |
Cross Reference | NSN 5310-00-434-6928
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BH00670-4 | 27238 | BRISTOL INDUSTRIES |
| DHE5579 | 62554 | ALCOA GLOBAL FASTENERS INC. DBA SIMMONDS MECAERO FAS PDTS DIV |
| DHE5579-4 | 10088 | WUDEL EDMOND J MFG CO INC |
| FN1418-428 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| FN1418-428 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| H38-4 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| H38-4 | F6033 | TECNOTEC SARL |
| H38-4 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| LH7399-048 | 72962 | HARVARD INDUSTRIES INC |
| Z00.N5412521305 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-434-6928
Related Products | NSN 5310-00-434-6928
Technical Data | NSN 5310-00-434-6928
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | NICKEL ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | NICKEL ALLOY WAS PALOY,FSCM 80539 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 44.0 ROCKWELL C NOMINAL |
| NUT STYLE | A293 DOUBLE HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.409 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.292 INCHES MAXIMUM |
| WASHER THICKNESS | 0.033 INCHES MINIMUM |
| WIDTH ACROSS FLATS | 0.305 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | ANY ACCEPTABLE NUT |
| LUBRICATION | SOLUBLE LUBRICANT |
| TEMP RATING | 1400.0 DEG FAHRENHEIT NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | EXTERNAL SURFACE SILVER |
| MANUFACTURERS CODE | 56878 |
| DESIGN CONTROL REFERENCE | FN1418-428 |
Restrictions/Controls & Freight Information | NSN 5310-00-434-6928
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139820 | NICKEL BOLTS/NAILS/NUTS/RIVETS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-434-6928
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
