NSN 5310-00-453-1087 AS20627, 00-453-1087, 004531087
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-453-1087 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: AS20627, 5310-00-453-1087, 00-453-1087, 5310004531087, 004531087
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 MAY 1970 | 00-453-1087 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

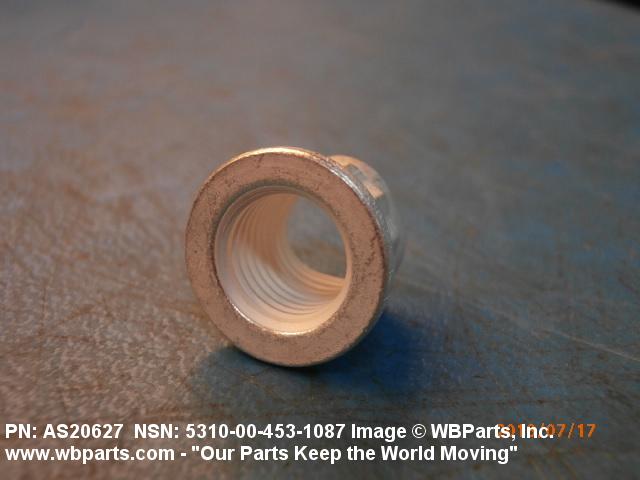

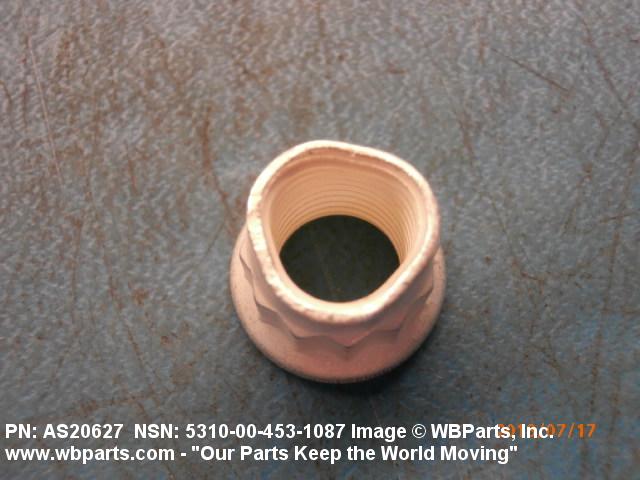

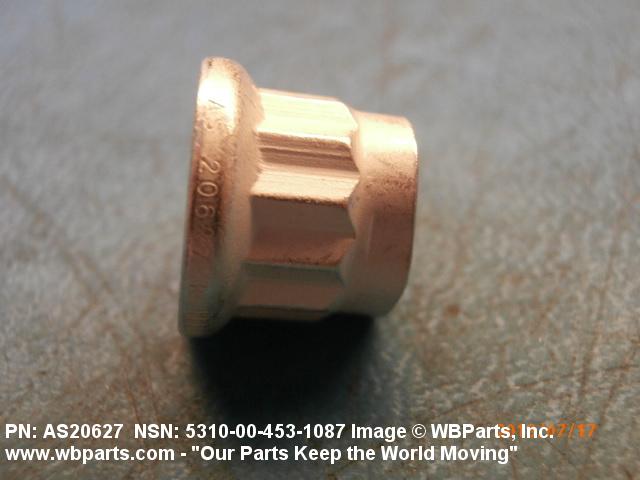

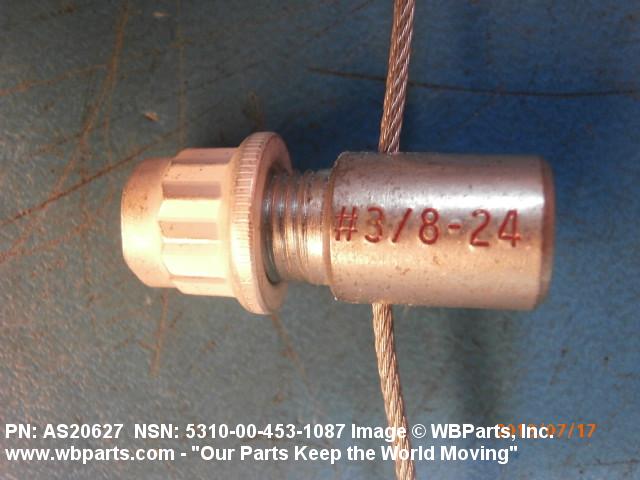

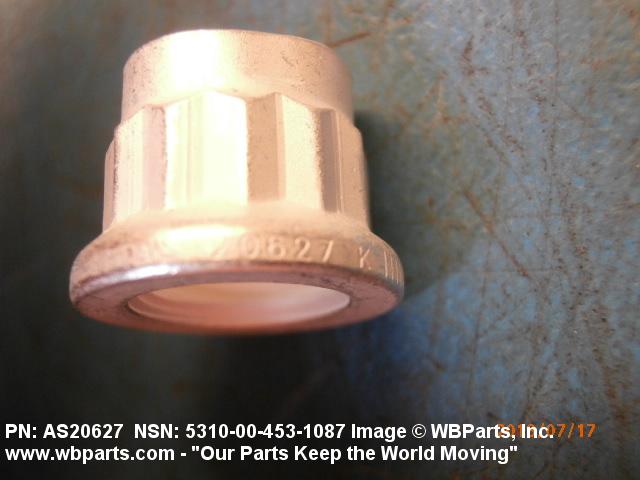

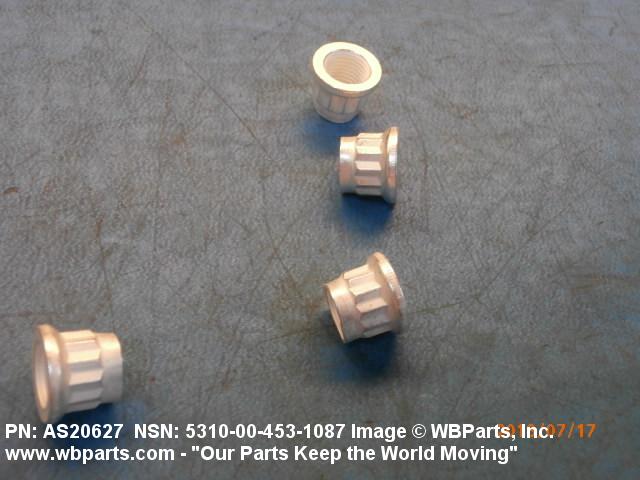

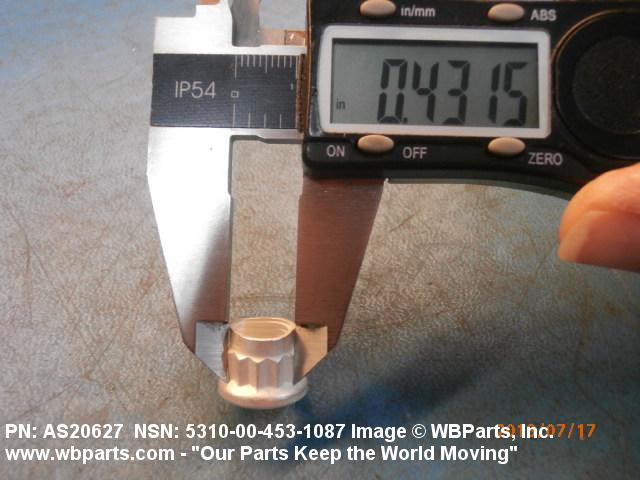

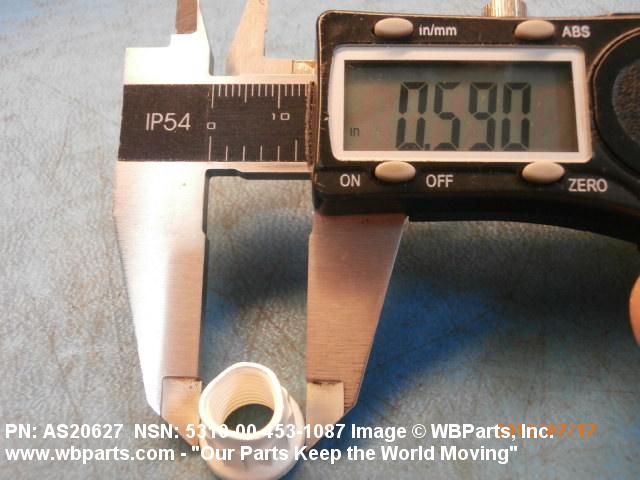

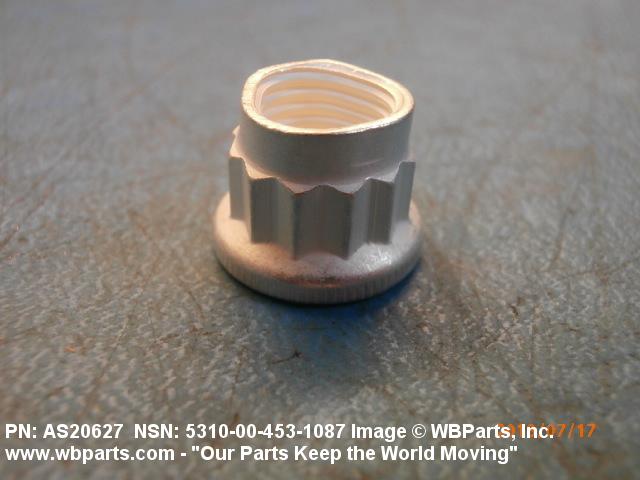

Drawings & Photos | NSN 5310-00-453-1087
Demand History | NSN 5310-00-453-1087
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-453-1087 | 2025-12-338 | 1 | US |
| AS20627 | 2024-10-302 | 64 | Germany |
| 5310-00-453-1087 | 2022-09-258 | 772 | DIBBS |
| AS20627 | 2018-07-193 | 4 | United States |
| 5310-00-453-1087 | 2018-02-37 | 25 | CA |
| AS20627 | 2014-08-239 | 18 | Singapore |
| 5310-00-453-1087 | 2014-06-177 | 80 | United States |
| AS20627 | 2014-06-153 | 1 | Malaysia |
| 5310-00-453-1087 | 2013-11-325 | 1 | DIBBS-RFPs |
| AS20627 | 2013-11-319 | 32 | SO |
| 5310-00-453-1087 | 2013-10-291 | 1 | DIBBS-RFPs |
| 5310-00-453-1087 | 2013-09-246 | 1 | DIBBS-RFPs |
| 5310-00-453-1087 | 2013-02-50 | 10 | France |
| 5310-00-453-1087 | 2012-01-13 | 5 | United States |
| AS20627 | 2011-04-95 | 8 | us |
| 5310-00-453-1087 | 2010-06-157 | 30 | BE |
| AS20627 | 2009-02-56 | 1 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-453-1087
Related Products | NSN 5310-00-453-1087
Technical Data | NSN 5310-00-453-1087
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A293 DOUBLE HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.572 INCHES NOMINAL |

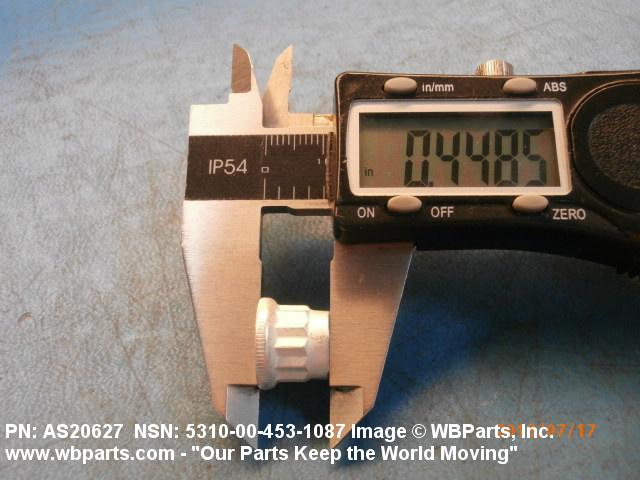

| OVERALL HEIGHT | 0.450 INCHES NOMINAL |

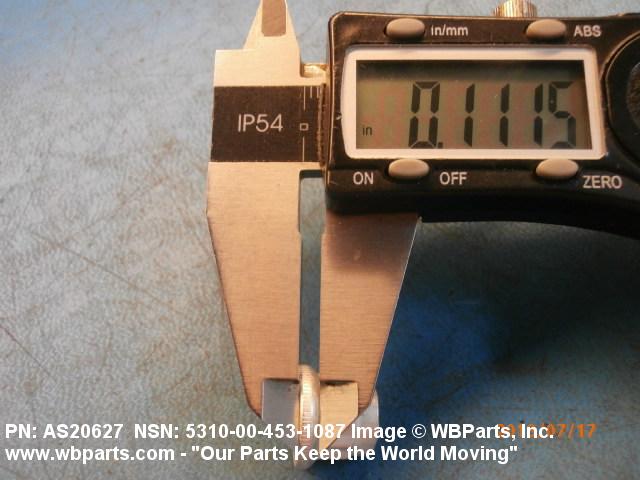

| WASHER THICKNESS | 0.110 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.392 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | U1653 |
| DESIGN CONTROL REFERENCE | AS20627 |
Restrictions/Controls & Freight Information | NSN 5310-00-453-1087
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | 98 | DLIS-LFF Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-453-1087
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
