NSN 5310-00-497-3891 MS20365720A, MS20365-720A, A223017
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-497-3891 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS20365720A, MS20365-720A, A223017, A22301-7, AN365720A, AN365-720A, MILN25027, 1137720, 1137-720, 12Z2007205, 12Z2007-205, 52NE070, 67MAP1, 6950946, 69509-46, 5310-00-497-3891, 00-497-3891, 5310004973891, 004973891
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-497-3891 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

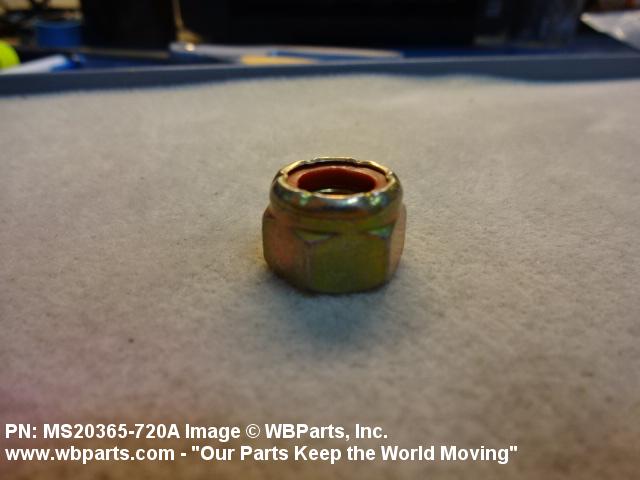

Drawings & Photos | NSN 5310-00-497-3891
Demand History | NSN 5310-00-497-3891
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6950946 | 2024-06-177 | 800 | France |
| MILN25027 | 2023-08-236 | 54 | US |
| MILN25027 | 2020-09-262 | 156 | US |
| 5310-00-497-3891 | 2020-09-262 | 38 | ID |
| 5310-00-497-3891 | 2017-08-241 | 36 | Australia |
| MS20365-720A | 2014-11-308 | 5000 | United States |
| MS20365-720A | 2014-07-198 | 4 | US |
| 6950946 | 2013-11-310 | 12 | Canada |
| 69509-46 | 2012-11-310 | 6 | |
| MILN25027 | 2012-06-157 | 16 | United States |
| MILN25027 | 2012-05-139 | 15 | United States |
| MILN25027 | 2011-09-265 | 28 | US |
| MILN25027 | 2011-09-264 | 25 | Canada |
| MILN25027 | 2011-02-49 | 5 | US |
| MILN25027 | 2011-02-49 | 10 | US |
| MILN25027 | 2011-02-49 | 40 | US |
| MILN25027 | 2010-06-181 | 50 | United States |
| MILN25027 | 2010-04-111 | 5000 | US |
| MILN25027 | 2009-11-321 | 560 | US |
| MILN25027 | 2009-10-281 | 8 | Canada |
| MILN25027 | 2008-09-270 | 50 | Italy |
Cross Reference | NSN 5310-00-497-3891
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1137-720 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 12Z2007-205 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 12Z2007-205 | 94135 | NAVAL ORDNANCE STANDARDS |
| 52NE070 | 72962 | HARVARD INDUSTRIES INC |
| 67MAP1 | 05415 | LINDE LIFT TRUCK CORP. |
| 67MAP1 | 556A6 | LINDE MATERIAL HANDLING NORTH AMERICA CORP |
| 69509-46 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| A22301-7 | 89236 | MODERN MANUFACTURING INC. |
| AN365-720A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MILN25027 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS20365-720A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-497-3891
Related Products | NSN 5310-00-497-3891
Technical Data | NSN 5310-00-497-3891
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.438 INCHES |

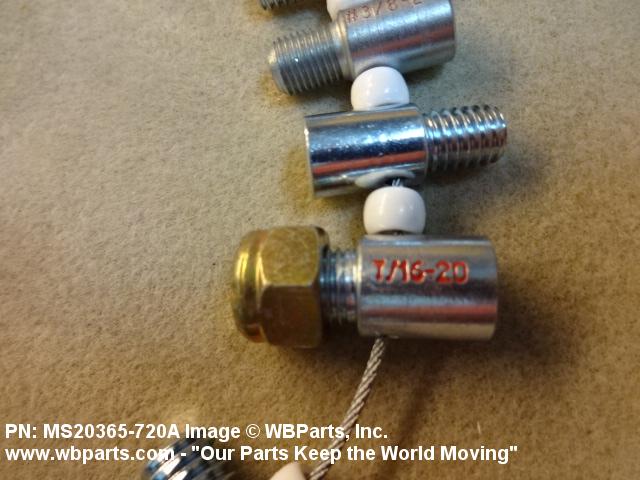

| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

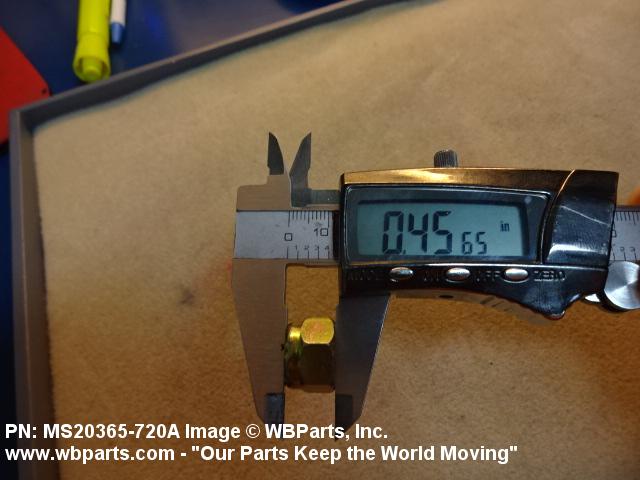

| NUT HEIGHT | 0.453 INCHES NOMINAL |

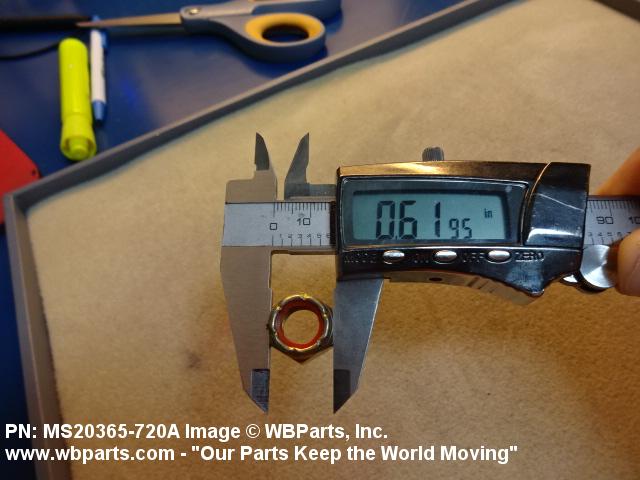

| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| BEARING SURFACE TYPE | FLAT |

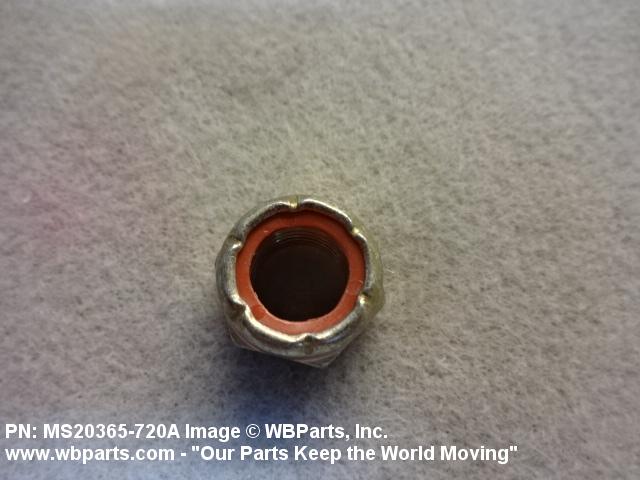

| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILN25027 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20365-720A |
Restrictions/Controls & Freight Information | NSN 5310-00-497-3891
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-00-497-3891
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
