NSN 5310-00-595-7480 AN364632, AN364-632, 00-595-7480
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-595-7480 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: AN364632, AN364-632, 5310-00-595-7480, 00-595-7480, 5310005957480, 005957480
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-595-7480 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

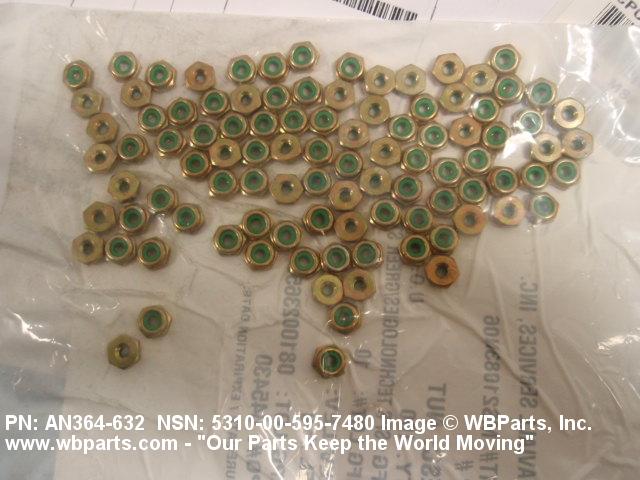

Drawings & Photos | NSN 5310-00-595-7480
Demand History | NSN 5310-00-595-7480
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-595-7480 | 2017-03-72 | 1400 | US |
| AN364-632 | 2015-05-138 | 8 | United States |
| AN364-632 | 2015-05-138 | 8 | United States |
| AN364-632 | 2015-05-137 | 8 | United States |
| 5310-00-595-7480 | 2014-04-97 | 100 | United States |
| 5310-00-595-7480 | 2009-04-117 | 2 | United States |
Cross Reference | NSN 5310-00-595-7480
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN364-632 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-595-7480
Technical Data | NSN 5310-00-595-7480
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.125 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.312 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| BEARING SURFACE TYPE | FLAT |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN364-632 |
Restrictions/Controls & Freight Information | NSN 5310-00-595-7480
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
