NSN 5310-00-721-5980 2479324753, 247-932475-3, 52392428
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-721-5980 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: 2479324753, 247-932475-3, 52392428, 52392-428, 6812283428, 6812283-428, 5310-00-721-5980, 00-721-5980, 5310007215980, 007215980
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-721-5980 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

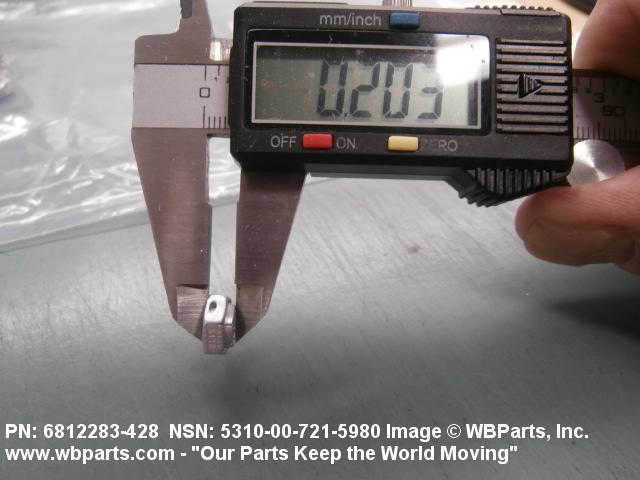

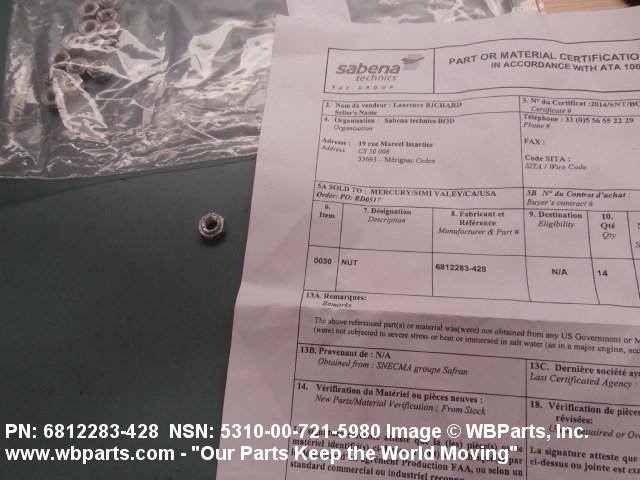

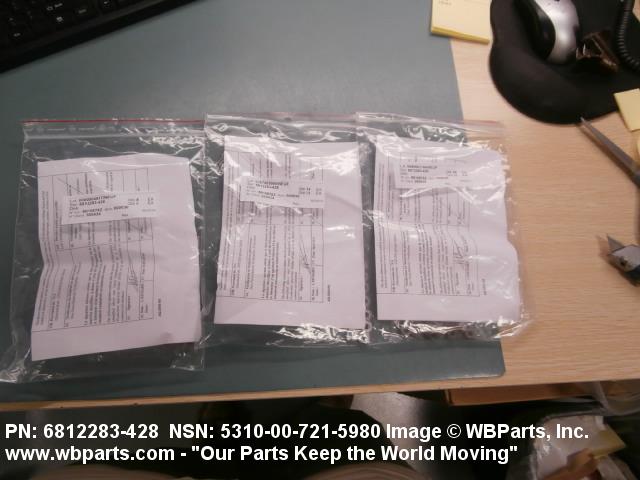

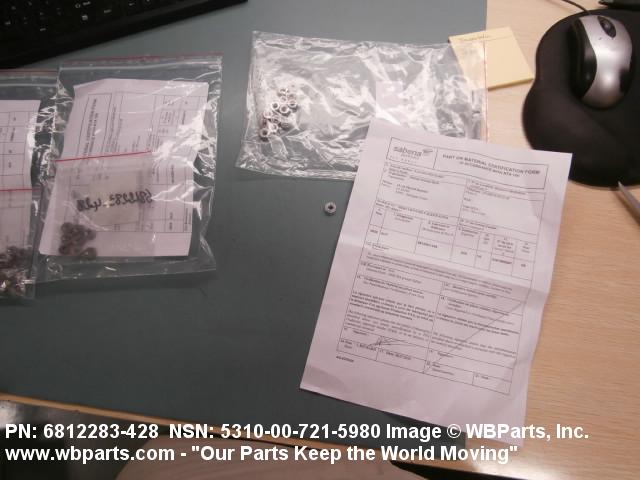

Drawings & Photos | NSN 5310-00-721-5980
Demand History | NSN 5310-00-721-5980
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-721-5980 | 2024-10-277 | 4 | PT |
| 5310-00-721-5980 | 2024-09-267 | 4 | PT |
| 52392-428 | 2014-10-303 | 3 | Spain |
| 5310-00-721-5980 | 2014-10-303 | 3 | MANUAL |
| 5310-00-721-5980 | 2014-06-167 | 50 | United States |
| 5310-00-721-5980 | 2013-07-190 | 6 | Taiwan |
| 5310-00-721-5980 | 2011-05-125 | 32 | United States |
| 52392-428 | 2011-03-76 | 32 | |
| 6812283-428 | 2010-11-333 | 20 | |
| 5310-00-721-5980 | 2010-07-202 | 4 | us |
| 5310-00-721-5980 | 2010-01-07 | 50 | United States |
| 6812283428 | 2009-12-335 | 12 | US |
| 52392428 | 2008-10-298 | 200 | us |
| 5310-00-721-5980 | 2007-03-81 | 500 | US |
Cross Reference | NSN 5310-00-721-5980
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-721-5980
Related Products | NSN 5310-00-721-5980
Technical Data | NSN 5310-00-721-5980
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.203 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 550.0 DEG FAHRENHEIT NOMINAL |
| SPECIAL FEATURES | TWO DRILLED HOLES ON OPPOSITE CORNERS 0.037 IN. MIN 0.057 IN. MAX DIA |
Restrictions/Controls & Freight Information | NSN 5310-00-721-5980
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 513 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-721-5980
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
