NSN 5310-00-725-8270 SMA8586981, SM-A-858698-1, LH385826
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-725-8270 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: SMA8586981, SM-A-858698-1, LH385826, LH3858-26, 91119004, 911190-04, 5310-00-725-8270, 00-725-8270, 5310007258270, 007258270
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-725-8270 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

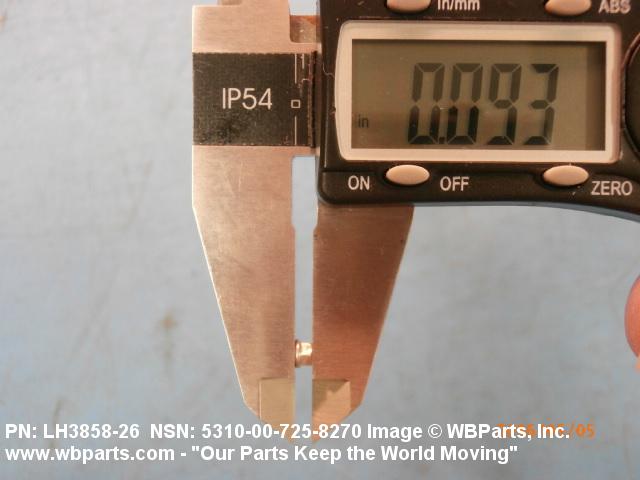

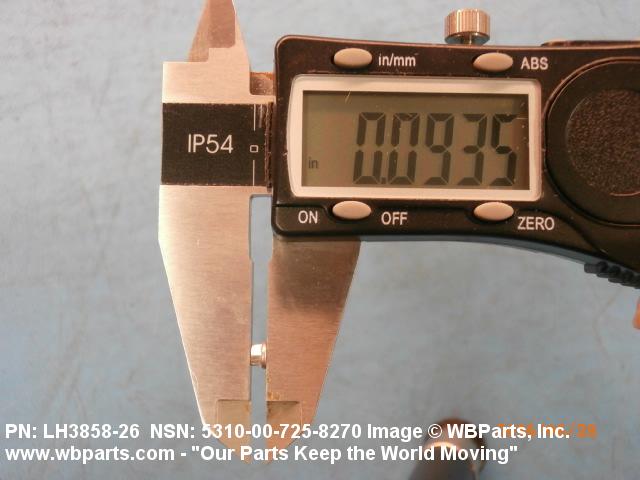

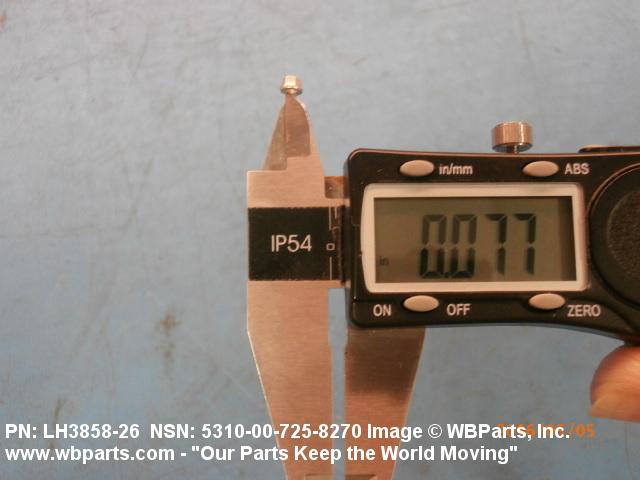

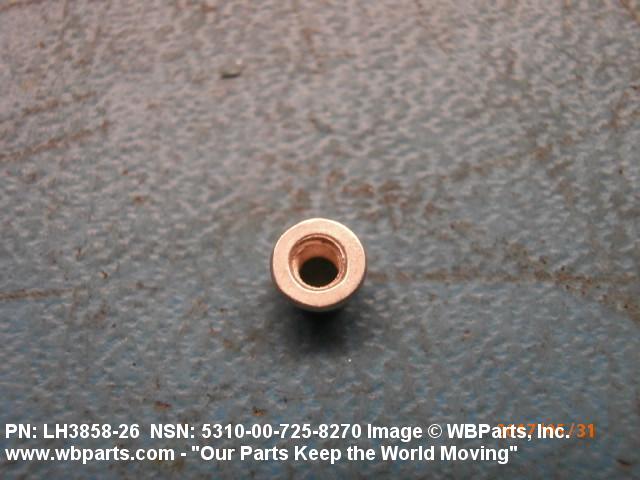

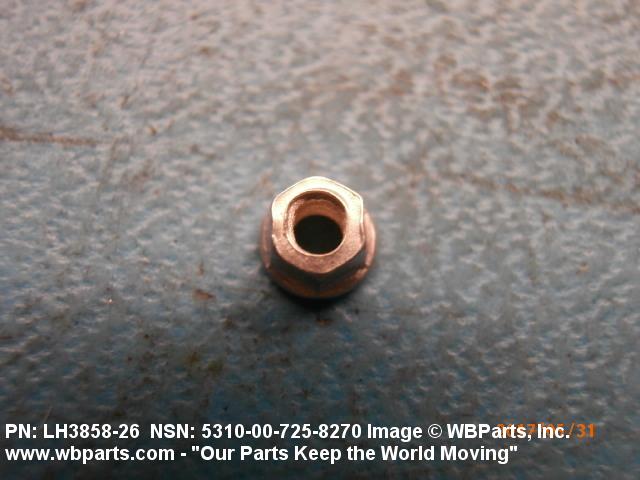

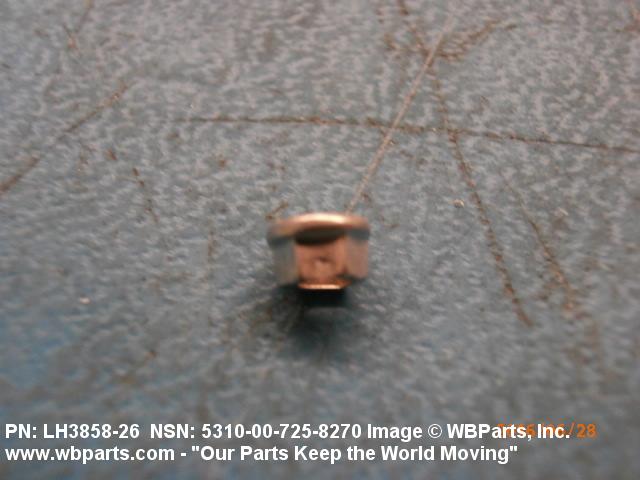

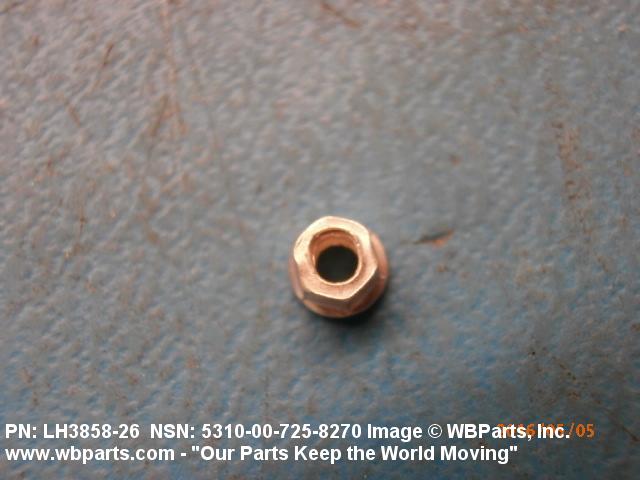

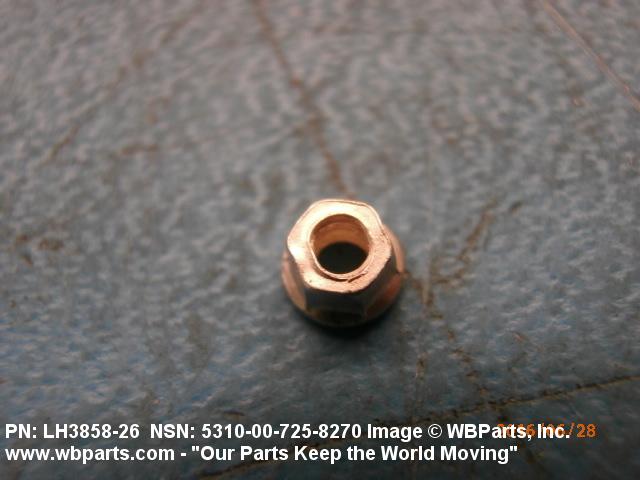

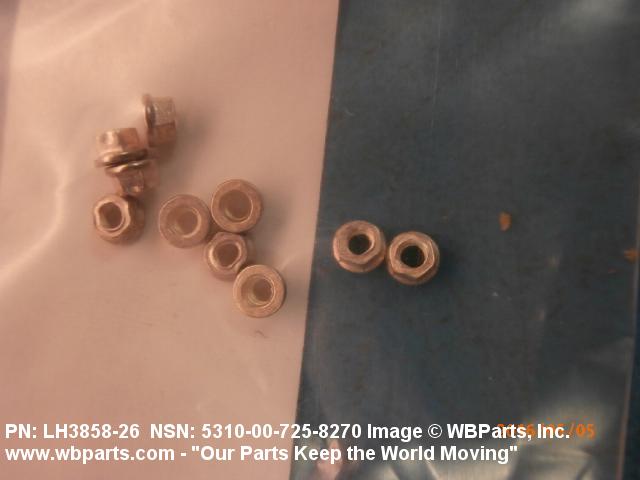

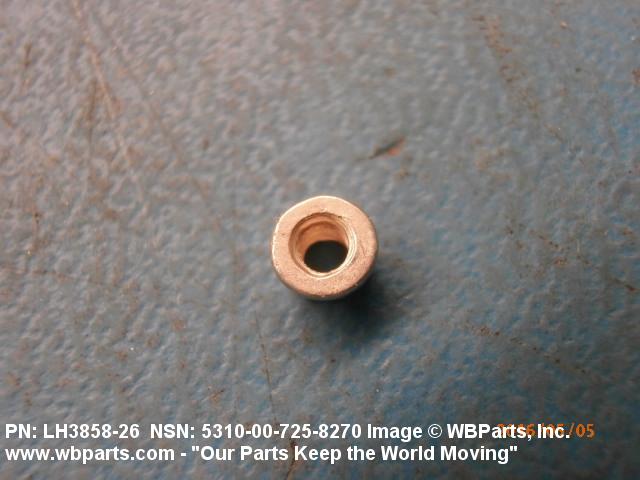

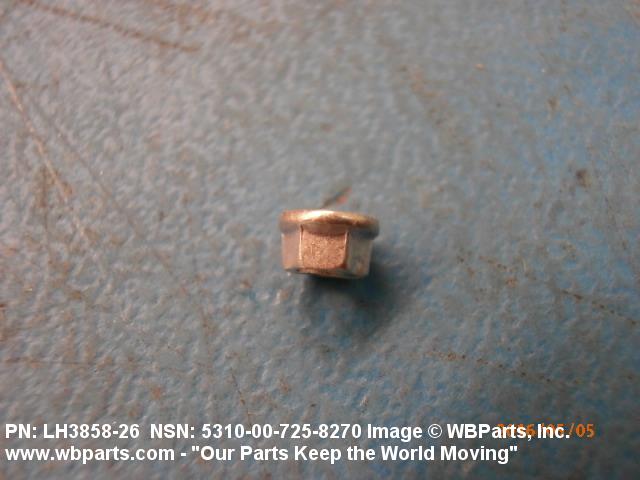

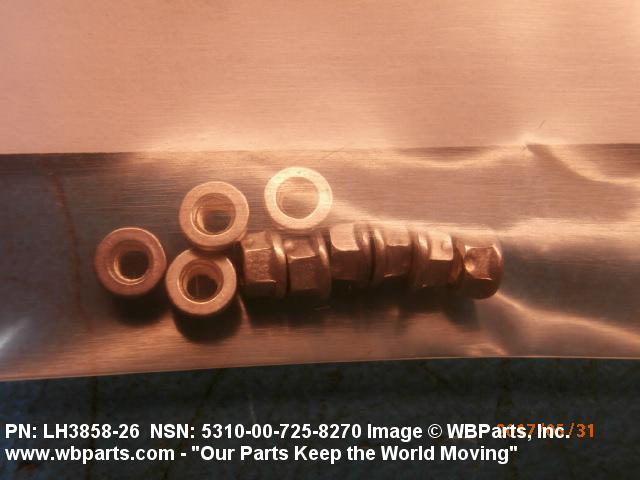

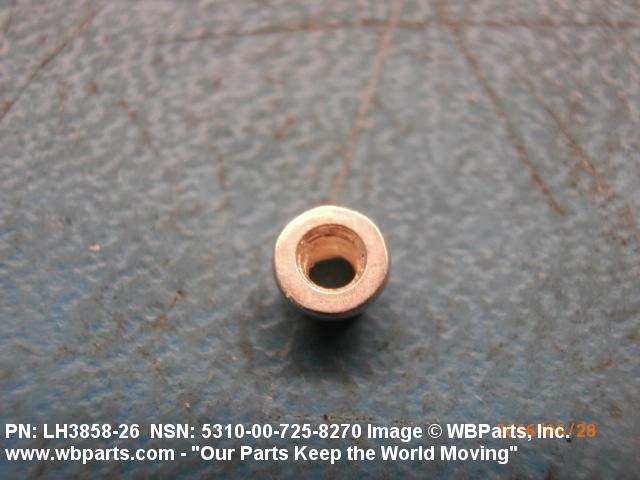

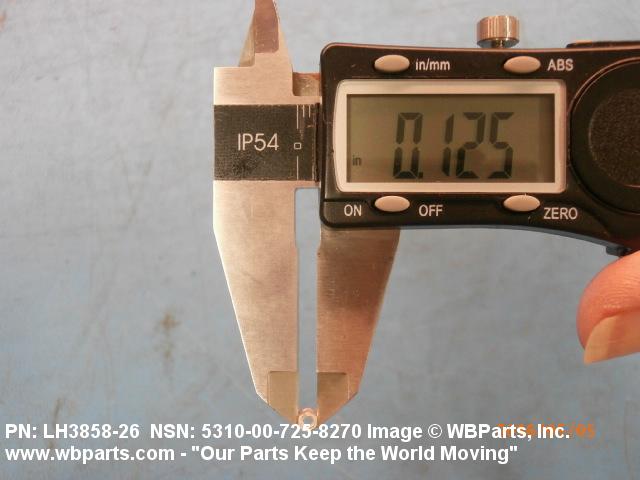

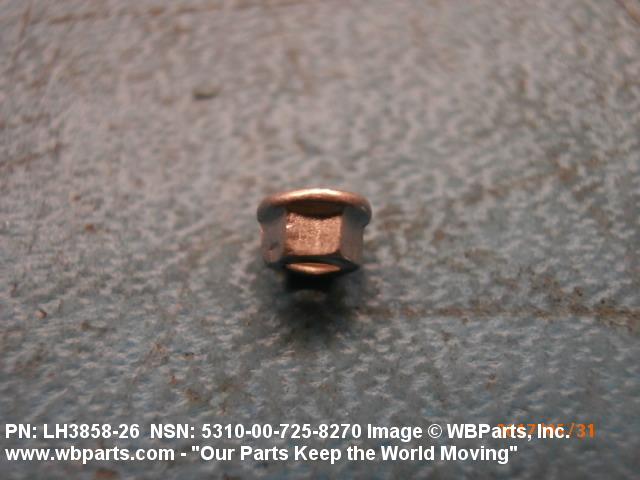

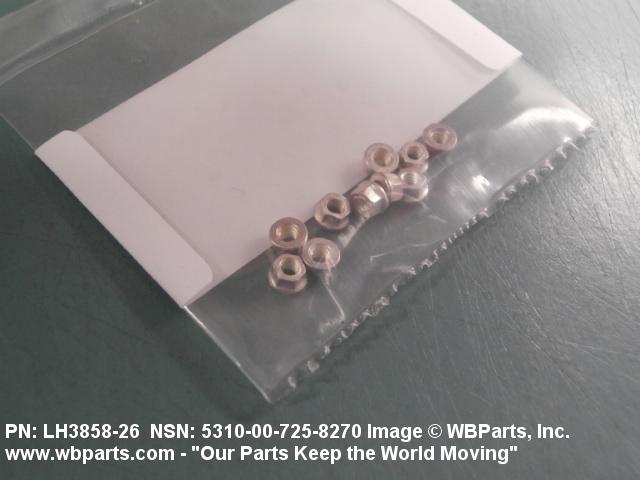

Drawings & Photos | NSN 5310-00-725-8270
Demand History | NSN 5310-00-725-8270
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-725-8270 | 2019-01-22 | 8 | United States |
| LH385826 | 2017-10-298 | 15 | United States |
| 5310-00-725-8270 | 2017-05-121 | 15 | United States |
| 5310-00-725-8270 | 2017-05-121 | 25 | United States |
| 5310-00-725-8270 | 2016-06-159 | 16 | us |
| LH385826 | 2016-04-117 | 10 | United States |
| LH385826 | 2013-12-351 | 30 | United States |
Cross Reference | NSN 5310-00-725-8270
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-725-8270
Technical Data | NSN 5310-00-725-8270
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

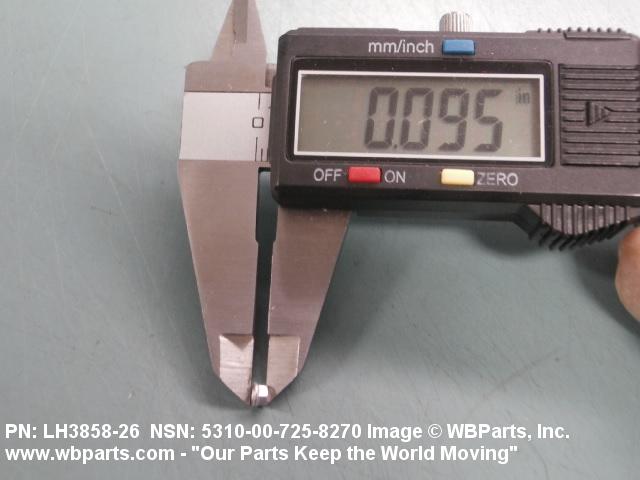

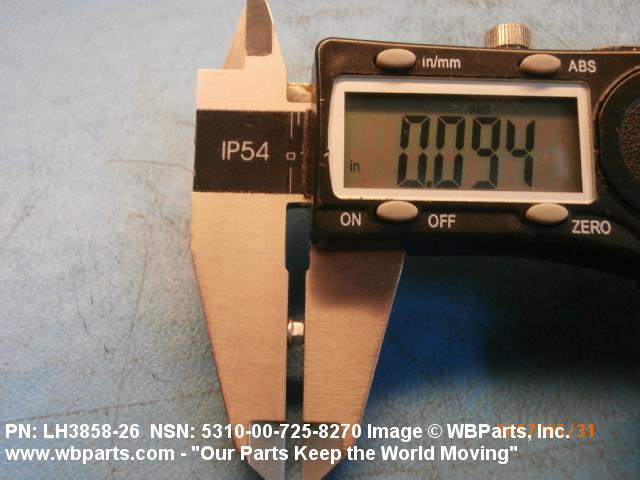

| NUT HEIGHT | 0.095 INCHES NOMINAL |

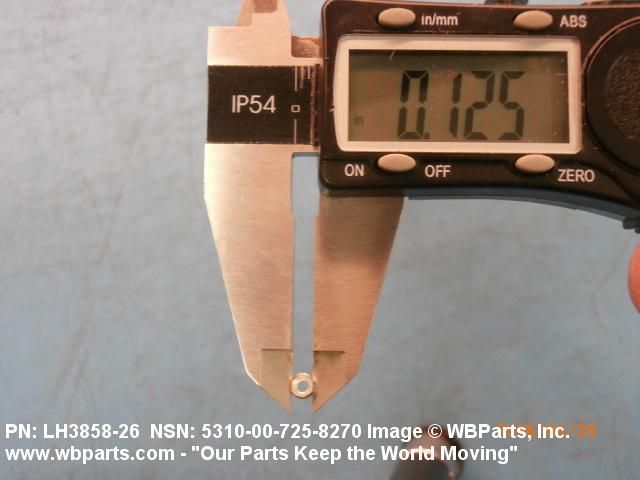

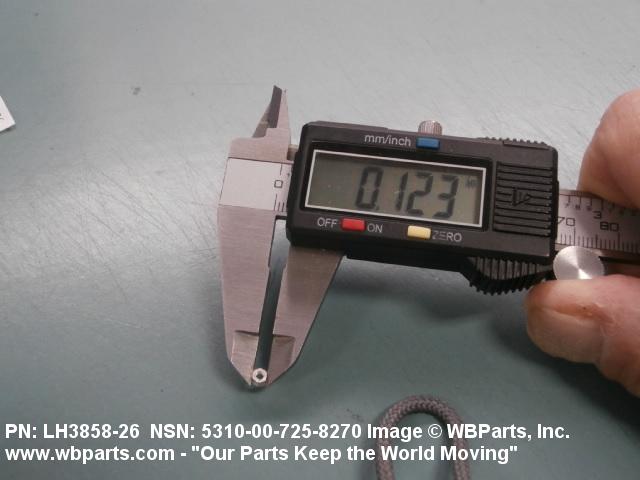

| WIDTH ACROSS FLATS | 0.122 INCHES MINIMUM AND 0.127 INCHES MAXIMUM |
| BEARING SURFACE TYPE | ANY ACCEPTABLE |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 550.0 DEG FAHRENHEIT NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5310-00-725-8270
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
