NSN 5310-00-727-6161 22FH524, 00-727-6161, 007276161
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-727-6161 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: 22FH524, 5310-00-727-6161, 00-727-6161, 5310007276161, 007276161
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-727-6161 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

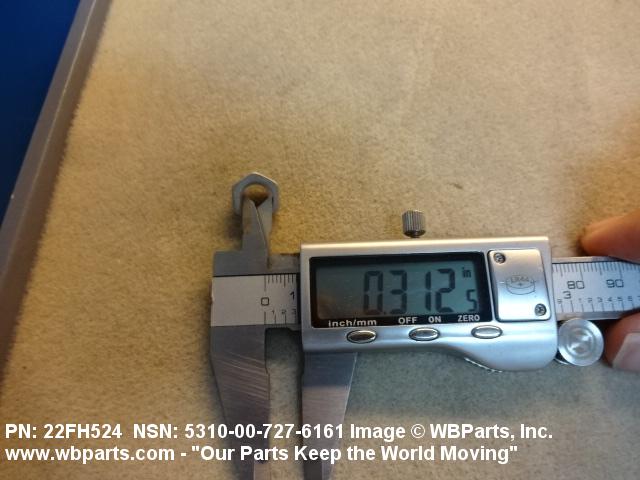

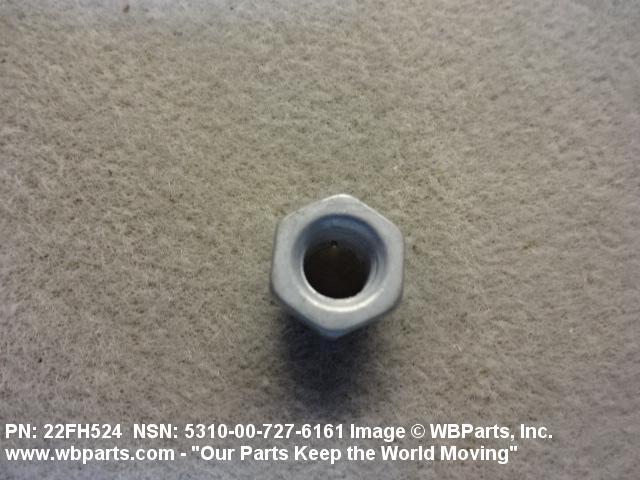

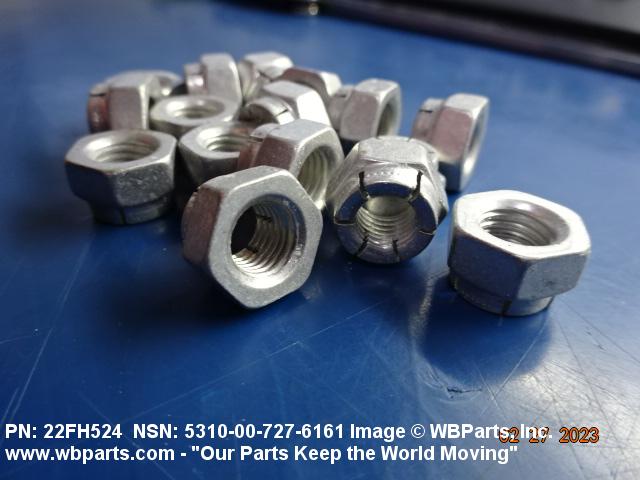

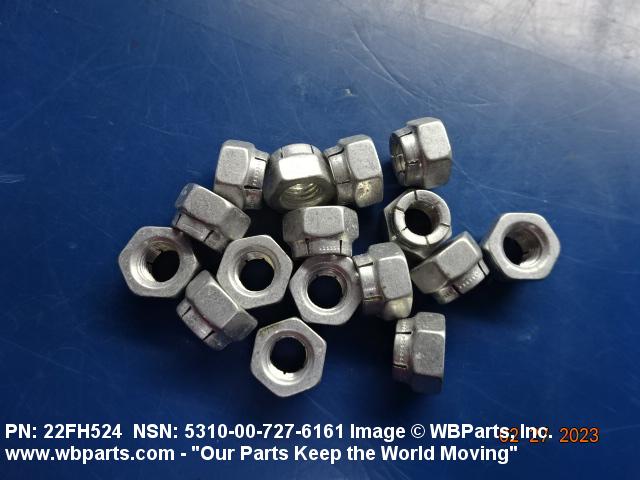

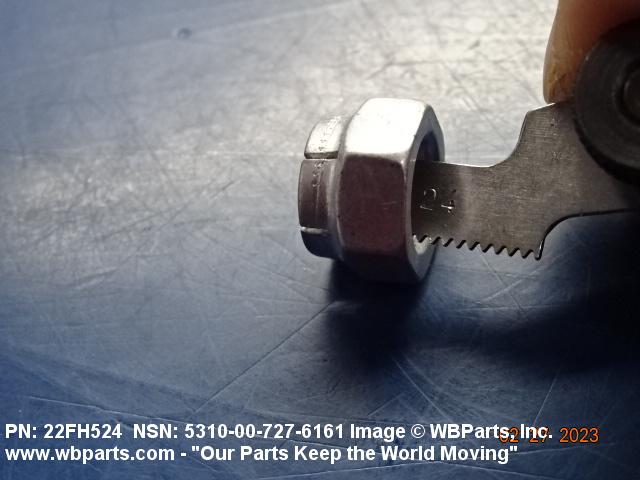

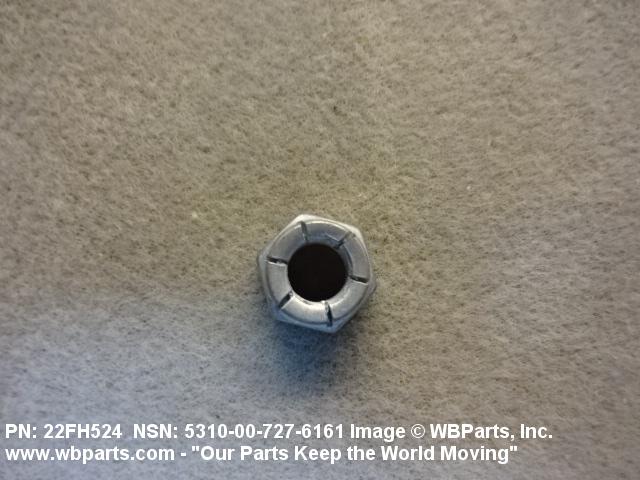

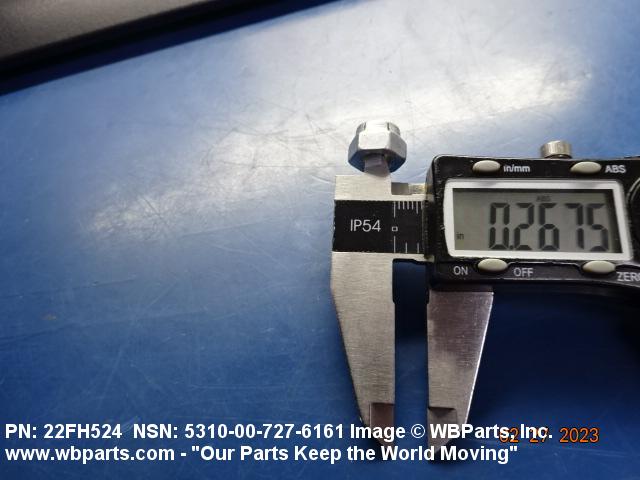

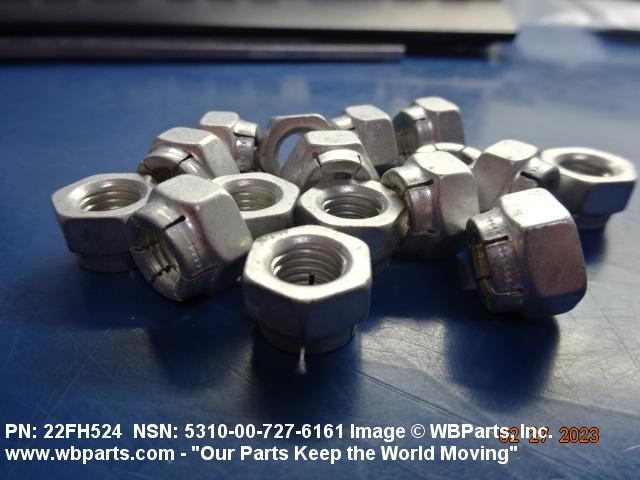

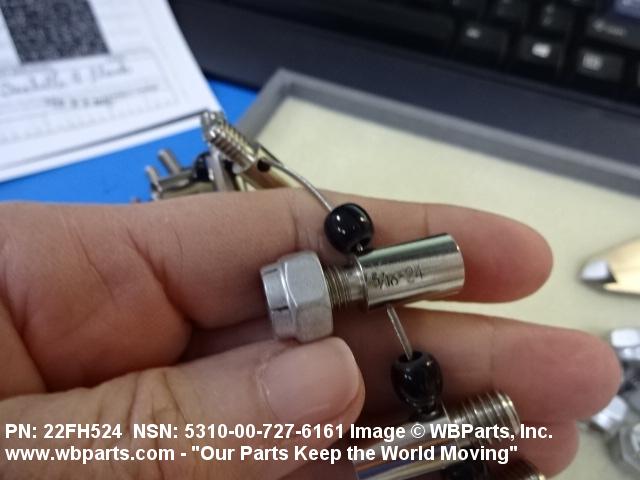

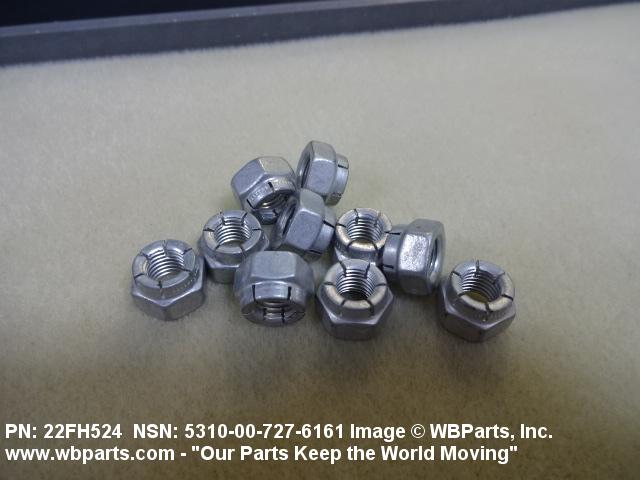

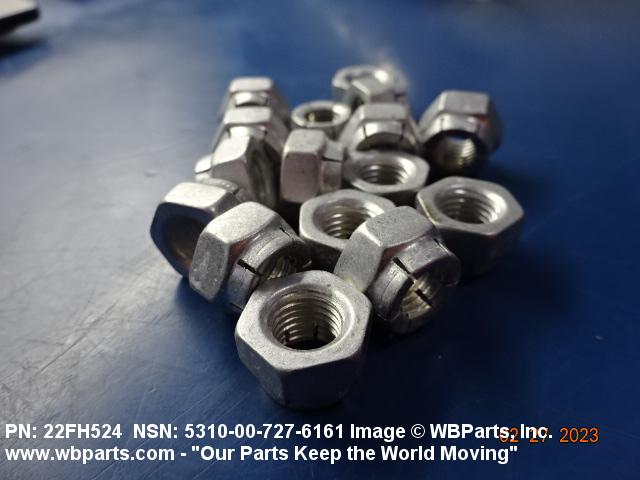

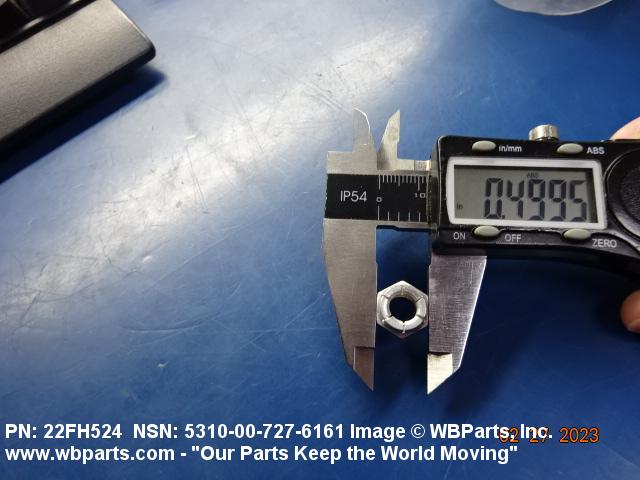

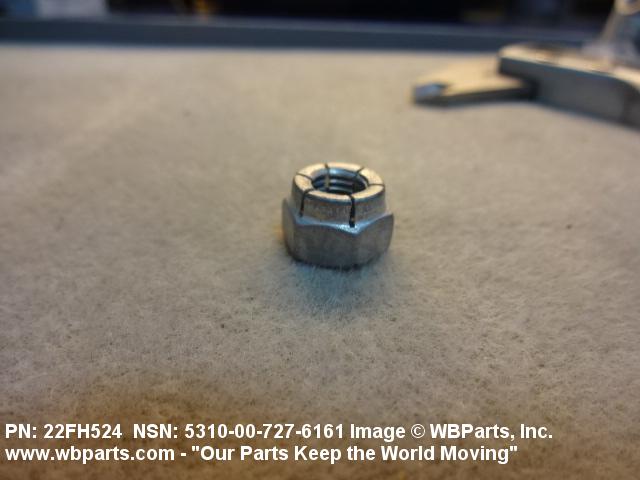

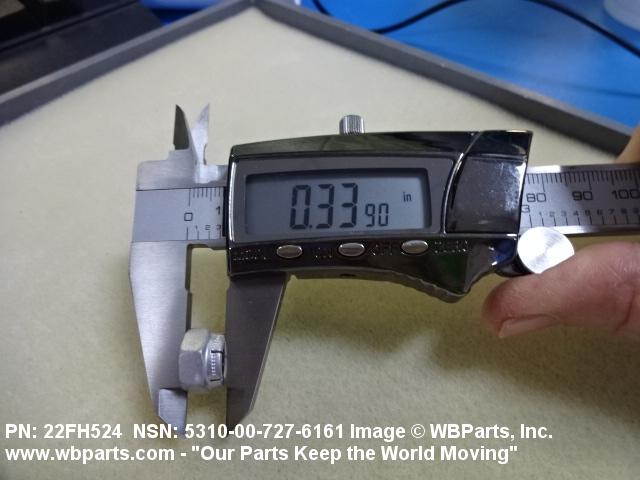

Drawings & Photos | NSN 5310-00-727-6161
Demand History | NSN 5310-00-727-6161
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 22FH524 | 2025-10-293 | 300 | us |
| 5310-00-727-6161 | 2024-05-145 | 30 | US |
| 5310-00-727-6161 | 2019-06-165 | 5 | India |
| 22FH524 | 2012-04-115 | 62 | IN |
| 5310-00-727-6161 | 2010-04-116 | 30 | Malaysia |
| 5310-00-727-6161 | 2008-12-339 | 250 | Philippines |
| 5310-00-727-6161 | 2008-12-339 | 250 | Philippines |
| 5310-00-727-6161 | 2008-09-265 | 92 | Malaysia |
| 5310-00-727-6161 | 2008-09-259 | 92 | Malaysia |
| 5310-00-727-6161 | 2007-07-205 | 32 | US |
| 22FH524 | 2006-05-144 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-727-6161
Technical Data | NSN 5310-00-727-6161
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

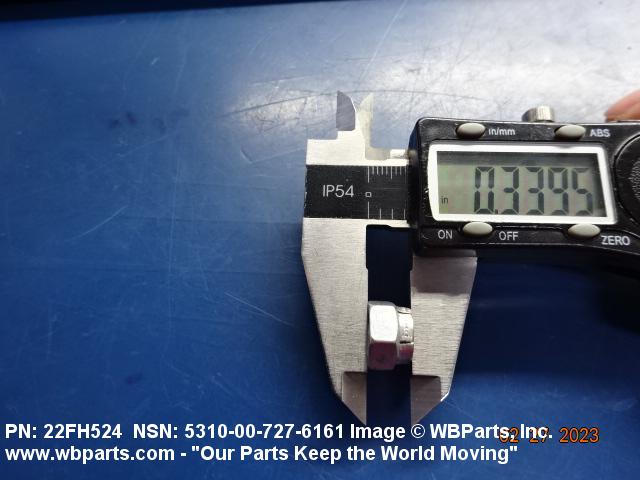

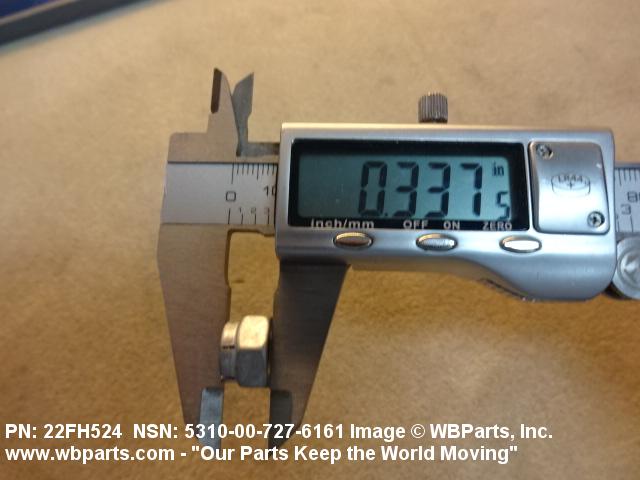

| NUT HEIGHT | 0.341 INCHES NOMINAL |

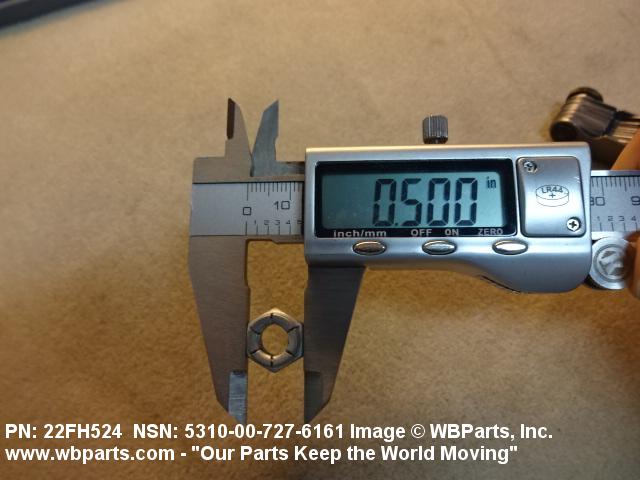

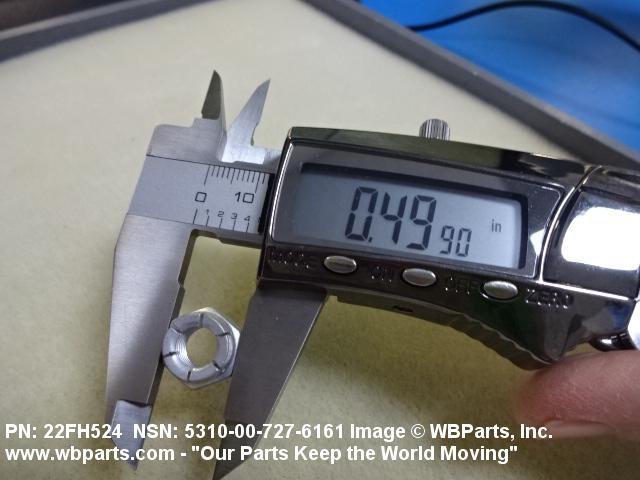

| WIDTH ACROSS FLATS | 0.500 INCHES NOMINAL |
| BEARING SURFACE TYPE | FLAT |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 550.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-727-6161
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
