NSN 5310-00-835-1527 MS203641812C, MS20364-1812C, MS21083N18
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-835-1527 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS203641812C, MS20364-1812C, MS21083N18, MS21083-N18, 5310-00-835-1527, 00-835-1527, 5310008351527, 008351527
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-835-1527 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

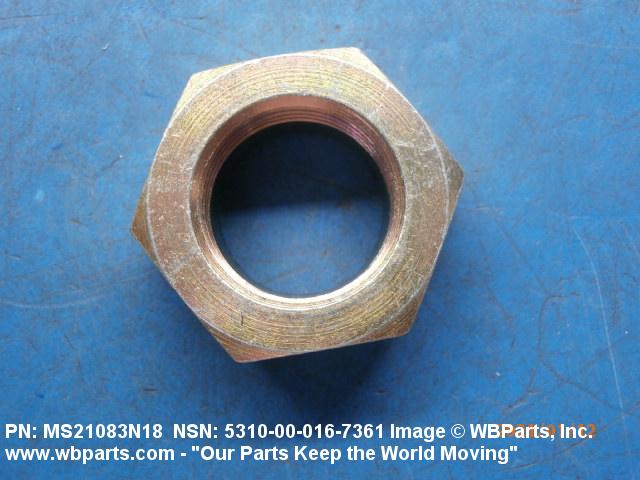

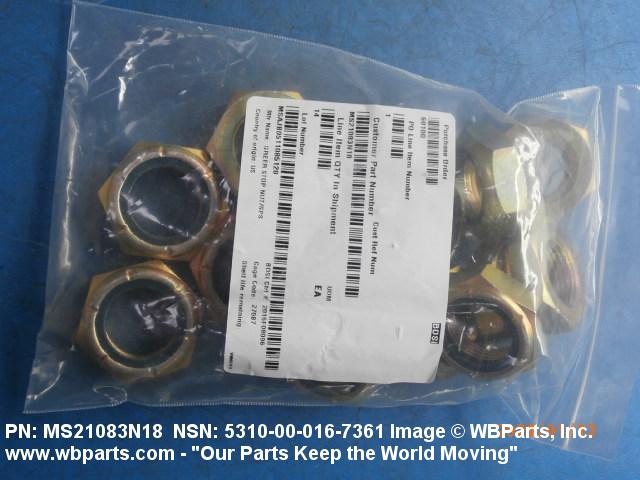

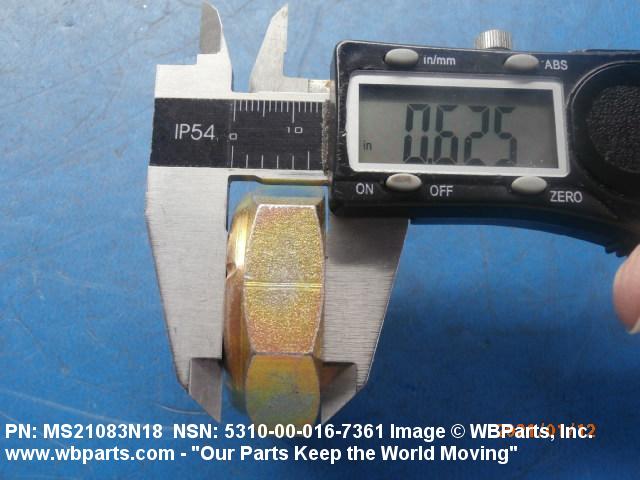

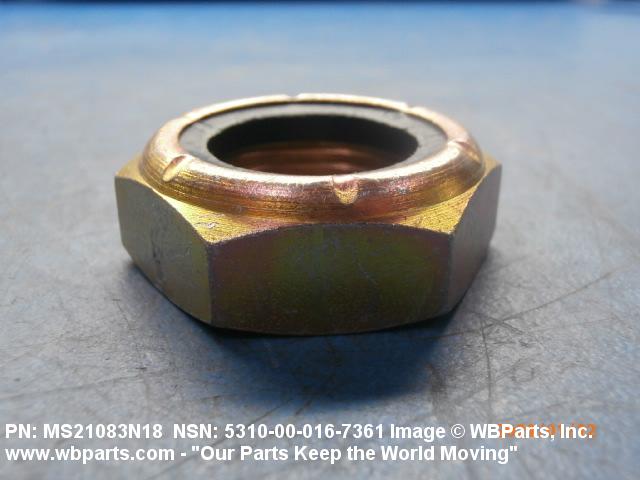

Drawings & Photos | NSN 5310-00-835-1527
Cross Reference | NSN 5310-00-835-1527
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-835-1527
Technical Data | NSN 5310-00-835-1527
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |

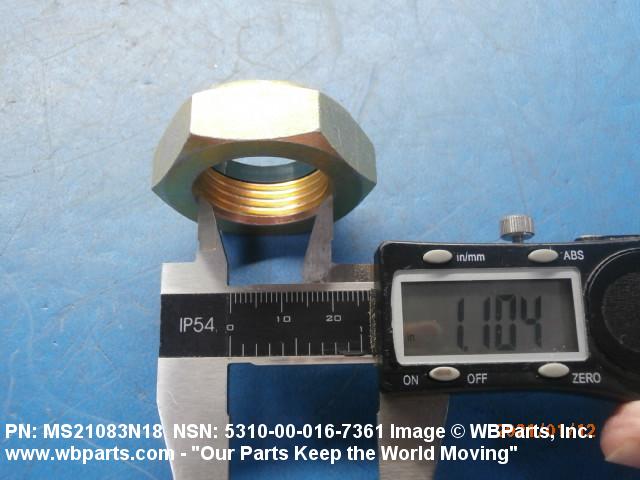

| NOMINAL THREAD SIZE | 1.125 INCHES |

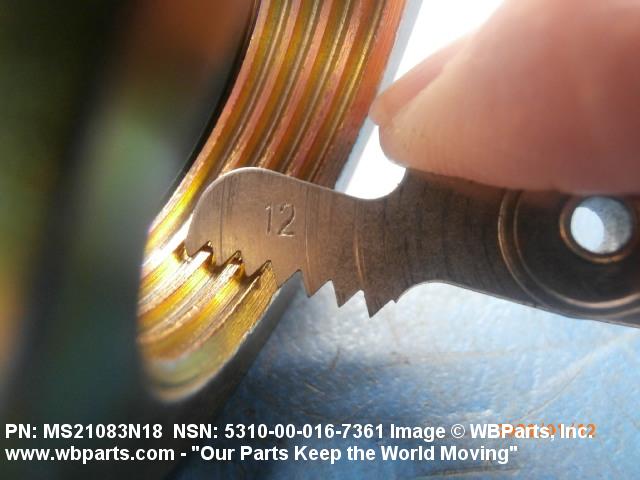

| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.656 INCHES NOMINAL |

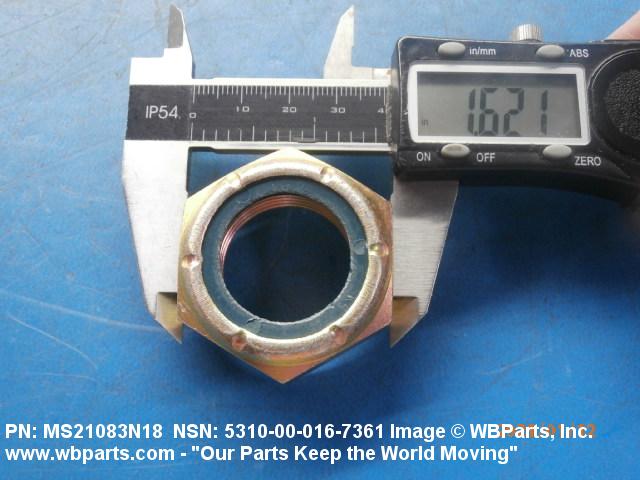

| WIDTH ACROSS FLATS | 1.625 INCHES NOMINAL |
| BEARING SURFACE TYPE | ANY ACCEPTABLE |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20364-1812C |
Restrictions/Controls & Freight Information | NSN 5310-00-835-1527
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
