NSN 5310-00-864-4593 COM71104, COM7110-4, 12440366
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-864-4593 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: COM71104, COM7110-4, 12440366, 124403-66, 218742, 22FH428, 22FSD428, 5310-00-864-4593, 00-864-4593, 5310008644593, 008644593
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-864-4593 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

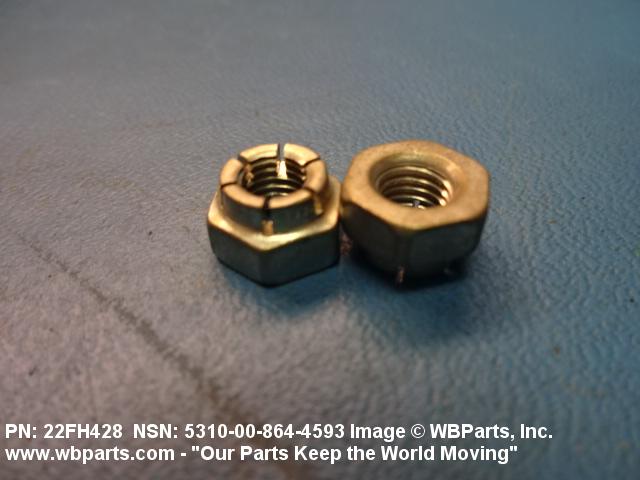

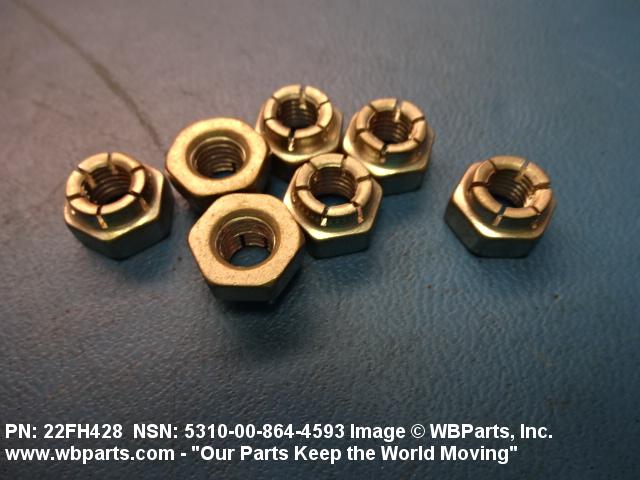

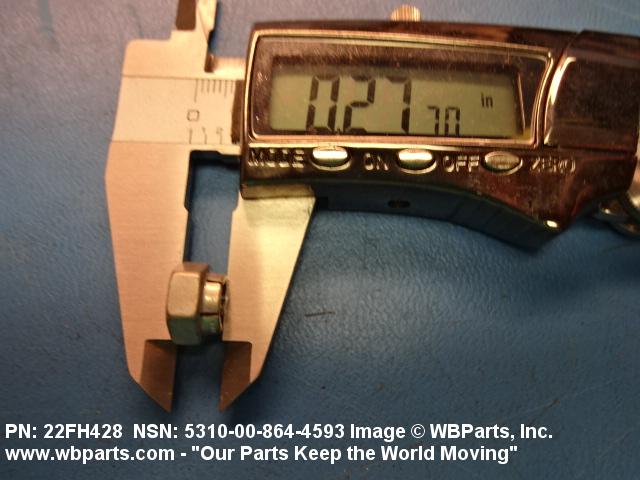

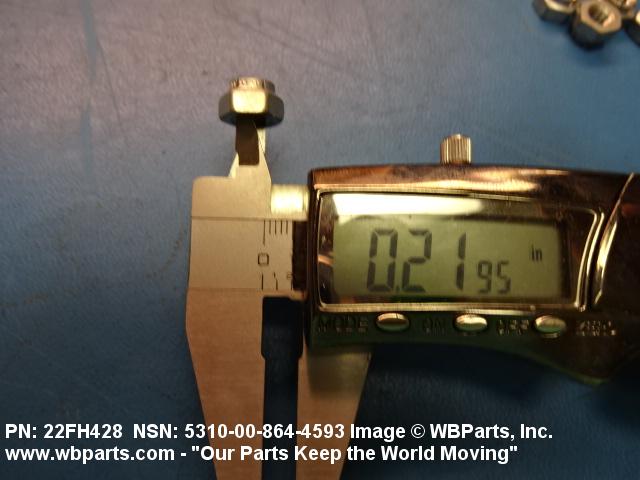

Drawings & Photos | NSN 5310-00-864-4593
Demand History | NSN 5310-00-864-4593
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 22FH428 | 2021-01-05 | 3 | AT |
| 5310-00-864-4593 | 2019-05-135 | 8 | Malaysia |
| 5310-00-864-4593 | 2017-10-279 | 75 | Malaysia |
| 5310-00-864-4593 | 2017-09-271 | 75 | Malaysia |
| 5310-00-864-4593 | 2017-08-216 | 32 | Malaysia |
| 5310-00-864-4593 | 2017-05-141 | 100 | Lebanon |
| 22FH428 | 2017-04-109 | 32 | United States |
| 22FH428 | 2017-01-20 | 32 | United States |
| 22FH428 | 2016-06-181 | 48 | Malaysia |
| 22FH428 | 2016-06-180 | 48 | Malaysia |
| 22FH428 | 2016-06-179 | 100 | Malaysia |
| 22FH428 | 2015-11-334 | 32 | MY |
| 22FH428 | 2015-11-329 | 32 | Malaysia |
| 22FH428 | 2015-11-328 | 70 | Malaysia |
| 22FH428 | 2011-09-264 | 100 | Switzerland |
| 5310-00-864-4593 | 2008-12-352 | 50 | Malaysia |
| 5310-00-864-4593 | 2008-12-340 | 50 | Philippines |
Cross Reference | NSN 5310-00-864-4593
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-864-4593
Related Products | NSN 5310-00-864-4593
Technical Data | NSN 5310-00-864-4593
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.310 INCHES NOMINAL |

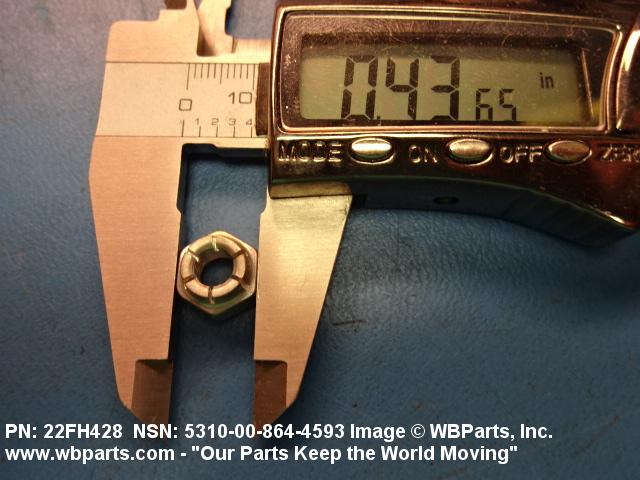

| WIDTH ACROSS FLATS | 0.433 INCHES NOMINAL |
| BEARING SURFACE TYPE | FLAT |
| LOCKING FEATURE | FREE-RUNNING ALL METAL DESIGN |
| TEMP RATING | 550.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 56878 |
| DESIGN CONTROL REFERENCE | 22FH428 |
Restrictions/Controls & Freight Information | NSN 5310-00-864-4593
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-864-4593
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9I | Navy-owned stocks of consumable material managed by the Air Force within the Odgen Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FGZ | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
