NSN 5310-00-902-6676 MS1083N3, MS1083-N3, MS203641032

Product Details | HEXAGON SELF-LOCKING NUT

5310-00-902-6676 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: MS1083N3, MS1083-N3, MS203641032, MS20364-1032, MS203641032A, MS20364-1032A , MS21083N3, SMA7013722, SM-A-701372-2, H15165519, H15165-519 , L200004972 , 525671001-2001 , 200430-124 , 80282300, 802823-00, 853921, 85392100, 853921-00, 0094759408 , 100303, 10082640 , 10525, 130XL037 , 14335, 145451095565, 145-4510955-65, 2017081-08 , 22TM02, 275S2013, 3147132 , 3255255, 364156 , 404979, 4543 , 5310-00-902-6676, 00-902-6676, 5256710012001, 5310009026676 , 200430124, 009026676, 201708108

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-902-6676	05277 ( NUT, SELF-LOCKING, HEXAGON )

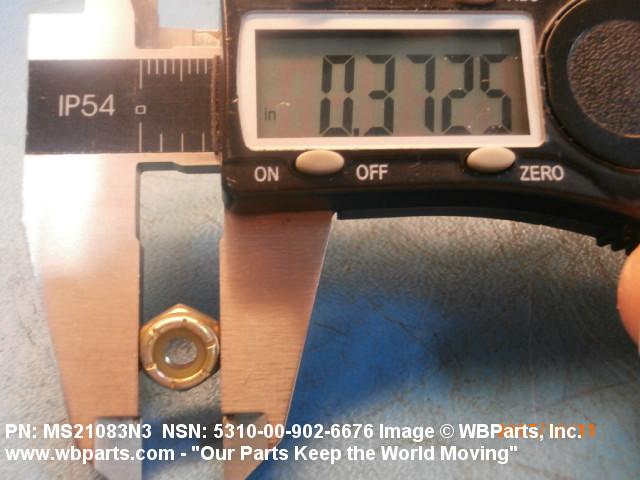

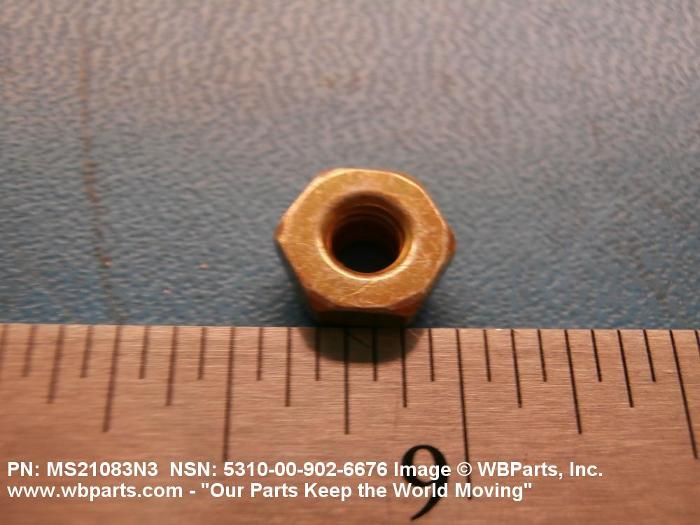

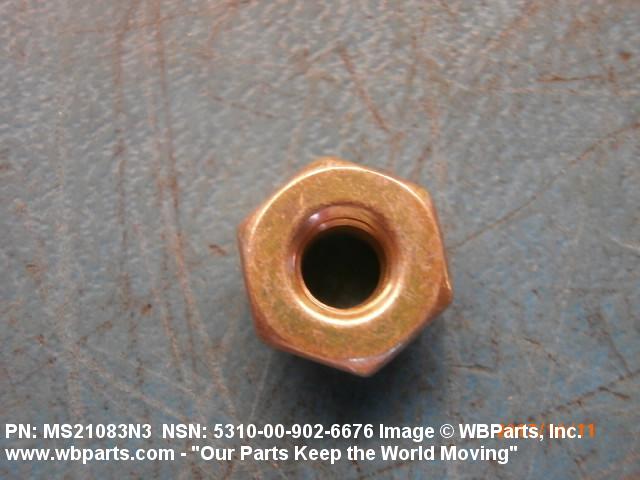

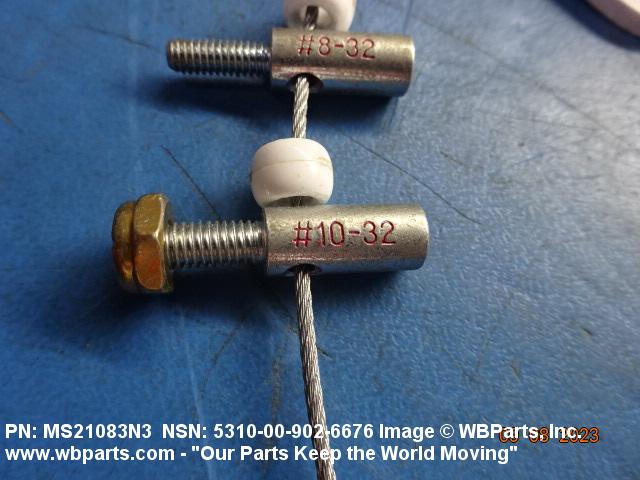

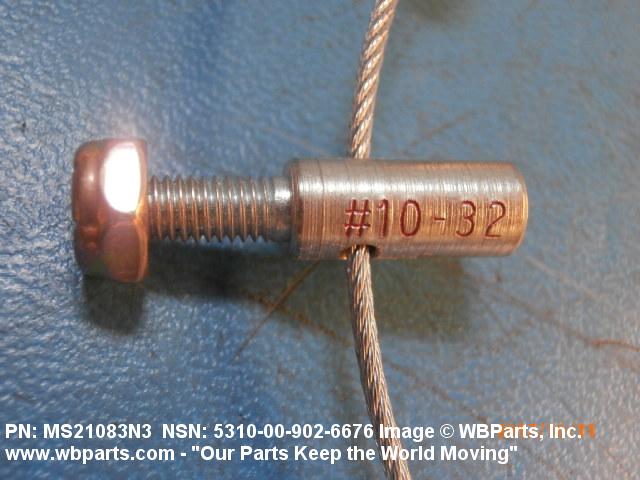

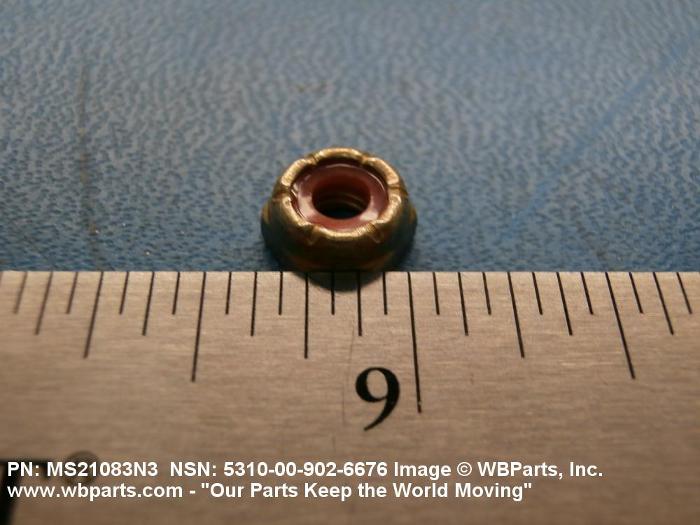

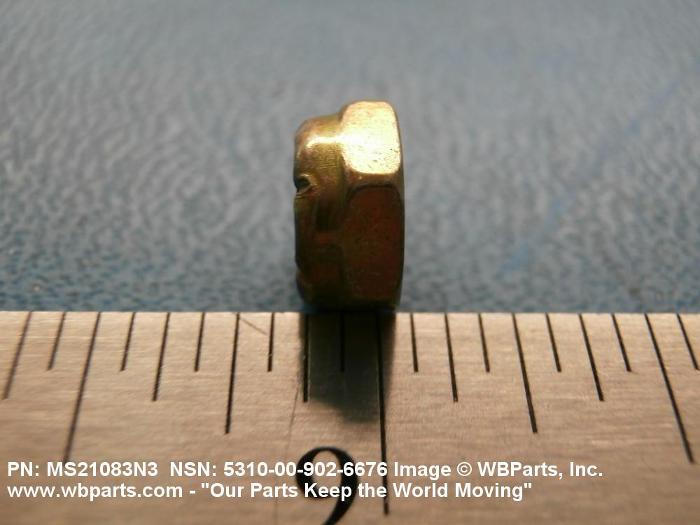

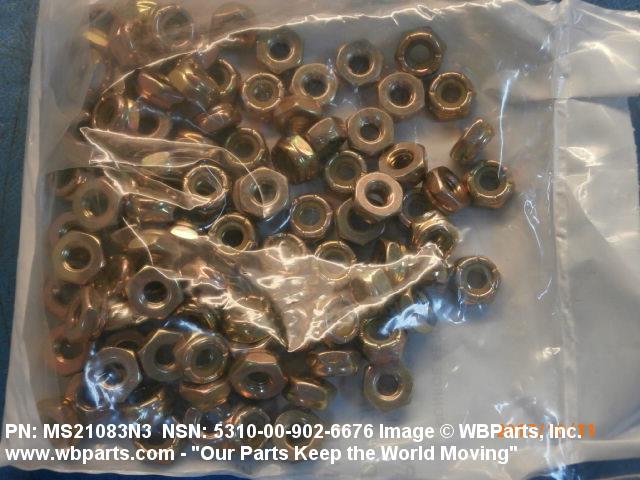

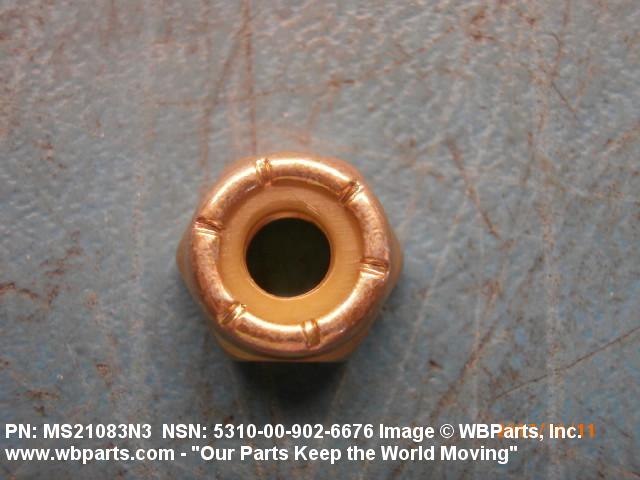

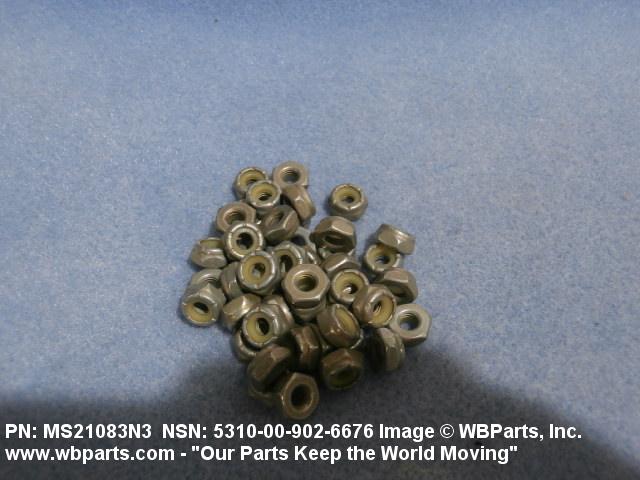

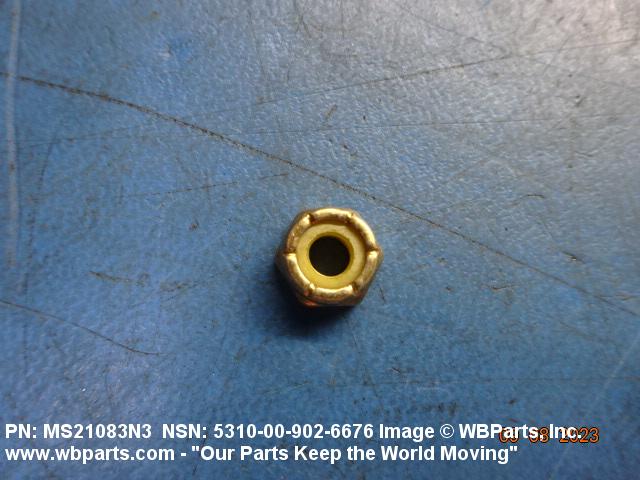

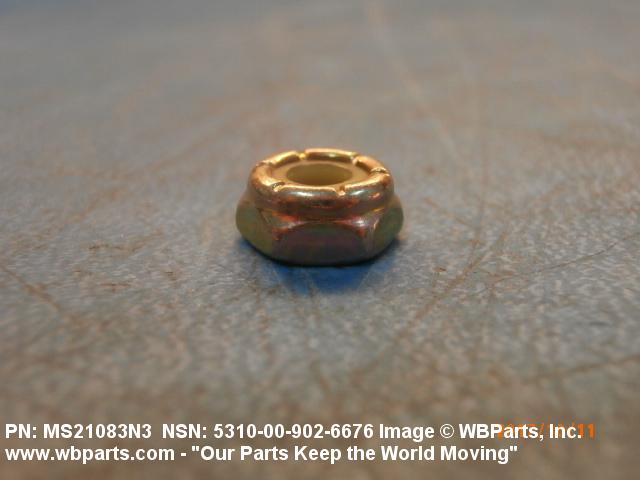

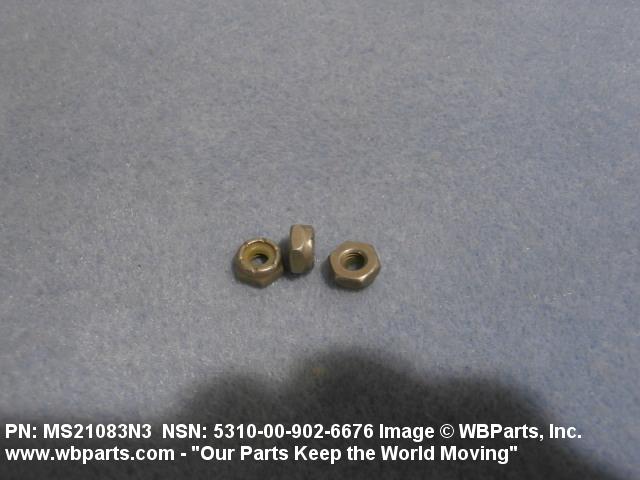

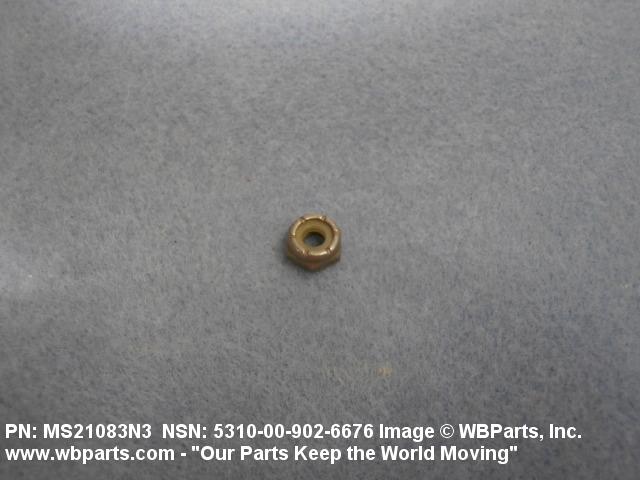

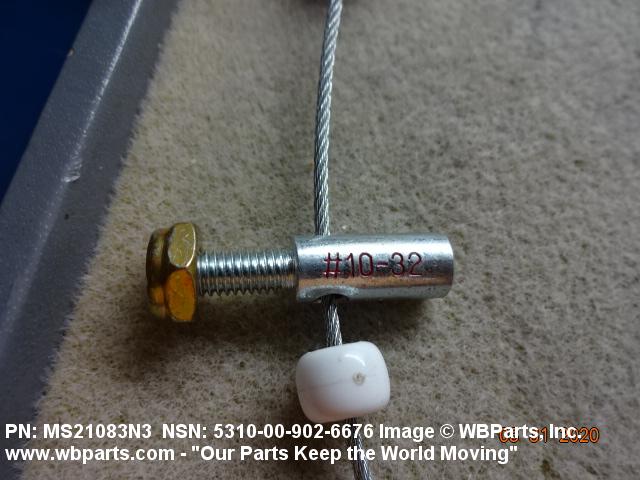

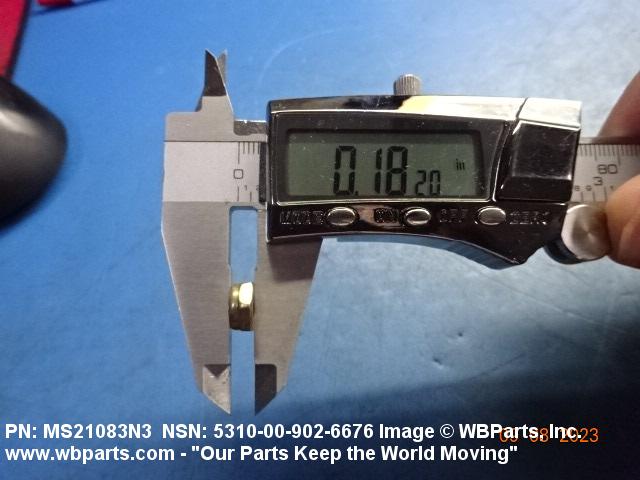

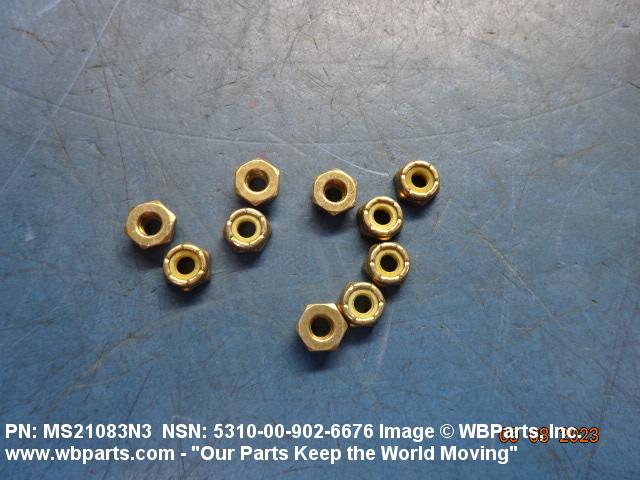

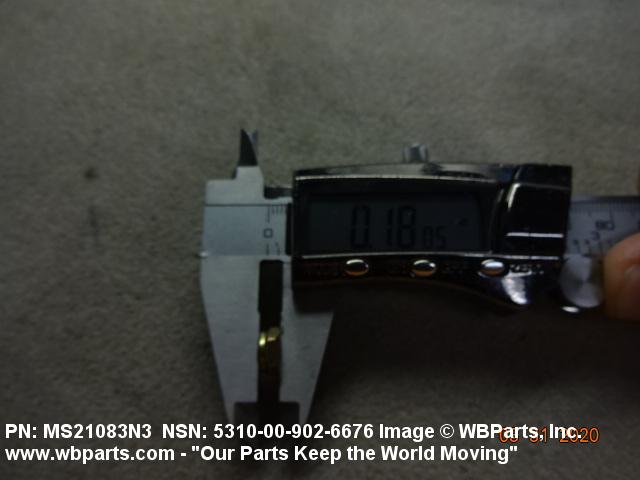

Drawings & Photos | NSN 5310-00-902-6676

Part Number	Request Date	QTY	Origin
5310-00-902-6676	2025-08-230	2	Germany
MS21083N3	2025-03-85	2	United States
MS21083N3	2025-01-31	5000	United States
MS21083N3	2024-09-268	84	Spain
MS21083N3	2024-09-267	12	Spain
MS21083N3	2024-09-267	42	Spain
MS21083N3	2024-09-267	84	Spain
MS21083N3	2024-06-164	3500	United States
MS203641032	2024-05-134	70	United States
MS21083N3	2024-01-25	3000	United States
MS21083N3	2023-11-314	132	us
MS21083N3	2023-09-249	5000	United States
MS21083N3	2023-08-219	10	us
MS21083N3	2023-07-212	1500	US
5310-00-902-6676	2022-03-88	50	US
5310-00-902-6676	2021-01-25	750	KR
5310-00-902-6676	2021-01-25	750	KR
MS21083N3	2020-11-324	1	US
5310-00-902-6676	2020-03-63	1000	FX
MS21083N3	2020-01-03	8	TH
MS21083N3	2019-10-295	100	United States
MS203641032	2019-10-275	1000	United States
MS21083N3	2019-03-63	40	China
MS21083N3	2019-01-28	136	United States
MS21083N3	2018-09-260	100	United States
5310-00-902-6676	2018-08-225	1770	DIBBS
5310-00-902-6676	2018-07-211	4700	United States
MS21083N3	2018-04-102	12	United States
MS21083N3	2018-03-60	500	United States
MS21083N3	2017-09-256	3	United States
5310-00-902-6676	2017-08-228	40	Malaysia
5310-00-902-6676	2017-08-228	40	Malaysia
MS21083N3	2017-07-205	50	US
MS21083N3	2017-07-205	250	US
MS21083N3	2017-07-205	500	US
5310-00-902-6676	2017-02-37	4095	DIBBS
5310-00-902-6676	2017-01-25	10	US
MS21083N3	2016-10-302	1100	United States
MS21083N3	2015-12-337	1	Pakistan
MS20364-1032	2015-05-138	32	United States
MS20364-1032	2015-05-138	32	United States
MS21083N3	2015-04-91	3520	United States
MS21083N3	2015-03-79	1200	United States
MS21083N3	2015-01-12	1200	US
MS21083N3	2014-05-136	16	Sri Lanka
MS21083N3	2014-02-59	92	US
MS21083N3	2014-02-56	72	United States
5310-00-902-6676	2014-02-48	150	United States
MS203641032	2014-02-41	385	us
MS21083N3	2013-12-350	50	Lebanon
MS20364-1032	2013-08-229	2174	Canada
MS20364-1032A	2013-08-229	100	Canada
MS21083N3	2013-06-170	50	Lebanon
MS21083N3	2013-05-142	3600	us
MS21083N3	2012-12-346	100	Switzerland
MS21083N3	2012-12-344	100	Switzerland
MS203641032	2012-12-342	2000	United States
5310-00-902-6676	2012-12-342	1000	United States
MS203641032	2012-11-335	1	United States
MS203641032	2012-11-313	300	United States
MS21083N3	2012-09-256	20	US
MS20364-1032	2012-07-201	1000	US
5310-00-902-6676	2012-06-174	400	us
5310-00-902-6676	2012-05-143	1000	US
MS20364-1032	2012-03-67	264	China
MS20364-1032	2012-02-54	264	China
MS21083N3	2012-01-26	100	UK
MS21083N3	2011-10-304	66	United States
MS21083N3	2011-07-188	10	CN
5310-00-902-6676	2011-01-25	2	US
MS21083N3	2010-12-355	1350	US
MS203641032A	2010-08-222	150	United States
5310-00-902-6676	2010-03-74	4	US
MS21083N3	2009-05-138	30	China
5310-00-902-6676	2009-02-48	1	US
5310-00-902-6676	2008-11-310	1800	KP
5310-00-902-6676	2008-10-303	18	United States
5310-00-902-6676	2008-07-189	2000	Taiwan
5310-00-902-6676	2008-05-137	500	US
MS21083N3	2008-02-58	100	MX

Cross Reference | NSN 5310-00-902-6676

Part Number	Cage Code	Manufacturer
10525	82423	KLEINSCHMIDT INC
14335	59501	UNISON INDUSTRIES, LLC
14335	83311	UNISON INDUSTRIES, LLC
145-4510955-65	51563	ROHR, INC DBA GOODRICH AEROSTRUCTURES GROUP
22TM02	72962	HARVARD INDUSTRIES INC
22TM02	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
3255255	55380	HATCH & KIRK, INC. DIV HATCH & KIRK INC
404979	77294	PIPER AIRCRAFT INC.
5310009026676	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
802823-00	32345	DEFENSE REDUCTION AGENCY
853921	19203	PICATINNY ARSENAL
853921-00	32345	DEFENSE REDUCTION AGENCY
MS1083-N3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS20364-1032	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS20364-1032A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21083N3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21083N3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21083N3	A9271	GORIZIANE GROUP SPA
SM-A-701372-2	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-902-6676

Compare

Related Products | NSN 5310-00-902-6676

5310-00-902-6677, 5310-00-902-6678, 5310-00-902-6679, 5310-00-902-6680, 5310-00-902-7214

Technical Data | NSN 5310-00-902-6676

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL EXCEPT INSERT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES OVERALL EXCEPT INSERT
HARDNESS RATING	35.0 ROCKWELL C MAXIMUM
NUT STYLE	A12 HEXAGON

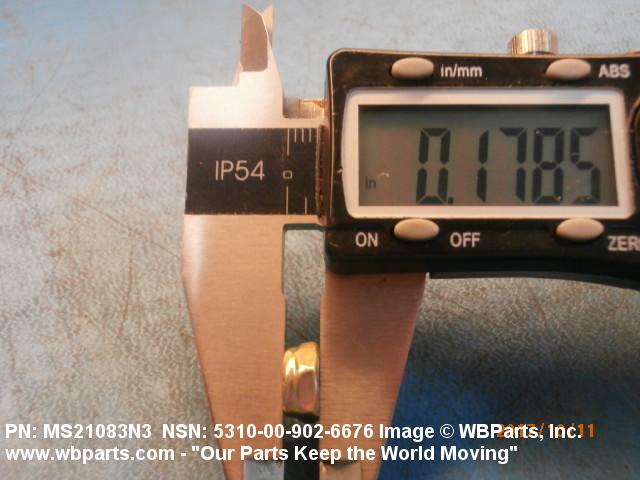

NUT HEIGHT	0.188 INCHES MAXIMUM

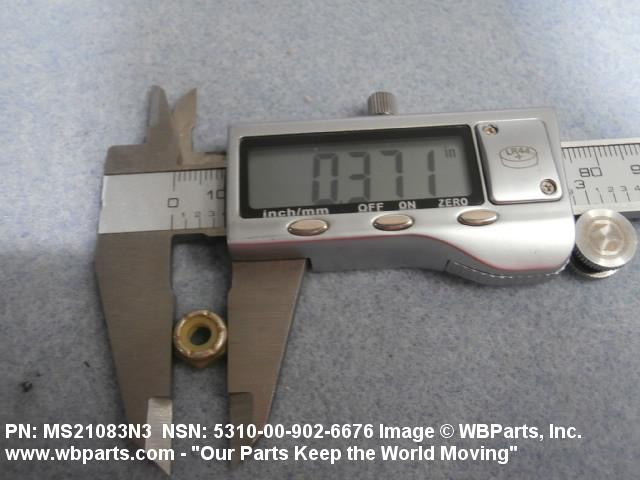

WIDTH ACROSS FLATS	0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
COUNTERSINK ANGLE	88.0 DEGREES MINIMUM NUT
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	230.0 DEG FAHRENHEIT MAXIMUM
III BEARING SURFACE FINISH	125.0 MICROINCHES

Restrictions/Controls & Freight Information | NSN 5310-00-902-6676

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-902-6676

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
