NSN 5310-00-925-9646 MS21083C06, MS21083-C06, M10X85DIN9315D

Product Details | HEXAGON SELF-LOCKING NUT

5310-00-925-9646 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: MS21083C06, MS21083-C06, M10X85DIN9315D, M10X85DIN931-5D , C0432310010632, C04323-1001-0632, L79NTM62, L79NTM-62, L79NTM632, L79NTM-632, MILN25027, MIL-N-25027, 10121836 , 11577091, 174M104, 3331417030, 333-1417-030, 5184006-32, 5305-12-129-3688 , 5310-00-925-9646, 00-925-9646, 5305121293688, 5310009259646, 009259646, 518400632

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	04 FEB 1966	00-925-9646	05277 ( NUT, SELF-LOCKING, HEXAGON )

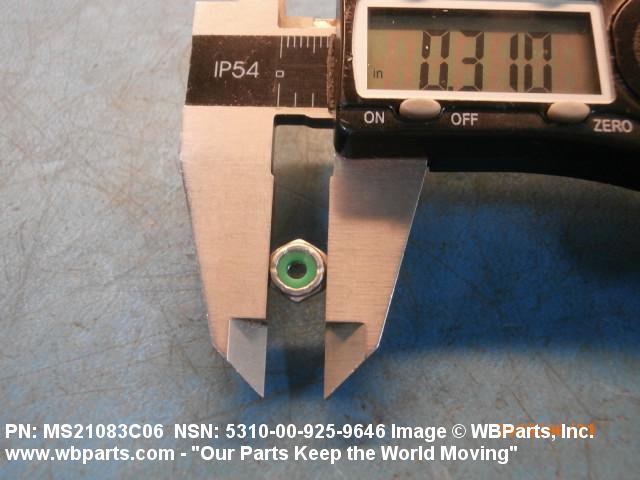

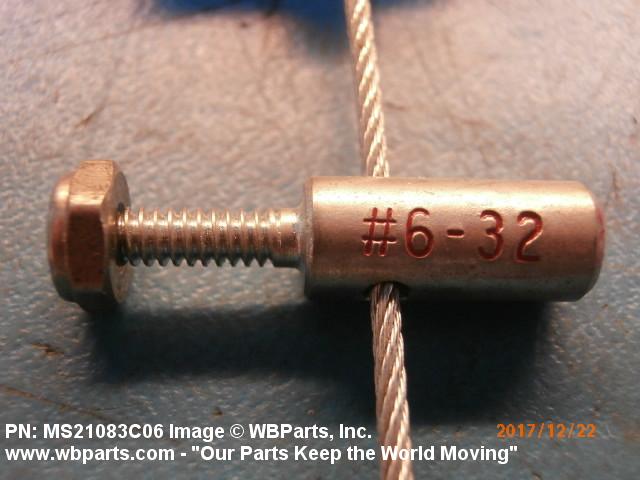

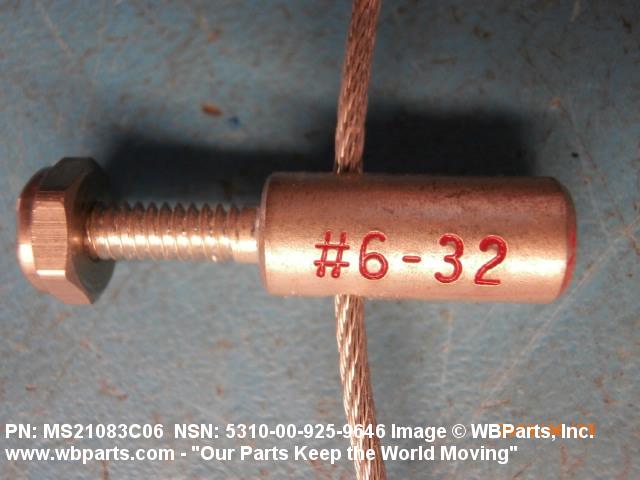

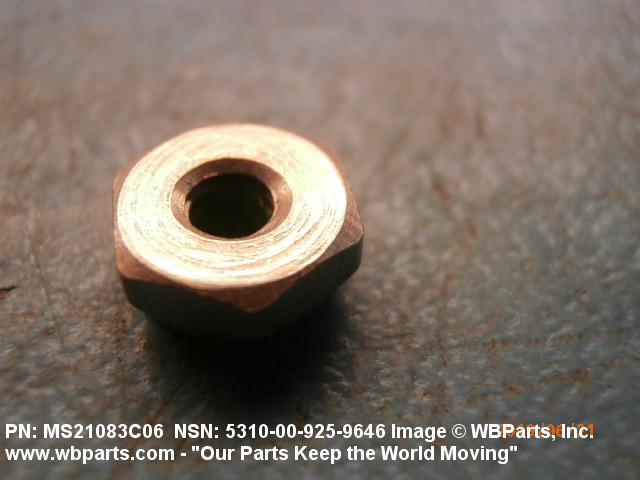

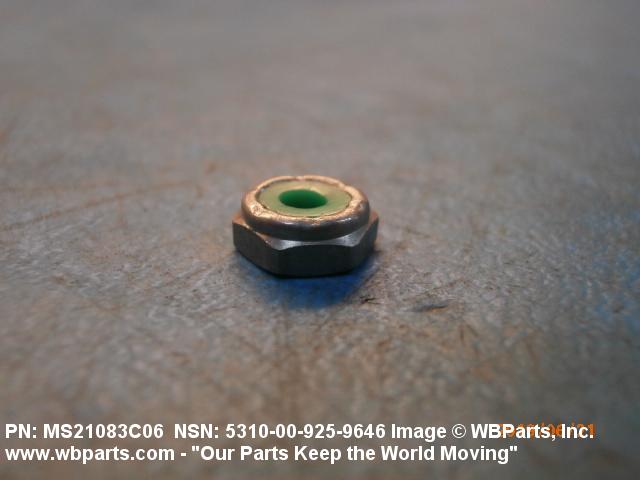

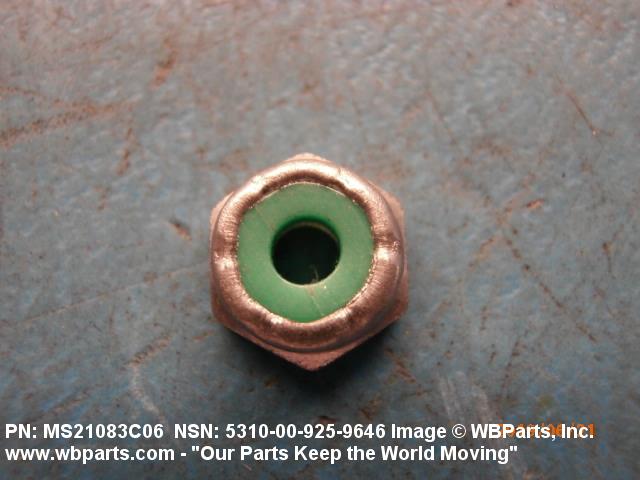

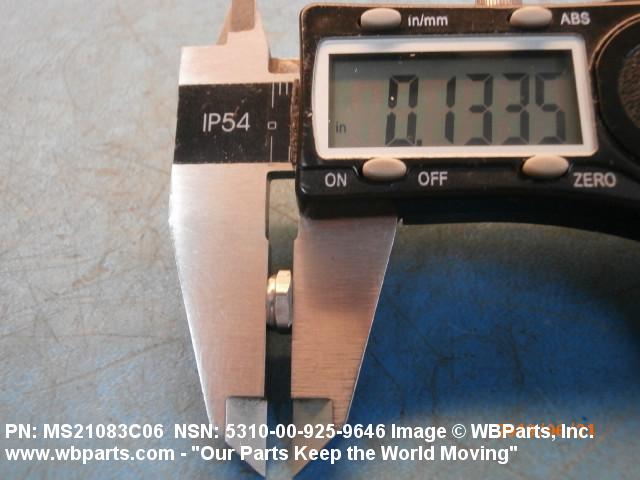

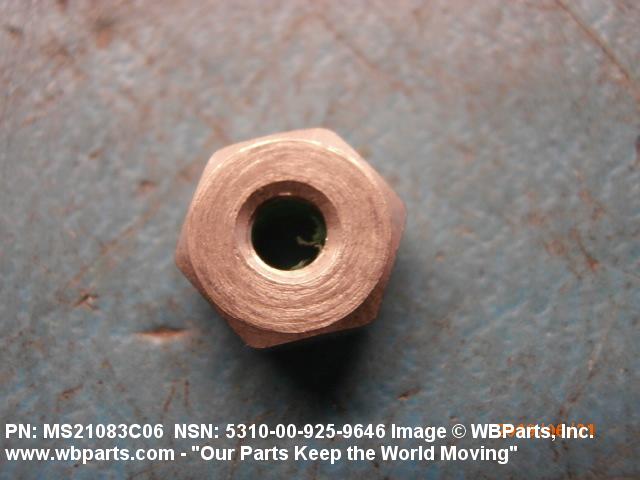

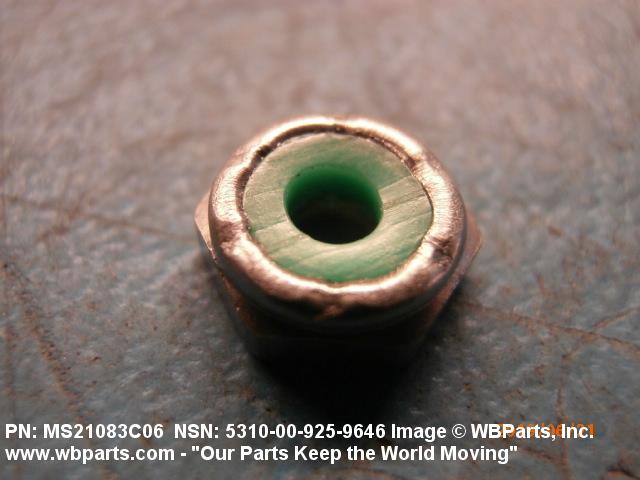

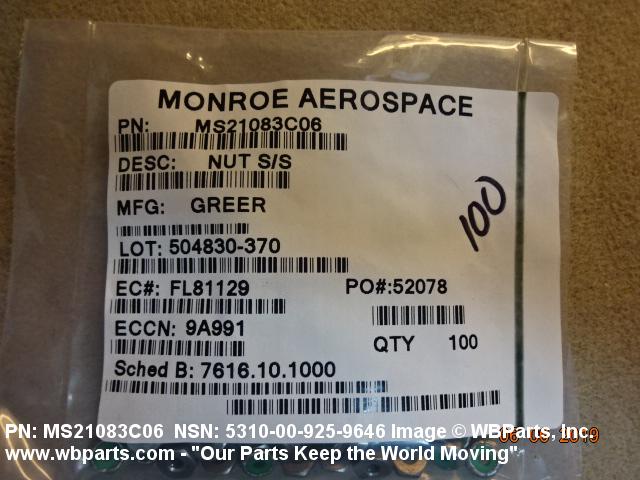

Drawings & Photos | NSN 5310-00-925-9646

Part Number	Request Date	QTY	Origin
MS21083C06	2024-07-183	20	South Africa
MILN25027	2023-08-236	54	US
MILN25027	2020-09-262	156	US
MS21083C06	2019-08-233	38	United States
5310-00-925-9646	2017-10-279	585	US
MS21083-C06	2016-03-90	36	KR
MS21083C06	2015-05-142	350	United States
MS21083C06	2014-03-70	100	United States
5310-00-925-9646	2013-12-340	16	Canada
MS21083C06	2013-06-155	400	US
5310-00-925-9646	2012-12-362	61660	DIBBS
5310-00-925-9646	2012-12-347	77001	DIBBS
5310-00-925-9646	2012-06-181	77001	DIBBS
MILN25027	2012-06-157	16	United States
MILN25027	2012-05-139	15	United States
5310-00-925-9646	2012-04-97	17000	DIBBS
MILN25027	2011-09-265	28	US
MILN25027	2011-09-264	25	Canada
MILN25027	2011-02-49	5	US
MILN25027	2011-02-49	10	US
MILN25027	2011-02-49	40	US
MS21083C06	2011-02-47	500	US
5310-00-925-9646	2010-11-309	340	US
MILN25027	2010-06-181	50	United States
MILN25027	2010-04-111	5000	US
MILN25027	2009-11-321	560	US
MILN25027	2009-10-281	8	Canada
MILN25027	2008-09-270	50	Italy
MS21083C06	2008-04-101	3000	CH

Cross Reference | NSN 5310-00-925-9646

Part Number	Cage Code	Manufacturer
174M104	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
333-1417-030	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
5184006-32	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
C04323-1001-0632	04274	ROSEMOUNT INC DBA FISHER ROSEMOUNT SERVICE AND
C04323-1001-0632	59885	ROSEMOUNT AEROSPACE INC. DBA A UTC AEROSPACE SYSTEMS COMPANY
L79NTM-62	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
L79NTM-62	72962	HARVARD INDUSTRIES INC
L79NTM-632	27687	GREER STOP NUT INC.
MIL-N-25027	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21083-C06	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21083-C06	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21083C06	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-925-9646

Compare

Related Products | NSN 5310-00-925-9646

5310-00-925-9671, 5310-00-925-9673, 5310-00-925-9709, 5310-00-925-9729, 5310-00-925-9770

Technical Data | NSN 5310-00-925-9646

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	PLASTIC POLYAMIDE LOCKING INSERT STEEL CORROSION RESISTING NUT
SURFACE TREATMENT	PASSIVATE OVERALL EXCEPT INSERT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON
NUT HEIGHT	0.141 INCHES MAXIMUM
WIDTH ACROSS FLATS	0.305 INCHES MINIMUM AND 0.313 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
COUNTERSINK ANGLE	88.0 DEGREES MINIMUM NUT
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	250.0 DEG FAHRENHEIT MAXIMUM
III BEARING SURFACE FINISH	125.0 MICROINCHES

Restrictions/Controls & Freight Information | NSN 5310-00-925-9646

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating	U	50
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	BF	U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-925-9646

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9H	Navy-owned stocks of consumable material managed by the Army within the Army Armament Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg
Source of Supply	B14	US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
