NSN 5310-00-926-1852 MS20364624, MS20364-624, MS20364624B
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-926-1852 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS20364624, MS20364-624, MS20364624B, MS20364-624B, MS21083N6, MS21083-N6, AN364624, AN364-624, AN364624A, AN364-624A, 02787703, 12Z2007215, 12Z2007-215, 13207E3410FN74, 22FT624, 52NTE064, 80260400, 802604-00, 85367300, 853673-00, 5310-00-926-1852, 00-926-1852, 5310009261852, 009261852
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 APR 1966 | 00-926-1852 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

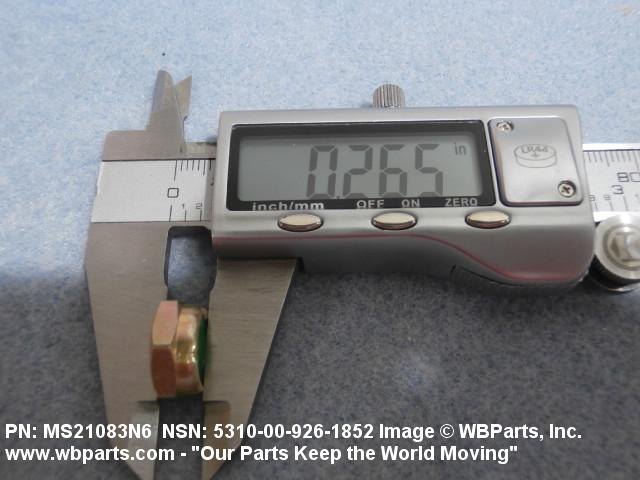

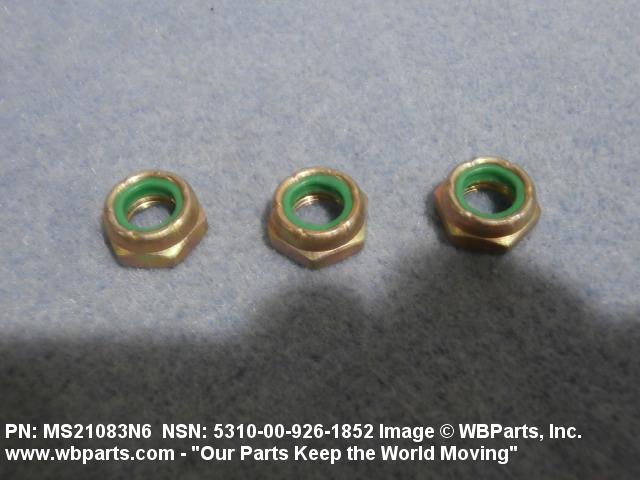

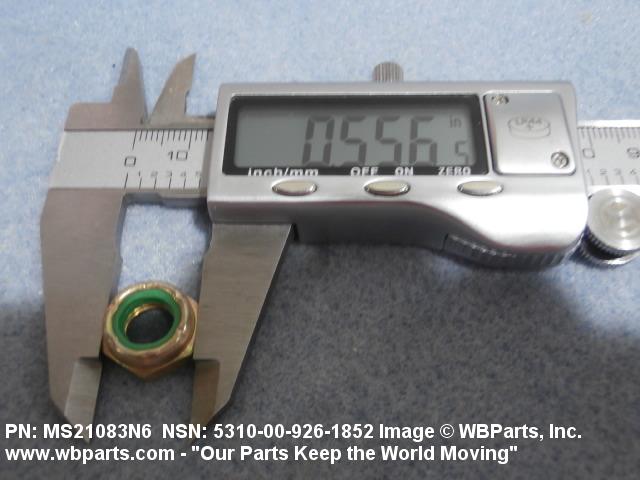

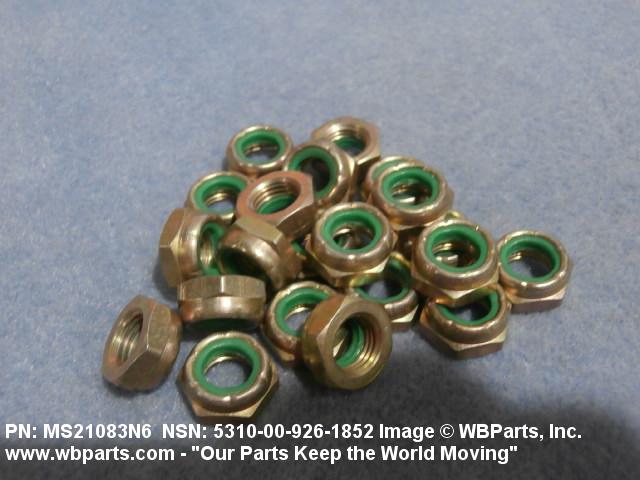

Drawings & Photos | NSN 5310-00-926-1852
Demand History | NSN 5310-00-926-1852
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21083N6 | 2025-05-150 | 150 | US |
| MS21083N6 | 2025-03-86 | 1 | US |
| MS21083N6 | 2025-03-78 | 2 | United States |
| 5310-00-926-1852 | 2024-09-251 | 10 | MX |
| MS21083N6 | 2024-08-242 | 5 | IE |
| 5310-00-926-1852 | 2020-07-206 | 30 | MANUAL |
| MS21083N6 | 2020-07-206 | 30 | Taiwan |
| MS21083N6 | 2019-11-330 | 10 | India |
| AN364624 | 2019-05-142 | 24 | United States |
| 5310-00-926-1852 | 2019-04-100 | 932 | US |
| MS21083N6 | 2019-02-37 | 400 | United States |
| 5310-00-926-1852 | 2018-11-309 | 100 | United States |
| MS21083N6 | 2017-08-228 | 17 | United States |
| 5310-00-926-1852 | 2017-08-226 | 1 | United States |
| 5310-00-926-1852 | 2017-08-226 | 7 | United States |
| 5310-00-926-1852 | 2017-07-192 | 4579 | MANUAL |
| MS21083N6 | 2017-07-192 | 4579 | PK |
| MS21083N6 | 2017-02-40 | 50 | United States |
| MS21083N6 | 2016-10-302 | 20 | United States |
| 5310-00-926-1852 | 2016-08-217 | 11184 | DIBBS |
| 5310-00-926-1852 | 2015-11-306 | 4251 | Pakistan |
| MS21083N6 | 2015-05-149 | 200 | US |
| 5310-00-926-1852 | 2014-11-306 | 11123 | DIBBS |
| MS20364624 | 2014-06-163 | 25 | US |
| MS21083N6 | 2013-05-134 | 50 | CZ |
| MS21083N6 | 2012-01-26 | 100 | UK |
| MS21083N6 | 2011-10-304 | 117 | United States |
| MS21083N6 | 2011-08-243 | 16 | SG |
| 5310-00-926-1852 | 2011-01-10 | 50 | US |
| 52NTE064 | 2010-12-342 | 25 | |
| AN364624A | 2010-09-246 | 20 | US |
Cross Reference | NSN 5310-00-926-1852
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02787703 | 88853 | BCP CONSTRUCTION PRODUCTS DIV OF TEREX CORP |
| 12Z2007-215 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 13207E3410FN74 | 97403 | CECOM LR CENTER |
| 22FT624 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| 52NTE064 | 72962 | HARVARD INDUSTRIES INC |
| 5310009261852 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 802604-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 853673-00 | 32345 | DEFENSE REDUCTION AGENCY |
| AN364-624 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN364-624A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS20364-624 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS20364-624B | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21083-N6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21083-N6 | 8K112 | FREUNDLICH SUPPLY COMPANY, INC. |
| MS21083-N6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-926-1852
Related Products | NSN 5310-00-926-1852
Technical Data | NSN 5310-00-926-1852
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES OVERALL EXCEPT INSERT |
| HARDNESS RATING | 35.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.282 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.553 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | 88.0 DEGREES MINIMUM NUT |
| LUBRICATION | SOLUBLE LUBRICANT |
| TEMP RATING | 250.0 DEG FAHRENHEIT MAXIMUM |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN364-624A |
Restrictions/Controls & Freight Information | NSN 5310-00-926-1852
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
