NSN 5310-00-965-6998 H20-7, LHEB220070, LHEB220-070
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-965-6998 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: H20-7, LHEB220070, LHEB220-070, VN407A070, 57585720, 57585-720, H207, 122-2422395 PIECE 174 , 122-2422395 PIECE 206 , 1222422395PIECE174, 1222422395PIECE206, 122-2422417 PC , 122-2422417 PC 174 , 122-2422417 PIECE 206 , 1222422417PC, 1222422417PC174, 1222422417PIECE206, 20DU28, 5310-00-965-6998, 00-965-6998, 5310009656998, 009656998
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUN 1966 | 00-965-6998 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

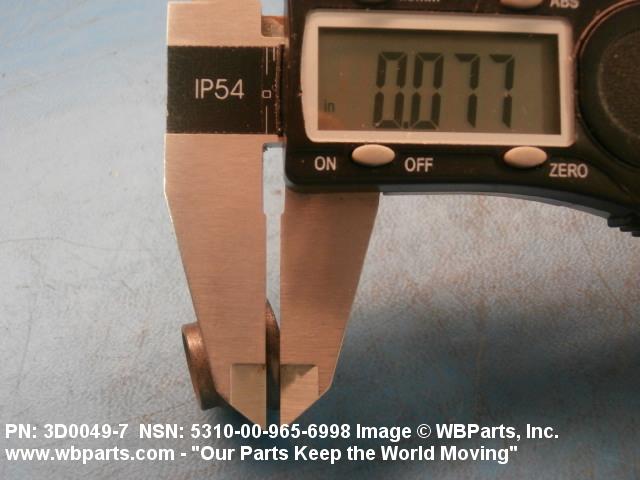

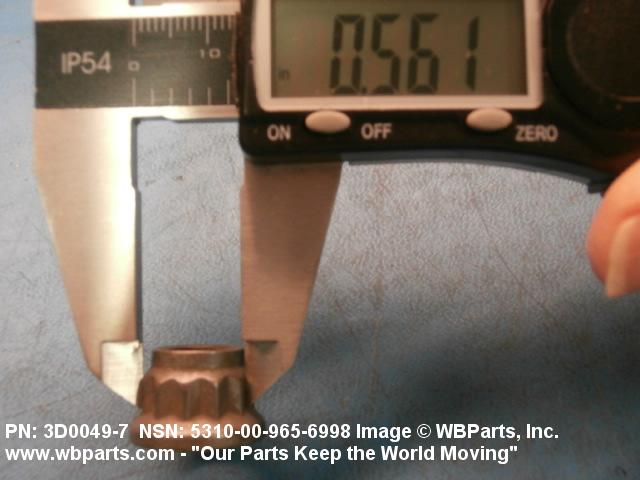

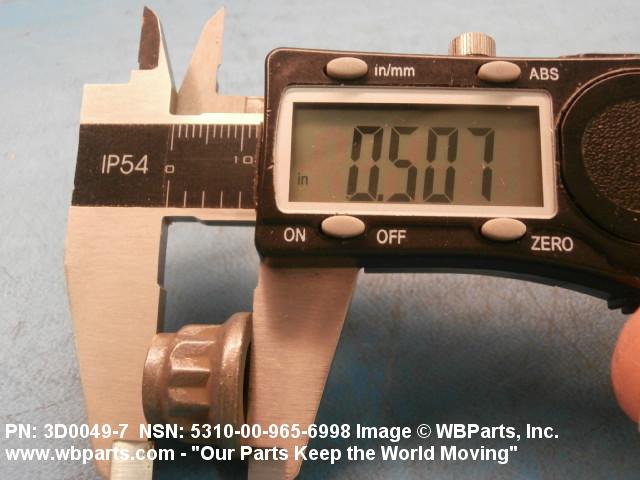

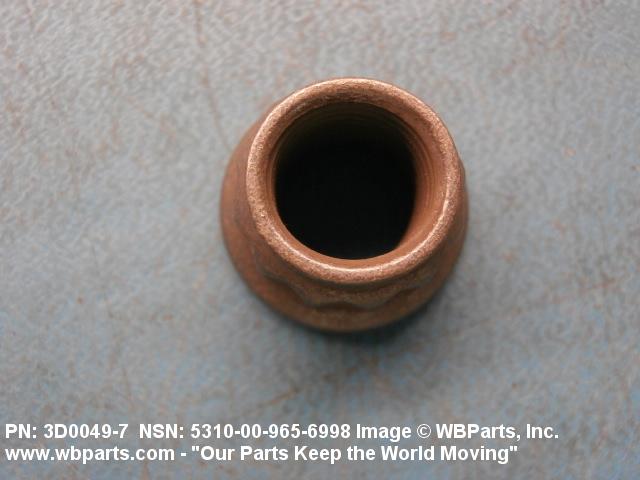

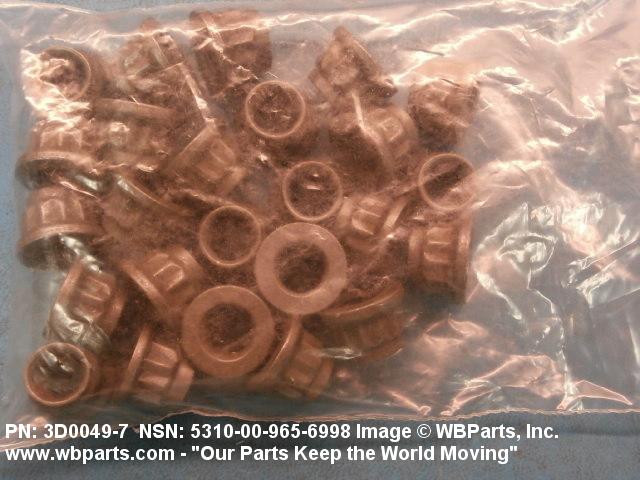

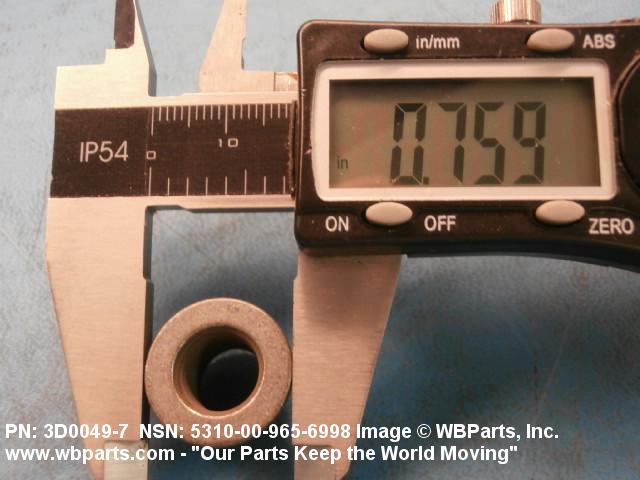

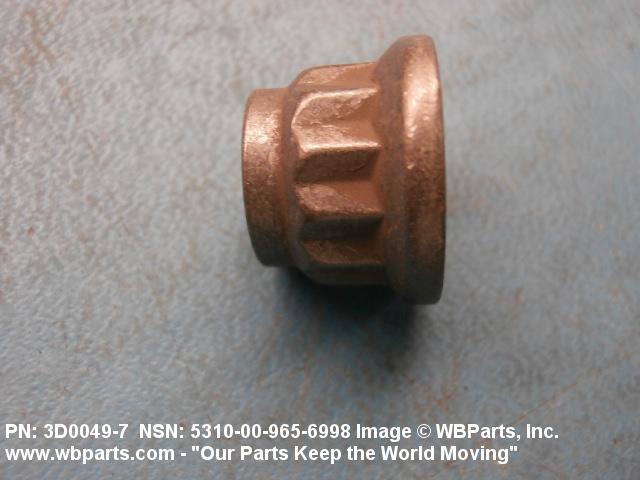

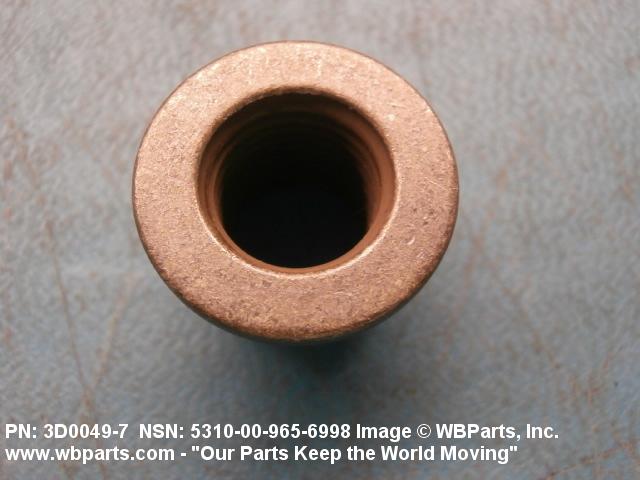

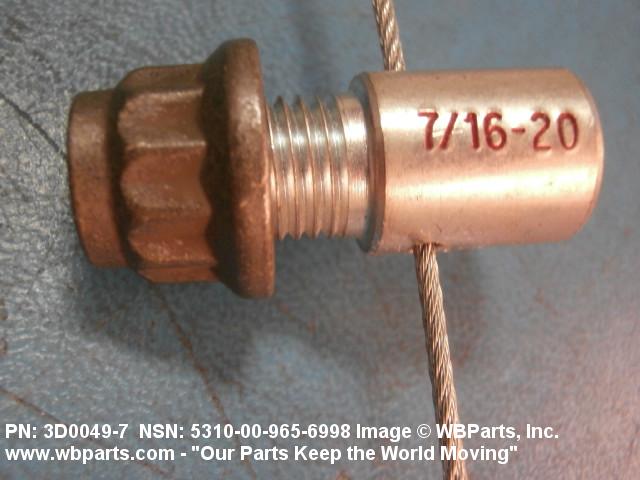

Drawings & Photos | NSN 5310-00-965-6998
Demand History | NSN 5310-00-965-6998
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LHEB220070 | 2025-11-325 | 900 | Hong Kong |
| LHEB220070 | 2025-07-190 | 1800 | Hong Kong |
| LHEB220070 | 2025-06-168 | 50 | Hong Kong |
| H207 | 2025-05-149 | 1500 | Hong Kong |
| H207 | 2025-05-149 | 364 | Hong Kong |
| H207 | 2025-04-119 | 600 | Hong Kong |
| H207 | 2025-04-104 | 100 | Hong Kong |
| 5310-00-965-6998 | 2025-04-99 | 100 | Hong Kong |
| H207 | 2025-03-85 | 500 | Hong Kong |
| 5310-00-965-6998 | 2025-01-18 | 200 | Hong Kong |
| 5310-00-965-6998 | 2024-11-315 | 1000 | US |
| H207 | 2022-09-270 | 40 | South Africa |
| 57585-720 | 2019-09-267 | 500 | DIBBS |
| VN407A070 | 2019-09-267 | 500 | DIBBS |
| 57585-720 | 2019-06-179 | 109 | DIBBS |
| VN407A070 | 2019-06-179 | 109 | DIBBS |
| 57585-720 | 2019-06-170 | 109 | DIBBS |
| VN407A070 | 2019-06-170 | 109 | DIBBS |
| 57585-720 | 2019-06-154 | 150 | DIBBS |
| VN407A070 | 2019-06-154 | 150 | DIBBS |
| 5310-00-965-6998 | 2018-10-289 | 20 | US |
| 5310-00-965-6998 | 2016-09-273 | 250 | United States |
| 5310-00-965-6998 | 2015-03-64 | 100 | United States |
| H20-7 | 2012-08-229 | 150 | |
| H20-7 | 2012-04-102 | 88 | |
| H20-7 | 2011-11-332 | 35 | |
| LHEB220-070 | 2011-11-332 | 50 | |
| 5310-00-965-6998 | 2011-08-230 | 30 | MANUAL |
| 57585-720 | 2011-08-230 | 30 | United Kingdom |
| 5310-00-965-6998 | 2011-03-60 | 133 | us |
| 57585-720 | 2011-02-49 | 133 | |
| 57585-720 | 2010-11-333 | 60 |
Cross Reference | NSN 5310-00-965-6998
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 57585-720 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| 57585-720 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 57585-720 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| H20-7 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| LHEB220-070 | 72962 | HARVARD INDUSTRIES INC |
| VN407A070 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VN407A070 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-965-6998
Related Products | NSN 5310-00-965-6998
Technical Data | NSN 5310-00-965-6998
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A293 DOUBLE HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.770 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.531 INCHES MAXIMUM |
| WASHER THICKNESS | 0.064 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.553 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 56878 |
| DESIGN CONTROL REFERENCE | 57585-720 |
Restrictions/Controls & Freight Information | NSN 5310-00-965-6998
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-965-6998
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
