NSN 5310-00-975-1824 BH005266, BH00526-6, H20-6
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-975-1824 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BH005266, BH00526-6, H20-6, S862NEW5624, S862NEW5-624, LHEB220064, LHEB220-064, DHE135796M, DHE13579-6M, H206, 3D00496, 3D0049-6 , 57585624, 57585-624, 9439723, 943972-3, 5310-00-975-1824, 00-975-1824, 5310009751824, 009751824
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 OCT 1966 | 00-975-1824 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

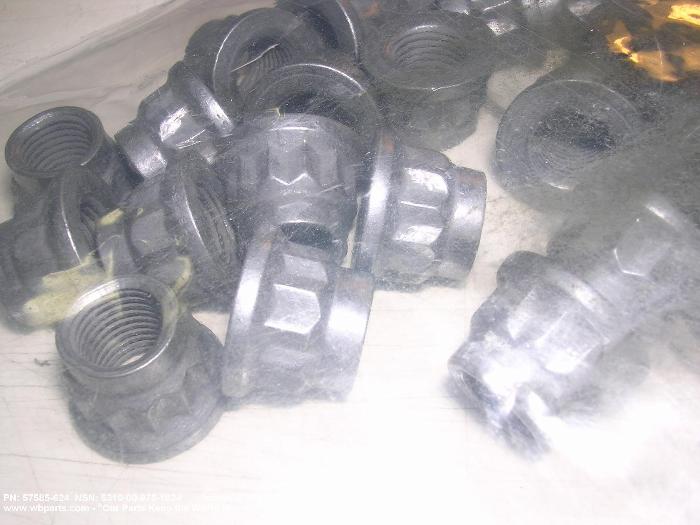

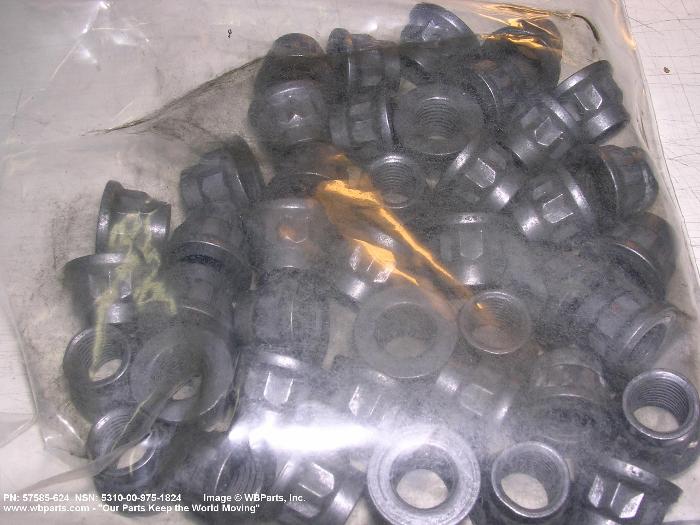

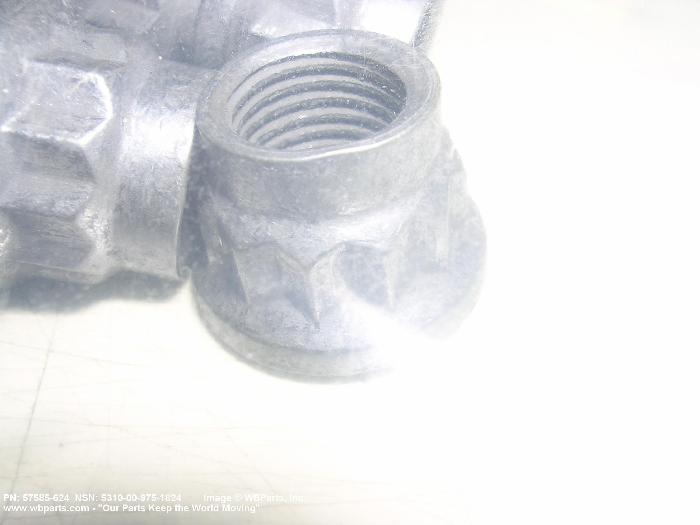

Drawings & Photos | NSN 5310-00-975-1824
Demand History | NSN 5310-00-975-1824
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3D0049-6 | 2025-10-293 | 169 | DIBBS |
| 57585-624 | 2025-10-293 | 169 | DIBBS |
| H20-6 | 2025-10-293 | 169 | DIBBS |
| 5310-00-975-1824 | 2024-01-19 | 1000 | ES |
| H206 | 2022-09-244 | 64 | Philippines |
| 5310-00-975-1824 | 2022-01-04 | 100 | Taiwan |
| H206 | 2016-09-253 | 20 | South Africa |
| H206 | 2016-05-137 | 100 | United States |
| LHEB220064 | 2011-12-362 | 20 | United States |
| LHEB220064 | 2011-10-298 | 100 | US |
| 5310-00-975-1824 | 2010-01-29 | 35 | US |
| 5310-00-975-1824 | 2009-01-26 | 5676 | DIBBS |
| 5310-00-975-1824 | 2009-01-05 | 1277 | DIBBS |
| 5310-00-975-1824 | 2008-09-259 | 1642 | DIBBS |
| 5310-00-975-1824 | 2008-06-168 | 3719 | DIBBS |
| 5310-00-975-1824 | 2008-01-23 | 40794 | DIBBS |
| 5310-00-975-1824 | 2007-11-317 | 20 | United States |
Cross Reference | NSN 5310-00-975-1824
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3D0049-6 | 88277 | BOEING COMPANY, THE DBA BOEING |
| 57585-624 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 57585-624 | 72962 | HARVARD INDUSTRIES INC |
| 943972-3 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| BH00526-6 | 27238 | BRISTOL INDUSTRIES |
| DHE13579-6M | 28479 | GRAPHIC CONTROLS CORP MEDICAL PRODUCTS DIV |
| H20-6 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| LHEB220-064 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| LHEB220-064 | 72962 | HARVARD INDUSTRIES INC |
| S862NEW5-624 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-975-1824
Technical Data | NSN 5310-00-975-1824
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A293 DOUBLE HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.670 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.468 INCHES MAXIMUM |
| WASHER THICKNESS | 0.064 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | ANY ACCEPTABLE NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 56878 |
| DESIGN CONTROL REFERENCE | 57585-624 |
Restrictions/Controls & Freight Information | NSN 5310-00-975-1824
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
