NSN 5310-00-982-6809 MS21044N10, MS21044-N-10, F52NE1018

Product Details | HEXAGON SELF-LOCKING NUT

5310-00-982-6809 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: MS21044N10, MS21044-N-10, F52NE1018, F52NE-1018, F52NE108, 10082669 , 18D10, 4197302004, 5310PL0890469 , 7B1756, 5310-00-982-6809, 00-982-6809, 5310009826809, 009826809

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-982-6809	05277 ( NUT, SELF-LOCKING, HEXAGON )

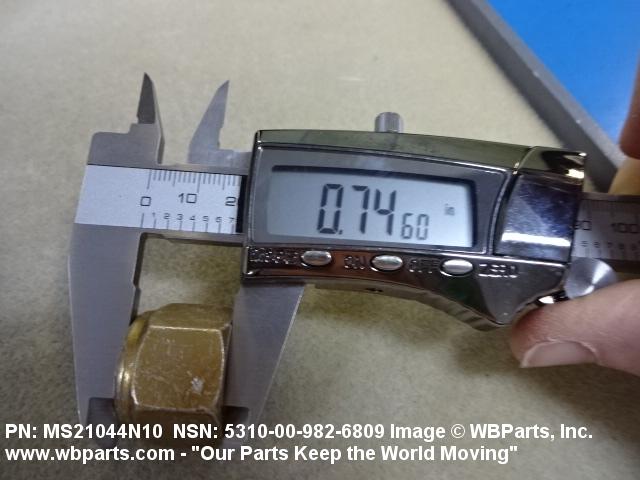

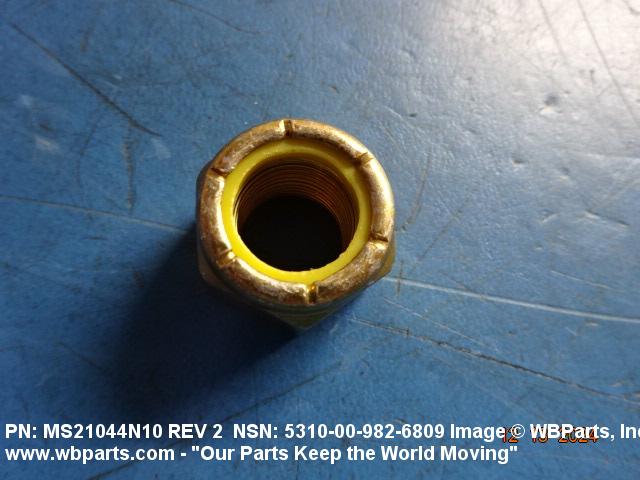

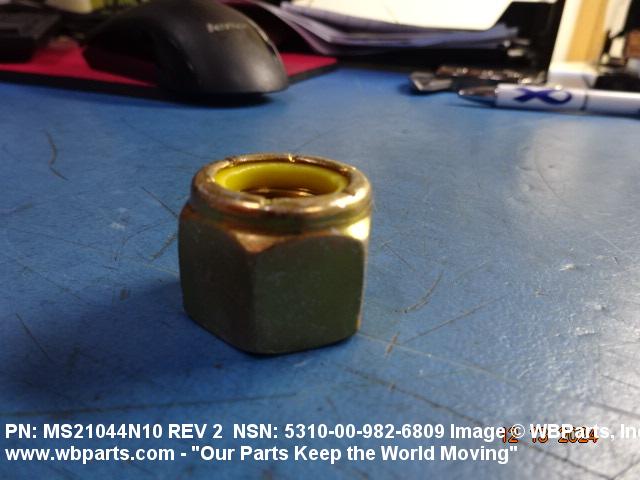

Drawings & Photos | NSN 5310-00-982-6809

Part Number	Request Date	QTY	Origin
5310-00-982-6809	2025-05-139	176	US
5310-00-982-6809	2025-04-109	4000	DE
MS21044N10	2025-01-31	6	Japan
5310-00-982-6809	2024-12-341	560	United States
MS21044N10	2024-12-337	5	Japan
5310-00-982-6809	2024-06-165	8500	GR
5310-00-982-6809	2024-03-68	200	EE
5310-00-982-6809	2023-11-318	20	CY
5310-00-982-6809	2023-09-250	400	Latvia
MS21044N10	2022-12-354	120	US
MS21044N10	2022-09-252	2000	CL
5310-00-982-6809	2022-04-119	50	Latvia
5310-00-982-6809	2022-03-84	38439	DIBBS
5310-00-982-6809	2022-03-73	38439	DIBBS
5310-00-982-6809	2022-03-68	800	Germany
5310-00-982-6809	2022-02-59	16453	DIBBS
5310-00-982-6809	2022-02-48	16453	DIBBS
5310-00-982-6809	2022-02-34	18659	DIBBS
MS21044N10	2021-11-321	4	Malaysia
5310-00-982-6809	2021-09-270	800	Germany
5310-00-982-6809	2021-09-252	2000	Latvia
5310-00-982-6809	2021-05-147	82	PK
5310-00-982-6809	2021-02-56	20	BE
5310-00-982-6809	2021-02-53	20	Thailand
5310-00-982-6809	2020-12-343	2000	US
5310-00-982-6809	2020-07-206	1	US
5310-00-982-6809	2020-03-71	30000	ES
5310-00-982-6809	2018-08-233	78005	DIBBS
5310-00-982-6809	2018-08-225	78005	DIBBS
5310-00-982-6809	2018-06-163	169995	DIBBS
5310-00-982-6809	2018-06-155	169995	DIBBS
5310-00-982-6809	2018-04-102	169995	DIBBS
MS21044N10	2018-04-101	170000	United States
5310-00-982-6809	2018-04-94	169995	DIBBS
5310-00-982-6809	2018-03-64	153625	DIBBS
5310-00-982-6809	2018-02-56	153625	DIBBS
5310-00-982-6809	2017-12-362	50	US
5310-00-982-6809	2017-12-356	27044	DIBBS
5310-00-982-6809	2017-12-355	27044	DIBBS
5310-00-982-6809	2017-09-260	120956	DIBBS
5310-00-982-6809	2016-06-181	6	Germany
5310-00-982-6809	2016-06-181	50	Germany
5310-00-982-6809	2016-06-181	500	Germany
5310-00-982-6809	2015-02-41	5080	MANUAL
5310-00-982-6809	2014-09-253	15837	DIBBS
5310-00-982-6809	2014-06-156	12595	MANUAL
5310-00-982-6809	2014-04-114	42272	DIBBS
5310-00-982-6809	2013-05-134	144	MANUAL
5310-00-982-6809	2013-04-92	15093	KR
5310-00-982-6809	2012-11-314	4	us
5310-00-982-6809	2012-01-09	2000	Germany
MS21044N10	2011-11-308	450	United States
MS21044N10	2011-08-229	20750	United States
5310-00-982-6809	2011-01-26	10	US
MS21044N10	2011-01-12	3	United States
5310-00-982-6809	2009-07-212	199000	DIBBS
5310-00-982-6809	2009-06-160	30000	us
5310-00-982-6809	2009-06-153	161000	DIBBS
5310-00-982-6809	2009-04-96	125847	DIBBS
5310-00-982-6809	2009-01-27	1000	Netherlands
5310-00-982-6809	2008-08-239	135500	US
5310-00-982-6809	2008-07-212	180	Turkey
5310-00-982-6809	2008-06-182	46337	DIBBS
5310-00-982-6809	2008-06-161	153000	DIBBS

Cross Reference | NSN 5310-00-982-6809

Part Number	Cage Code	Manufacturer
18D10	12603	CLARK EQUIPMENT CO
18D10	77237	DANA OFF HIGHWAY PRODUCTS, LLC
4197302004	0058B	CAUCHOS PUNTES SL
5310009826809	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5310PL0890469	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
7B1756	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
F52NE-1018	27687	GREER STOP NUT INC.
F52NE108	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
F52NE108	72962	HARVARD INDUSTRIES INC
MS21044-N-10	0158B	PSA PEUGEOT-CITROEN ESPA?A, SA
MS21044N10	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21044N10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-982-6809

Compare

Related Products | NSN 5310-00-982-6809

5310-00-982-6810, 5310-00-982-6811, 5310-00-982-6812, 5310-00-982-6813, 5310-00-982-6814

Technical Data | NSN 5310-00-982-6809

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD QUANTITY PER INCH	18
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 1006 OR STEEL COMP 1008 OR STEEL COMP 1009 OR STEEL COMP 1010 OR STEEL COMP 1015 OR STEEL COMP 1018 OR STEEL COMP 1035 OR STEEL COMP 11L37 OR STEEL COMP 1213 OR STEEL COMP 12L14 NUT
SURFACE TREATMENT	CADMIUM OVERALL EXCEPT INSERT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON
NUT HEIGHT	0.732 INCHES MINIMUM AND 0.766 INCHES MAXIMUM
WIDTH ACROSS FLATS	0.928 INCHES MINIMUM AND 0.940 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
COUNTERSINK ANGLE	88.0 DEGREES NOMINAL NUT
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	250.0 DEG FAHRENHEIT NOMINAL
III BEARING SURFACE FINISH	125.0 MICROINCHES

Restrictions/Controls & Freight Information | NSN 5310-00-982-6809

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-982-6809

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
