NSN 5310-01-022-0323 27 FKF-616, 27FKF616, 27FKF-616

Product Details | HEXAGON SELF-LOCKING NUT

5310-01-022-0323 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: 27 FKF-616, 27FKF616, 27FKF-616, 7000101, 700010-1, 787AS966, 5310-01-022-0323, 01-022-0323, 5310010220323, 010220323

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	24 MAY 1976	01-022-0323	05277 ( NUT, SELF-LOCKING, HEXAGON )

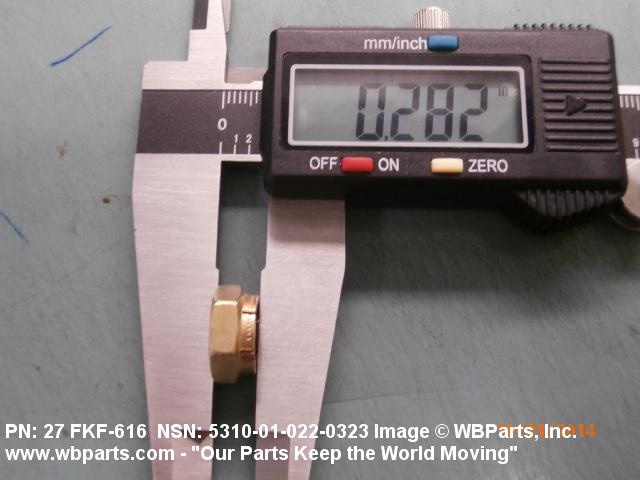

Drawings & Photos | NSN 5310-01-022-0323

Part Number	Request Date	QTY	Origin
27 FKF-616	2023-03-61	819	DIBBS
27 FKF-616	2023-02-53	819	DIBBS
27 FKF-616	2021-12-350	1194	DIBBS
27 FKF-616	2019-10-303	673	DIBBS
27 FKF-616	2019-10-295	673	DIBBS
27 FKF-616	2019-05-121	184	DIBBS
5310-01-022-0323	2019-02-36	120	United States
27 FKF-616	2019-02-34	979	DIBBS
5310-01-022-0323	2015-04-92	1352	DIBBS
5310-01-022-0323	2015-03-60	60	DIBBS
5310-01-022-0323	2014-12-357	60	DIBBS
27FKF616	2014-10-286	16	United States
27FKF616	2014-10-286	16	United States
5310-01-022-0323	2014-09-252	60	DIBBS
5310-01-022-0323	2014-05-149	60	DIBBS
5310-01-022-0323	2013-10-299	100	DIBBS
5310-01-022-0323	2013-10-283	100	DIBBS
5310-01-022-0323	2013-10-275	24	DIBBS
5310-01-022-0323	2013-05-134	24	DIBBS

Cross Reference | NSN 5310-01-022-0323

Part Number	Cage Code	Manufacturer
27 FKF-616	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
27FKF-616	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
700010-1	51489	PLASTICS RESEARCH CORPORATION
787AS966	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-022-0323

Compare

Related Products | NSN 5310-01-022-0323

5310-01-022-0326, 5310-01-022-0329, 5310-01-022-0335, 5310-01-022-0336, 5310-01-022-0337

Technical Data | NSN 5310-01-022-0323

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	16
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 1118 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-637 COMP 1118 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON
NUT HEIGHT	0.282 INCHES NOMINAL
WIDTH ACROSS FLATS	0.553 INCHES MINIMUM AND 0.564 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
TEMP RATING	NOT RATED
MANUFACTURERS CODE	56878
DESIGN CONTROL REFERENCE	27 FKF-616

Restrictions/Controls & Freight Information | NSN 5310-01-022-0323

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-022-0323

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
