NSN 5310-01-068-3460 63347, 63-347, 01-068-3460
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-01-068-3460 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: 63347, 63-347, 5310-01-068-3460, 01-068-3460, 5310010683460, 010683460
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 NOV 1978 | 01-068-3460 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

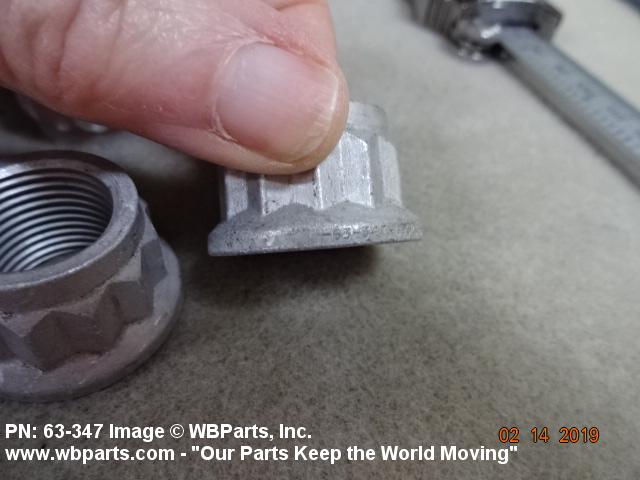

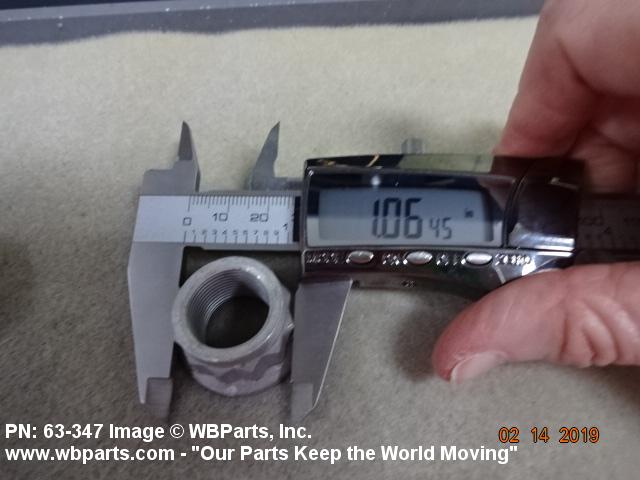

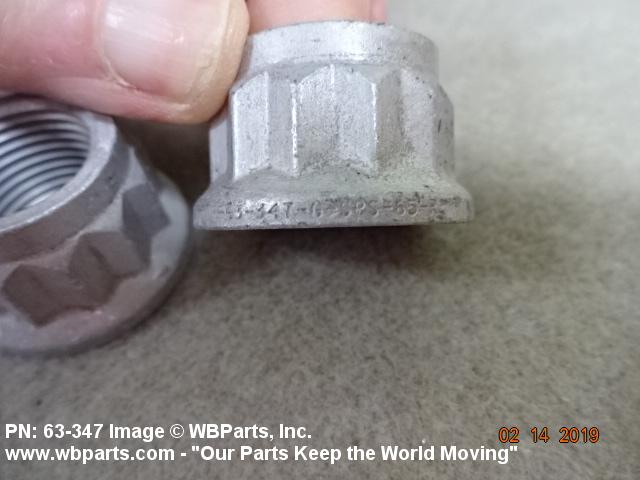

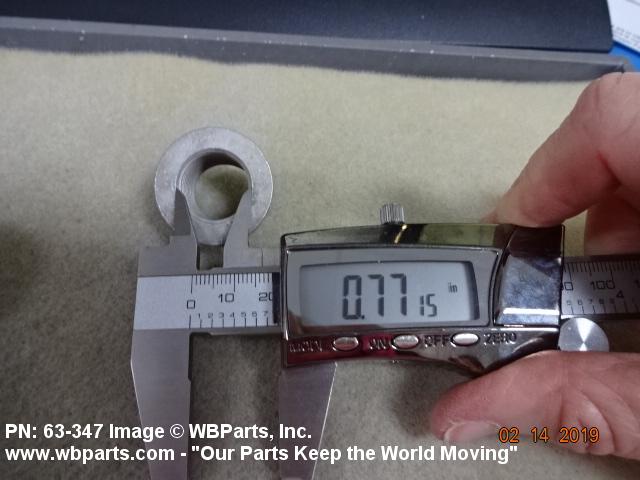

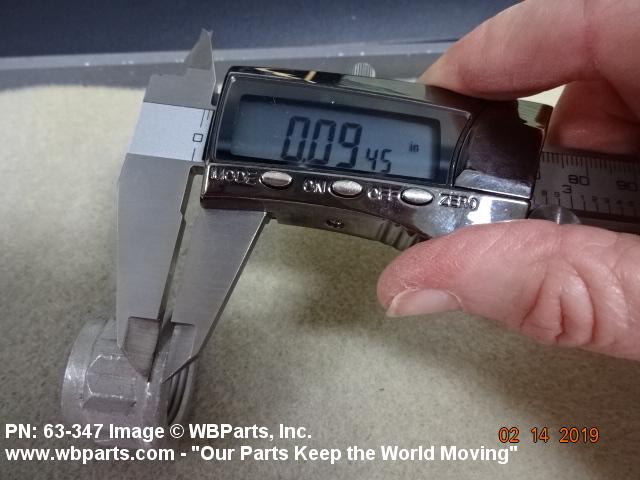

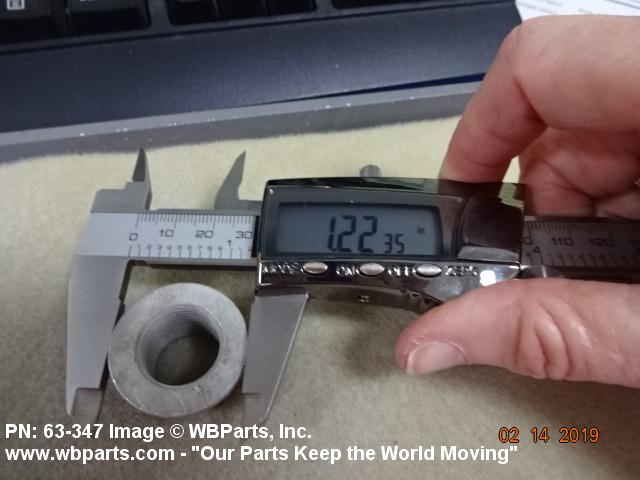

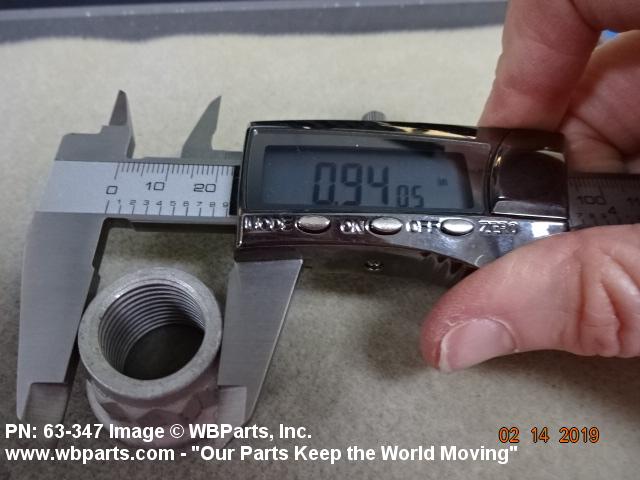

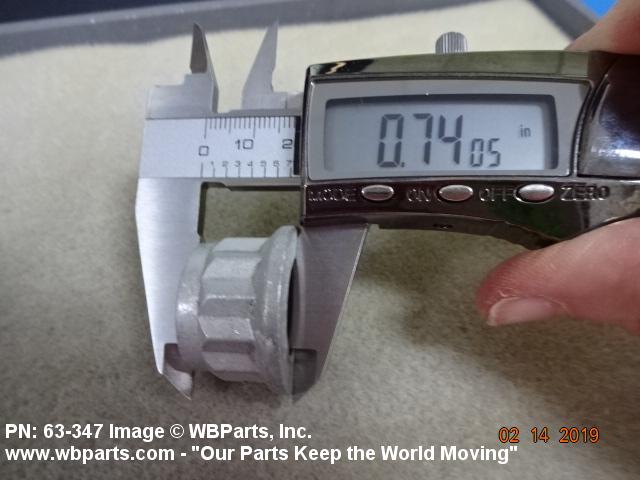

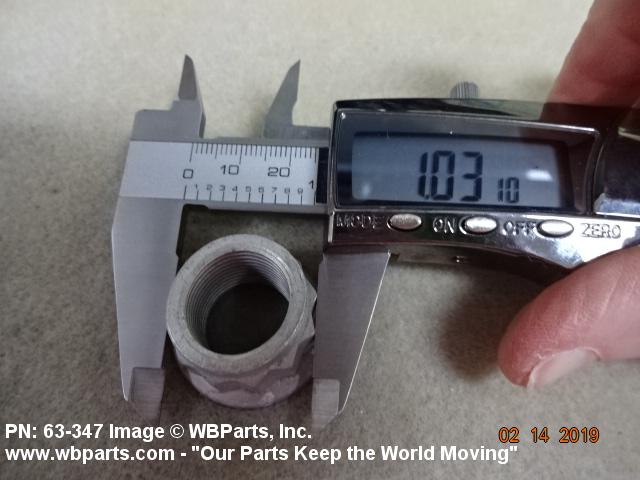

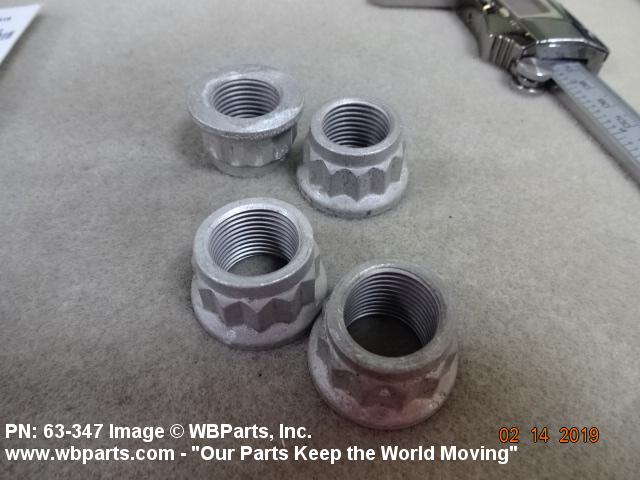

Drawings & Photos | NSN 5310-01-068-3460
Demand History | NSN 5310-01-068-3460
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-068-3460 | 2025-07-196 | 200 | US |
| 63347 | 2022-05-125 | 5 | US |
| 63347 | 2019-02-36 | 4 | Thailand |
| 63-347 | 2019-01-28 | 8 | Thailand |
| 63347 | 2018-07-193 | 8 | Thailand |
| 63347 | 2018-04-96 | 36 | SG |
Cross Reference | NSN 5310-01-068-3460
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63-347 | 97153 | GOODRICH CORPORATION DBA GOODRICH AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-068-3460
Technical Data | NSN 5310-01-068-3460
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| MANUFACTURERS CODE | 97153 |
| DESIGN CONTROL REFERENCE | 63-347 |
Restrictions/Controls & Freight Information | NSN 5310-01-068-3460
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
