NSN 5310-01-070-0928 6846640, 01-070-0928, 010700928
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-070-0928 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: 6846640, 5310-01-070-0928, 01-070-0928, 5310010700928, 010700928
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JAN 1979 | 01-070-0928 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |
Drawings & Photos | NSN 5310-01-070-0928
Demand History | NSN 5310-01-070-0928
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6846640 | 2024-07-200 | 1249 | DIBBS |
| 6846640 | 2024-03-85 | 298 | DIBBS |
| 6846640 | 2024-03-77 | 298 | DIBBS |
| 6846640 | 2023-12-360 | 234 | DIBBS |
| 6846640 | 2023-12-351 | 234 | DIBBS |
| 5310-01-070-0928 | 2023-12-340 | 16 | United States |
| 6846640 | 2023-11-324 | 1526 | DIBBS |
| 6846640 | 2023-11-316 | 1526 | DIBBS |
| 6846640 | 2023-08-233 | 1084 | DIBBS |
| 6846640 | 2023-08-225 | 1084 | DIBBS |
| 6846640 | 2023-04-114 | 404 | DIBBS |
| 6846640 | 2023-04-106 | 404 | DIBBS |
| 6846640 | 2022-12-353 | 171 | DIBBS |
| 6846640 | 2022-09-261 | 1084 | DIBBS |
| 5310-01-070-0928 | 2022-03-62 | 32 | United States |
| 6846640 | 2021-10-290 | 334 | DIBBS |
| 6846640 | 2021-09-252 | 353 | DIBBS |
| 6846640 | 2021-03-69 | 474 | DIBBS |
| 6846640 | 2021-03-62 | 549 | DIBBS |
| 6846640 | 2020-10-289 | 503 | DIBBS |
| 6846640 | 2019-07-188 | 624 | DIBBS |
| 5310-01-070-0928 | 2019-07-183 | 4 | MX |
| 6846640 | 2019-05-140 | 908 | DIBBS |
| 6846640 | 2019-04-107 | 1076 | DIBBS |
| 5310-01-070-0928 | 2018-08-214 | 768 | DIBBS |
| 5310-01-070-0928 | 2018-02-52 | 1076 | DIBBS |
| 5310-01-070-0928 | 2018-01-01 | 785 | DIBBS |
| 5310-01-070-0928 | 2017-03-88 | 1590 | DIBBS |
| 5310-01-070-0928 | 2017-02-48 | 1115 | DIBBS |
| 5310-01-070-0928 | 2017-01-08 | 1115 | DIBBS |
| 5310-01-070-0928 | 2016-11-326 | 1141 | DIBBS |
| 5310-01-070-0928 | 2016-09-273 | 1141 | DIBBS |
| 5310-01-070-0928 | 2016-06-175 | 281 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-070-0928
Related Products | NSN 5310-01-070-0928
Technical Data | NSN 5310-01-070-0928
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A12 HEXAGON |

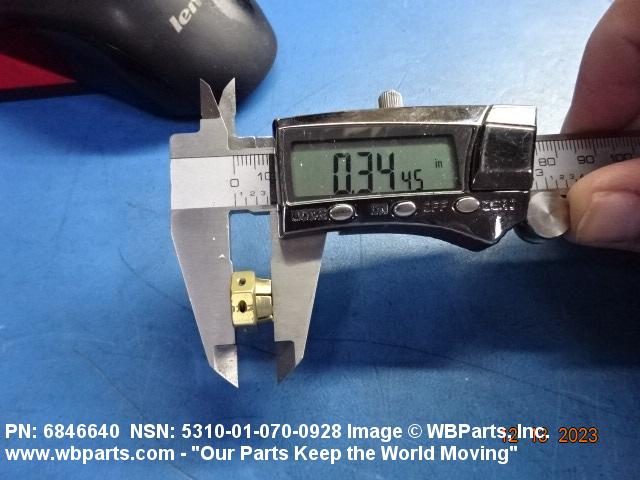

| NUT HEIGHT | 0.330 INCHES MINIMUM AND 0.360 INCHES MAXIMUM |

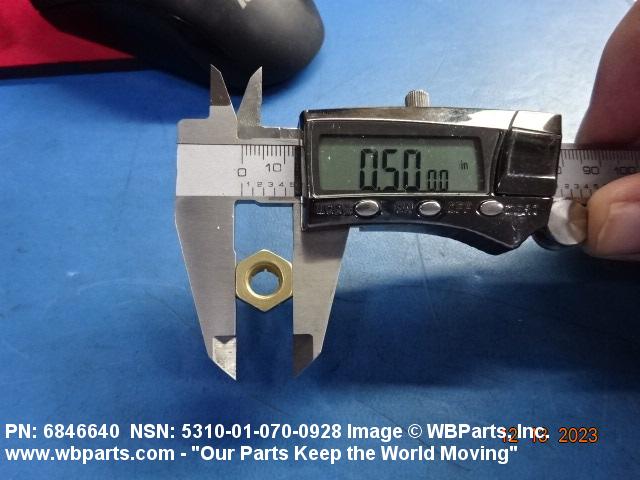

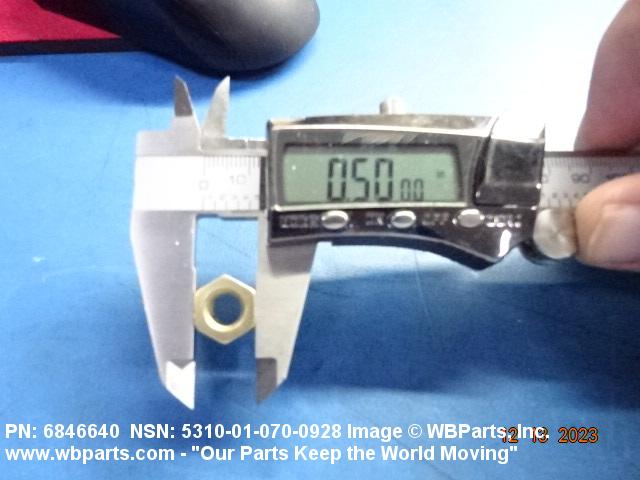

| WIDTH ACROSS FLATS | 0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | H2 CONFIGURATION B |
| HOLE TYPE AND QUANTITY | 3 DRILLED |
| DRILLED HOLE DIAMETER | 0.047 INCHES NOMINAL |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | ANY ACCEPTABLE |
| TEMP RATING | 550.0 DEG FAHRENHEIT MAXIMUM |
| III END ITEM IDENTIFICATION | W/S: SPRUANCE CLASS DD (963); KIDD CLASS DDG; 501K17 GAS TURBINE SYSTEMS; 501K34 GAS TURBINE SYSTEMS; ARLEIGH BURKE CLASS DDG; TICONDEROGA CLASS CG (47) |
| MANUFACTURERS CODE | 63005 |
| MFR SOURCE CONTROLLING REFERENCE | 6846640 |
Restrictions/Controls & Freight Information | NSN 5310-01-070-0928
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-070-0928
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
