NSN 5310-01-100-9628 H490498, H49049-8, 01-100-9628
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

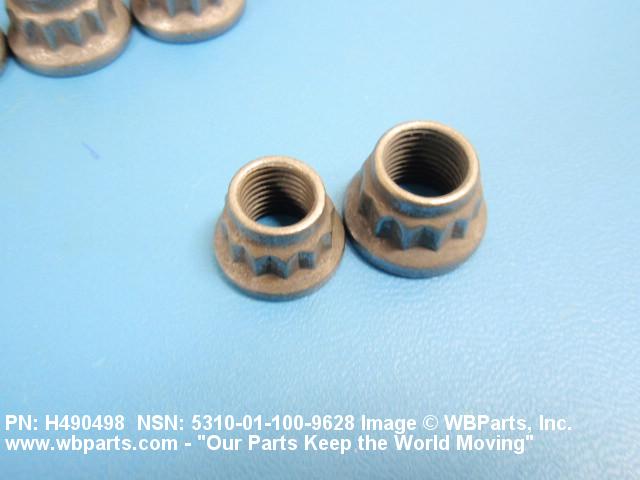

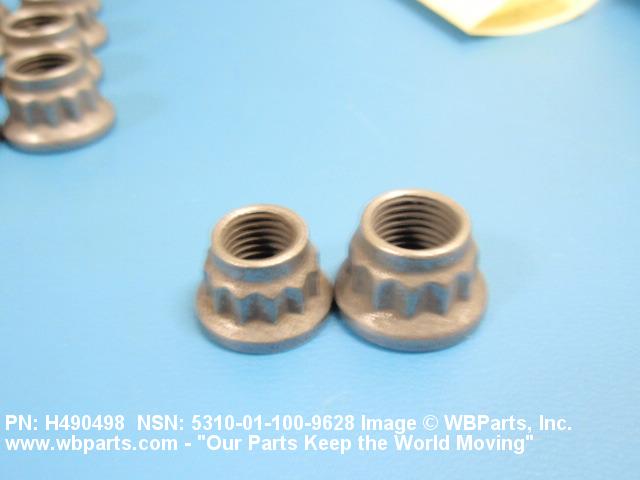

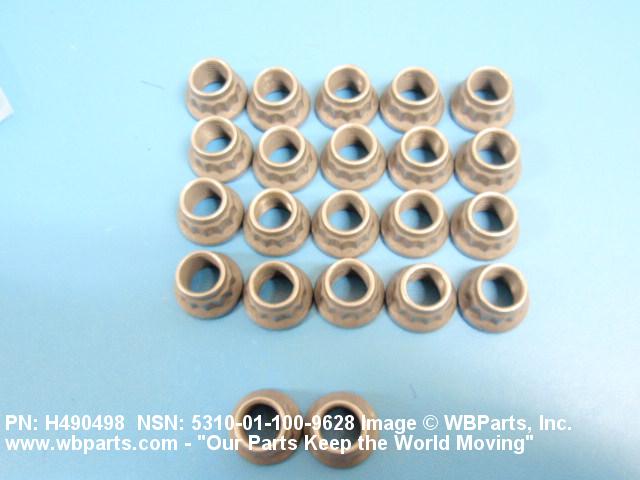

5310-01-100-9628 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: H490498, H49049-8, 5310-01-100-9628, 01-100-9628, 5310011009628, 011009628
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 SEP 1980 | 01-100-9628 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |
Drawings & Photos | NSN 5310-01-100-9628
Demand History | NSN 5310-01-100-9628
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-100-9628 | 2012-10-292 | 1385 | DIBBS |
| 5310-01-100-9628 | 2012-08-243 | 1335 | DIBBS |
| 5310-01-100-9628 | 2011-06-153 | 523 | DIBBS |
| 5310-01-100-9628 | 2011-02-33 | 1468 | DIBBS |
| 5310-01-100-9628 | 2010-10-286 | 523 | DIBBS |
| 5310-01-100-9628 | 2009-12-336 | 772 | DIBBS |
| 5310-01-100-9628 | 2009-08-215 | 278 | DIBBS |
| 5310-01-100-9628 | 2009-05-150 | 201 | DIBBS |
| H490498 | 2009-03-83 | 25 | United States |
| 5310-01-100-9628 | 2008-08-218 | 1031 | DIBBS |
| 5310-01-100-9628 | 2008-05-133 | 1355 | DIBBS |
Cross Reference | NSN 5310-01-100-9628
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H49049-8 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
