NSN 5310-01-106-1695 NAS180410, NAS1804-10, 01-106-1695
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

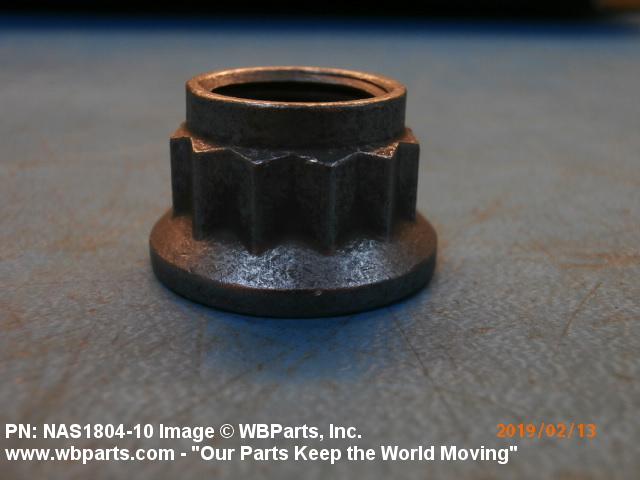

5310-01-106-1695 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS180410, NAS1804-10, 5310-01-106-1695, 01-106-1695, 5310011061695, 011061695
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JAN 1981 | 01-106-1695 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

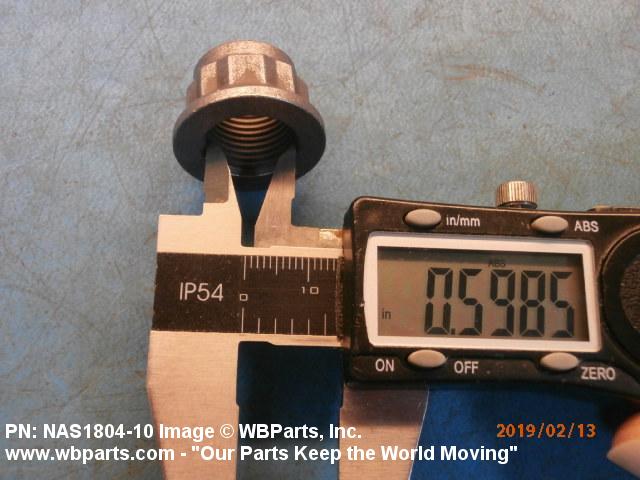

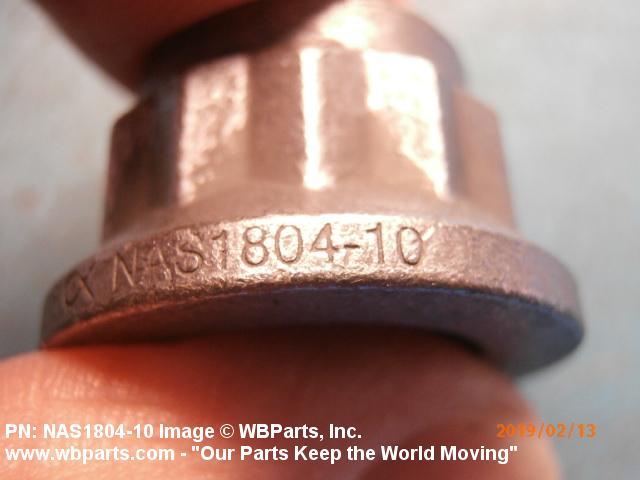

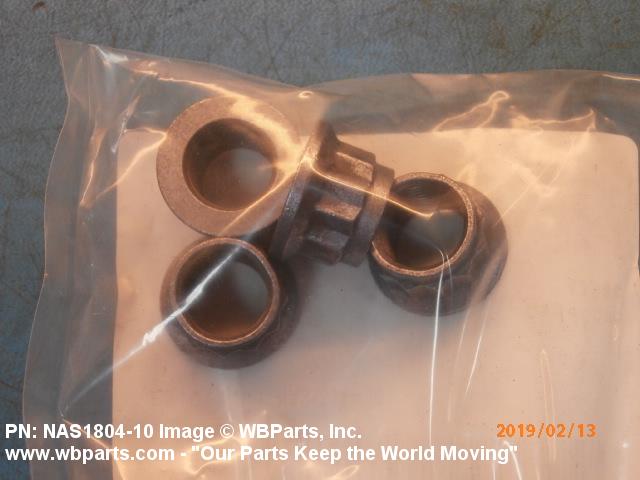

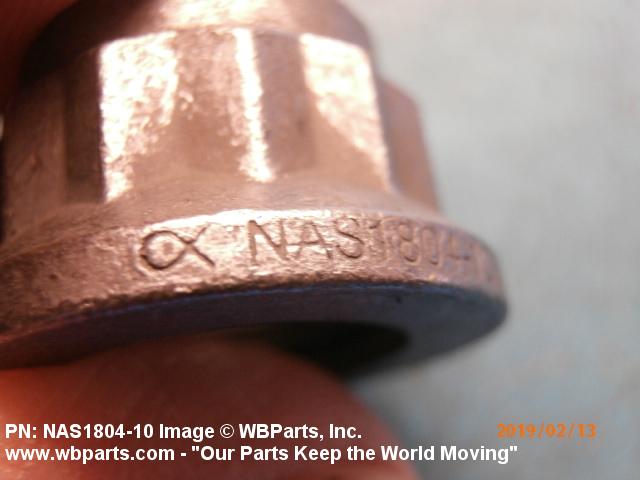

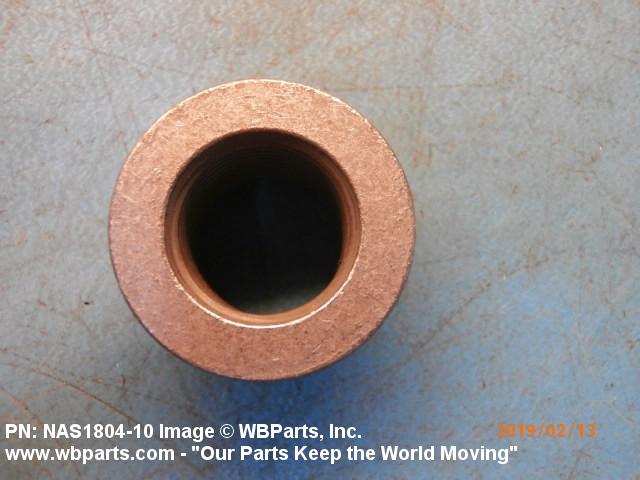

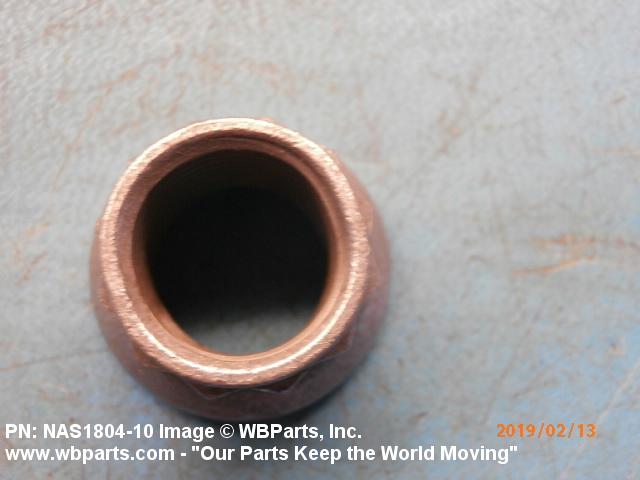

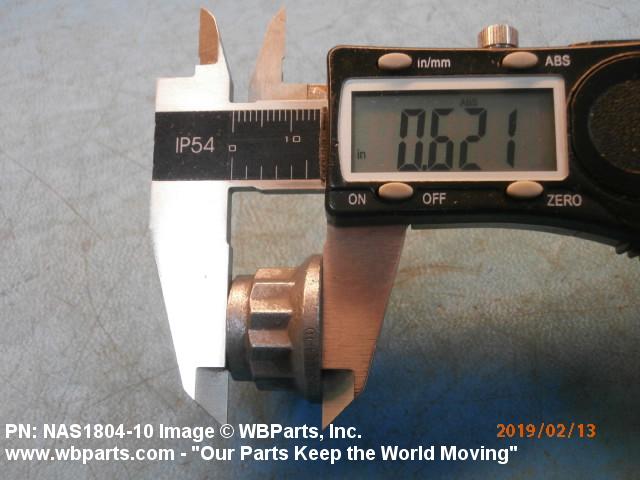

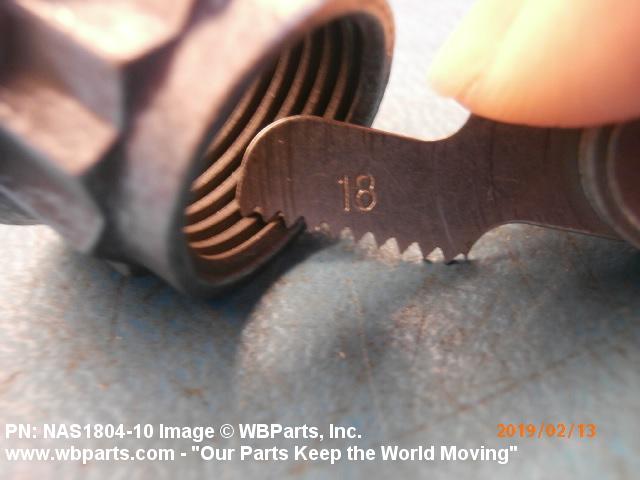

Drawings & Photos | NSN 5310-01-106-1695
Demand History | NSN 5310-01-106-1695
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS180410 | 2024-09-263 | 12 | United States |
| NAS180410 | 2023-06-170 | 1500 | United States |
| NAS180410 | 2023-06-170 | 3000 | United States |
| NAS180410 | 2023-04-93 | 1000 | United States |
| NAS180410 | 2023-04-93 | 2000 | United States |
| NAS180410 | 2023-04-93 | 3000 | United States |
| NAS180410 | 2023-04-93 | 4000 | United States |
| NAS180410 | 2023-02-53 | 750 | United States |
| NAS180410 | 2023-02-53 | 1500 | United States |
| NAS180410 | 2023-02-53 | 3000 | United States |
| NAS180410 | 2021-07-182 | 3000 | United States |
| NAS180410 | 2019-02-36 | 4 | Thailand |
| NAS1804-10 | 2019-01-28 | 8 | Thailand |
| NAS1804-10 | 2019-01-28 | 8 | Thailand |
| NAS180410 | 2018-11-312 | 25 | US |
| NAS180410 | 2018-06-171 | 8 | Thailand |
| NAS180410 | 2012-12-348 | 10 | United States |
| NAS180410 | 2012-02-32 | 24 | US |
| 5310-01-106-1695 | 2011-03-72 | 80 | US |
| 5310-01-106-1695 | 2010-12-335 | 4 | United Kingdom |
| NAS180410 | 2010-04-109 | 39 | United States |
Cross Reference | NSN 5310-01-106-1695
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1804-10 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-106-1695
Technical Data | NSN 5310-01-106-1695
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 601 OR STEEL COMP H11 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6304 ASSN STD 1ST MATERIAL RESPONSE OR AMS 6487 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A293 DOUBLE HEXAGON |

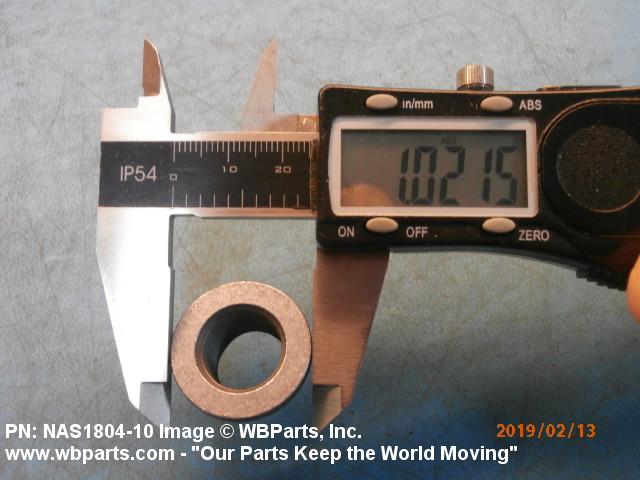

| WASHER OUTSIDE DIAMETER | 1.024 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.625 INCHES MAXIMUM |

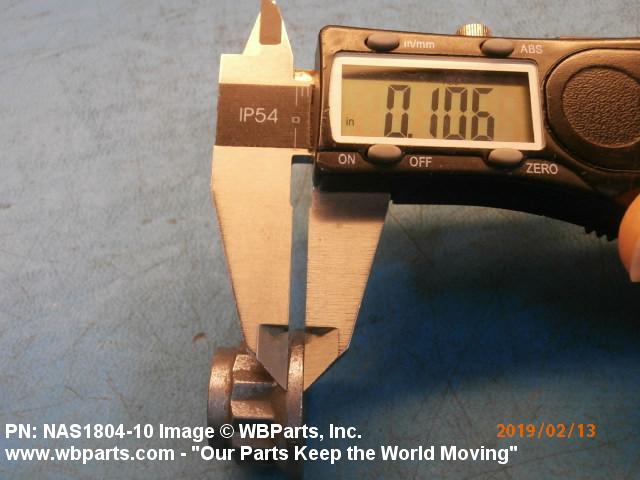

| WASHER THICKNESS | 0.084 INCHES NOMINAL |

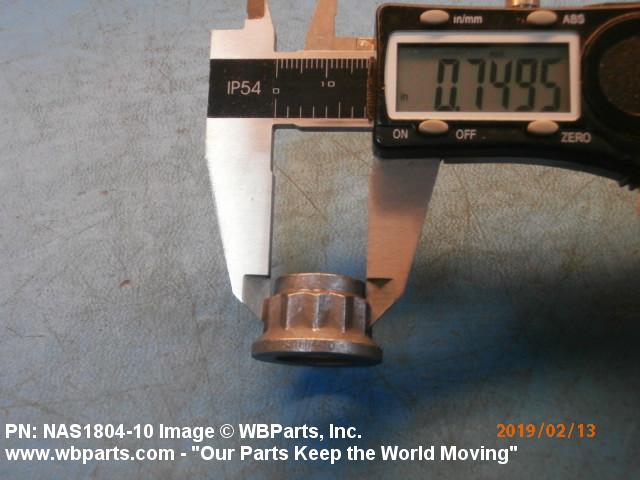

| WIDTH ACROSS FLATS | 0.741 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1804 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-106-1695
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
