NSN 5310-01-162-5727 NS202486048, NS202486-048, BACN10JC4CD

Product Details | HEXAGON SELF-LOCKING NUT

5310-01-162-5727 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: NS202486048, NS202486-048, BACN10JC4CD, BRH10C4D, H516504, H51650-4, H516504BAC, H51650-4BAC, T6C428JCD, 102LH90754W, 102LH9075-4W, 5310-01-162-5727, 01-162-5727, 5310011625727, 011625727

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 SEP 1983	01-162-5727	05277 ( NUT, SELF-LOCKING, HEXAGON )

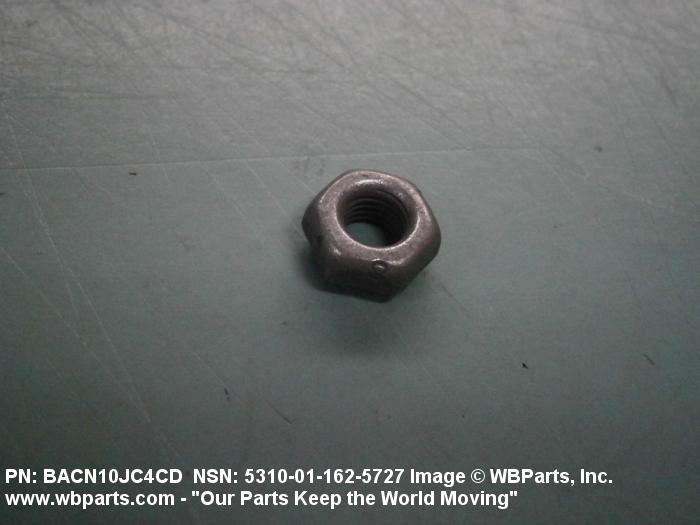

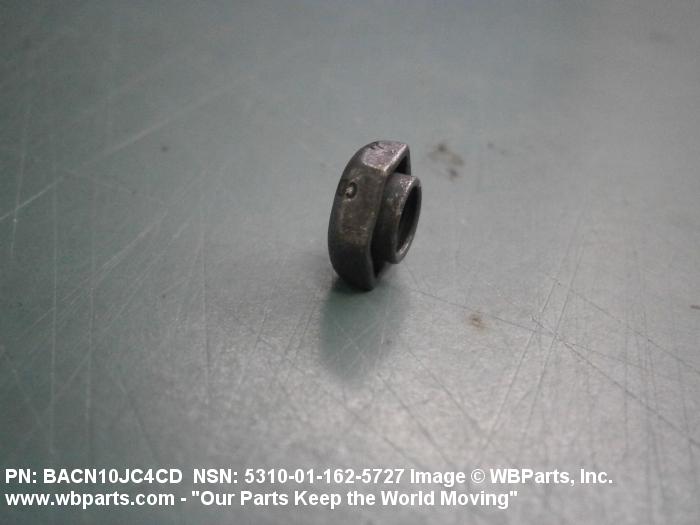

Drawings & Photos | NSN 5310-01-162-5727

Part Number	Request Date	QTY	Origin
BACN10JC4CD	2025-11-308	361	United States
BACN10JC4CD	2025-10-300	4128	DIBBS
BRH10C4D	2025-10-300	4128	DIBBS
H51650-4	2025-10-300	4128	DIBBS
NS202486-048	2025-10-300	4128	DIBBS
BACN10JC4CD	2025-10-292	4128	DIBBS
BRH10C4D	2025-10-292	4128	DIBBS
H51650-4	2025-10-292	4128	DIBBS
NS202486-048	2025-10-292	4128	DIBBS
BACN10JC4CD	2025-06-168	1375	DIBBS
BRH10C4D	2025-06-168	1375	DIBBS
H51650-4	2025-06-168	1375	DIBBS
NS202486-048	2025-06-168	1375	DIBBS
BACN10JC4CD	2025-03-82	410	DIBBS
BRH10C4D	2025-03-82	410	DIBBS
H51650-4	2025-03-82	410	DIBBS
NS202486-048	2025-03-82	410	DIBBS
BACN10JC4CD	2025-02-36	2172	DIBBS
BRH10C4D	2025-02-36	2172	DIBBS
H51650-4	2025-02-36	2172	DIBBS
NS202486-048	2025-02-36	2172	DIBBS
BACN10JC4CD	2025-01-21	2172	DIBBS
BRH10C4D	2025-01-21	2172	DIBBS
H51650-4	2025-01-21	2172	DIBBS
NS202486-048	2025-01-21	2172	DIBBS
BACN10JC4CD	2024-09-267	1375	DIBBS
BRH10C4D	2024-09-267	1375	DIBBS
H51650-4	2024-09-267	1375	DIBBS
NS202486-048	2024-09-267	1375	DIBBS
BACN10JC4CD	2024-09-259	1375	DIBBS
BRH10C4D	2024-09-259	1375	DIBBS
H51650-4	2024-09-259	1375	DIBBS
NS202486-048	2024-09-259	1375	DIBBS
BACN10JC4CD	2024-07-199	1415	DIBBS
BRH10C4D	2024-07-199	1415	DIBBS
H51650-4	2024-07-199	1415	DIBBS
NS202486-048	2024-07-199	1415	DIBBS
BACN10JC4CD	2024-07-184	1415	DIBBS
BRH10C4D	2024-07-184	1415	DIBBS
H51650-4	2024-07-184	1415	DIBBS
NS202486-048	2024-07-184	1415	DIBBS
BACN10JC4CD	2024-06-176	125	DIBBS
BRH10C4D	2024-06-176	125	DIBBS
H51650-4	2024-06-176	125	DIBBS
NS202486-048	2024-06-176	125	DIBBS
5310-01-162-5727	2024-06-170	160	Singapore
BACN10JC4CD	2024-06-168	125	DIBBS
BRH10C4D	2024-06-168	125	DIBBS
H51650-4	2024-06-168	125	DIBBS
NS202486-048	2024-06-168	125	DIBBS
BACN10JC4CD	2024-02-59	484	DIBBS
BRH10C4D	2024-02-59	484	DIBBS
H51650-4	2024-02-59	484	DIBBS
NS202486-048	2024-02-59	484	DIBBS
BACN10JC4CD	2023-11-323	1029	DIBBS
BRH10C4D	2023-11-323	1029	DIBBS
H51650-4	2023-11-323	1029	DIBBS
NS202486-048	2023-11-323	1029	DIBBS
BACN10JC4CD	2023-06-178	151	DIBBS
BRH10C4D	2023-06-178	151	DIBBS
H51650-4	2023-06-178	151	DIBBS
NS202486-048	2023-06-178	151	DIBBS
BACN10JC4CD	2023-04-106	1320	DIBBS
BRH10C4D	2023-04-106	1320	DIBBS
H51650-4	2023-04-106	1320	DIBBS
NS202486-048	2023-04-106	1320	DIBBS
BACN10JC4CD	2023-03-89	1320	DIBBS
BRH10C4D	2023-03-89	1320	DIBBS
H51650-4	2023-03-89	1320	DIBBS
NS202486-048	2023-03-89	1320	DIBBS
BACN10JC4CD	2020-11-315	172	United States
BACN10JC4CD	2020-08-217	2524	DIBBS
BRH10C4D	2020-08-217	2524	DIBBS
H51650-4	2020-08-217	2524	DIBBS
NS202486-048	2020-08-217	2524	DIBBS
5310-01-162-5727	2020-06-157	1	DIBBS-RFPs
BACN10JC4CD	2020-05-135	2475	DIBBS
BRH10C4D	2020-05-135	2475	DIBBS
H51650-4	2020-05-135	2475	DIBBS
NS202486-048	2020-05-135	2475	DIBBS
5310-01-162-5727	2018-09-266	2430	DIBBS
BRH10C4D	2018-06-173	8	US
BRH10C4D	2018-06-155	6	US
5310-01-162-5727	2016-09-273	1902	DIBBS
5310-01-162-5727	2016-08-244	3511	DIBBS
5310-01-162-5727	2016-04-118	1196	DIBBS
5310-01-162-5727	2016-03-89	182	DIBBS
5310-01-162-5727	2013-12-345	1901	DIBBS
BACN10JC4CD	2013-12-336	40	US
BACN10JC4CD	2013-12-336	40	US
BACN10JC4CD	2013-02-36	530	US
5310-01-162-5727	2012-12-352	479	DIBBS
5310-01-162-5727	2012-10-276	235	DIBBS
5310-01-162-5727	2012-08-241	100	United States
BRH10C4D	2012-08-233	3	US
BRH10C4D	2012-06-172	8	UK
5310-01-162-5727	2010-03-82	1142	DIBBS
BACN10JC4CD	2009-09-245	4	US
BACN10JC4CD	2008-10-295	16	US
BACN10JC4CD	2008-08-219	30	United States

Cross Reference | NSN 5310-01-162-5727

Part Number	Cage Code	Manufacturer
102LH9075-4W	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
102LH9075-4W	72962	HARVARD INDUSTRIES INC
BACN10JC4CD	81205	THE BOEING COMPANY DBA BOEING
BRH10C4D	52828	REPUBLIC FASTENER MFG. CORP.
H51650-4	15653	ALCOA GLOBAL FASTENERS, INC.
H51650-4BAC	15653	ALCOA GLOBAL FASTENERS, INC.
NS202486-048	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
T6C428JCD	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-162-5727

Compare

Related Products | NSN 5310-01-162-5727

5310-01-162-5728, 5310-01-162-5729, 5310-01-162-5731, 5310-01-162-5732, 5310-01-162-5733

Technical Data | NSN 5310-01-162-5727

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OR CADMIUM AND CHROMATE OR CADMIUM AND PHOSPHATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON
NUT HEIGHT	0.221 INCHES MAXIMUM
WIDTH ACROSS FLATS	0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM
BEARING SURFACE TYPE	FLAT
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
MANUFACTURERS CODE	81205
MFR SOURCE CONTROLLING REFERENCE	BACN10JC4CD

Restrictions/Controls & Freight Information | NSN 5310-01-162-5727

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-162-5727

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
