NSN 5310-01-172-2575 BH004501612, BH00450-1612, 42 FLW-1612
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-01-172-2575 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BH004501612, BH00450-1612, 42 FLW-1612, 42FLW1612, 42FLW-1612, 5310-01-172-2575, 01-172-2575, 5310011722575, 011722575
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 FEB 1984 | 01-172-2575 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

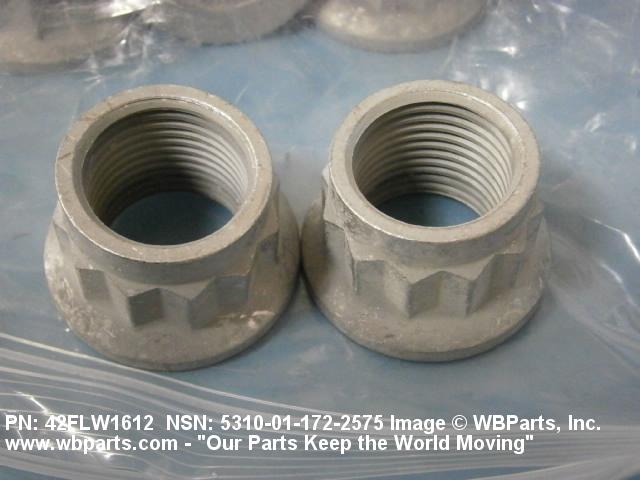

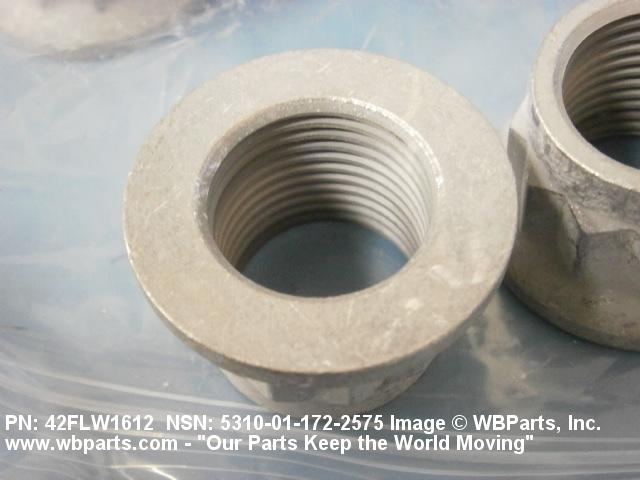

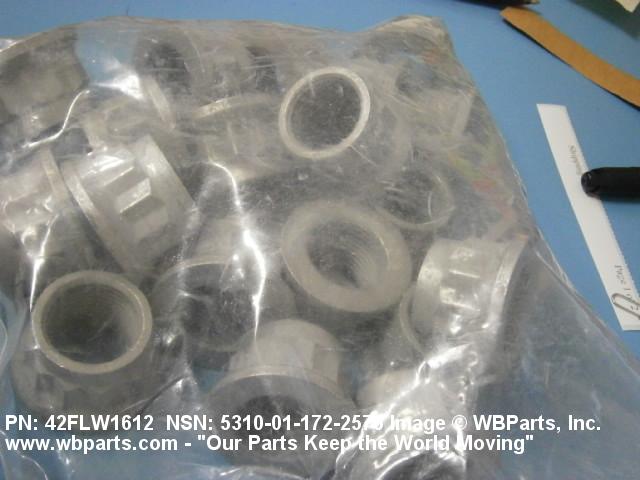

Drawings & Photos | NSN 5310-01-172-2575
Demand History | NSN 5310-01-172-2575
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 42FLW1612 | 2025-04-113 | 150 | United States |
| 42FLW1612 | 2025-02-55 | 100 | United States |
| 42FLW-1612 | 2022-07-201 | 97 | DIBBS |
| BH00450-1612 | 2022-07-201 | 97 | DIBBS |
| 42FLW-1612 | 2021-08-220 | 26 | DIBBS |
| BH00450-1612 | 2021-08-220 | 26 | DIBBS |
| 42FLW-1612 | 2020-10-278 | 17 | DIBBS |
| BH00450-1612 | 2020-10-278 | 17 | DIBBS |
| 42FLW1612 | 2019-11-319 | 80 | Korea |
| 42FLW-1612 | 2019-07-206 | 91 | DIBBS |
| BH00450-1612 | 2019-07-206 | 91 | DIBBS |
| 5310-01-172-2575 | 2018-10-295 | 60 | DIBBS |
| 5310-01-172-2575 | 2018-08-241 | 5 | DIBBS |
| 5310-01-172-2575 | 2016-05-125 | 3 | US |
| 42FLW1612 | 2012-01-27 | 20 | United States |
| 5310-01-172-2575 | 2010-01-12 | 192 | DIBBS |
| 5310-01-172-2575 | 2009-11-322 | 117 | DIBBS |
| 42FLW1612 | 2009-02-39 | 10 | Israel |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-172-2575
Related Products | NSN 5310-01-172-2575
Technical Data | NSN 5310-01-172-2575
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 1.000 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 8630 OR STEEL COMP 4037 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6280 ASSN STD 1ST MATERIAL RESPONSE OR AMS 6300 ASSN STD 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 34.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A293 DOUBLE HEXAGON |
| WASHER OUTSIDE DIAMETER | 1.625 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.000 INCHES MAXIMUM |
| WASHER THICKNESS | 0.122 INCHES MINIMUM |
| WIDTH ACROSS FLATS | 1.178 INCHES MINIMUM AND 1.190 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | SOLUBLE LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-172-2575
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-172-2575
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
