NSN 5310-01-176-1151 H399404, H39940-4 , J628P04
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

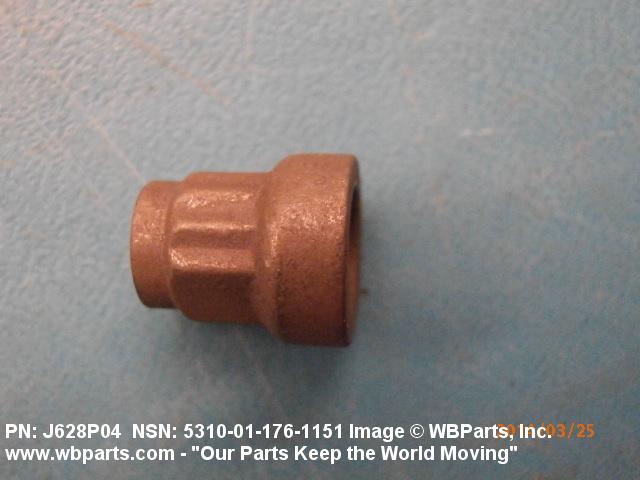

5310-01-176-1151 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: H399404, H39940-4 , J628P04, J628P04A, J628P04C, J628P04D, VN1812DA048, VN1812-DA-048, 80985428, 80985-428, 5310-01-176-1151, 01-176-1151, 5310011761151, 011761151
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 APR 1984 | 01-176-1151 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

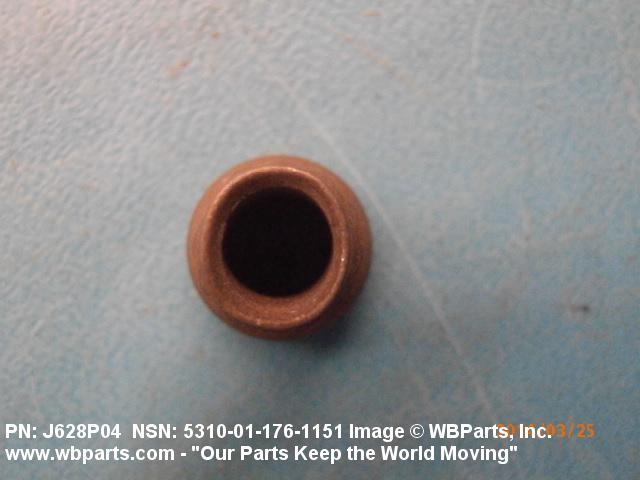

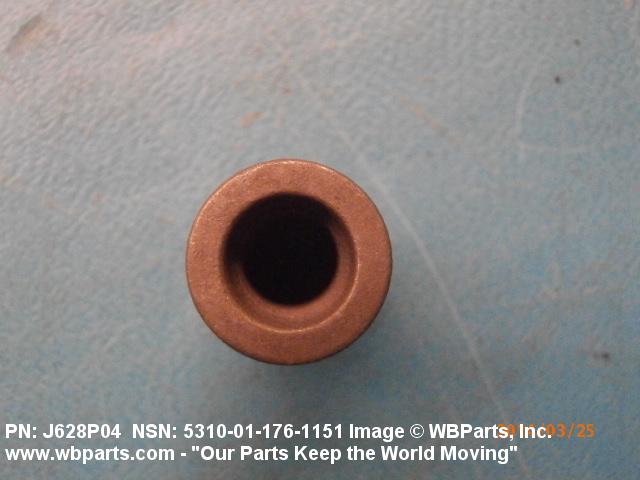

Drawings & Photos | NSN 5310-01-176-1151
Demand History | NSN 5310-01-176-1151
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-176-1151 | 2025-02-55 | 24 | US |
| 80985-428 | 2019-02-49 | 8234 | DIBBS |
| H39940-4 | 2019-02-49 | 8234 | DIBBS |
| J628P04 | 2019-02-49 | 8234 | DIBBS |
| VN1812-DA-048 | 2019-02-49 | 8234 | DIBBS |
| 80985-428 | 2019-02-45 | 5250 | DIBBS |
| H39940-4 | 2019-02-45 | 5250 | DIBBS |
| J628P04 | 2019-02-45 | 5250 | DIBBS |
| VN1812-DA-048 | 2019-02-45 | 5250 | DIBBS |
| H399404 | 2018-10-295 | 5202 | US |
| 5310-01-176-1151 | 2018-10-294 | 5202 | DIBBS |
| 5310-01-176-1151 | 2016-03-63 | 18977 | DIBBS |
| 5310-01-176-1151 | 2015-12-354 | 8905 | DIBBS |
| 5310-01-176-1151 | 2015-05-148 | 19005 | DIBBS |
| J628P04 | 2014-03-77 | 2 | United States |
| J628P04 | 2013-02-57 | 800 | Turkey |
| 5310-01-176-1151 | 2009-06-159 | 20000 | DIBBS |
| 5310-01-176-1151 | 2009-03-63 | 13650 | DIBBS |
| 5310-01-176-1151 | 2009-02-40 | 2962 | DIBBS |
| 5310-01-176-1151 | 2008-12-344 | 16 | United States |
| 5310-01-176-1151 | 2008-12-343 | 6707 | DIBBS |
| 5310-01-176-1151 | 2008-11-317 | 4416 | DIBBS |
| 5310-01-176-1151 | 2008-08-218 | 712 | DIBBS |
| 5310-01-176-1151 | 2008-05-140 | 3221 | DIBBS |
Cross Reference | NSN 5310-01-176-1151
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 80985-428 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| H39940-4 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| J628P04 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| J628P04 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| J628P04 | 58828 | CFM INTERNATIONAL, INC. |
| J628P04A | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| J628P04C | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| J628P04D | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| VN1812-DA-048 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-176-1151
Related Products | NSN 5310-01-176-1151
Technical Data | NSN 5310-01-176-1151
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |

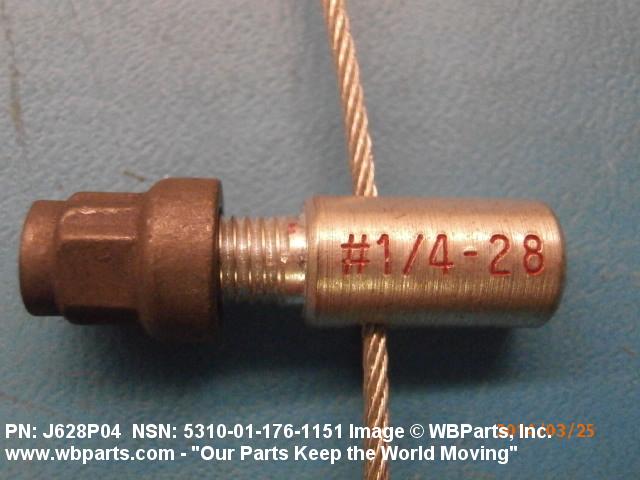

| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A293 DOUBLE HEXAGON |

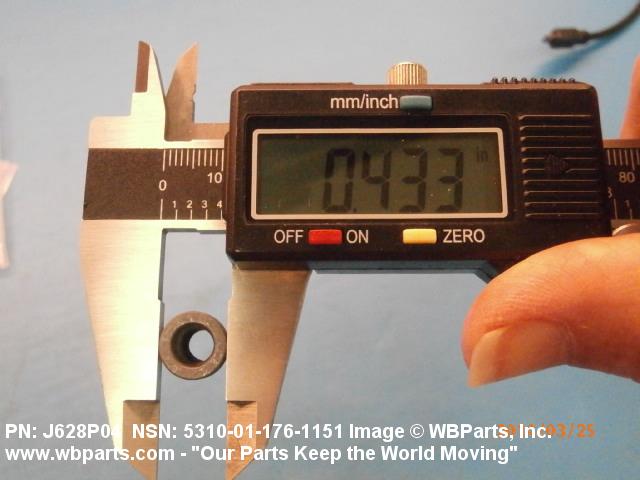

| WASHER OUTSIDE DIAMETER | 0.430 INCHES NOMINAL |

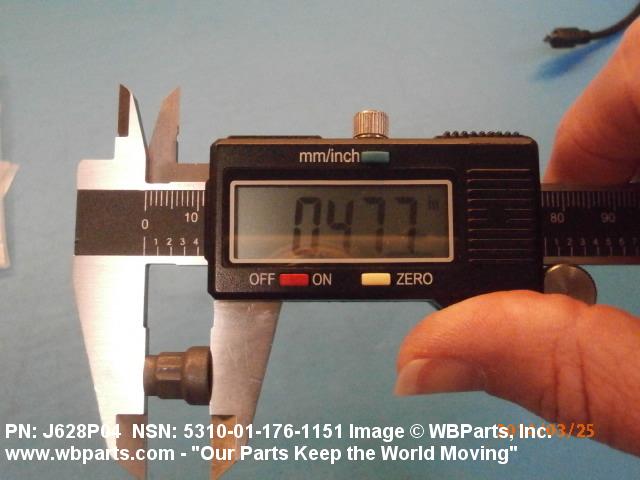

| OVERALL HEIGHT | 0.475 INCHES NOMINAL |

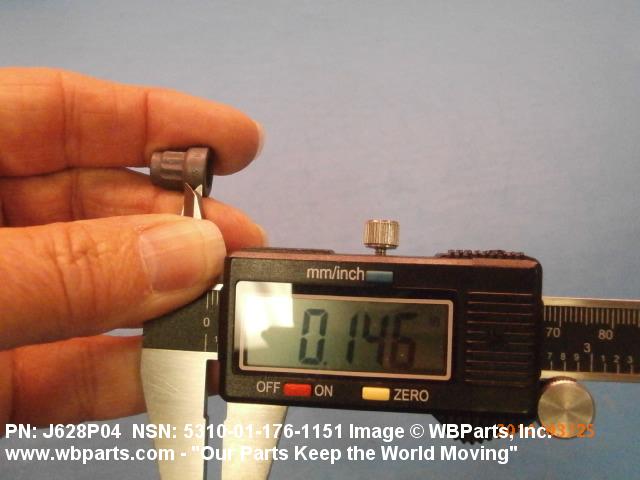

| WASHER THICKNESS | 0.140 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |

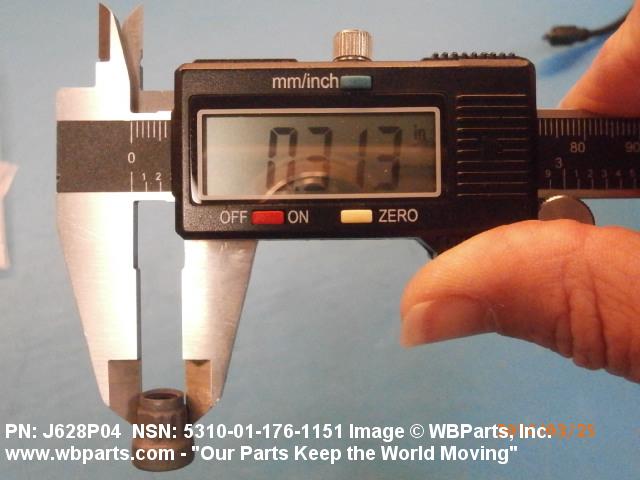

| WIDTH ACROSS FLATS | 0.3125 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | TWO DRIVE POINTS 3,AT 180 DEGREEANGLE,OMITTED F118 ENGINE QUALIFIED |
| MANUFACTURERS CODE | 07482 |
| MFR SOURCE CONTROLLING REFERENCE | J628P04 |
Restrictions/Controls & Freight Information | NSN 5310-01-176-1151
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-176-1151
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | JF | SX:F-101 ENGINE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
