NSN 5310-01-181-9719 BA1615008, BA16150-08, CR55548

Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-01-181-9719 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: BA1615008, BA16150-08, CR55548, CR5554-8, H10024N820, H10024N-820, J626P08, J626P08A, J626P08B, J626P08D, J626P08E, LH105068, LH10506-8, VN811DA080, 72424820, 72424-820, 5310-01-181-9719, 01-181-9719, 5310011819719, 011819719

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	19 JUN 1984	01-181-9719	29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON )

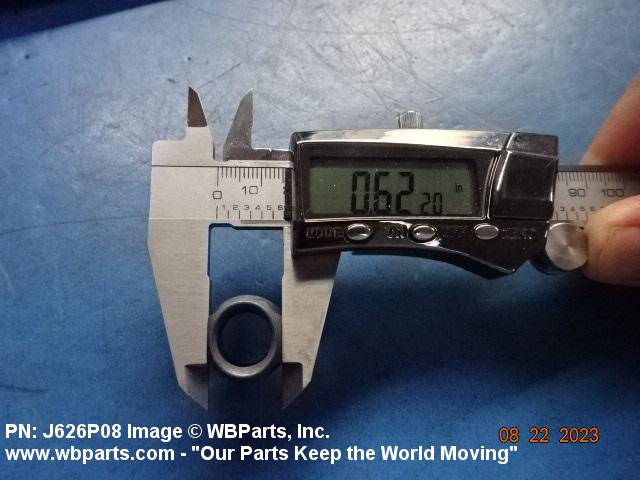

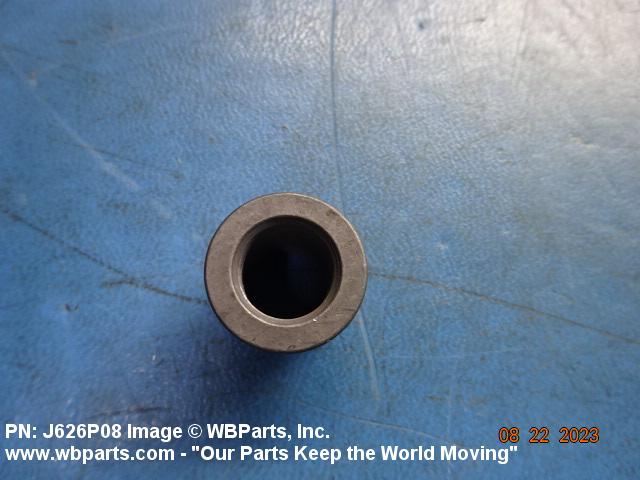

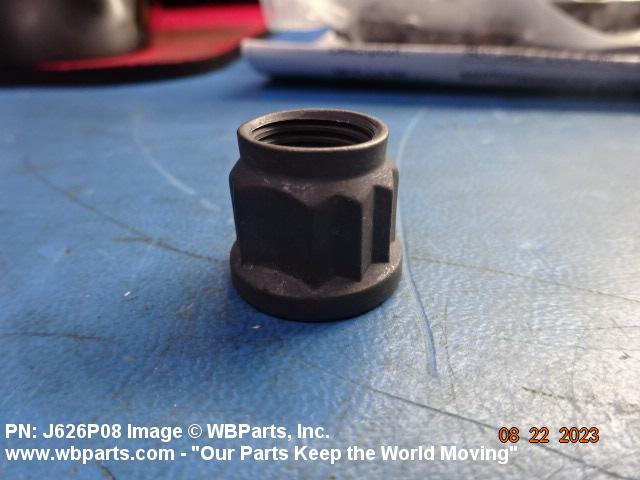

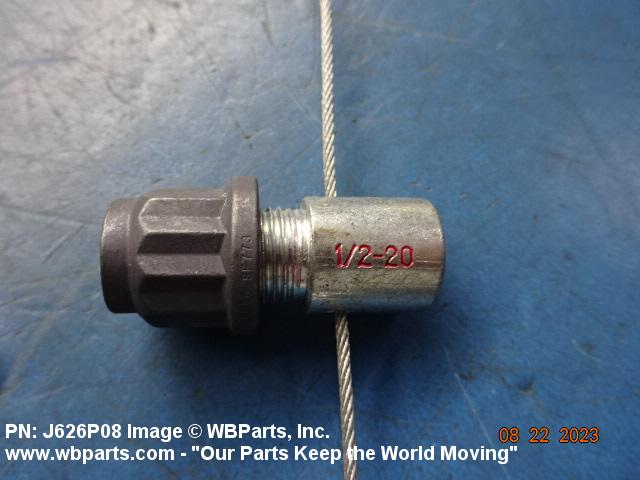

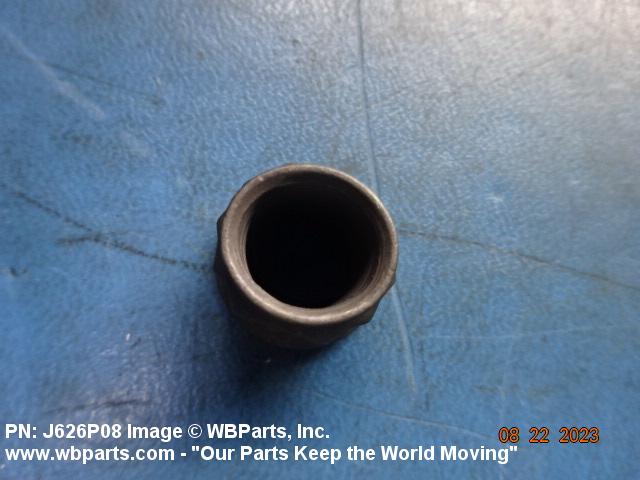

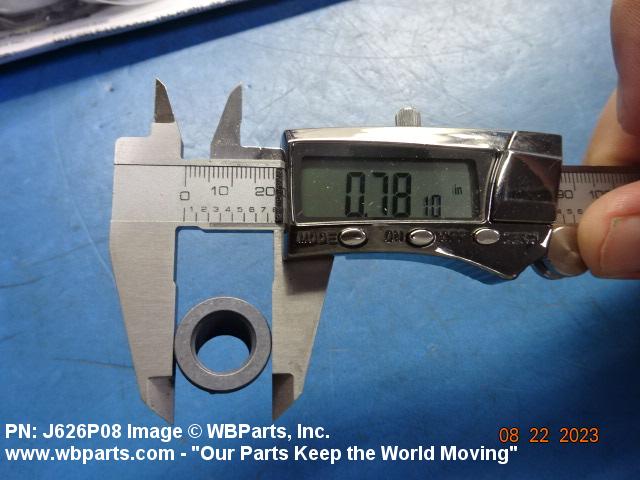

Drawings & Photos | NSN 5310-01-181-9719

Part Number	Request Date	QTY	Origin
5310-01-181-9719	2024-09-246	2	Kazakhstan
J626P08	2024-04-106	2	Kazakhstan
J626P08	2023-07-212	400	United States
J626P08	2023-07-212	400	United States
72424-820	2020-04-98	23	DIBBS
BA16150-08	2020-04-98	23	DIBBS
CR5554-8	2020-04-98	23	DIBBS
H10024N-820	2020-04-98	23	DIBBS
J626P08	2020-04-98	23	DIBBS
VN811DA080	2020-04-98	23	DIBBS
72424-820	2019-10-289	17	DIBBS
BA16150-08	2019-10-289	17	DIBBS
CR5554-8	2019-10-289	17	DIBBS
H10024N-820	2019-10-289	17	DIBBS
J626P08	2019-10-289	17	DIBBS
VN811DA080	2019-10-289	17	DIBBS
72424-820	2019-01-17	20	DIBBS
BA16150-08	2019-01-17	20	DIBBS
CR5554-8	2019-01-17	20	DIBBS
H10024N-820	2019-01-17	20	DIBBS
J626P08	2019-01-17	20	DIBBS
VN811DA080	2019-01-17	20	DIBBS
5310-01-181-9719	2018-08-220	17	DIBBS
J626P08	2018-05-135	14	FX
5310-01-181-9719	2017-07-192	39	DIBBS
5310-01-181-9719	2017-03-60	18	DIBBS
5310-01-181-9719	2016-09-249	57	DIBBS
J626P08	2016-05-138	10	US
5310-01-181-9719	2016-04-118	56	DIBBS
5310-01-181-9719	2015-11-316	250	United States
J626P08	2013-10-297	150	Turkey
J626P08	2013-10-289	20	United States
5310-01-181-9719	2013-08-225	1	DIBBS-RFPs
5310-01-181-9719	2013-07-207	1	DIBBS-RFPs
5310-01-181-9719	2013-03-78	22	DIBBS
5310-01-181-9719	2012-08-216	19	DIBBS
5310-01-181-9719	2012-06-172	19	DIBBS
5310-01-181-9719	2012-05-137	100	DIBBS
J626P08	2012-01-13	10	United States
5310-01-181-9719	2007-04-117	55	US

Cross Reference | NSN 5310-01-181-9719

Part Number	Cage Code	Manufacturer
72424-820	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
BA16150-08	F0188	BLANC AERO INDUSTRIES - GROUPE LISIAEROSPACE
CR5554-8	F0224	ALCOA FIXATIONS SIMMONDS SAS
H10024N-820	SF773	NATIONAL AEROSPACE FASTENERSCORPORATION
J626P08	07482	GENERAL ELECTRIC COMPANY DBA GE
J626P08	58828	CFM INTERNATIONAL, INC.
J626P08A	07482	GENERAL ELECTRIC COMPANY DBA GE
J626P08B	07482	GENERAL ELECTRIC COMPANY DBA GE
J626P08D	07482	GENERAL ELECTRIC COMPANY DBA GE
J626P08E	07482	GENERAL ELECTRIC COMPANY DBA GE
LH10506-8	72962	HARVARD INDUSTRIES INC
VN811DA080	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-181-9719

Compare

Related Products | NSN 5310-01-181-9719

5310-01-181-9720, 5310-01-182-0228, 5310-01-182-1275, 5310-01-182-1276, 5310-01-182-1277

Technical Data | NSN 5310-01-181-9719

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.500 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5735 ASSN STD 1ST MATERIAL RESPONSE OR AMS5737 ASSN STD 2ND MATERIAL RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A293 DOUBLE HEXAGON
WASHER OUTSIDE DIAMETER	0.740 INCHES NOMINAL
OVERALL HEIGHT	0.675 INCHES NOMINAL
WIDTH ACROSS FLATS	0.625 INCHES NOMINAL
TEMP RATING	NOT RATED
SPECIAL FEATURES	TWO DRIVE POINTS,AT 180 DEGREE ANGLE,HAVE BEEN OMITTED
MANUFACTURERS CODE	07482
MFR SOURCE CONTROLLING REFERENCE	J626P08

Restrictions/Controls & Freight Information | NSN 5310-01-181-9719

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-181-9719

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
