NSN 5310-01-186-7300 C29598213, C295982-13, F52NE083
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-186-7300 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: C29598213, C295982-13, F52NE083, 5310-01-186-7300, 01-186-7300, 5310011867300, 011867300
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 AUG 1984 | 01-186-7300 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

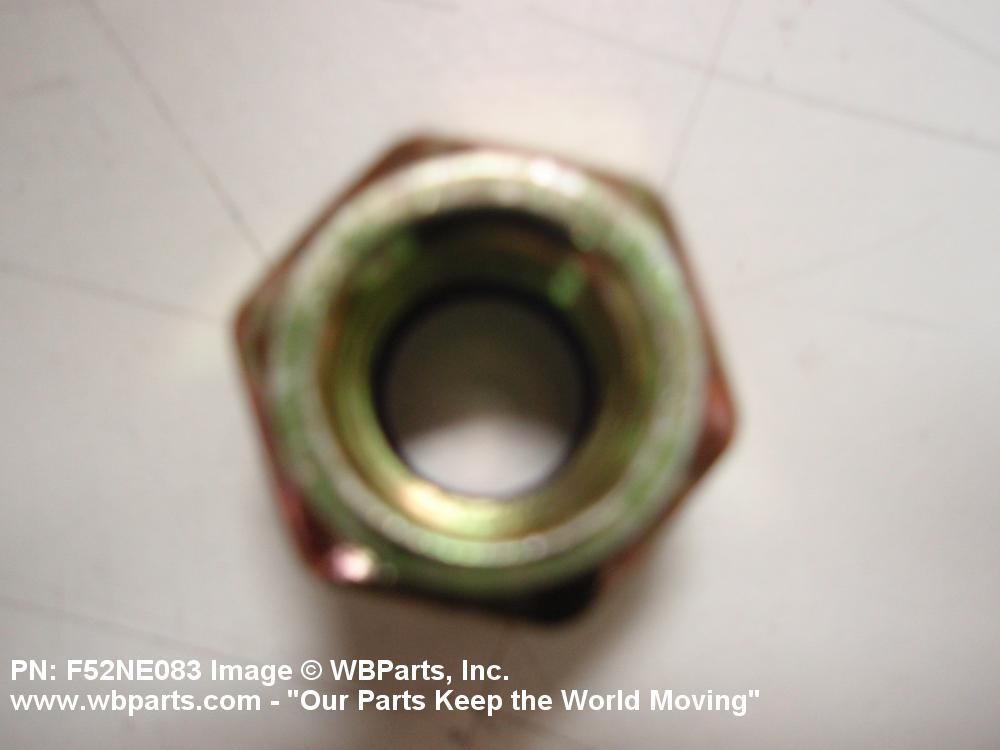

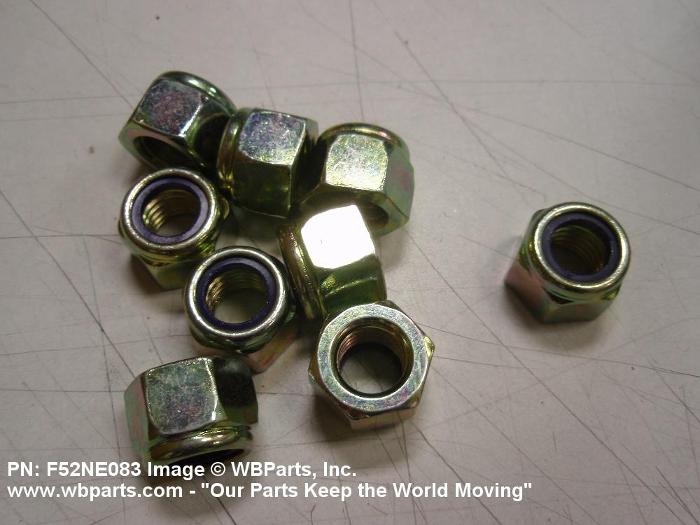

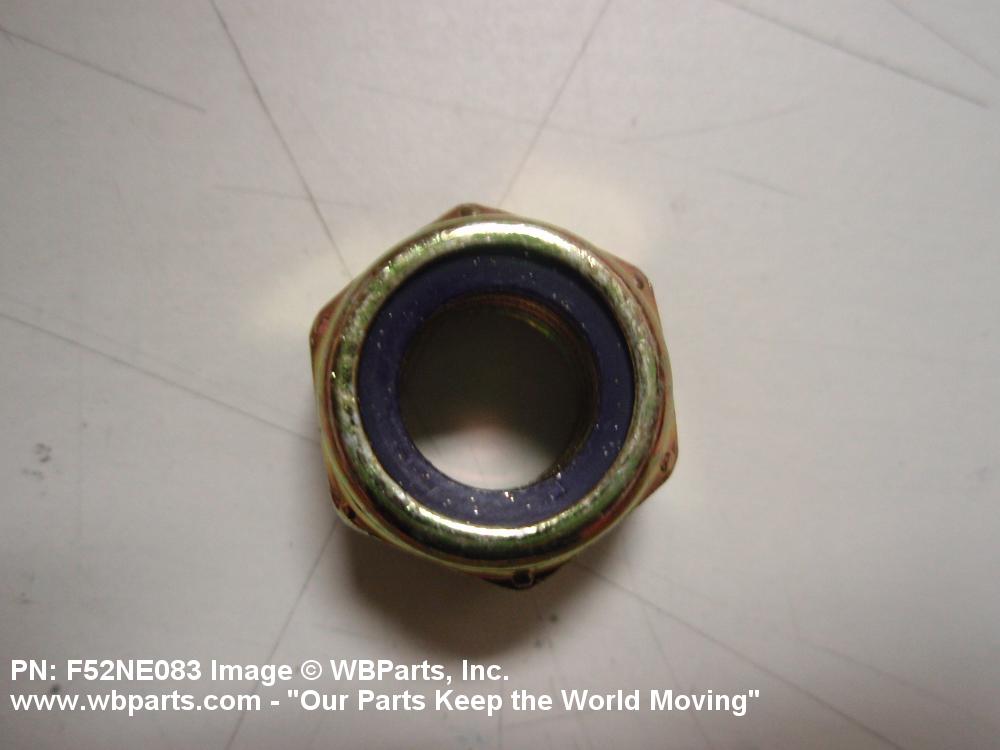

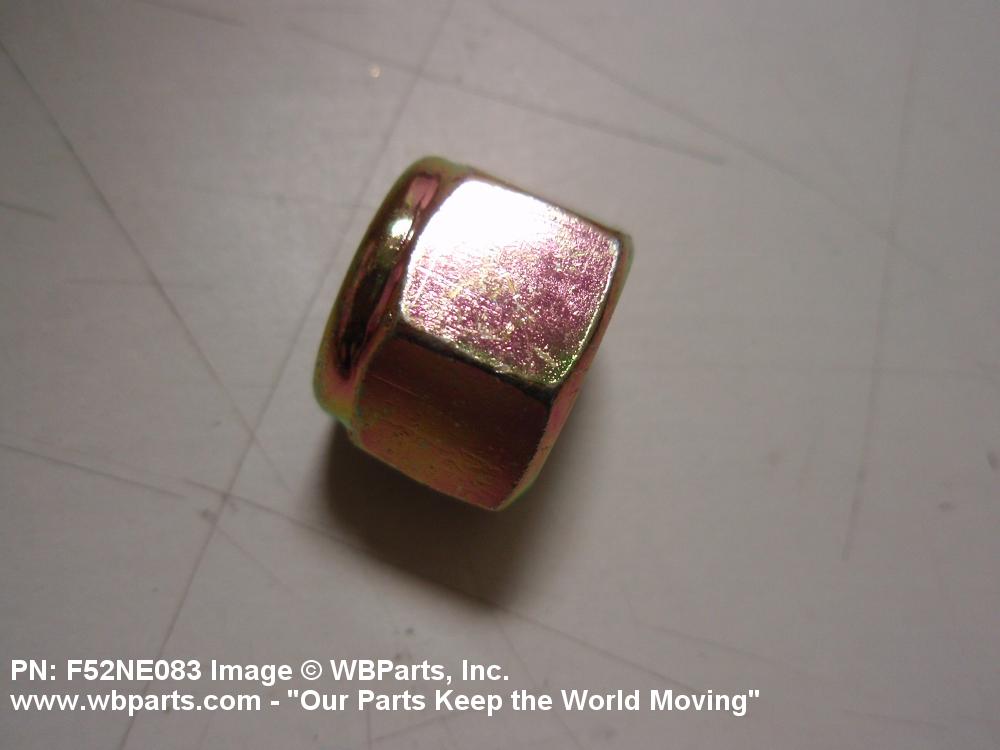

Drawings & Photos | NSN 5310-01-186-7300
Demand History | NSN 5310-01-186-7300
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-186-7300 | 2020-12-337 | 4 | United States |
| F52NE083 | 2020-12-337 | 4 | United States |
| F52NE083 | 2020-10-286 | 16 | United States |
| F52NE083 | 2011-06-154 | 1500 | Canada |
| F52NE083 | 2011-05-151 | 1500 | Canada |
| 5310-01-186-7300 | 2010-12-358 | 1000 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-186-7300
Technical Data | NSN 5310-01-186-7300
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL AND PLASTIC POLYAMIDE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.745 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.925 INCHES NOMINAL |
| BEARING SURFACE TYPE | ANY ACCEPTABLE |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 08125 |
| DESIGN CONTROL REFERENCE | F52NE083 |
Restrictions/Controls & Freight Information | NSN 5310-01-186-7300
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
