NSN 5310-01-267-3634 3M463N9A31, 3M463N9A3-1, 01-267-3634
Product Details | GANG CHANNEL SELF-LOCKING NUT ASSEMBLY

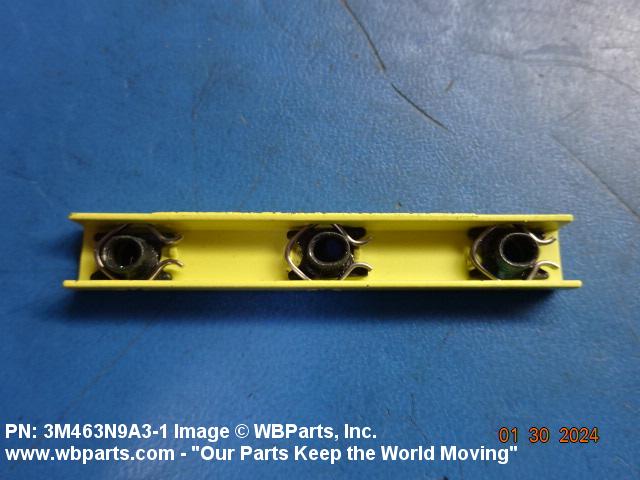

5310-01-267-3634 An item composed of a specially designed channel and a series of nuts having integral self-locking features assembled in predetermined spacing.
Part Alternates: 3M463N9A31, 3M463N9A3-1, 5310-01-267-3634, 01-267-3634, 5310012673634, 012673634
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 NOV 1987 | 01-267-3634 | 01864 ( NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL ) |

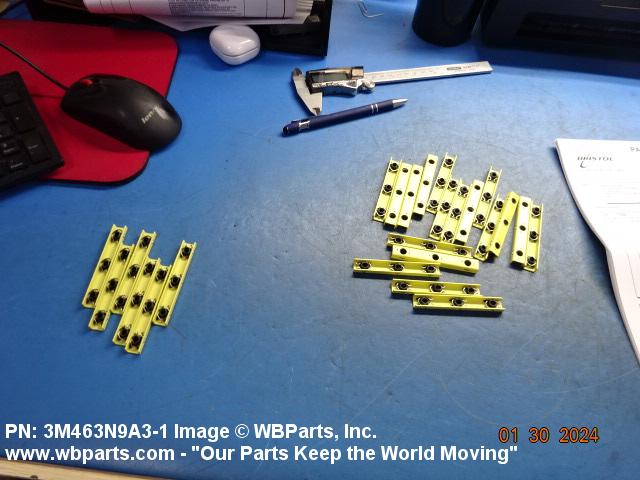

Drawings & Photos | NSN 5310-01-267-3634
Demand History | NSN 5310-01-267-3634
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M463N9A31 | 2024-01-19 | 18 | United States |
| 3M463N9A31 | 2024-01-19 | 6 | United States |
| 3M463N9A31 | 2024-01-12 | 6 | United States |
| 3M463N9A31 | 2024-01-12 | 18 | United States |
| 3M463N9A31 | 2018-01-25 | 1 | United States |
Cross Reference | NSN 5310-01-267-3634
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M463N9A3-1 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-267-3634
Technical Data | NSN 5310-01-267-3634
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |

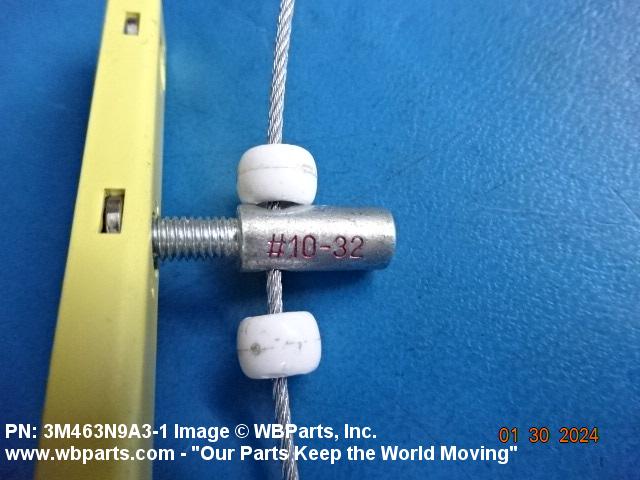

| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 7075 CHANNEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/13 FED SPEC SINGLE MATERIAL RESPONSE CHANNEL |
| SURFACE TREATMENT | ANODIZE CHANNEL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE CHANNEL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A20 GANG CHANNEL, SELF LOCKING |
| NUT HEIGHT | 0.230 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| CHANNEL STYLE | C1 STRAIGHT TYPE |

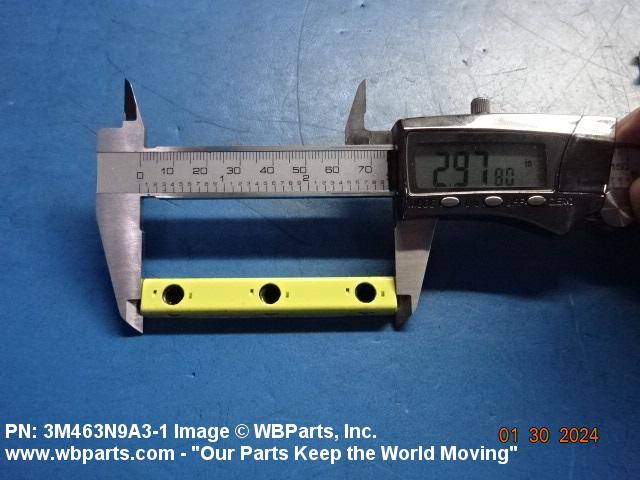

| OVERALL LENGTH | 71.575 INCHES NOMINAL |

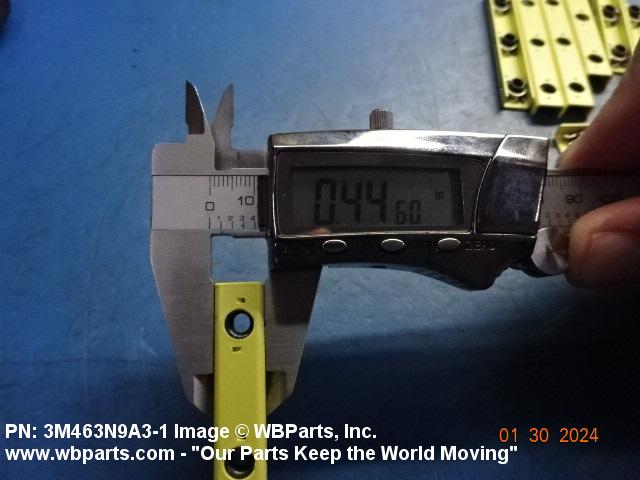

| OVERALL WIDTH | 0.474 INCHES NOMINAL |

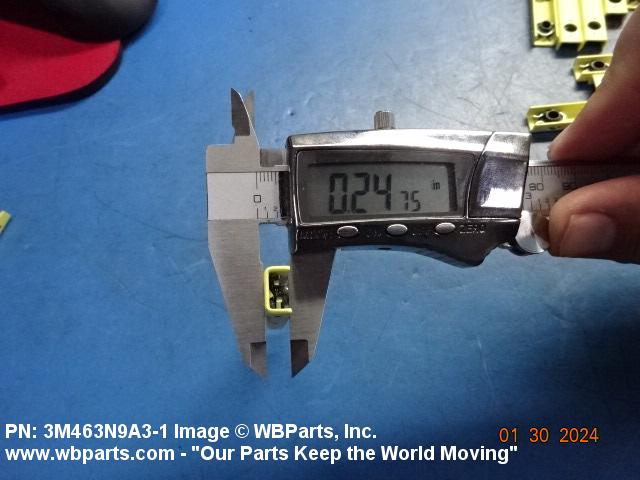

| ASSEMBLY OVERALL HEIGHT | 0.230 INCHES MAXIMUM |

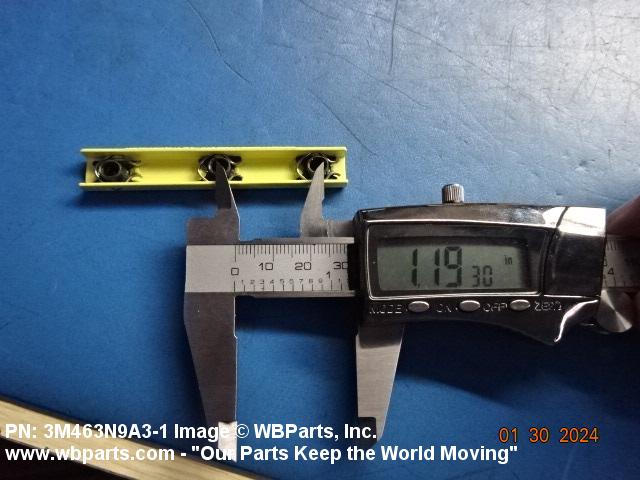

| NUT SPACING | 1.125 INCHES NOMINAL |
| NUT QUANTITY | 3 |
| SPECIAL FEATURES | BORE DEPTH 0.063 IN. |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 3M463N9A3-1 |
Restrictions/Controls & Freight Information | NSN 5310-01-267-3634
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
