NSN 5310-01-327-5701 59VE1610066, 59VE1610-066, 01-327-5701
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-327-5701 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: 59VE1610066, 59VE1610-066, 5310-01-327-5701, 01-327-5701, 5310013275701, 013275701
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 OCT 1990 | 01-327-5701 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

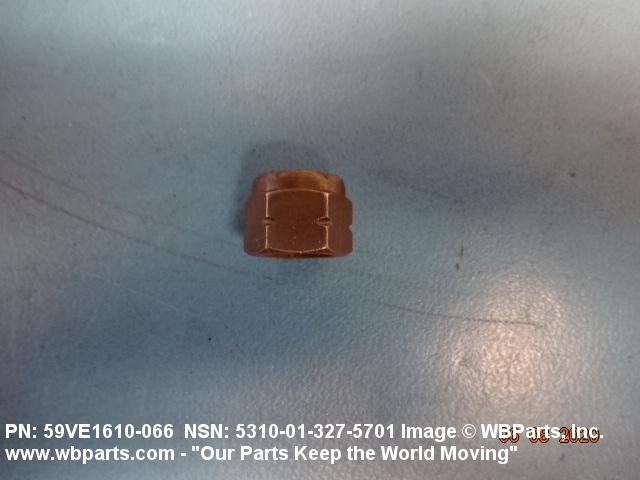

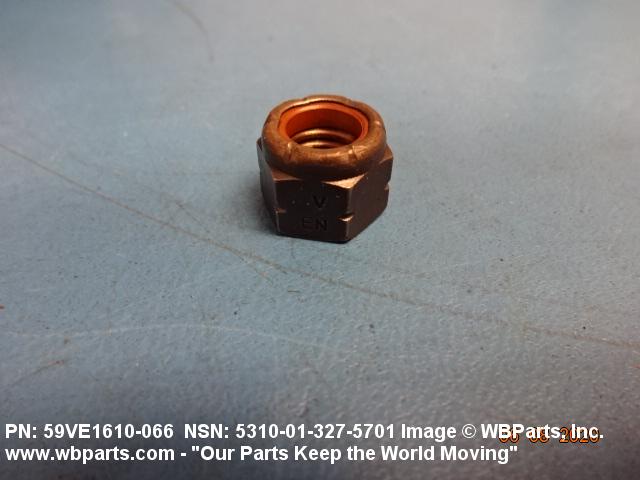

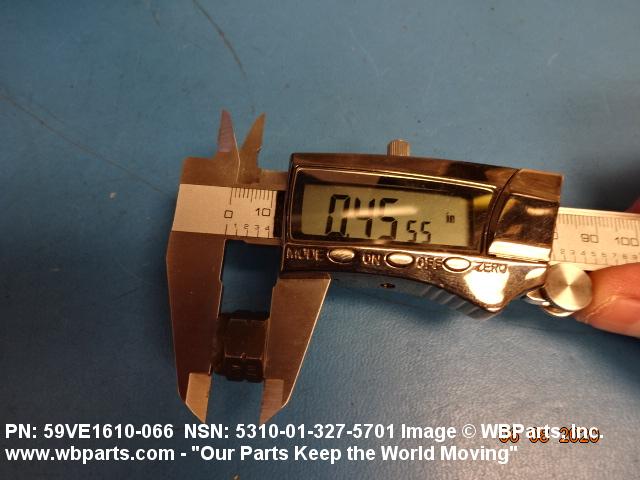

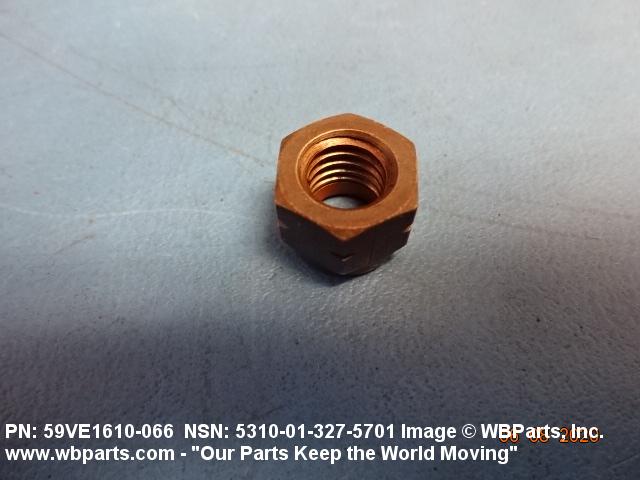

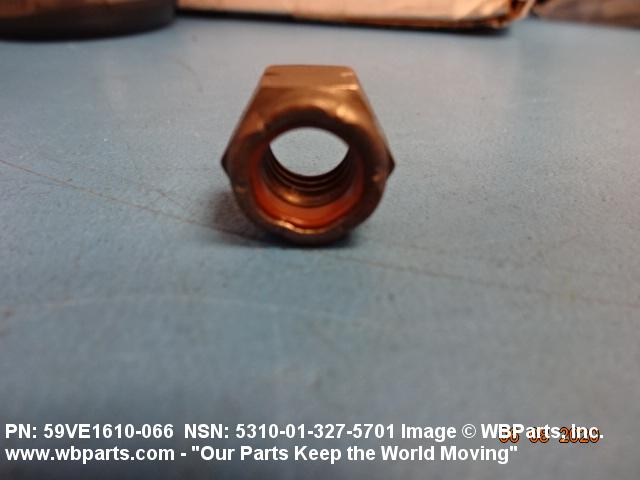

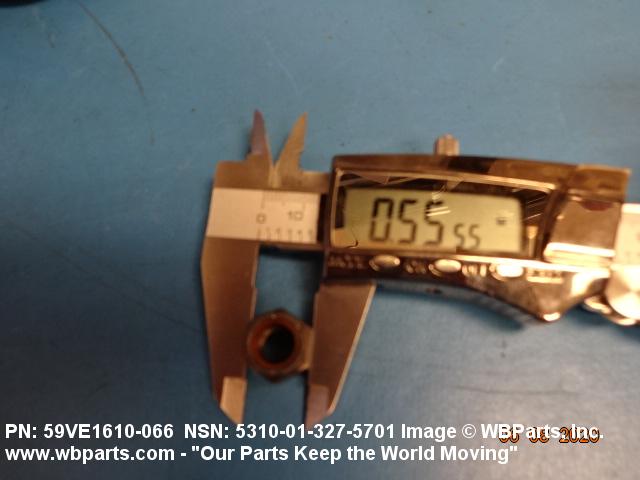

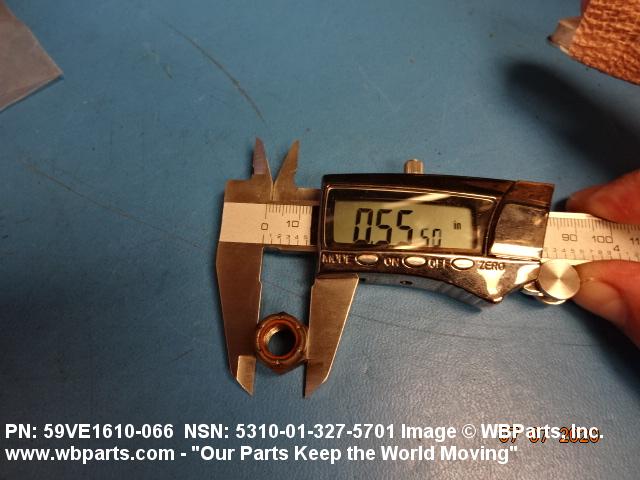

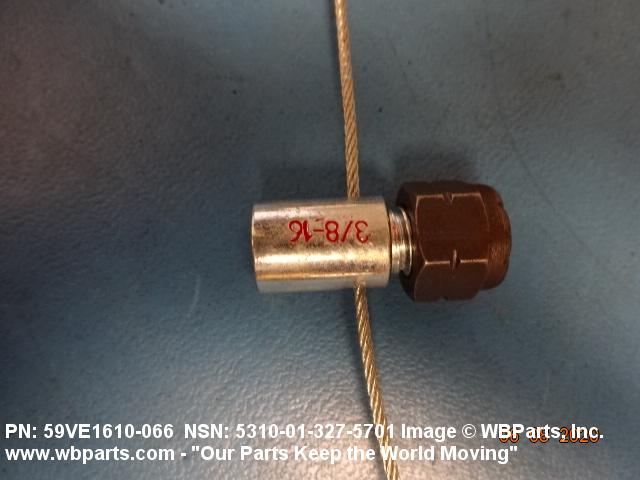

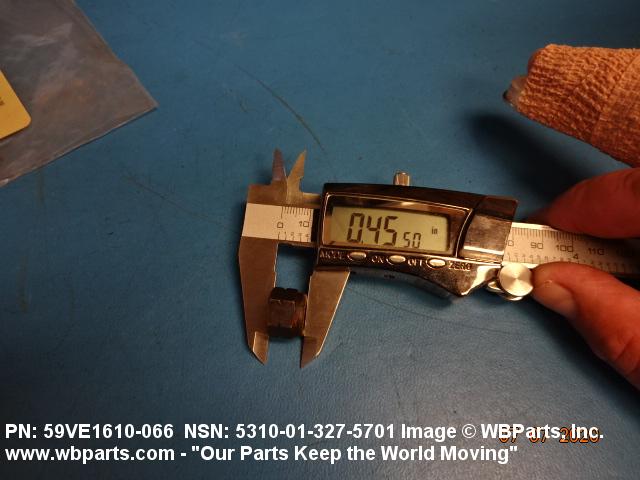

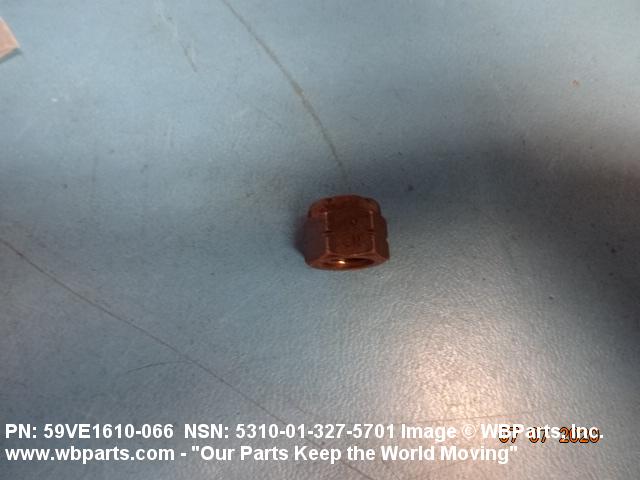

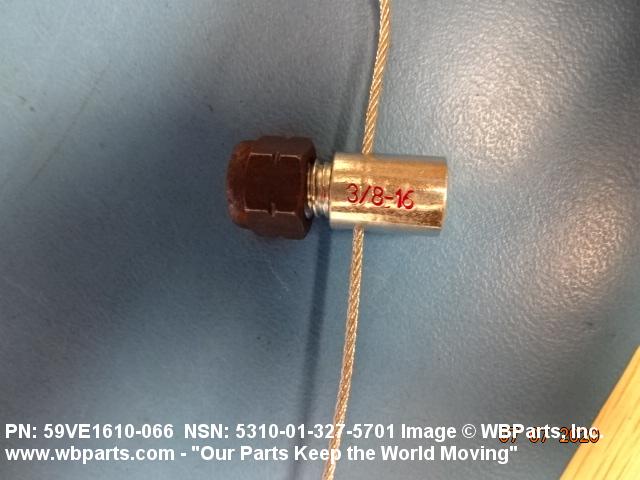

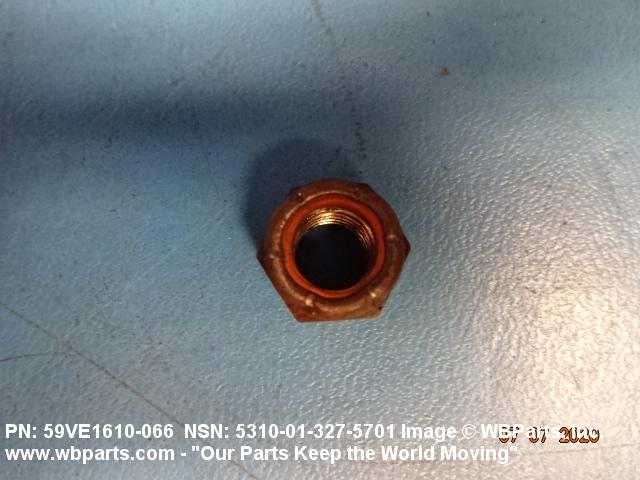

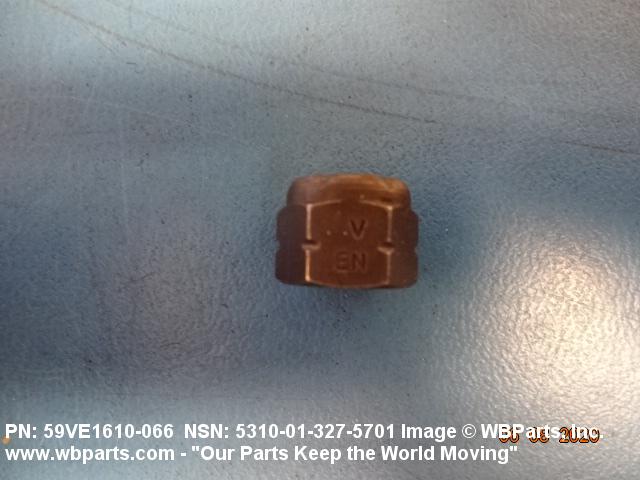

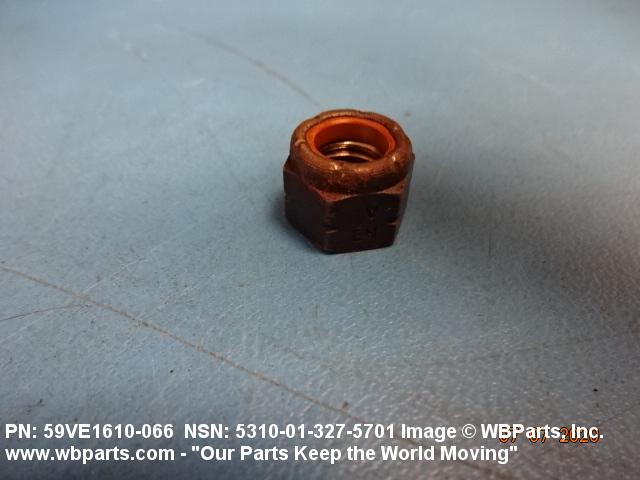

Drawings & Photos | NSN 5310-01-327-5701
Demand History | NSN 5310-01-327-5701
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 59VE1610-066 | 2022-09-269 | 300 | DIBBS |
| 59VE1610-066 | 2022-09-258 | 300 | DIBBS |
| 59VE1610-066 | 2022-02-53 | 209 | DIBBS |
| 59VE1610-066 | 2022-02-46 | 91 | DIBBS |
| 59VE1610-066 | 2022-02-39 | 209 | DIBBS |
| 59VE1610-066 | 2021-11-326 | 264 | DIBBS |
| 59VE1610-066 | 2021-11-319 | 393 | DIBBS |
| 59VE1610-066 | 2021-11-313 | 264 | DIBBS |
| 59VE1610-066 | 2021-10-284 | 393 | DIBBS |
| 59VE1610-066 | 2021-09-256 | 11 | DIBBS |
| 59VE1610-066 | 2021-08-220 | 91 | DIBBS |
| 59VE1610-066 | 2021-07-194 | 280 | DIBBS |
| 59VE1610-066 | 2021-07-186 | 280 | DIBBS |
| 59VE1610-066 | 2021-06-166 | 270 | DIBBS |
| 59VE1610-066 | 2021-06-158 | 270 | DIBBS |
| 59VE1610-066 | 2021-05-124 | 375 | DIBBS |
| 59VE1610-066 | 2021-02-38 | 350 | DIBBS |
| 59VE1610-066 | 2021-01-07 | 207 | DIBBS |
| 59VE1610-066 | 2020-11-317 | 206 | DIBBS |
| 5310-01-327-5701 | 2020-05-149 | 239 | United States |
| 59VE1610-066 | 2020-04-113 | 239 | DIBBS |
| 59VE1610-066 | 2019-11-321 | 239 | DIBBS |
| 5310-01-327-5701 | 2017-03-66 | 531 | DIBBS |
| 5310-01-327-5701 | 2015-07-210 | 413 | DIBBS |
| 5310-01-327-5701 | 2013-03-65 | 176 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-327-5701
Related Products | NSN 5310-01-327-5701
Technical Data | NSN 5310-01-327-5701
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL COMP 1137 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | L-P-410 FED SPEC SINGLE MATERIAL RESPONSE LOCKING INSERT 66 FED STD SINGLE MATERIAL RESPONSE NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.318 INCHES MINIMUM AND 0.469 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.553 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | 88.0 DEGREES NOMINAL NUT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| SPECIAL FEATURES | VESPEL LOCKING ELEMENT |
Restrictions/Controls & Freight Information | NSN 5310-01-327-5701
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-327-5701
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
