NSN 5310-01-371-2872 NAS180510P, NAS1805-10P, 01-371-2872
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-01-371-2872 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS180510P, NAS1805-10P, 5310-01-371-2872, 01-371-2872, 5310013712872, 013712872
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 FEB 1993 | 01-371-2872 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

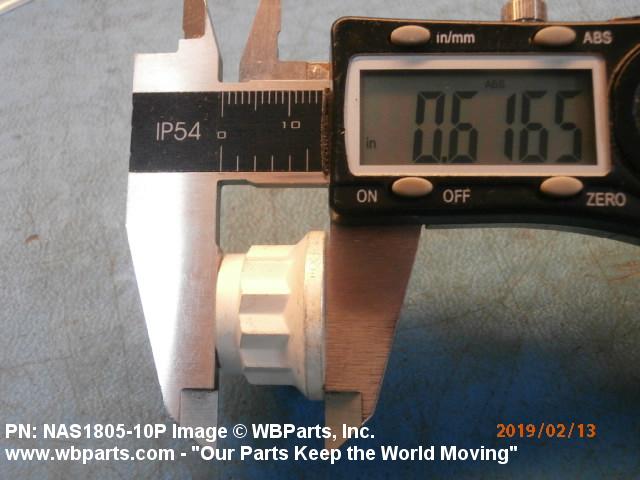

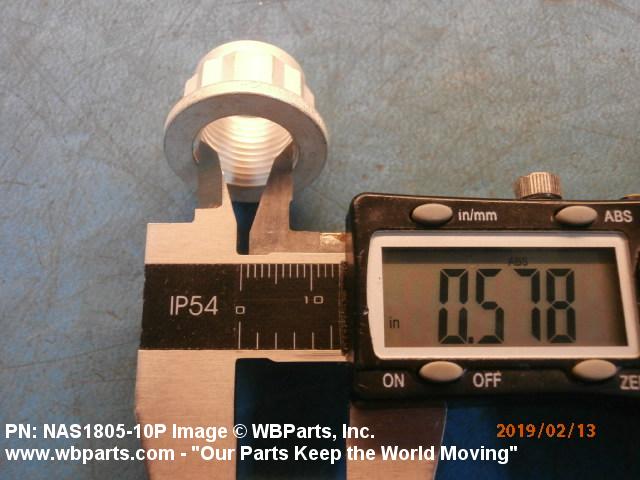

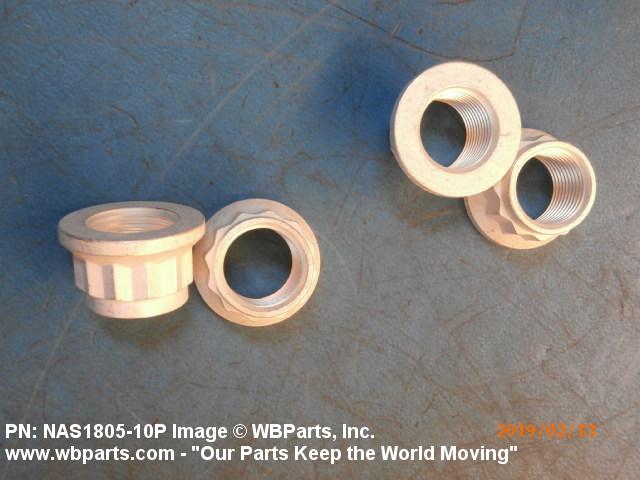

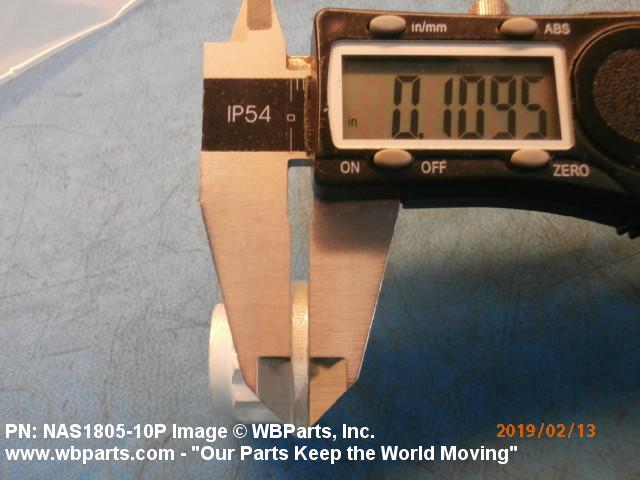

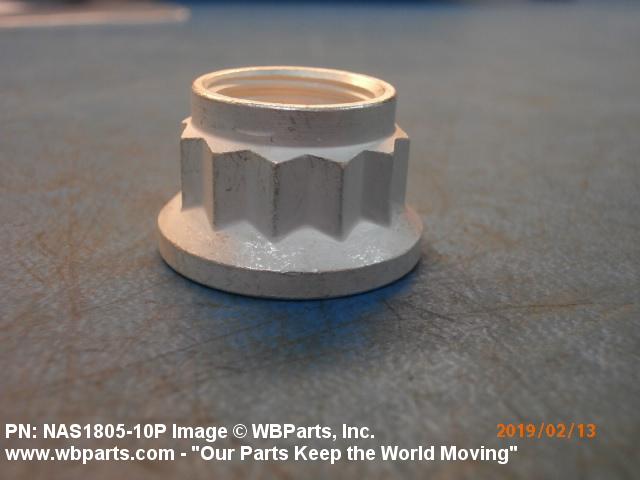

Drawings & Photos | NSN 5310-01-371-2872
Demand History | NSN 5310-01-371-2872
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-371-2872 | 2026-01-12 | 50 | France |
| NAS180510P | 2026-01-08 | 100 | FR |
| 5310-01-371-2872 | 2025-11-323 | 2157 | US |
| 5310-01-371-2872 | 2025-11-322 | 2157 | DIBBS |
| 5310-01-371-2872 | 2025-08-217 | 906 | DIBBS |
| 5310-01-371-2872 | 2025-06-153 | 55 | DIBBS |
| 5310-01-371-2872 | 2025-05-141 | 55 | DIBBS |
| 5310-01-371-2872 | 2025-05-128 | 100 | CN |
| NAS180510P | 2025-04-92 | 320 | US |
| 5310-01-371-2872 | 2024-03-73 | 179 | DIBBS |
| 5310-01-371-2872 | 2024-03-64 | 3 | DIBBS |
| NAS180510P | 2023-11-318 | 1000 | CA |
| NAS180510P | 2022-07-193 | 24 | PL |
| NAS180510P | 2019-02-36 | 4 | Thailand |
| NAS1805-10P | 2019-01-28 | 8 | Thailand |
| NAS1805-10P | 2019-01-28 | 8 | Thailand |
| NAS180510P | 2018-06-171 | 8 | Thailand |
| NAS180510P | 2016-06-153 | 100 | United States |
| NAS180510P | 2016-02-55 | 600 | China |
| NAS180510P | 2015-11-314 | 50 | US |
| NAS180510P | 2015-11-309 | 1 | United States |
| NAS180510P | 2015-06-167 | 50 | Thailand |
| NAS180510P | 2013-12-344 | 30 | United Kingdom |
| NAS180510P | 2009-05-134 | 100 | US |
| NAS180510P | 2007-05-123 | 1000 | France |
Cross Reference | NSN 5310-01-371-2872
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1805-10P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-371-2872
Technical Data | NSN 5310-01-371-2872
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS4210 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A293 DOUBLE HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.984 INCHES MINIMUM AND 1.024 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.625 INCHES MAXIMUM |
| WASHER THICKNESS | 0.084 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.741 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
| SPECIFICATION/STANDARD DATA | 80205-NAS1805 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5310-01-371-2872
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
