NSN 5310-01-496-6736 F22A27M2240, F22A27M-22-40, 3331425010
Product Details | PLATE SELF-LOCKING NUT
5310-01-496-6736 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: F22A27M2240, F22A27M-22-40, 3331425010, 333-1425-010, 5310-01-496-6736, 01-496-6736, 5310014966736, 014966736
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 APR 2002 | 01-496-6736 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

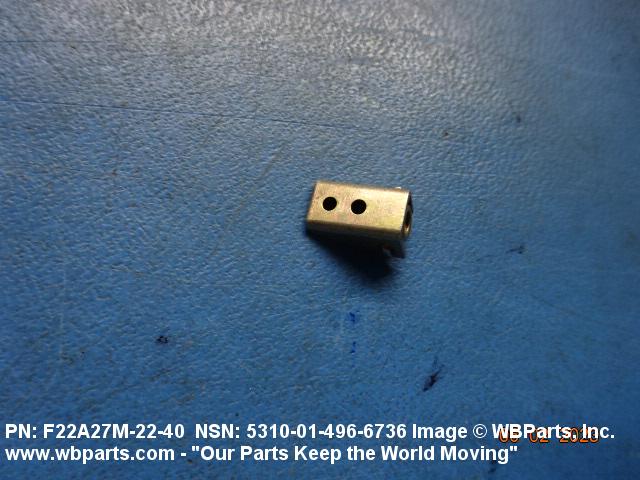

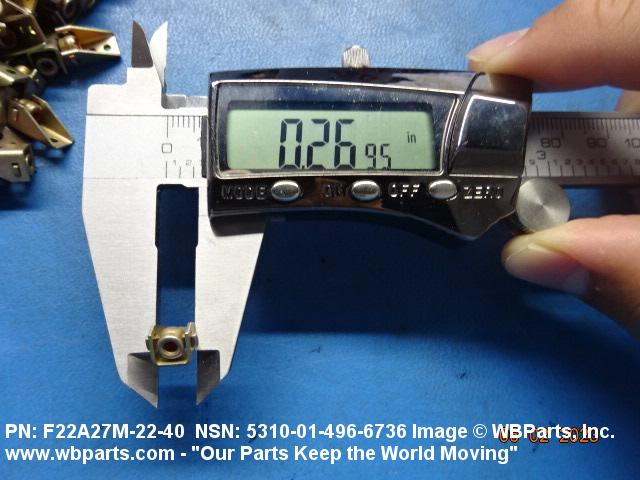

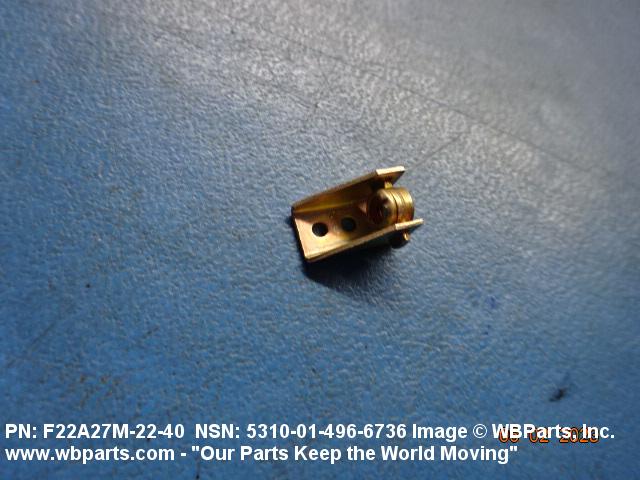

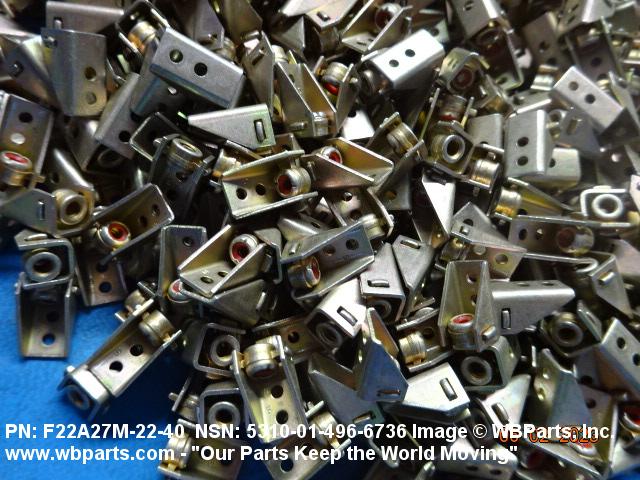

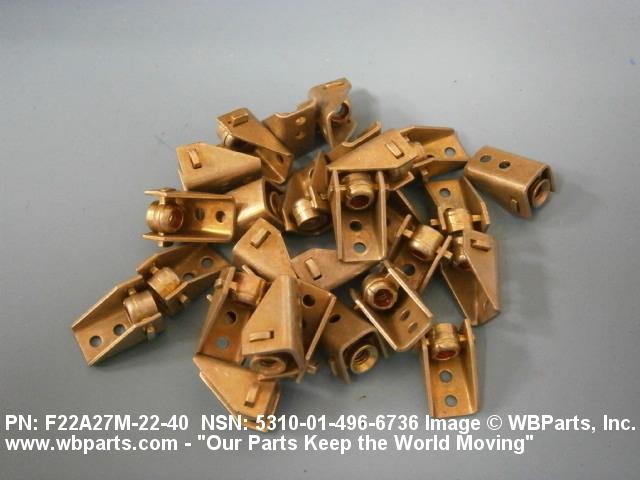

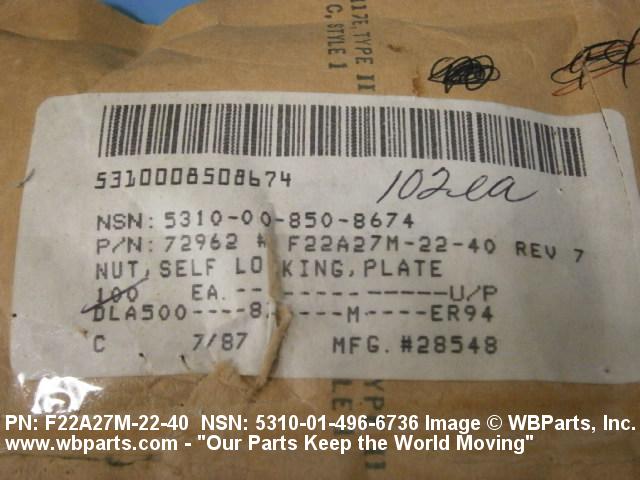

Drawings & Photos | NSN 5310-01-496-6736
Demand History | NSN 5310-01-496-6736
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F22A27M2240 | 2025-12-353 | 170 | United States |
| 5310-01-496-6736 | 2023-08-235 | 170 | United States |
| 5310-01-496-6736 | 2023-05-124 | 635 | us |
| 5310-01-496-6736 | 2023-01-23 | 100 | United States |
| F22A27M2240 | 2012-04-93 | 600 | India |
| F22A27M2240 | 2012-02-53 | 1269 | US |
| 5310-01-496-6736 | 2012-02-47 | 50 | US |
| 5310-01-496-6736 | 2011-11-320 | 100 | United States |
| 5310-01-496-6736 | 2011-05-133 | 1000 | United Arab Emirates |
| F22A27M2240 | 2009-08-240 | 633 | Singapore |
| F22A27M2240 | 2009-06-181 | 700 | US |
| F22A27M2240 | 2008-09-262 | 40 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-496-6736
Technical Data | NSN 5310-01-496-6736
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL COMP 1212 NUT STEEL COMP 1010 SHELL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ANSI/ASTM-D-4066 PA111 ASSN STD SINGLE MATERIAL RESPONSE LOCKING INSERT AISI-C--1212 ASSN STD SINGLE MATERIAL RESPONSE NUT ASISI-C-1010 ASSN STD SINGLE MATERIAL RESPONSE SHELL |
| SURFACE TREATMENT | CADMIUM NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, CL3, TY II FED SPEC SINGLE TREATMENT RESPONSE NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A122 PLATE |

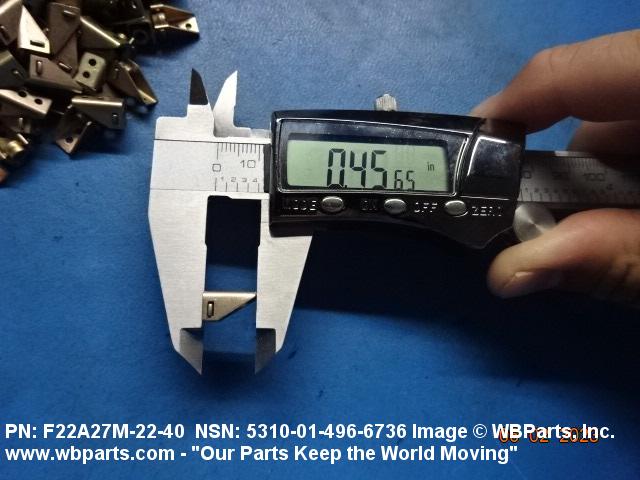

| NUT LENGTH | 0.455 INCHES NOMINAL |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.133 INCHES NOMINAL |

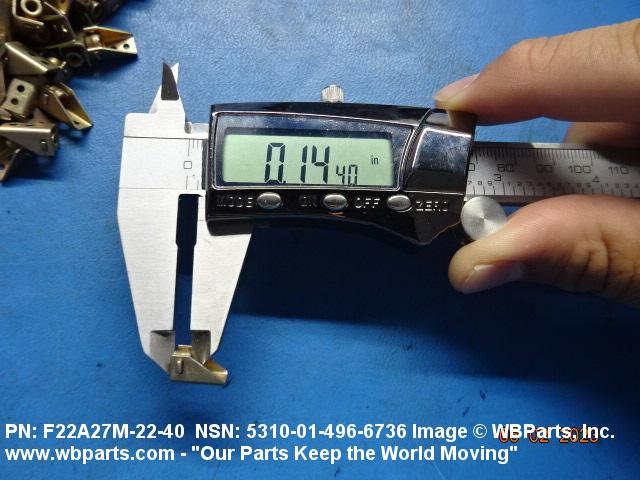

| NUT HEIGHT | 0.141 INCHES NOMINAL |

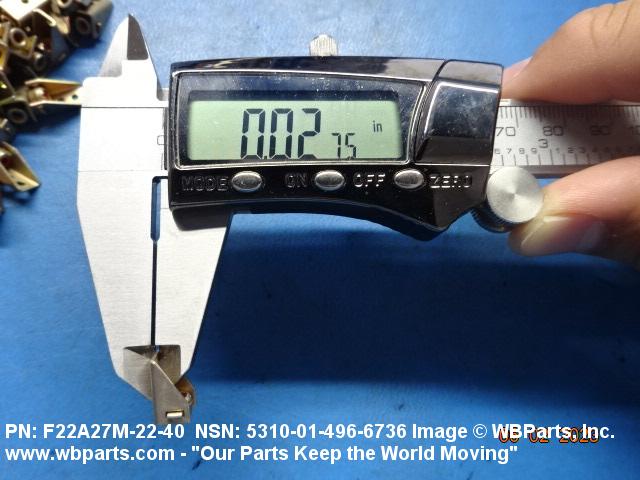

| PLATE THICKNESS | 0.025 INCHES NOMINAL |
| PLATE WIDTH | 0.344 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE WITH METALLIC INSERT |
| TEMP RATING | 176.0 DEG CELSIUS MAXIMUM |
| MANUFACTURERS CODE | 13499 |
| MFR SOURCE CONTROLLING REFERENCE | 333-1425-010 |
Restrictions/Controls & Freight Information | NSN 5310-01-496-6736
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
