NSN 5310-01-506-3673 MS178305C316, MS17830-5C316, NASM178305C316
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-506-3673 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS178305C316, MS17830-5C316, NASM178305C316, NASM17830-5C316, 5310-01-506-3673, 01-506-3673, 5310015063673, 015063673
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 MAR 2003 | 01-506-3673 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

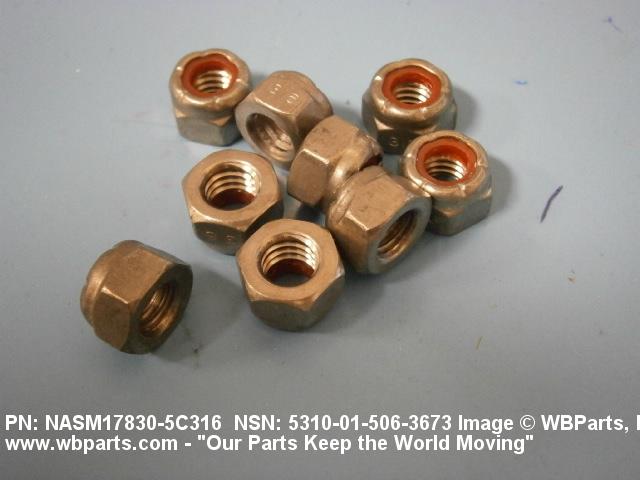

Drawings & Photos | NSN 5310-01-506-3673
Demand History | NSN 5310-01-506-3673
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-506-3673 | 2025-12-364 | 10879 | DIBBS |
| 5310-01-506-3673 | 2024-02-38 | 8749 | us |
| 5310-01-506-3673 | 2023-04-115 | 1814 | DIBBS |
| 5310-01-506-3673 | 2018-05-130 | 1 | DIBBS-RFPs |
| MS178305C316 | 2018-03-68 | 30 | UM |
| MS178305C316 | 2018-03-68 | 200 | UM |
| 5310-01-506-3673 | 2017-12-356 | 15252 | DIBBS |
| 5310-01-506-3673 | 2017-12-348 | 15252 | DIBBS |
| 5310-01-506-3673 | 2017-06-174 | 50 | US |
| 5310-01-506-3673 | 2016-05-144 | 1145 | DIBBS |
| 5310-01-506-3673 | 2016-05-136 | 1145 | DIBBS |
| 5310-01-506-3673 | 2016-03-71 | 644 | DIBBS |
| 5310-01-506-3673 | 2016-03-63 | 644 | DIBBS |
| 5310-01-506-3673 | 2015-10-288 | 736 | DIBBS |
| 5310-01-506-3673 | 2015-10-277 | 736 | DIBBS |
| 5310-01-506-3673 | 2015-08-225 | 179 | DIBBS |
| 5310-01-506-3673 | 2015-06-166 | 130 | DIBBS |
| 5310-01-506-3673 | 2015-06-153 | 130 | DIBBS |
| 5310-01-506-3673 | 2015-04-120 | 157 | DIBBS |
| 5310-01-506-3673 | 2015-04-96 | 77 | DIBBS |
| 5310-01-506-3673 | 2015-03-85 | 77 | DIBBS |
| 5310-01-506-3673 | 2015-03-63 | 151 | DIBBS |
| 5310-01-506-3673 | 2015-01-22 | 64 | DIBBS |
| 5310-01-506-3673 | 2015-01-19 | 97 | DIBBS |
| 5310-01-506-3673 | 2014-08-217 | 69 | DIBBS |
| 5310-01-506-3673 | 2014-06-163 | 3 | DIBBS |
| 5310-01-506-3673 | 2014-06-152 | 3 | DIBBS |
| MS178305C316 | 2014-04-99 | 50 | US |
| MS178305C316 | 2014-02-36 | 100 | US |
| MS178305C316 | 2013-10-280 | 14 | US |
| MS178305C316 | 2012-04-103 | 72 | United States |
| MS178305C316 | 2012-02-47 | 100 | United States |
| MS178305C316 | 2012-02-44 | 50 | US |
| MS178305C316 | 2012-02-44 | 100 | US |
| MS178305C316 | 2012-02-44 | 200 | US |
| MS178305C316 | 2012-02-44 | 500 | US |
| MS178305C316 | 2011-11-332 | 80 | United States |
| MS178305C316 | 2011-11-307 | 30 | US |
| 5310-01-506-3673 | 2011-01-10 | 20 | US |
| 5310-01-506-3673 | 2011-01-04 | 38 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-506-3673
Related Products | NSN 5310-01-506-3673
Technical Data | NSN 5310-01-506-3673
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A479 ASSN STD SINGLE MATERIAL RESPONSE AND ASTM A493 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A967 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.360 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | H3 CONFIGURATION C |
| BEARING SURFACE TYPE | ANY ACCEPTABLE |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| SPECIAL FEATURES | SURFACE TEXTURE WILL BE RA 125 MICROINCHES IAW ASME B46.1 |
| III END ITEM IDENTIFICATION | RMS L&R ANTEN |
Restrictions/Controls & Freight Information | NSN 5310-01-506-3673
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-506-3673
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
