NSN 5310-01-509-2496 M45913/3-8CG8C, M4591338CG8C, 01-509-2496
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-509-2496 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: M45913/3-8CG8C, M4591338CG8C, 5310-01-509-2496, 01-509-2496, 5310015092496, 015092496
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-509-2496 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

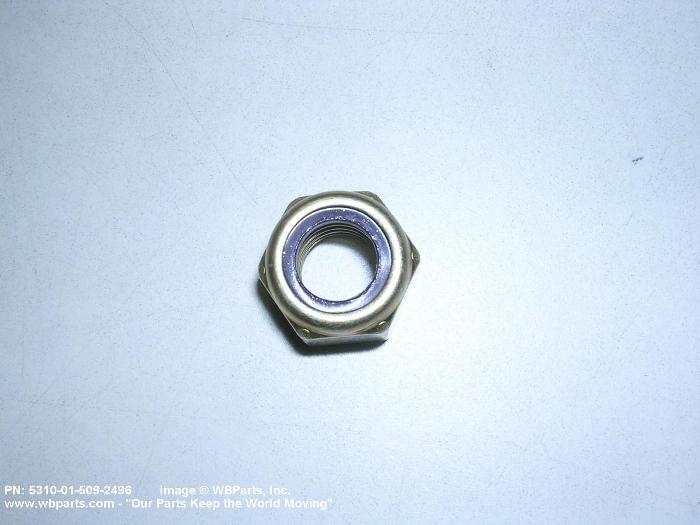

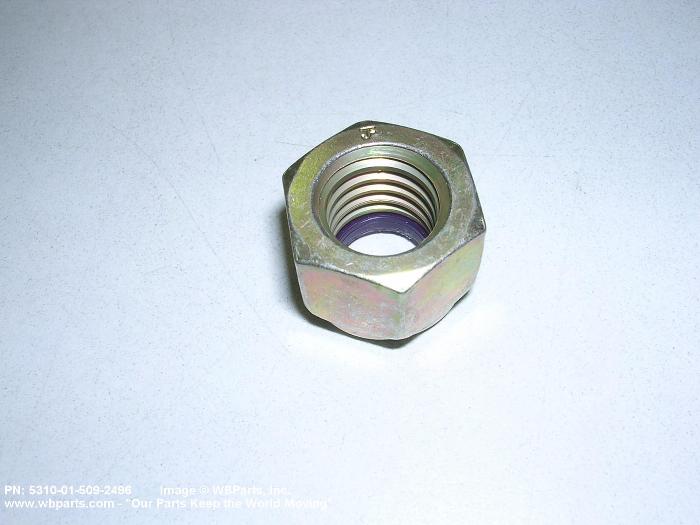

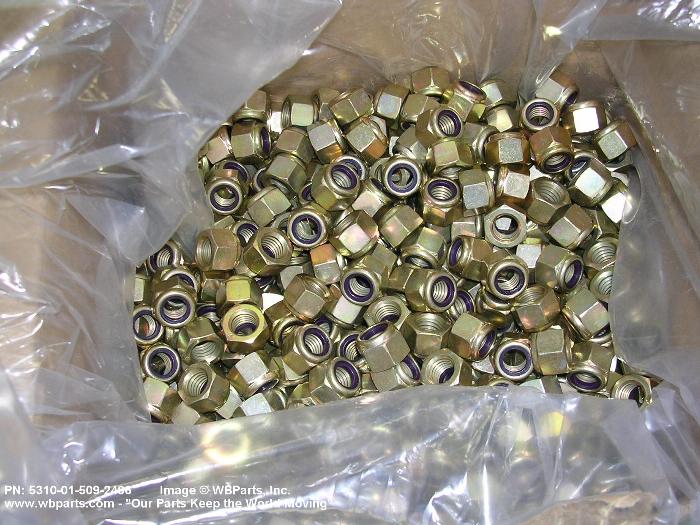

Drawings & Photos | NSN 5310-01-509-2496
Demand History | NSN 5310-01-509-2496
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-509-2496 | 2025-09-258 | 6820 | IL |
| M4591338CG8C | 2025-01-10 | 5000 | US |
| 5310-01-509-2496 | 2023-08-220 | 705 | US |
| 5310-01-509-2496 | 2019-08-227 | 10 | United States |
| 5310-01-509-2496 | 2019-04-91 | 10 | CA |
| M4591338CG8C | 2012-06-159 | 2 | US |
| M4591338CG8C | 2011-03-88 | 20 | US |
| M4591338CG8C | 2009-05-126 | 20000 | US |
| M4591338CG8C | 2009-05-126 | 40000 | US |
| 5310-01-509-2496 | 2008-05-127 | 11580 | US |
| M4591338CG8C | 2008-02-57 | 1487 | India |
| M4591338CG8C | 2008-02-42 | 1487 | India |
Cross Reference | NSN 5310-01-509-2496
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-2-13STD | 50380 | RELIANCE ELECTRIC |
| 13014410-13 | 19200 | US ARMY ARDEC RDECOM |
| 503282 | 21450 | ARMY WEAPONS COMMAND ATTN AMSWE-REE-S |
| 5310PL0329219 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 86698EPIECE53 | 50380 | RELIANCE ELECTRIC |
| M45913/3-8CG8C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-45913C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS51943-39 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| U12622 | 75160 | DEERE & CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-509-2496
Technical Data | NSN 5310-01-509-2496
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE J995, GRADE 8 ASSN STD SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | CADMIUM OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE II, CLASS 2/3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.579 INCHES MINIMUM AND 0.609 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.736 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| SPECIFICATION/STANDARD DATA | 81349-MIL-DTL-45913/3 GOVERNMENT SPECIFICATION |
| III END ITEM IDENTIFICATION | M-1 ABRAMS TANK; BUSTLE RACK EXTENSION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M45913/3-8CG8C |
Restrictions/Controls & Freight Information | NSN 5310-01-509-2496
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
