NSN 5310-01-543-8289 NAS180514, NAS1805-14, 01-543-8289
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

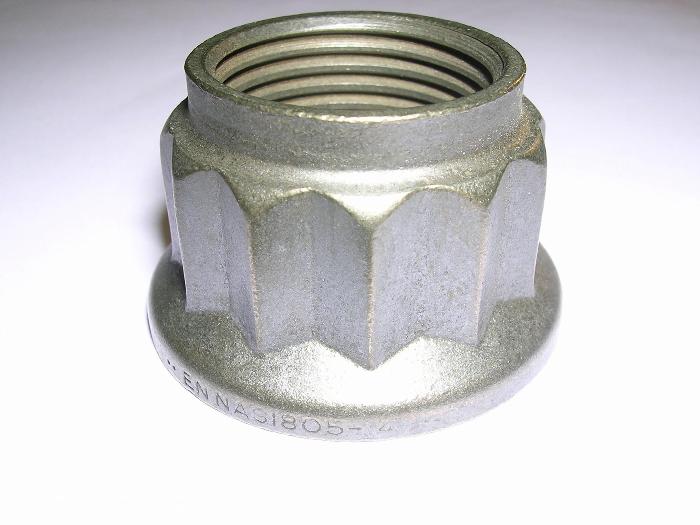

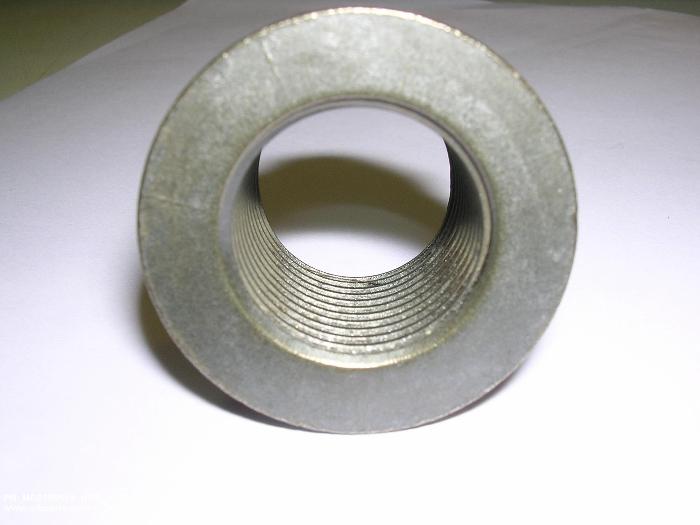

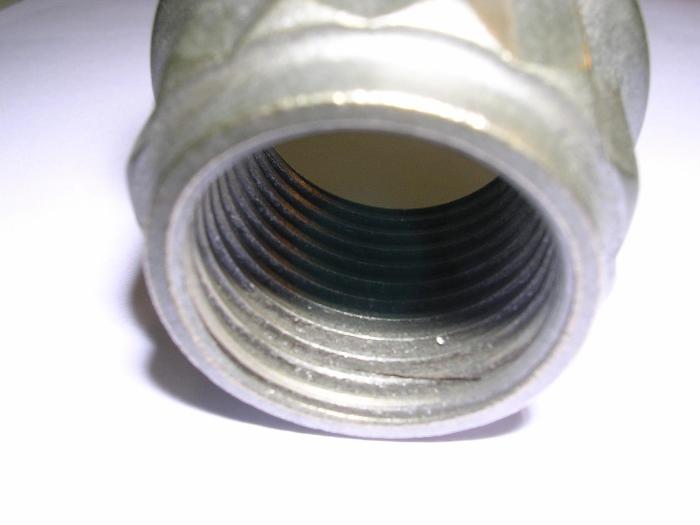

5310-01-543-8289 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS180514, NAS1805-14, 5310-01-543-8289, 01-543-8289, 5310015438289, 015438289
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 SEP 2006 | 01-543-8289 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

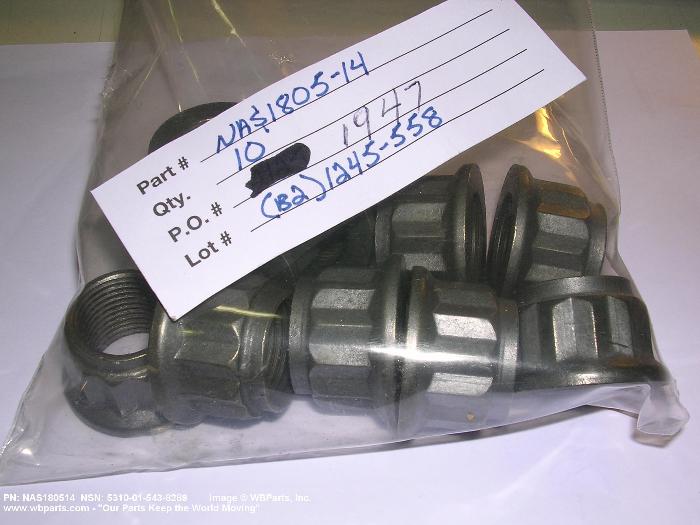

Drawings & Photos | NSN 5310-01-543-8289
Demand History | NSN 5310-01-543-8289
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS180514 | 2023-06-171 | 800 | Taiwan |
| NAS180514 | 2019-12-338 | 5 | ES |
| 5310-01-543-8289 | 2019-02-41 | 48 | DIBBS |
| 5310-01-543-8289 | 2019-01-29 | 48 | DIBBS |
| 5310-01-543-8289 | 2016-11-333 | 25 | DIBBS |
| 5310-01-543-8289 | 2016-04-95 | 25 | DIBBS |
| 5310-01-543-8289 | 2015-05-131 | 10 | DIBBS |
| 5310-01-543-8289 | 2015-04-120 | 10 | DIBBS |
| NAS180514 | 2014-01-15 | 20 | US |
| NAS180514 | 2012-04-116 | 248 | US |
| NAS180514 | 2012-03-67 | 6 | US |
| NAS180514 | 2012-02-44 | 6 | United States |
| 5310-01-543-8289 | 2010-07-188 | 110 | US |
| NAS180514 | 2007-11-309 | 2 | United States |
| NAS180514 | 2007-10-290 | 10 | United States |
Cross Reference | NSN 5310-01-543-8289
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1805-14 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
