NSN 5310-01-571-2341 M45913/1-08CS3B, M45913108CS3B, 01-571-2341
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-571-2341 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: M45913/1-08CS3B, M45913108CS3B, 5310-01-571-2341, 01-571-2341, 5310015712341, 015712341
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JAN 2009 | 01-571-2341 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

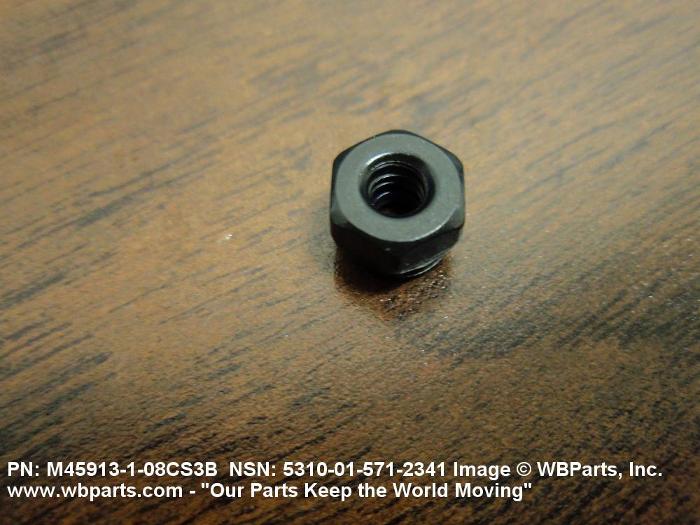

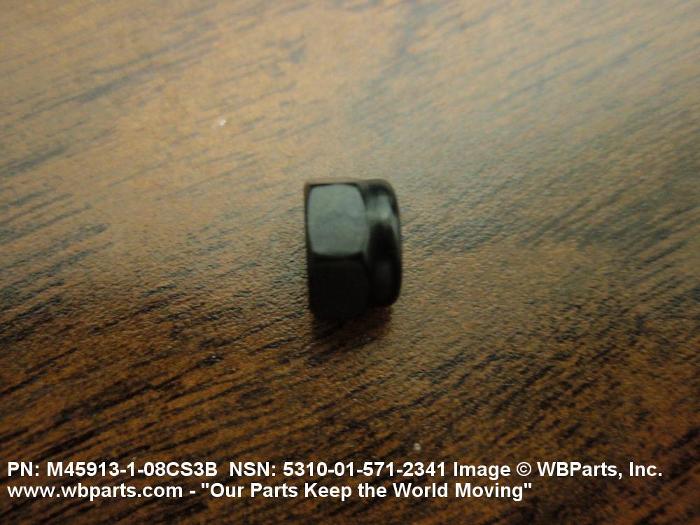

Drawings & Photos | NSN 5310-01-571-2341
Demand History | NSN 5310-01-571-2341
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-571-2341 | 2011-08-231 | 358 | DIBBS |
| 5310-01-571-2341 | 2011-06-175 | 50 | DIBBS |
| 5310-01-571-2341 | 2011-05-144 | 10 | DIBBS |
| 5310-01-571-2341 | 2011-05-143 | 16 | DIBBS |
| M45913108CS3B | 2011-01-21 | 120 | United States |
| 5310-01-571-2341 | 2010-12-341 | 16 | DIBBS |
Cross Reference | NSN 5310-01-571-2341
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M45913/1-08CS3B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-571-2341
Related Products | NSN 5310-01-571-2341
Technical Data | NSN 5310-01-571-2341
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 303 OVERALL EXCEPT INSERT |
| THREAD SERIES | UNC |
| THREAD CLASS | 2B |
| SPECIAL FEATURES | MINIMUM ULTIMATE TENSILE STRENGTH OF 70 KSI AND SHALL BE NON-MAGNETIC |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| THREAD QUANTITY PER INCH | 32 |
| WIDTH ACROSS FLATS | 0.336 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| NUT STYLE | HEXAGON |
| SURFACE TREATMENT | BLACK OXIDE OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| NUT HEIGHT | 0.219 INCHES MINIMUM AND 0.239 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| BEARING SURFACE TYPE | CHAMFERED |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE J995 GRADE 8 ASSN STD SINGLE MATERIAL RESPONSE OVERALL EXCEPT INSERT |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | NUT, SELF-LOCKING, HEX |
Restrictions/Controls & Freight Information | NSN 5310-01-571-2341
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-571-2341
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
