NSN 5310-01-578-6411 AS348610, AS3486-10, 01-578-6411
Product Details | EXTENDED WASHER SELF-LOCKING NUT
5310-01-578-6411 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: AS348610, AS3486-10, 5310-01-578-6411, 01-578-6411, 5310015786411, 015786411
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 OCT 2009 | 01-578-6411 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

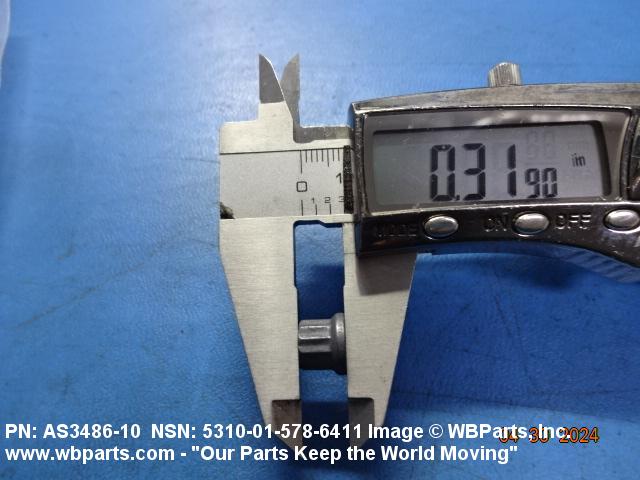

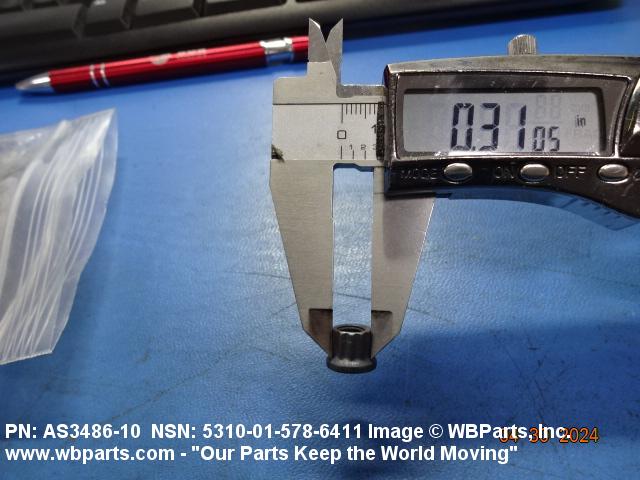

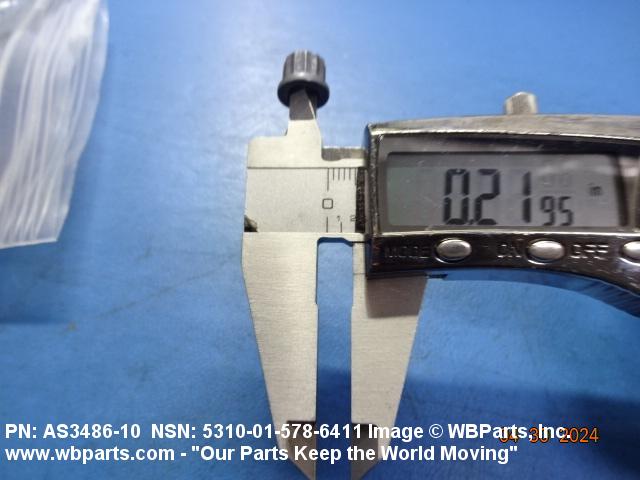

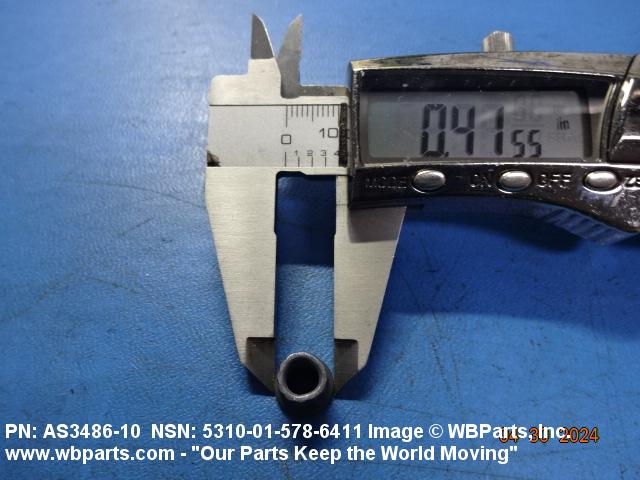

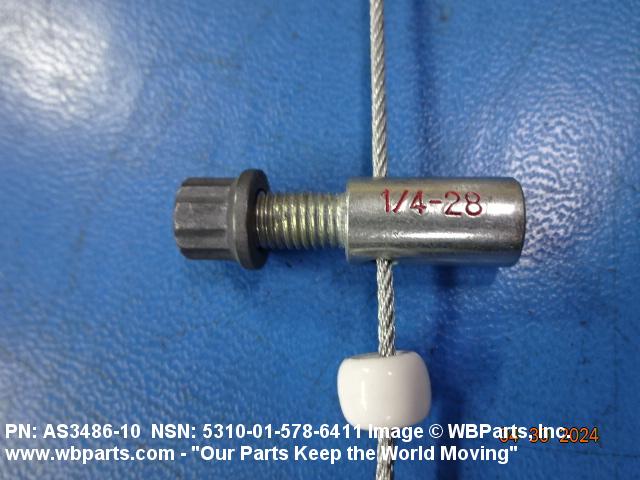

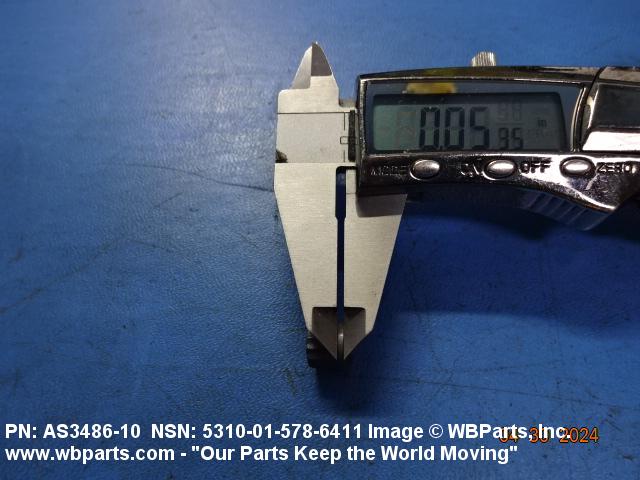

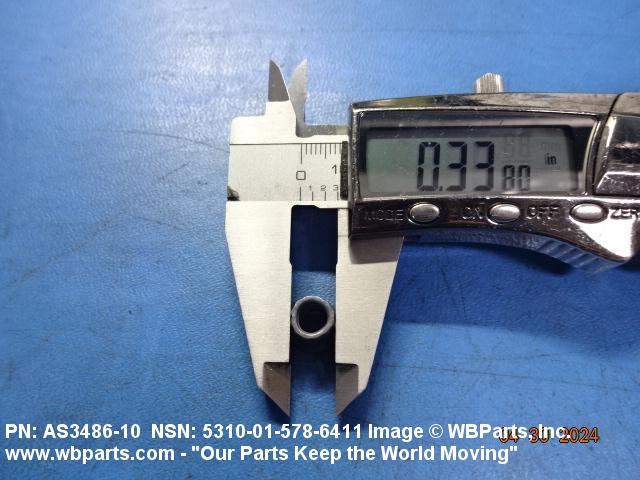

Drawings & Photos | NSN 5310-01-578-6411
Demand History | NSN 5310-01-578-6411
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS348610 | 2025-02-41 | 40 | Japan |
| AS348610 | 2024-06-158 | 10 | UK |
| 5310-01-578-6411 | 2024-04-102 | 2000 | Sweden |
| AS348610 | 2021-09-244 | 6 | United States |
| AS348610 | 2021-08-221 | 8 | UK |
| AS348610 | 2021-06-165 | 120 | IT |
| AS348610 | 2021-02-47 | 150 | United States |
| AS348610 | 2019-01-04 | 23 | US |
| AS348610 | 2018-10-297 | 10 | US |
| 5310-01-578-6411 | 2018-05-130 | 1 | DIBBS-RFPs |
| 5310-01-578-6411 | 2016-10-299 | 434 | DIBBS |
| 5310-01-578-6411 | 2016-07-213 | 319 | DIBBS |
| 5310-01-578-6411 | 2016-06-154 | 55 | DIBBS |
| AS348610 | 2016-03-89 | 6 | United States |
| AS348610 | 2015-06-162 | 10 | US |
| AS348610 | 2015-04-104 | 1200 | US |
| 5310-01-578-6411 | 2015-04-102 | 26 | DIBBS |
| 5310-01-578-6411 | 2015-03-74 | 67 | DIBBS |
| 5310-01-578-6411 | 2015-02-55 | 76 | DIBBS |
| AS348610 | 2014-11-317 | 50 | Canada |
| 5310-01-578-6411 | 2014-11-306 | 26 | DIBBS |
| 5310-01-578-6411 | 2014-09-264 | 11 | DIBBS |
| 5310-01-578-6411 | 2014-09-259 | 3 | DIBBS |
| 5310-01-578-6411 | 2014-06-170 | 10 | MX |
| 5310-01-578-6411 | 2013-03-74 | 15 | DIBBS |
| 5310-01-578-6411 | 2012-01-29 | 80 | DIBBS |
| 5310-01-578-6411 | 2011-12-337 | 15 | DIBBS |
| AS348610 | 2010-07-194 | 24 | United States |
| AS348610 | 2010-05-132 | 50 | United States |
| AS348610 | 2010-01-15 | 5 | United States |
| AS348610 | 2009-08-225 | 500 | US |
| AS348610 | 2009-03-70 | 24 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-578-6411
Related Products | NSN 5310-01-578-6411
Technical Data | NSN 5310-01-578-6411
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | DOUBLE HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.400 INCHES MINIMUM |
| LUBRICATION | DRY FILM LUBRICANT |
| HARDNESS RATING | 37.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| WASHER THICKNESS | 0.045 INCHES MINIMUM AND 0.057 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| THREAD SERIES | UNJF |
| OVERALL HEIGHT | 0.317 INCHES NOMINAL |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5731 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS 5734 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | COPPER OVERALL OR NICKEL OVERALL |
| WIDTH ACROSS FLATS | 0.3125 INCHES NOMINAL |
| MATERIAL | IRON ALLOY 660 OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2416 ASSN STD SINGLE TREATMENT RESPONSE OVERALL OR AMS 2403 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| TEMP RATING | 800.0 DEG FAHRENHEIT MAXIMUM |
| THREAD CLASS | 3B |
Restrictions/Controls & Freight Information | NSN 5310-01-578-6411
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-578-6411
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
